Rolipo Handheld Garment Steamer MS207 User Manual

1. Introduction

Thank you for choosing the Rolipo Handheld Garment Steamer MS207. This compact and portable steamer is designed to provide quick and efficient wrinkle removal for various fabrics, making it ideal for use at home, during travel, or in the office. Please read this manual thoroughly before first use to ensure safe and optimal operation of your device.

Figure 1: Rolipo Handheld Garment Steamer MS207 and Packaging

This image displays the Rolipo Handheld Garment Steamer MS207 alongside its product packaging. The steamer features a sleek black design with a transparent water tank and a rose gold steaming plate. The packaging highlights key features such as quick wrinkle removal and portability.

2. Important Safety Information

To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions when using electrical appliances. Keep this manual for future reference.

• Electrical Safety: Ensure the voltage matches your power supply. Do not operate with a damaged cord or plug. Unplug when not in use and before cleaning.
• Steam Safety: Steam is hot. Keep hands, face, and body away from the steam nozzle. Do not direct steam at people or pets.
• Water Safety: Use only distilled or demineralized water to prevent mineral buildup. Do not overfill the water tank. Never add perfumes, vinegar, or other chemicals to the water tank.
• Handling: Always hold the steamer by the handle. Do not immerse the steamer in water or other liquids.
• Storage: Allow the steamer to cool completely before storing. Store in a dry, safe place out of reach of children.

3. Product Overview

The Rolipo Handheld Garment Steamer MS207 consists of the following main components:

• Steamer Unit (main body with handle and heating element)
• Water Tank (detachable, transparent)
• Steam Nozzle/Plate
• Power Cord

4. Setup Instructions

1. Unpack: Carefully remove the steamer and all accessories from the packaging. Inspect for any damage.
2. Fill Water Tank: Detach the water tank from the main unit. Open the rubber stopper and fill the tank with distilled or demineralized water up to the MAX fill line. Do not overfill. Close the stopper securely and reattach the water tank to the steamer unit.
3. Connect Power: Plug the power cord into a suitable electrical outlet.

5. Operating Instructions

5.1 Powering On and Heating

Once the water tank is filled and the steamer is plugged in, press the power button. The indicator light will illuminate, and the steamer will begin to heat up. It typically takes approximately 25 seconds to reach operating temperature.

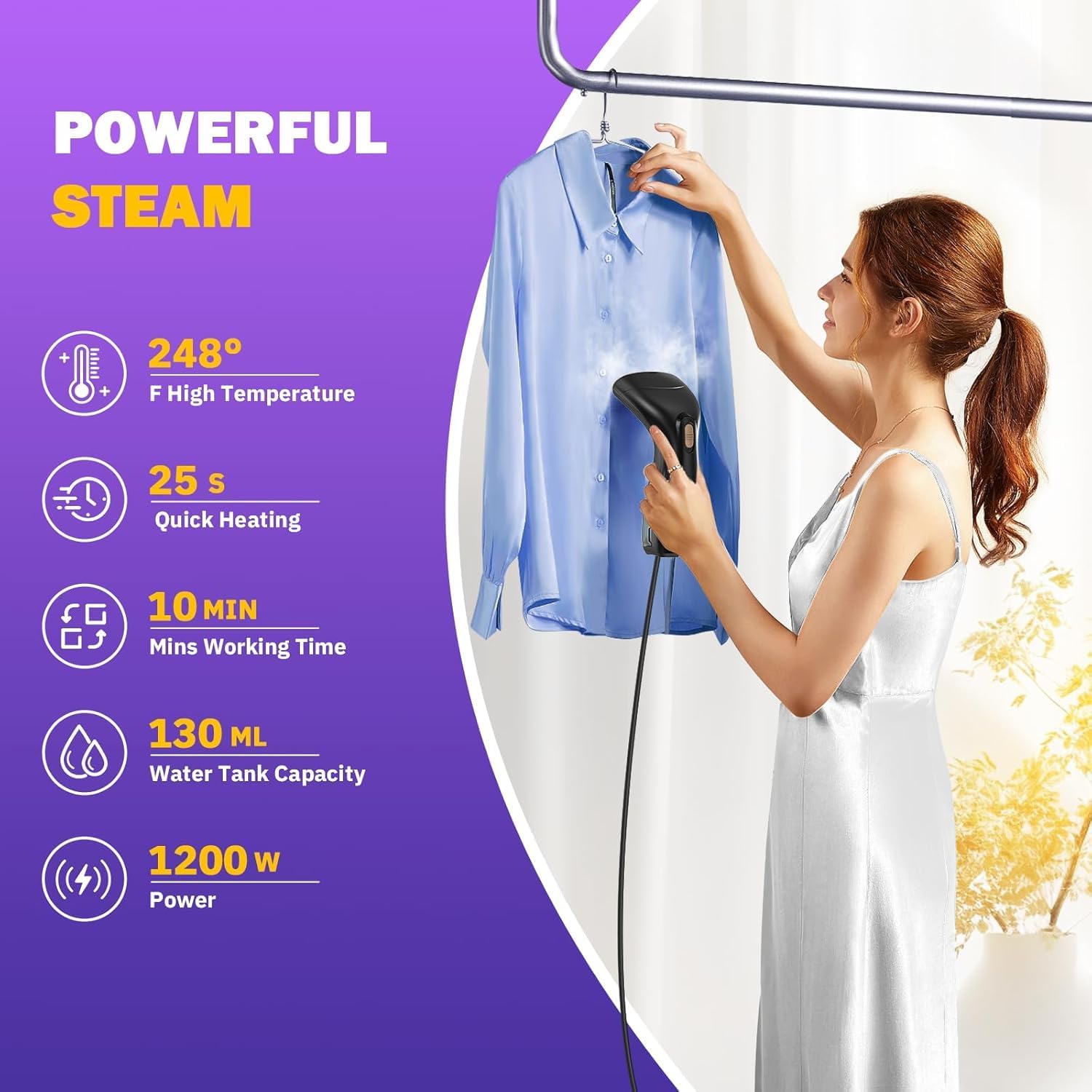

Figure 2: Steamer in Use with Performance Metrics

This image shows a woman using the Rolipo steamer on a blue shirt. Overlaid text indicates key performance metrics: 248°F high temperature, 25 seconds quick heating, 10 minutes working time, 130ml water tank capacity, and 1200W power.

5.2 Steaming Techniques

The Rolipo steamer can be used for both vertical and horizontal steaming, offering flexibility for various garments and household items.

• Vertical Steaming: Hang the garment on a hanger. Hold the steamer upright and gently glide the steam plate over the fabric, moving from top to bottom.
• Horizontal Steaming: Lay the garment flat on a heat-resistant surface. Hold the steamer horizontally and move it across the fabric.

Figure 3: Versatile Steaming Positions

This image illustrates the steamer's waterproof design and its ability to be used vertically and horizontally. A woman is shown steaming a coat, and smaller insets demonstrate the steamer being used for horizontal pressing on trousers and vertical steaming on a jacket, emphasizing its functionality at any angle without spills.

5.3 Fabric Compatibility

The high-temperature metal panel allows steam to penetrate various fabrics effectively. The steamer is suitable for a wide range of materials, including:

• Cotton
• Silk
• Wool
• Polyester
• Chiffon
• Linen
• Other household items like carpets, bedding, cushions, pillows, sofas, and stuffed toys.

Figure 4: High Temperature Panel for Diverse Fabrics

This image provides a close-up view of the steamer's high-temperature panel in action on a blue fabric. It also displays examples of various garments such as a dress, windbreaker, woolen coat, and wool skirt, indicating the steamer's suitability for different clothing types.

Figure 5: Wrinkle Removal Effectiveness

This image presents a side-by-side comparison of a blue shirt before and after steaming. The 'Before' image shows a heavily wrinkled shirt, while the 'After' image displays the same shirt looking smooth and wrinkle-free, demonstrating the steamer's effectiveness.

Figure 6: Suitable Fabric Types

This image showcases various clothing items including a jacket, suit, cowboy shirt, pullover, and a dress shirt, illustrating the wide range of fabrics and garments that can be effectively steamed with this device.

6. Maintenance

6.1 After Each Use

• Unplug the steamer from the power outlet.
• Allow the steamer to cool down completely.
• Empty any remaining water from the water tank.
• Wipe the exterior of the steamer with a soft, damp cloth.

6.2 Descaling

Over time, mineral deposits may build up inside the steamer, especially if non-distilled water is used. To descale:

• Mix a solution of 50% white vinegar and 50% distilled water.
• Fill the water tank with this solution up to the MAX line.
• Plug in the steamer and allow it to heat up.
• Steam the solution until the tank is empty.
• Repeat the process with clean distilled water to rinse out any vinegar residue.
• Perform descaling every 1-2 months depending on usage and water hardness.

6.3 Storage

Ensure the steamer is completely cool and dry before storing. Store it in its original packaging or a safe, dry place away from direct sunlight and moisture.

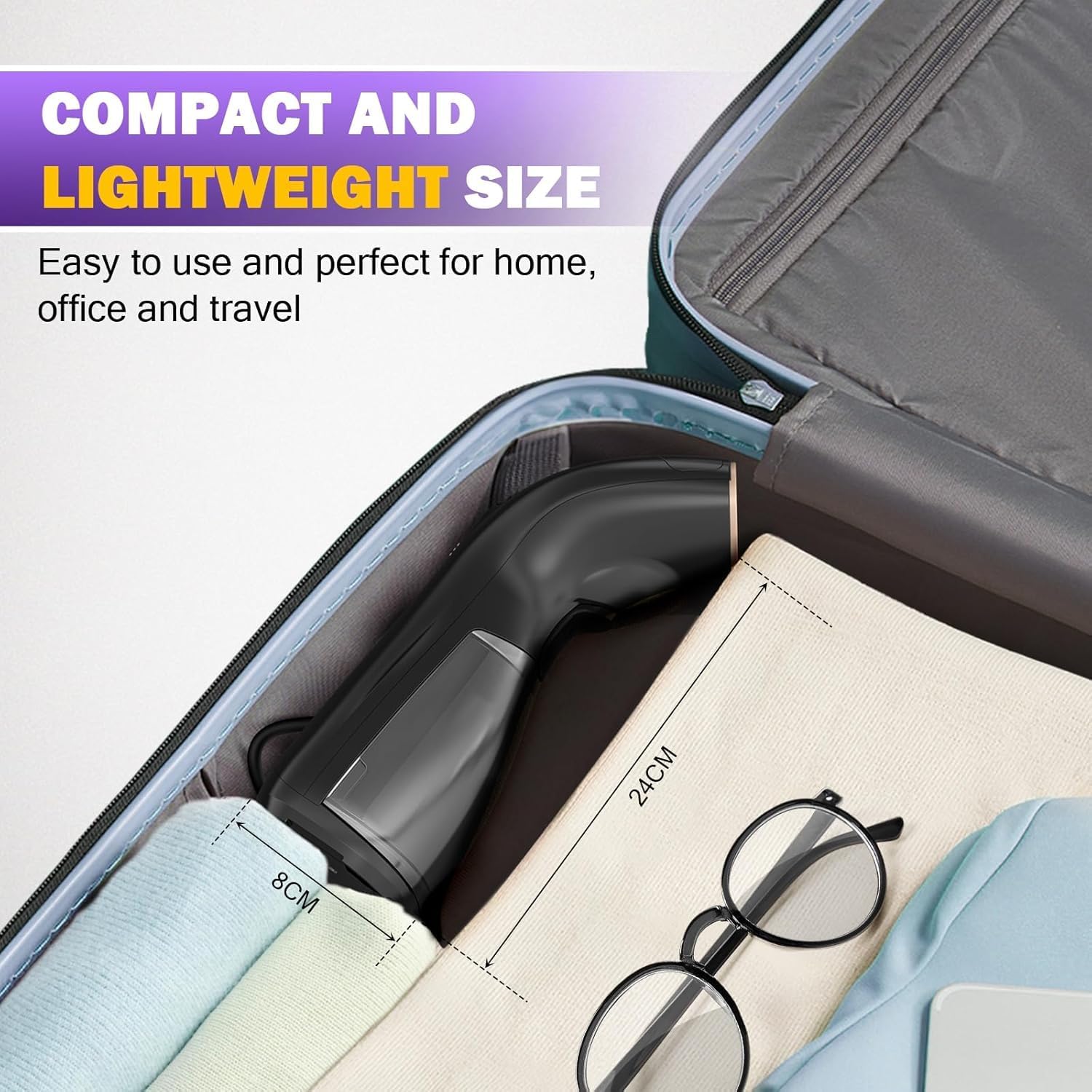

Figure 7: Compact Size for Travel

This image demonstrates the compact and lightweight size of the Rolipo steamer, showing it neatly packed inside a suitcase alongside other travel essentials. Dimensions of 8cm width and 24cm length are indicated, highlighting its suitability for home, office, and travel use.

7. Troubleshooting

If you encounter any issues with your Rolipo Handheld Garment Steamer, please refer to the following common problems and solutions:

8. Specifications

• Model Number: MS207
• Power: 1200W
• Water Tank Capacity: 130ml
• Heating Time: Approximately 25 seconds
• Continuous Working Time: Up to 10 minutes
• Item Weight: 760g
• Package Dimensions: 23.5 x 13.8 x 11.2 cm
• Color: Galaxy Black

9. Warranty and Support

Rolipo products are manufactured to high-quality standards. For any questions, technical support, or warranty claims, please contact our customer service. Please have your model number (MS207) and purchase information ready when contacting support.

For further assistance, please refer to the contact information provided with your purchase or visit the official Rolipo website.
