User Manual

Product Overview

The SAMTRA Queen Size Farmhouse Bed Frame is designed to provide both comfort and functionality. It features a classic black finish, a headboard with an integrated charging station (1 USB and 1 Type-C port), and a footboard with sliding barn doors for convenient storage. Constructed with solid wood slats and MDF, this bed frame offers robust support without the need for a box spring.

Image: The SAMTRA Queen Size Farmhouse Bed Frame, black, with a headboard and a footboard featuring sliding barn doors for storage. The bed is made up with white bedding and pillows, situated in a bright bedroom with a window showing a snowy landscape.

Safety Information

WARNING:

• Do not exceed the maximum load capacity of 800 pounds.
• Exercise caution with sharp edges during assembly and use.
• Ensure all components are properly assembled to prevent instability and potential squeaking.
• Keep small parts away from children during assembly.

Package Contents

Before beginning assembly, ensure all parts listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Headboard components
• Footboard with sliding barn doors
• Side rails
• Solid wood slats
• Support legs
• Hardware pack (screws, bolts, nuts, Allen wrench)
• Installation Manual

Image: A close-up view of the bed's headboard, highlighting the integrated charging station with one USB port and one Type-C port, along with a small touch light. A smartphone and smartwatch are shown charging on the headboard shelf.

Setup and Assembly

Assembly is estimated to take approximately 50 minutes with two people. Follow these steps carefully for proper setup.

1. Unpack and Identify Parts: Lay out all components on a clean, soft surface to prevent scratches. Refer to the included parts list to identify each piece.
2. Assemble Headboard: Attach the headboard panels and secure them using the provided hardware. Ensure the charging station is correctly oriented.
3. Assemble Footboard: Attach the footboard components, including the sliding barn door mechanism. Ensure the doors slide smoothly.
4. Attach Side Rails: Connect the side rails to both the headboard and footboard using the appropriate bolts. Do not overtighten initially.
5. Install Center Support: Place the center support beam and legs as indicated in the diagram. This provides crucial stability.
6. Place Slats: Lay the solid wood slats across the bed frame, ensuring they are evenly spaced and secured to the side rails.
7. Final Tightening: Once all components are in place, systematically tighten all bolts and screws. Do not overtighten to avoid damaging the wood.

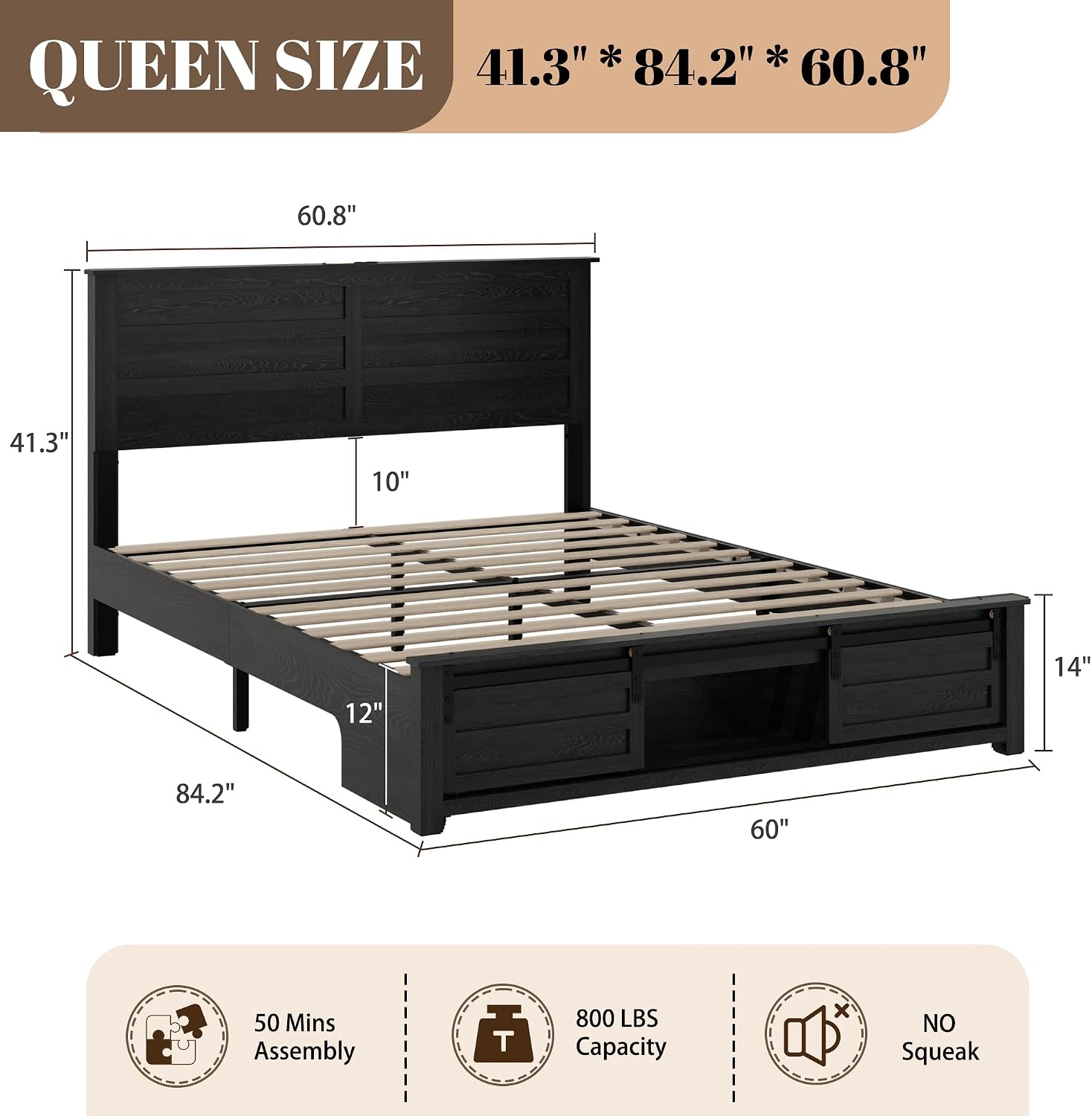

Image: A technical diagram illustrating the dimensions of the Queen size bed frame (41.3" H x 84.2" L x 60.8" W) and highlighting key features such as 50 minutes assembly time, 800 lbs capacity, and no squeak design.

Image: A front view of the assembled bed frame, showcasing the footboard with its central open storage compartment and two sliding barn doors on either side, revealing stored items like folded clothes and books.

Image: Three circular insets highlighting structural details: "Sturdy Steel" showing a metal support beam, "Wood Frame" showing the natural wood grain of a slat, and "Easy Assembly" showing a simple connection point.

Operating Instructions

Using the Charging Station:

The headboard features an integrated charging station. To use it:

1. Connect the power cord from the charging station to a standard wall outlet.
2. Plug your USB-compatible devices into the 5V/2A USB port.
3. Plug your Type-C compatible devices into the 5V/2A Type-C port.
4. The touch light can be activated by touching the designated area on the headboard.

Using the Storage Footboard:

The footboard provides convenient storage with sliding barn doors:

• Gently slide the barn doors along their tracks to access the storage compartments.
• The central open compartment is ideal for frequently accessed items.
• The compartments behind the sliding doors offer concealed storage for linens, books, or other items.

Image: A detailed view of the footboard's storage area, showing the black metal rails and the textured wooden sliding barn doors. The doors are partially open, revealing folded textiles and books inside the compartments.

Maintenance

• Cleaning: Wipe the bed frame with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
• Hardware Check: Periodically check all bolts and screws to ensure they remain tight. Retighten if necessary to maintain stability and prevent squeaking.
• Sliding Doors: Keep the tracks of the sliding barn doors free from dust and debris to ensure smooth operation.
• Charging Station: Ensure the charging station area is kept dry and free from spills. Do not attempt to repair the electrical components yourself.

Troubleshooting

Specifications

• Model: Farmhouse Bed Frame Queen Size
• Brand: SAMTRA
• Size: Queen
• Product Dimensions: 81.5"L x 55.7"W x 40.4"H
• Color: Classic Black (Storage Footboard)
• Material: Solid Wood, MDF, Steel
• Load Capacity: Up to 800 LBS
• Charging Station: 1 USB Port (5V/2A), 1 Type-C Port (5V/2A), Touch Light
• Assembly Required: Yes (Approx. 50 minutes)
• Box Spring Needed: No
• Special Features: Footboard Storage with Sliding Barn Doors, RGB LED, Squeak Resistant, No Noise.

Warranty and Support

For warranty information or technical support, please contact SAMTRA customer service. Details can typically be found on the product packaging or the official SAMTRA website.

Contact Information: Refer to your purchase documentation or visit the SAMTRA Store on Amazon for further assistance.
