FSE SC30H-BW Underbar Ice Bin Partial Cover User Manual

1. Product Overview

The FSE SC30H-BW Underbar Ice Bin Partial Cover is designed to fit 30" wide x 19" deep stainless steel underbar ice bins. This NSF-certified cover includes a set of two plastic bottle wells, providing a practical solution for organizing and maintaining beverages within an ice bin setup. It helps to keep ice clean and accessible while offering convenient storage for bottles.

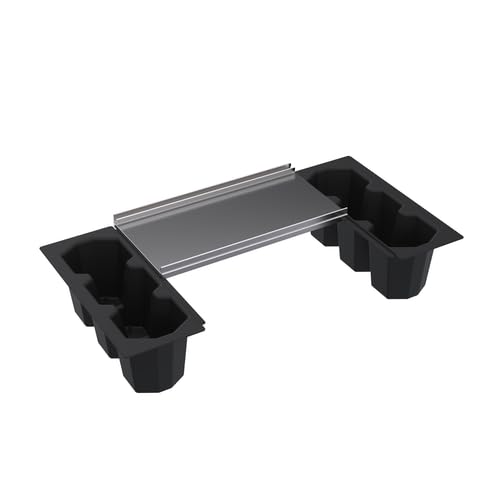

An image showing the FSE SC30H-BW Underbar Ice Bin Partial Cover, featuring a stainless steel central section and two black plastic bottle well inserts on either side. The cover is designed to fit a 30" wide x 19" deep ice bin.

2. Setup Instructions

1. Unpack all components: Carefully remove all parts from the packaging. Ensure all components, including the stainless steel partial cover and the two plastic bottle wells, are present and undamaged.
2. Prepare the ice bin: Ensure the underbar ice bin is clean and free of any debris or obstructions before placing the cover.
3. Position the cover: Gently place the stainless steel partial cover onto the designated 30"w x 19"d ice bin opening. Ensure it sits flush and securely on the edges of the bin.
4. Insert bottle wells: Place the two black plastic bottle wells into the designated slots on either side of the stainless steel cover. Press down firmly to ensure they are seated securely and do not wobble.

3. Operating Instructions

The FSE SC30H-BW Underbar Ice Bin Partial Cover is designed for straightforward use in commercial or home bar settings.

1. Ice placement: Fill the open section of the ice bin with ice as needed. The partial cover allows for easy access to the ice while keeping a portion of the bin covered.
2. Bottle placement: Place beverage bottles, mixers, or other containers into the plastic bottle wells for chilling and easy access. The wells help to keep bottles upright and organized within the ice.
3. Maintain ice levels: Periodically check and replenish ice to ensure optimal chilling performance for both the main ice bin and the bottle wells.

4. Maintenance and Care

Regular cleaning and maintenance will ensure the longevity and hygienic operation of your ice bin partial cover.

1. Daily cleaning: After each use or at the end of the day, remove the partial cover and bottle wells from the ice bin.
2. Wash components: Wash the stainless steel cover and plastic bottle wells with warm, soapy water. Use a soft cloth or sponge to prevent scratching the surfaces. Avoid abrasive cleaners or scouring pads.
3. Rinse thoroughly: Rinse all components thoroughly with clean, fresh water to remove any soap residue.
4. Sanitize (optional): For commercial applications or enhanced hygiene, sanitize components according to local health regulations and guidelines for food contact surfaces.
5. Dry and store: Allow all parts to air dry completely or wipe them dry with a clean, lint-free cloth before reassembling or storing. Store in a clean, dry place.

5. Troubleshooting

This section addresses common issues you might encounter with your FSE SC30H-BW Underbar Ice Bin Partial Cover.

• Issue: Cover does not fit properly.
  Solution: Verify the dimensions of your ice bin. This cover is specifically designed for 30" wide x 19" deep stainless steel ice bins. Ensure the cover is oriented correctly on the bin.
• Issue: Bottle wells are loose or unstable.
  Solution: Ensure the bottle wells are fully inserted into their designated slots on the partial cover. Check for any obstructions or debris preventing a secure fit.

6. Specifications

7. Warranty and Support

Warranty information for FSE products is typically provided by the manufacturer. Please refer to the manufacturer's official website or contact their customer support for detailed warranty terms and conditions. For product support, including inquiries about parts or service, contact FSE customer service directly. You may also visit the FSE Store on Amazon for additional product information.
