1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your SIXWIN Android Car Stereo. This unit is specifically designed for Mazda BT-50 vehicles manufactured between 2011 and 2020. It features an Android 13 system with 2GB RAM and 64GB ROM, offering a comprehensive in-car entertainment and navigation solution.
Important Note: This car radio is intended for the basic version of the Mazda BT-50. If your vehicle has a factory navigation system, please contact customer support with a picture of your car's center console for compatibility verification and assistance.
2. Package Contents
Verify that all items listed below are included in your package. If any items are missing or damaged, please contact customer support.
Image: Overview of the SIXWIN Android Car Stereo and its included accessories, such as power cables, USB cables, GPS antenna, and user manual.
- Main Head Unit (9-inch Touchscreen)
- Power Cable
- RCA Input/Output Cables
- USB Cable
- GPS Antenna
- Reversing Camera Input Cable
- Radio Antenna
- Installation Tool
- Emergency Light Adapter
- Microphone
- Rear Camera (if included in specific package)
- Canbus (if required for vehicle model)
- User Manual
3. Installation Guide
The SIXWIN Android Car Stereo is designed for plug-and-play installation. However, professional installation is recommended to ensure proper wiring and functionality. Always disconnect the vehicle's battery before beginning installation.
3.1 Pre-Installation Check
- Confirm vehicle compatibility (Mazda BT-50 2011-2020, basic version).
- Ensure all package contents are present.
- Gather necessary tools (e.g., trim removal tools, screwdrivers).
3.2 Installation Steps
- Carefully remove the original car radio and trim panels from your Mazda BT-50. Refer to specific vehicle disassembly guides if needed.
- Connect the provided wiring harnesses to the corresponding ports on the new SIXWIN head unit and your vehicle's wiring. Ensure all connections are secure.
- Connect the GPS antenna, radio antenna, and any optional accessories like the backup camera or external microphone.
- Test the unit's basic functions (power on, radio, sound) before fully reassembling the dashboard.
- Carefully mount the new head unit into the dashboard opening and reattach all trim panels.

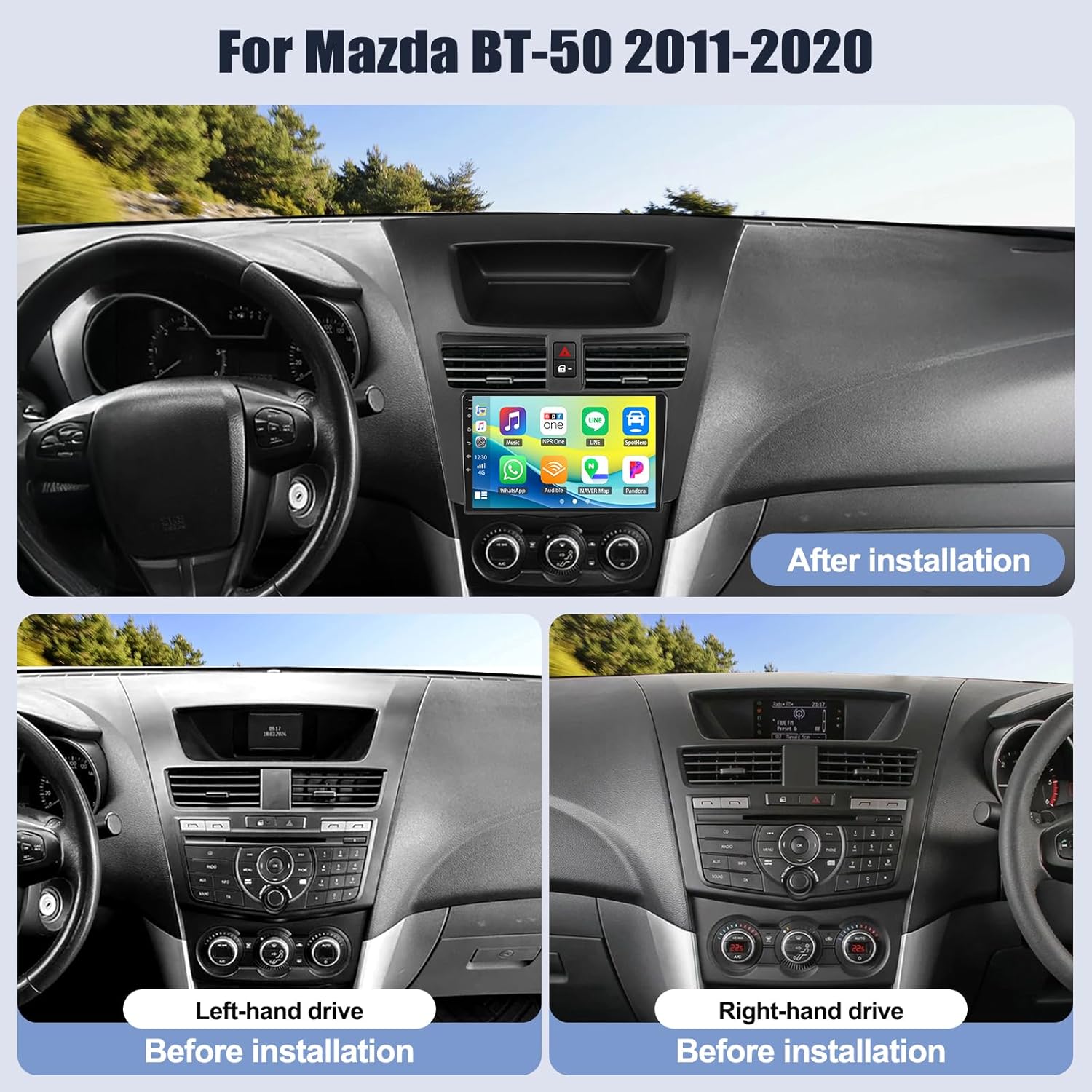

Image: Comparison showing the car dashboard before and after the installation of the SIXWIN Android Car Stereo, highlighting the integrated look.
4. Operating Instructions
4.1 Wireless CarPlay & Android Auto
The unit supports both wireless and wired CarPlay and Android Auto, allowing seamless integration with your smartphone for navigation, communication, and entertainment.
For Wireless CarPlay:
- Establish a Bluetooth connection between the car stereo and your iPhone.
- Open the "Zlink5" application on the car stereo.
- Enjoy wireless Apple CarPlay functionality.
For Wireless Android Auto:
- Download the Android Auto app on your Android phone.
- Establish a Bluetooth connection between the car stereo and your Android phone.
- Open the "Zlink5" application on the car stereo.
- Enjoy wireless Android Auto functionality. (Note: Samsung phones may not be supported for Mirror Link, check for Android Auto compatibility).
Image: Visual guide for connecting to Wireless CarPlay and Android Auto, showing the steps and interface on the car stereo.
4.2 Mirror Link
Mirror Link allows you to display your smartphone's screen directly on the car stereo. For iOS devices, this typically uses Wi-Fi. For Android devices, both USB and Wi-Fi connections are usually supported. (Note: Compatibility with Samsung phones for Mirror Link may vary).
Image: Illustration of Mirror Link feature, demonstrating how iOS and Android phone screens can be mirrored to the car stereo display.
4.3 GPS Navigation & WiFi
The head unit includes built-in GPS navigation supporting both online and offline maps. It comes pre-installed with the "Here We Go" app. You can download offline maps for use without an internet connection. Connect to Wi-Fi to access the Play Store and download additional apps like YouTube, TikTok, and Spotify.
Image: Display of the GPS navigation interface showing a route, alongside an illustration of various apps accessible via Wi-Fi.
4.4 Bluetooth Hands-free & FM Radio
Enjoy hands-free calling and Bluetooth music streaming. The FM radio offers 18 preset stations (87.50-108.0 MHz) for news and music.
Bluetooth Operation:
- Pair your phone via Bluetooth settings on the stereo.
- Access phone contacts, make/receive calls, and stream audio.
FM Radio Operation:
- Select the FM radio application.
- Scan for stations or select from presets.
Image: Depiction of the Bluetooth hands-free calling feature, showing a phone call in progress and the stereo's dial pad.
Image: Screenshot of the FM/RDS radio interface, displaying station frequency and preset options.
4.5 Backup Camera & Steering Wheel Control
The unit supports a backup camera for safer parking and reversing. It also integrates with your vehicle's steering wheel controls, allowing you to manage audio and calls without taking your hands off the wheel.
Steering Wheel Control Setup:
- Access the Steering Wheel Control settings in the unit's menu.
- Follow the on-screen instructions to map your vehicle's steering wheel buttons to the desired functions (e.g., volume, track skip, answer call).
Image: The car stereo display showing the steering wheel control learning interface, allowing users to program buttons.
4.6 Other Features
- 1080P Touchscreen: The 9-inch capacitive touchscreen provides a clear and responsive interface.
- Split Screen: Utilize the split-screen function to run two applications simultaneously, such as navigation and music playback.
- EQ Sound: Adjust audio settings with the built-in equalizer to customize your listening experience.
Image: Demonstrates the 1080P touchscreen clarity and the split-screen feature, showing two apps running concurrently.
Image: Screenshot of the EQ sound settings, allowing users to adjust audio frequencies and sound field.
5. Troubleshooting
If you encounter issues with your SIXWIN Android Car Stereo, please refer to the following common problems and solutions. For persistent issues, contact customer support.
| Problem | Possible Cause / Solution |
|---|---|
| Unit does not power on. | Check power cable connections. Ensure vehicle battery is connected and charged. Verify fuse. |
| Touch screen unresponsive or slow. | Restart the unit. Ensure the screen is clean and dry. If persistent, a software update or reset may be needed. |
| Poor microphone audio quality during calls. | Ensure the external microphone is properly connected and positioned. Check microphone settings in the unit. |
| Steering wheel controls not working. | Verify Canbus connection (if applicable). Re-enter the steering wheel control learning interface and re-program buttons. |
| No GPS signal. | Ensure the GPS antenna is properly connected and placed in an unobstructed location (e.g., on the dashboard). |
| Wireless CarPlay/Android Auto not connecting. | Ensure Bluetooth is enabled on both devices. Confirm "Zlink5" app is open. Check phone compatibility (e.g., Samsung phones may have Mirror Link issues). |
6. Specifications
Key technical specifications for the SIXWIN Android Car Stereo.
- Brand: SIXWIN
- Operating System: Android 13
- Memory: 2GB RAM + 64GB ROM
- Screen Size: 9 Inches
- Display Type: LCD, Capacitive Touchscreen
- Connectivity: Wireless CarPlay, Android Auto, Mirror Link, Bluetooth, Wi-Fi
- Navigation: Built-in GPS (supports online/offline maps)
- Radio: FM (87.50-108.0 MHz)
- Audio Output Mode: Stereo
- Human-Interface Input: Microphone, Touchscreen, Voice Control
- Compatible Devices: Smartphone
- Mounting Type: Dashboard Mount
- Item Weight: 1937.99 Grams
- Item Dimensions (L x W x H): 1"L x 1"W x 1"H (Note: These dimensions seem generic, refer to product images for actual unit dimensions)
Image: Technical drawing showing the dimensions of the SIXWIN Android Car Stereo unit.
7. Maintenance
To ensure the longevity and optimal performance of your car stereo, follow these maintenance guidelines:
- Cleaning: Use a soft, dry cloth to clean the screen and unit exterior. Avoid abrasive cleaners or solvents.
- Software Updates: Periodically check for and install software updates to improve performance and add new features.
- Temperature: Avoid exposing the unit to extreme temperatures for extended periods.
- Connections: Ensure all cables remain securely connected.
8. Warranty and Support
The SIXWIN Android Car Stereo comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use.
