Introduction
Thank you for choosing the Techwood TNA-006 600W Spot Cleaner and Stain Remover. This powerful and versatile appliance is designed to effectively remove everyday stains from various surfaces, ensuring a thorough and hygienic clean. Please read this manual carefully before use to ensure safe and optimal operation.
Key features include:
- Powerful 600W Motor: Provides strong suction for effective stain removal.
- Versatile Cleaning: Suitable for carpets, cushions, vehicle interiors, stairs, and other upholstery.
- Dual Tank System: Features separate tanks for clean water (1.5L) and dirty water (0.85L) for hygienic operation.
- Extra-Large Brush: Covers a wider surface area for faster and more efficient cleaning.
- Included Accessories: Comes with a 2-in-1 nozzle and crevice tool for hard-to-reach areas.
- Long 4m Power Cable: Offers extended reach and flexibility during cleaning.
Product Overview
Figure 1: Techwood TNA-006 600W Spot Cleaner and Stain Remover. This image shows the main unit with its two transparent tanks, handle, and hose with the cleaning head attached.

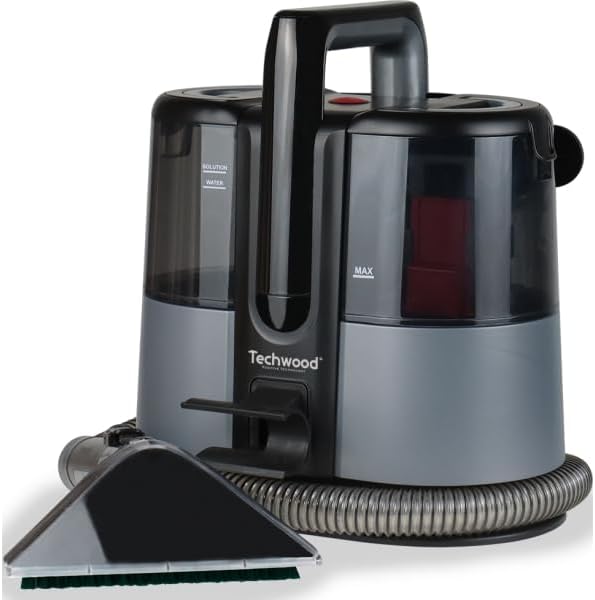

Figure 2: Front view of the Techwood TNA-006 Spot Cleaner, highlighting the compact design and the cleaning nozzle.
Setup
- Unpack the Appliance: Carefully remove all components from the packaging. Ensure all accessories are present.
- Fill the Clean Water Tank:
Locate the clean water tank (usually marked "SOLUTION" or "WATER"). Open the cap and fill it with clean water. You may add a suitable cleaning solution as per the solution manufacturer's instructions. Do not exceed the maximum fill line. The clean water tank capacity is 1.5 liters.
Video 1: Demonstrates the setup and use of a similar spot cleaner, including filling the water tank and attaching accessories. This video is provided by the seller and shows the product in action.
- Attach the Cleaning Tool: Connect the desired cleaning tool (e.g., extra-large brush, 2-in-1 nozzle, or crevice tool) securely to the end of the hose.
- Connect to Power: Plug the 4-meter power cable into a suitable electrical outlet (220-240V ~ 50-60Hz).
Operating Instructions
- Pre-test: Before cleaning, test the appliance on an inconspicuous area of the surface to be cleaned to ensure colorfastness and no damage occurs.
- Power On: Press the power button to turn on the spot cleaner.
- Apply Solution: Hold the cleaning tool over the stained area. Press the trigger on the handle to spray the cleaning solution onto the stain.
- Scrub the Stain: Gently scrub the stained area with the brush attachment. For stubborn stains, allow the solution to soak for a few minutes (refer to cleaning solution instructions).
- Extract Dirty Water: Release the spray trigger and slowly pull the cleaning tool over the treated area to vacuum up the dirty solution. Repeat this step until no more dirty water is being extracted and the area appears clean.
- Rinse (Optional): For best results, you may rinse the area by spraying clean water (without solution) and extracting it.
- Repeat if Necessary: For heavily soiled areas, repeat the cleaning process.
- Power Off: Once cleaning is complete, turn off the appliance and unplug it from the power outlet.
Maintenance
- Empty and Clean Dirty Water Tank:
After each use, remove the dirty water tank (capacity 0.85L). Carefully empty the contents into a drain. Rinse the tank thoroughly with clean water and allow it to air dry before reattaching.
- Clean Cleaning Tools: Remove the cleaning tool from the hose. Rinse it under running water to remove any debris or residue. Ensure the spray nozzle is clear.
- Wipe Down the Unit: Use a soft, damp cloth to wipe the exterior of the appliance. Do not immerse the main unit in water.
- Store the Appliance: Wrap the power cord neatly. Store the hose and accessories in their designated places on the unit or in a clean, dry area away from direct sunlight and extreme temperatures.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on. | Not plugged in; power outlet faulty; power button not pressed. | Ensure the power cord is securely plugged into a working outlet. Press the power button firmly. |
| No spray from nozzle. | Clean water tank empty; nozzle clogged; pump issue. | Refill the clean water tank. Clean the nozzle. If problem persists, contact customer support. |
| Poor suction. | Dirty water tank full; hose or nozzle clogged; tank not properly sealed. | Empty the dirty water tank. Check hose and nozzle for blockages. Ensure tanks are securely attached. |
| Water leaking. | Tanks not properly seated; seals damaged. | Ensure both clean and dirty water tanks are correctly and securely installed. Check seals for damage. |
Specifications
- Brand: Techwood
- Model Name: Detergente - Smacchiatore - 600 W TNA-006 TECHWOOD (TNA-006)
- Power: 600W
- Clean Water Tank Capacity: 1.5 Liters
- Dirty Water Tank Capacity: 0.85 Liters
- Power Source: Corded Electric
- Power Cable Length: 4m
- Included Components: Accessory kit (2-in-1 nozzle, crevice tool)
- Color: Black
- Country of Origin: China
Warranty and Support
For warranty information or technical support, please refer to the warranty card included with your product or contact Techwood customer service. Keep your purchase receipt as proof of purchase.
For further assistance, please visit the official Techwood website or contact your local distributor.
