MZK 22-Inch Electric Walk-Behind Snow Blower

1. Important Safety Information

Read and understand all safety warnings and instructions before operating this snow blower. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Personal Safety: Always wear appropriate personal protective equipment, including eye protection, hearing protection, and non-slip footwear. Keep hands, feet, and clothing away from moving parts.
• Electrical Safety: Use only a 12-gauge, outdoor-rated extension cord suitable for the snow blower's 15-Amp motor. Ensure the cord is in good condition and free from damage. Never operate the snow blower in wet conditions or rain. Disconnect power before performing any maintenance or clearing clogs.
• Work Area Safety: Clear the area of foreign objects that could be thrown by the auger. Keep bystanders, children, and pets at a safe distance from the operating area.
• Operation: Never direct discharge towards people or property. Do not operate on steep slopes. Always maintain a firm grip on the handles.

2. Product Overview

The MZK Electric Walk-Behind Snow Blower is designed for efficient snow removal from driveways, sidewalks, and patios. It features a powerful 15-Amp motor and user-friendly controls.

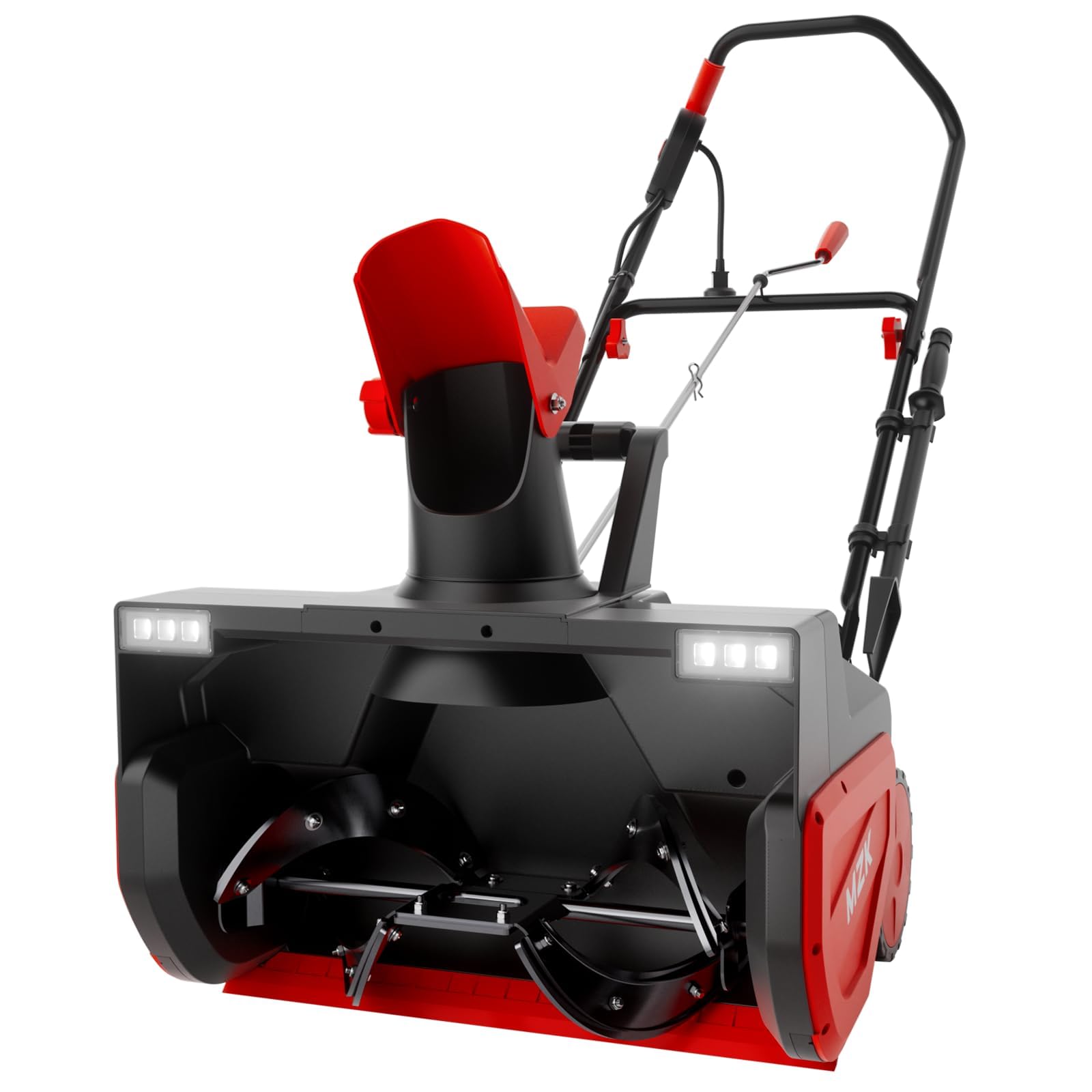

Front view of the MZK Electric Snow Blower, highlighting its compact design.

Key Features:

• Efficient Snow Clearing: Features a 22-inch clearing width and 13-inch snow depth, capable of throwing snow up to 30 feet.
• Powerful Motor: Equipped with a robust 15-Amp motor for handling light to moderate snowfall.
• Directional Chute Control: A 180° adjustable chute allows for precise snow placement.
• Durable Auger: Built with a steel auger for effective snow and ice breaking.
• Enhanced Visibility: Dual bright LED headlights provide illumination during low-light conditions.
• Easy Storage: Designed with a foldable handle for convenient storage.

Close-up view of the steel auger, designed for durability and effective snow breaking.

3. Assembly Instructions

The MZK Snow Blower requires minimal assembly. Follow these steps to prepare your unit for operation.

3.1 Handle Assembly

1. Attach the lower handle to the main unit using the provided bolts and knobs. Ensure the electrical cord is not pinched.
2. Connect the upper handle to the lower handle, securing it with the remaining bolts and knobs.
3. Adjust the handle height to a comfortable operating position using the tool-less adjustment knobs.

Illustration of the height-adjustable handle mechanism.

3.2 Chute Assembly

1. Position the discharge chute onto the snow blower's discharge opening.
2. Secure the chute in place according to the diagrams in the included printed manual.

The 180-degree rotating chute for directing snow.

Tool-less adjustment points for quick setup and modification.

4. Operating Instructions

Follow these steps for safe and effective snow removal.

4.1 Pre-Operation Check

• Inspect the snow blower for any visible damage or loose parts.
• Ensure the extension cord is properly connected and free from damage.
• Clear the area to be snow-blown of any obstacles, rocks, or debris.

4.2 Starting the Snow Blower

This electric snow blower starts with a simple push of a button, requiring no preheating.

1. Plug the snow blower into a suitable outdoor-rated extension cord.
2. Press and hold the safety button.
3. While holding the safety button, engage the main operating lever on the handle. The auger will begin to rotate.
4. Release the safety button once the operating lever is engaged.

4.3 Clearing Snow

Walk at a steady pace, pushing the snow blower forward. Overlap each pass slightly to ensure complete snow removal.

The snow blower demonstrating its 22-inch clearing width and 13-inch clearing depth.

The snow blower in operation, showing snow being thrown up to 30 feet.

4.4 Chute Control

Use the chute control bar to adjust the direction of snow discharge up to 180 degrees. This allows you to direct snow away from cleared areas or sensitive landscaping.

4.5 LED Headlights

The integrated dual LED headlights automatically illuminate when the snow blower is powered on, providing improved visibility during early morning or late evening operation.

The snow blower operating in low light, with its dual LED headlights providing illumination.

4.6 Official Product Video

5. Maintenance

Regular maintenance ensures optimal performance and extends the life of your snow blower.

5.1 After Each Use

• Disconnect the power cord.
• Carefully remove any snow or ice buildup from the auger, chute, and housing using a non-metallic tool.
• Wipe down the exterior with a damp cloth.

5.2 Seasonal Maintenance

• Inspect the auger for signs of wear or damage. Replace if necessary.
• Check the power cord and extension cord for cuts, fraying, or exposed wires.
• Ensure all fasteners are tight.

5.3 Storage

When not in use, especially during off-season, store the snow blower properly.

• Clean the unit thoroughly.
• Fold the handle for compact storage.
• Store in a dry, protected area away from direct sunlight and moisture.

The snow blower featuring a foldable design for easy storage in compact spaces.

6. Troubleshooting

Refer to this section for common issues and their solutions.

7. Specifications

• Model Number: ET2405
• Brand: MZK
• Power Source: AC Electric
• Motor: 15-Amp
• Clearing Width: 22 Inches
• Clearing Depth: 13 Inches
• Throwing Distance: Up to 30 feet
• Product Dimensions (LxWxH): 38" x 22" x 49"

8. Warranty Information

This MZK product is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase or contact MZK customer support for detailed information regarding warranty terms and conditions.

9. Customer Support

For technical assistance, replacement parts, or any questions regarding your MZK Electric Walk-Behind Snow Blower, please contact MZK customer service. Contact information can be found on the product packaging or the official MZK website.
