Introduction
This manual provides essential instructions for the setup, operation, maintenance, and care of your French Connection Women's Black Dial Analog Watch, model FCN0112BM. Please read this guide thoroughly to ensure proper use and longevity of your timepiece.

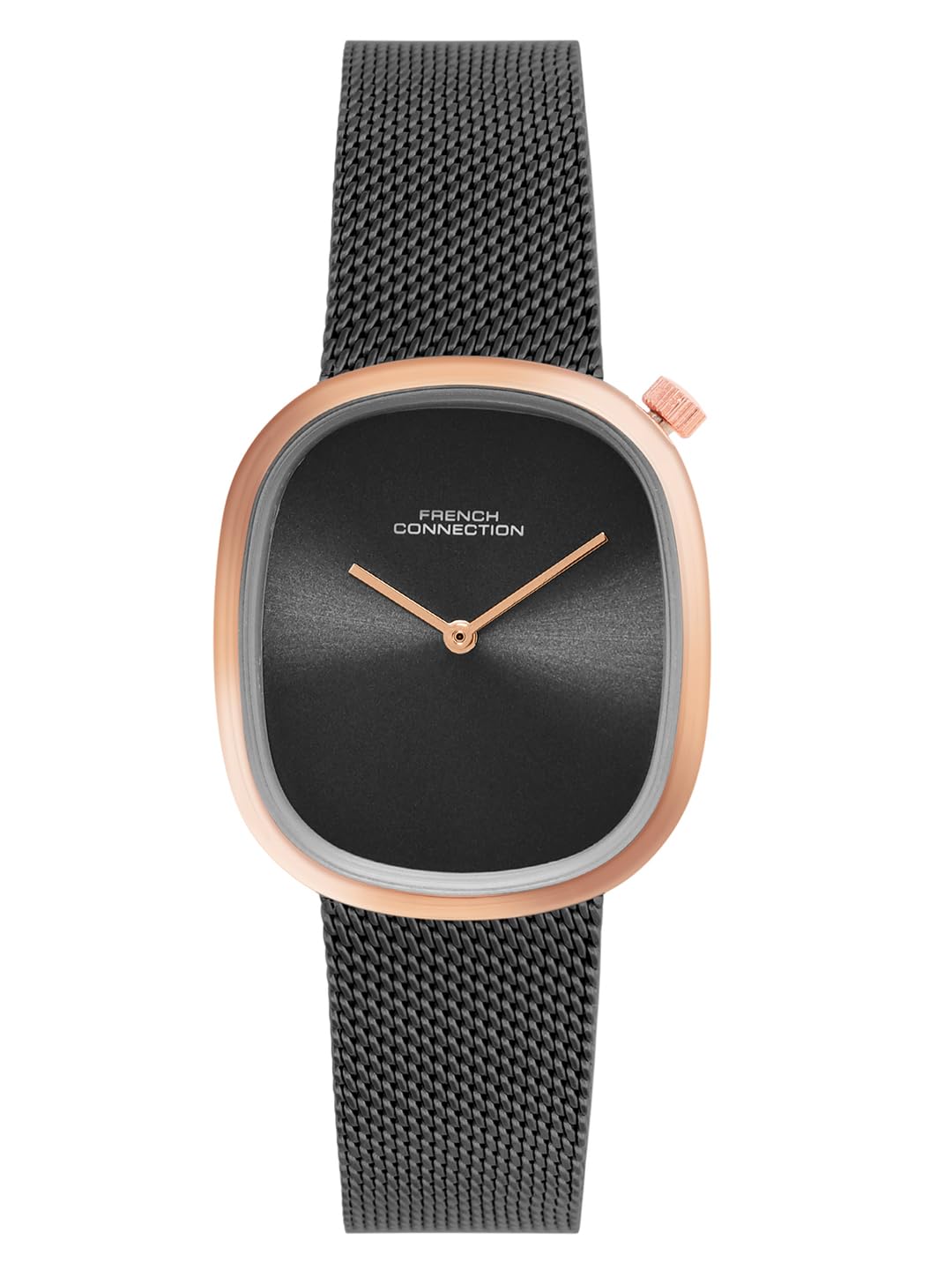

Image: Front view of the French Connection Women's Black Dial Analog Watch FCN0112BM, showcasing its black dial and mesh strap.
Setup
1. Setting the Time
- Locate the Crown: The crown is the small knob on the right side of the watch case.
- Pull Out the Crown: Gently pull the crown outwards until you feel a click. This will stop the second hand (if present) and allow you to adjust the time.
- Adjust the Time: Rotate the crown clockwise or counter-clockwise to set the hour and minute hands to the correct time.
- Push In the Crown: Once the time is set, push the crown back into its original position. The watch will resume normal operation.
Image: Side view of the watch, highlighting the crown used for time adjustment.
2. Adjusting the Strap
Your French Connection watch features an adjustable stainless steel mesh bracelet. To adjust the fit:
- Open the Clasp: Use a small tool (like a flat-head screwdriver or a spring bar tool) to lift the locking plate on the clasp.
- Slide the Clasp: Once the locking plate is open, you can slide the clasp along the mesh band to your desired length.
- Secure the Clasp: Press the locking plate back down firmly until it clicks into place, securing the clasp at the new position. Ensure it is fully closed to prevent accidental opening.
Operating Your Watch
1. Reading the Time
The watch displays time using traditional hour and minute hands on a black analog dial. The longer hand indicates minutes, and the shorter hand indicates hours.
2. Water Resistance
This watch has a water resistance rating of 30 Metres (3 ATM). This means it is suitable for everyday use and can withstand splashes or brief immersion in water. It is not recommended for swimming, showering, or diving. Avoid operating the crown while the watch is wet to prevent water ingress.
Image: Back view of the watch, displaying the model number and water resistance rating.
Maintenance
1. Cleaning Your Watch
- Wipe the watch case and strap regularly with a soft, dry cloth to remove dust and dirt.
- For the stainless steel mesh strap, a slightly damp cloth can be used, followed by immediate drying.
- Avoid using harsh chemicals, solvents, or abrasive cleaners, as these can damage the watch's finish.
2. Battery Replacement
Your watch is powered by a Lithium Ion battery. When the watch stops or the time becomes inaccurate, it may be time for a battery replacement. It is highly recommended to have the battery replaced by a qualified watch technician to ensure the water resistance seal is maintained.
3. Storage
When not in use, store your watch in a cool, dry place, away from direct sunlight, extreme temperatures, and strong magnetic fields. The original watch box can be used for safe storage.
Troubleshooting
- Watch Not Working: If the watch stops, check if the crown is fully pushed in. If it is, the battery may need replacement. Contact a professional watch service.
- Time Inaccuracy: Minor inaccuracies are normal for quartz watches. If the time is consistently incorrect, the battery may be low, or the watch may have been exposed to a strong magnetic field. Seek professional assistance.
- Condensation Inside Dial: If you notice condensation under the crystal, this indicates water ingress. Immediately take the watch to a professional for inspection and repair to prevent further damage.
Specifications
| Feature | Detail |
|---|---|
| Model Number | FCN0112BM |
| Display Type | Analog |
| Movement Type | Quartz |
| Case Diameter | 32 Millimetres |
| Case Thickness | 6 Millimetres |
| Band Material | Stainless Steel |
| Band Width | 18 Millimetres |
| Band Colour | Black |
| Dial Colour | Black |
| Water Resistance Depth | 30 Metres (3 ATM) |
| Power Source Type | Battery Powered (1 Lithium Ion battery included) |
| Item Weight | 300 Grams |
| Manufacturer | ILG ASIA LIMITED |
| Country of Origin | Hong Kong |
Warranty
This French Connection watch comes with a Limited Warranty. As per the Online Dealer Certificate, a 1-year International warranty is provided according to the terms and conditions from French Connection. Please retain your proof of purchase for warranty claims.
Image: Online Dealer Certificate confirming authenticity and warranty terms for French Connection wristwatches.
For specific warranty details and terms, please refer to the documentation provided with your watch or contact customer support.
Support
For any inquiries, service, or support regarding your French Connection watch, please contact the authorized importer or manufacturer:
- Importer: ILG INDIA FASHION LLP, Pinnacle Business Park, S7-09, 7th Floor, Mahakali Caves Road, Andheri (E), Mumbai - 400093, India
- Manufacturer: ILG ASIA LIMITED, Unit 401-406, 4/F, New East Ocean center. No.9 Science Museum Tst, Kow Loon CT C Bonia Chiu Hong Kong.
When contacting support, please have your watch model number (FCN0112BM) and proof of purchase readily available.
