Important Safety Instructions
WARNING: INGESTION HAZARD. This product contains a button cell or coin battery. DEATH or serious injury can occur if ingested. A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours. Keep new and used batteries OUT OF REACH OF CHILDREN. Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.
- Always ensure the power adapter is disconnected from the power source before installation, maintenance, or troubleshooting.
- Do not expose the tape light or power adapter to excessive heat or direct flame.
- Do not submerge the tape light or power adapter in water. While designed for indoor/outdoor use, ensure connections are secure and protected from direct water exposure.
- Only use the provided power adapter and remote control with this product.
- Do not attempt to repair or modify the tape light or its components. Refer all servicing to qualified personnel.
- Ensure the installation surface is clean, dry, and smooth for proper adhesion.
- Do not bend the tape light sharply or at angles less than 90 degrees to prevent damage to the LED circuits.
- Keep packaging materials away from children.
Package Contents
Verify that all components listed below are included in your package:
Figure 1: Package Contents
- 1x Feit Electric 20ft Chasing & Tunable White LED Tape Light
- 1x Remote Control
- 1x Power Adapter
- 10x Mounting Clips
- 20x Screws
Specifications
Detailed technical specifications for the Feit Electric LED Tape Light:
| Model Number | TAPE240/CHASE |
| Length | 20 feet (6.1 meters) |
| Linkable Length | Up to 40 feet (12.2 meters) |
| Light Output | 1000 Lumens (White Brightness) |
| Power Consumption | 24 Watts |
| Voltage | 24 Volts DC |
| Light Color | RGB (Red, Green, Blue) + Tunable White |
| Special Features | Remote Controlled, Dimmable, Chasing Effects, Cut-to-Size, Linkable |
| Indoor/Outdoor Usage | Yes (Weather Resistant) |
| Lifespan | 25,000 Hours |
| Dimensions (Width) | 0.4 inches (10mm) |
| Control Method | Infrared Remote Control |

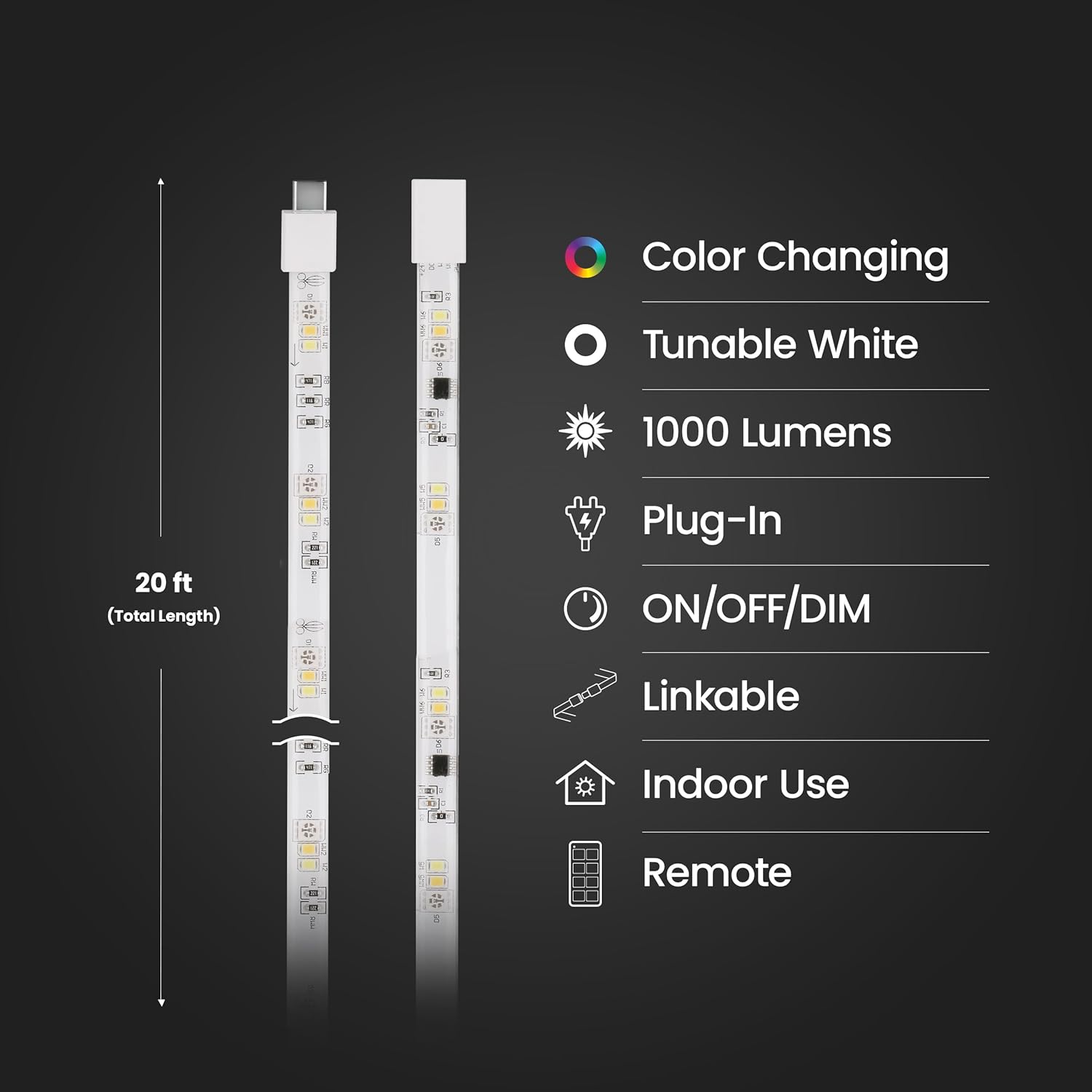

Figure 2: Product Features and Dimensions
Setup Guide
Follow these steps for proper installation of your LED Tape Light:
- Plan Your Layout: Before peeling the adhesive, unroll the tape light and lay it out in your desired location to confirm the length and placement. Ensure the power adapter can reach an outlet.
- Prepare the Surface: Clean the installation surface thoroughly. It must be dry, smooth, and free of dust, dirt, or grease for optimal adhesive performance.
- Cut to Size (Optional): If a shorter length is required, locate the designated cutting marks on the tape light (typically indicated by a scissor icon or copper pads). Cut only at these marked points to avoid damaging the circuit.
- Apply the Tape Light: Carefully peel off the backing from the adhesive strip on the back of the tape light. Press the tape light firmly onto the prepared surface, working in small sections to ensure good contact and avoid air bubbles.
- Secure with Clips (Optional): For added security, especially on textured surfaces or in high-traffic areas, use the included mounting clips and screws. Space them evenly along the tape light.
- Connect Power: Plug the tape light connector into the power adapter. Then, plug the power adapter into a standard electrical outlet.
- Link Multiple Strips (Optional): If linking multiple 20ft strips (up to a maximum of 40ft total), connect them end-to-end using the integrated connectors. Ensure the power supply is adequate for the total length.

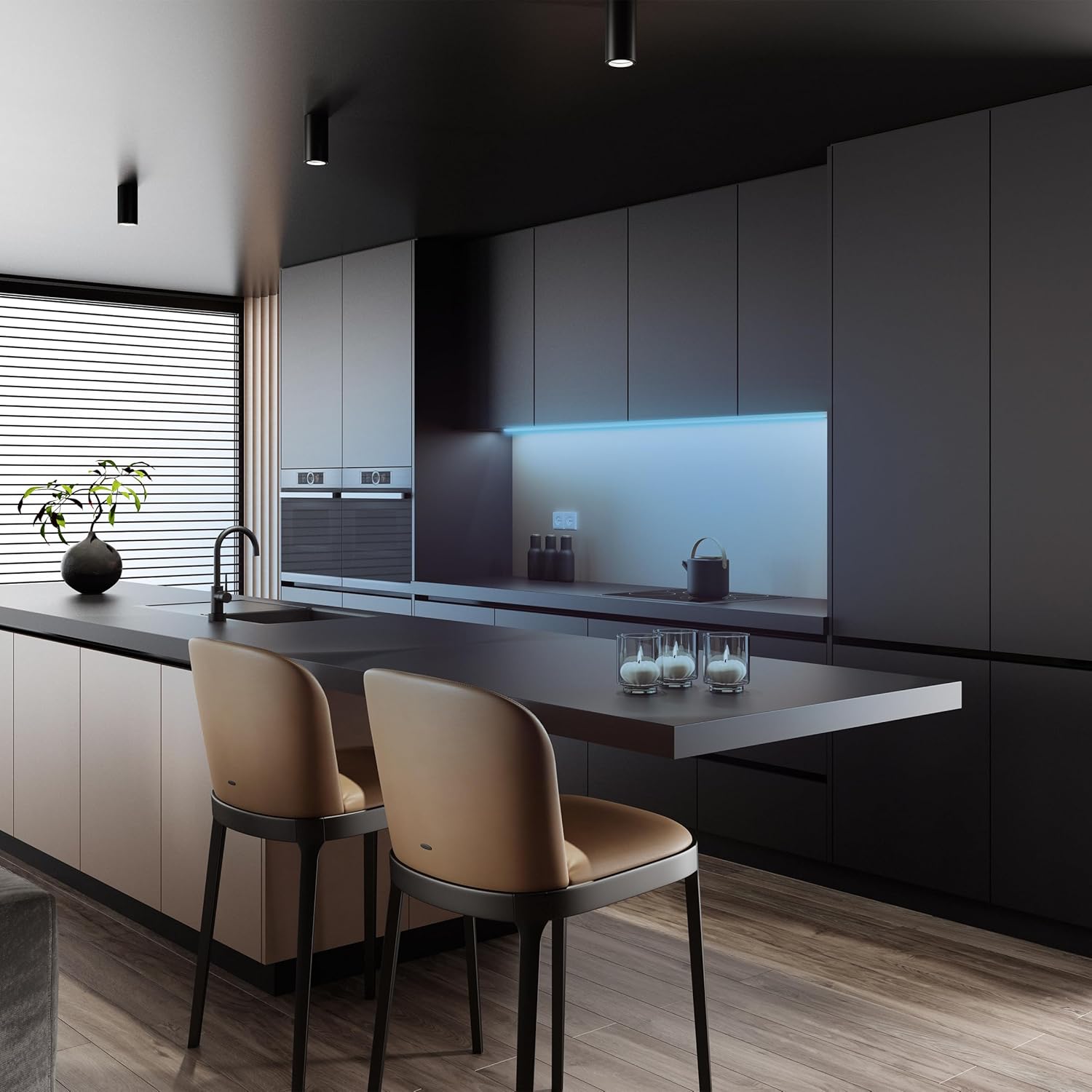

Figure 3: Example Indoor Installation (Kitchen)
Figure 4: Example Outdoor Installation (Patio)
Operating Instructions
Control your Feit Electric LED Tape Light using the included remote control:
Figure 5: Remote Control and Tape Light
- Power On/Off: Press the Power button (red button, top right) to turn the lights on or off.
- Brightness Adjustment: Use the Brightness Up (▲) and Brightness Down (▼) buttons to adjust the light intensity.
- Color Selection:
- Press the RGB color buttons (Red, Green, Blue, etc.) to select a static color.
- Press the "W" button for Tunable White light.
- Dynamic Modes:
- Chasing Effects: Use the "Chase" button to activate dynamic chasing light patterns.
- Other Modes: Explore buttons like "Flash", "Strobe", "Fade", and "Smooth" for various light transitions and effects.
- Speed Adjustment: Use the Speed Up and Speed Down buttons to control the pace of dynamic modes.
- Timer Function: Some remotes may include a timer function. Refer to the remote's specific markings for details.
Figure 6: Kitchen with Red Light
Figure 7: Kitchen with Warm White Light
Figure 8: Kitchen with Cool White Light
Maintenance
To ensure the longevity and optimal performance of your LED Tape Light, follow these maintenance guidelines:
- Cleaning: Disconnect the power adapter before cleaning. Use a soft, dry, or slightly damp cloth to wipe the tape light. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the product.
- Inspection: Periodically inspect the tape light and power adapter for any signs of damage, such as frayed wires, cracks, or loose connections. If any damage is found, discontinue use and contact customer support.
- Storage: If storing the tape light for an extended period, ensure it is clean and dry. Coil it loosely to prevent kinks or damage to the LED strip. Store in a cool, dry place away from direct sunlight.
- Battery Replacement (Remote): If the remote control's range or responsiveness decreases, the battery may need replacement. Refer to the remote's battery compartment for the correct battery type (typically a CR2025 or similar coin cell battery) and replacement instructions. Ensure proper polarity.
Troubleshooting
If you encounter issues with your Feit Electric LED Tape Light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lights do not turn on. | No power, loose connection, faulty power adapter. |
|
| Remote control is not working. | Remote battery is dead, remote is too far, obstruction, IR receiver blocked. |
|
| Lights are dim or flickering. | Insufficient power, damaged section of tape light, loose connection. |
|
| Adhesive is not sticking. | Improper surface preparation, surface type. |
|
Warranty Information
This Feit Electric LED Tape Light is covered by a 1-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, abuse, accidents, unauthorized repairs, or modifications. Please retain your proof of purchase for warranty claims.
Customer Support
For further assistance, technical support, or warranty inquiries, please contact Feit Electric customer support.
Visit our online support portal for FAQs and contact options:
https://help.feit.com/hc/en-us
