Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your 20 SECOND SOAP Aramid Replacement Belt, designed for Horse lawn mower models 108196 and 188890. Please read these instructions carefully before proceeding with installation or use to ensure safety and optimal performance.

2. Safety Information

Always prioritize safety when working with machinery and replacement parts. Failure to follow safety guidelines can result in injury or damage to equipment.

• Disconnect Power: Before attempting any installation or maintenance, ensure the lawn mower's engine is off and the spark plug wire is disconnected to prevent accidental starting.
• Wear Protective Gear: Always wear appropriate personal protective equipment, including gloves and eye protection.
• Consult Mower Manual: Refer to your specific lawn mower's owner's manual for detailed instructions on belt replacement and safety procedures.
• Secure Equipment: Ensure the lawn mower is stable and supported before working underneath it.
• Keep Clear: Keep hands, feet, and clothing away from moving parts.

3. Product Overview

The 20 SECOND SOAP Replacement Belt is a durable component manufactured with Aramid fibers, known for their high strength and heat resistance. This belt is engineered to provide reliable power transmission for your Horse lawn mower, ensuring efficient operation.

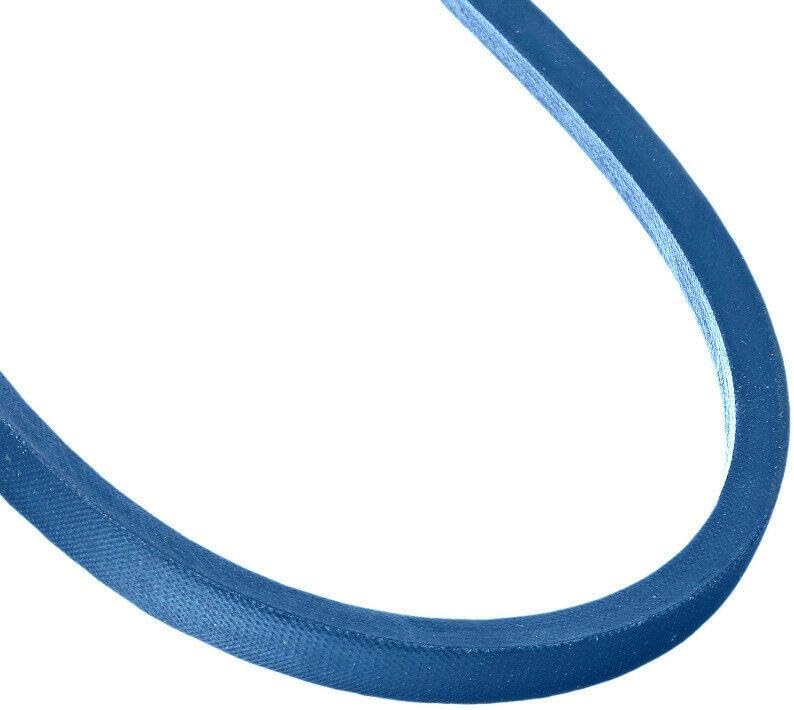

Image 1: A close-up view of the blue Aramid replacement belt, showing its sturdy construction and smooth surface.

Key Features:

• Made with Aramid for enhanced durability and longevity.
• Designed for direct replacement in Horse models 108196 and 188890.
• Helps restore optimal functionality and performance to your lawn mower.

4. Setup and Installation

Replacing a drive belt typically involves several steps. Always refer to your specific lawn mower's service manual for the exact procedure, as designs can vary.

1. Prepare the Mower: Ensure the engine is cool, disconnect the spark plug wire, and remove the ignition key. Place the mower on a flat, stable surface.
2. Access the Belt: Depending on your mower model, you may need to remove the cutting deck, belt covers, or other components to gain access to the drive belt system.
3. Relieve Tension: Locate the belt tensioner or idler pulley and relieve tension on the old belt. This may involve loosening bolts or using a lever.
4. Remove Old Belt: Carefully remove the old belt from all pulleys. Note its routing path for correct installation of the new belt.
5. Install New Belt: Route the new 20 SECOND SOAP Aramid Replacement Belt around the pulleys, following the exact path of the old belt. Ensure it is seated correctly in all pulley grooves.
6. Apply Tension: Re-apply tension to the belt system. Check that the belt is taut but not overly tight, allowing for proper movement.
7. Reassemble: Reinstall any covers or components that were removed.
8. Test: Reconnect the spark plug wire. Start the mower and test its operation in a safe, open area to ensure the belt is functioning correctly.

5. Operating Guidelines

After successful installation, the replacement belt should operate seamlessly. Ensure that the mower's engine is running smoothly and that all moving parts are clear of obstructions. Listen for any unusual noises, which could indicate improper installation or a problem with the belt or pulleys.

6. Maintenance

Regular inspection and maintenance can extend the life of your replacement belt and ensure consistent performance.

• Inspect Regularly: Periodically check the belt for signs of wear, cracking, fraying, or glazing. Replace the belt if any significant damage is observed.
• Keep Clean: Keep the belt and pulleys free from dirt, grass clippings, oil, and other debris that can cause slippage or premature wear.
• Check Tension: Ensure the belt maintains proper tension. A loose belt can slip, while an overly tight belt can cause excessive wear on pulleys and bearings.
• Store Properly: If removing the belt for seasonal storage, store it in a cool, dry place away from direct sunlight and chemicals.

7. Troubleshooting

If you encounter issues after installing the new belt, consider the following common problems and solutions:

• Belt Slipping:
  • Cause: Incorrect tension, worn pulleys, or debris on the belt/pulleys.
  • Solution: Adjust belt tension, clean pulleys, or inspect pulleys for wear.
• Excessive Noise (Squealing/Grinding):
  • Cause: Misaligned pulleys, incorrect belt routing, or worn bearings.
  • Solution: Verify belt routing, check pulley alignment, or inspect bearings.
• Belt Comes Off Pulleys:
  • Cause: Incorrect tension, worn belt guides, or misaligned pulleys.
  • Solution: Adjust tension, inspect belt guides, or check pulley alignment.

If problems persist, consult a qualified service technician or refer to your mower's detailed service manual.

8. Specifications

9. Warranty and Support

For information regarding warranty coverage or technical support, please contact the seller or manufacturer directly. Keep your purchase receipt as proof of purchase.
