BTJCRLEB Luminous Flat Suction Assembly Instruction Manual

1. Product Overview

The BTJCRLEB Luminous Flat Suction Assembly is an accessory designed to enhance the cleaning capabilities of compatible Dreame handheld wireless vacuum cleaners. This attachment features an integrated light source to illuminate dark areas, making dust and debris more visible for thorough cleaning. Its flat design allows access to narrow spaces and corners.

Figure 1: The BTJCRLEB Luminous Flat Suction Assembly, a specialized attachment for vacuum cleaners.

2. Compatibility

This Luminous Flat Suction Assembly is compatible with the following Dreame handheld wireless vacuum cleaner models:

• Dreame M13
• Dreame M13 Pro
• Dreame V12 Pro

Figure 2: The connection point of the flat suction assembly, illustrating its design for compatibility with specified vacuum models.

3. Key Features

• Improved Cleaning Efficiency: The integrated luminous feature illuminates the floor in dim conditions, making dust, hair, and other debris more visible. This ensures thorough cleaning, especially in hard-to-reach areas like corners or under furniture.
• Enhanced Durability: Constructed with durable materials and advanced manufacturing processes to resist wear and tear, extending the overall lifespan of the accessory.
• Reduced Cleaning Blind Spots: Effectively minimizes areas missed during cleaning by providing clear visibility, ensuring comprehensive coverage.
• Improved Operating Experience: In low-light environments, the illumination allows users to clearly see the area being cleaned, reducing operational errors and enhancing user control.
• Simplified Maintenance: Designed for easy removal and cleaning, facilitating routine maintenance and ensuring the accessory remains in optimal condition.

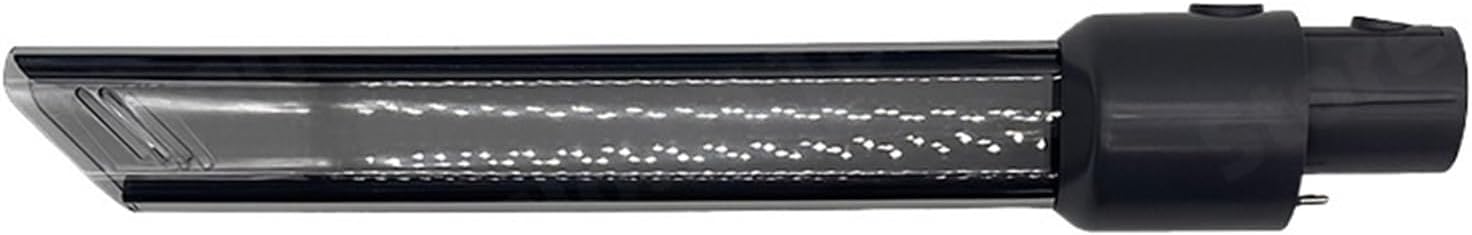

Figure 3: A detailed view of the luminous feature on the flat suction assembly, designed to enhance visibility during cleaning.

4. Setup (Installation)

Follow these steps to attach the Luminous Flat Suction Assembly to your compatible Dreame vacuum cleaner:

1. Ensure your vacuum cleaner is turned off and unplugged from its power source for safety.
2. Locate the accessory attachment port on your Dreame vacuum cleaner. This is typically at the end of the main wand or directly on the handheld unit.
3. Align the connector of the Luminous Flat Suction Assembly with the vacuum cleaner's attachment port.
4. Gently push the assembly into the port until it clicks securely into place. Ensure a firm connection to prevent air leakage and maintain suction power.
5. Verify that the assembly is stable and does not wobble.

5. Operating Instructions

Once the Luminous Flat Suction Assembly is securely attached, you can begin cleaning:

1. Turn on your Dreame vacuum cleaner. The luminous feature on the flat suction assembly should activate automatically, illuminating the cleaning path.
2. Guide the flat suction assembly along surfaces, focusing on areas where dust and debris are visible due to the integrated light.
3. Utilize the flat design to reach into narrow gaps, under furniture, and along baseboards for comprehensive cleaning.
4. Move the assembly slowly to allow the vacuum to effectively pick up all illuminated particles.

6. Maintenance

Regular maintenance ensures optimal performance and longevity of your Luminous Flat Suction Assembly:

• Cleaning the Assembly: After each use, or as needed, detach the assembly from the vacuum cleaner. Use a soft, damp cloth to wipe down the exterior and the transparent luminous section. Ensure no moisture enters the electrical components.
• Removing Blockages: Periodically check the suction opening for any blockages such as large debris, hair, or lint. Use a thin, non-sharp object to carefully remove any obstructions.
• Storage: Store the assembly in a clean, dry place away from direct sunlight and extreme temperatures when not in use.

Figure 4: A side view of the flat suction assembly, illustrating its streamlined design which aids in easy cleaning and maintenance.

7. Troubleshooting

If you encounter issues with your Luminous Flat Suction Assembly, consider the following:

• No Suction: Ensure the assembly is securely attached to the vacuum cleaner. Check for any blockages in the suction path of the assembly or the vacuum cleaner itself.
• Light Not Working: Verify that the assembly is correctly connected to the vacuum cleaner. If the light still does not function, ensure the vacuum cleaner is powered on and operating correctly.
• Difficulty Attaching/Detaching: Ensure you are aligning the connectors correctly. Do not force the attachment; if it doesn't fit, double-check compatibility with your specific vacuum model.

8. Specifications

Figure 5: A top-down perspective of the flat suction assembly, showcasing its compact and elongated form factor.
