1. Introduction and Overview
The FAFAFROG S1 Dog Bark Collar is designed to assist in training dogs to reduce excessive barking. This smart collar features multiple working modes and adjustable sensitivity levels to suit various dog temperaments and training needs. It is equipped with an upgraded smart barking recognition chip to ensure accurate activation and includes a protective mode for your dog's safety. This manual provides detailed instructions for proper setup, operation, and maintenance of your bark collar.
2. Product Features and Display
The FAFAFROG S1 Bark Collar features a clear color display that shows the current working status and power level. Key indicators include:
- Beep Mode: Indicated by a speaker icon.
- Vibration Mode: Indicated by a vibration icon.
- Sensitivity Levels: Displayed as a number from 1 to 5, indicating the responsiveness to barking.
- Battery Indicator: Shows the current battery charge level.
- Low Battery Reminder: Alerts when the battery needs recharging.
Image: The collar's display showing various indicators and sensitivity level.
3. Operating Modes and Sensitivity
The collar offers 4 distinct working modes and 5 adjustable sensitivity levels to customize training for your dog. Press the 'M' button to cycle through the modes and adjust sensitivity using the dedicated buttons.
Available Modes:
- Beep Mode: Provides an audible warning. (6 levels)
- Vibration Mode: Delivers a gentle vibration. (3 levels)
- Beep + Vibration Mode: Combines audible warning with vibration. (6 levels)
- Beep + Vibration + Shock Mode: Combines audible warning, vibration, and a static correction. (6 levels)
It is recommended to start with the lowest effective setting and gradually increase if necessary. Many dogs respond well to just the beep and vibration modes without needing static correction.
Image: Visual representation of the four training modes.
4. Setup and Proper Fit
Proper fit is crucial for the collar's effectiveness and your dog's comfort. The collar is adjustable and suitable for dogs weighing 8 to 150 lbs with neck sizes from 8 to 25 inches, ideal for dogs over 6 months old.
Fitting Instructions:
- Ensure the contact points on the collar are touching your dog's skin.
- Adjust the strap so that it is snug but not too tight. You should be able to fit one or two fingers comfortably between the collar and your dog's neck.
- Regularly check the fit as your dog grows or if their coat changes.
Image: The adjustable collar strap and suitability for various dog sizes.
5. Maintenance and Charging
Charging:

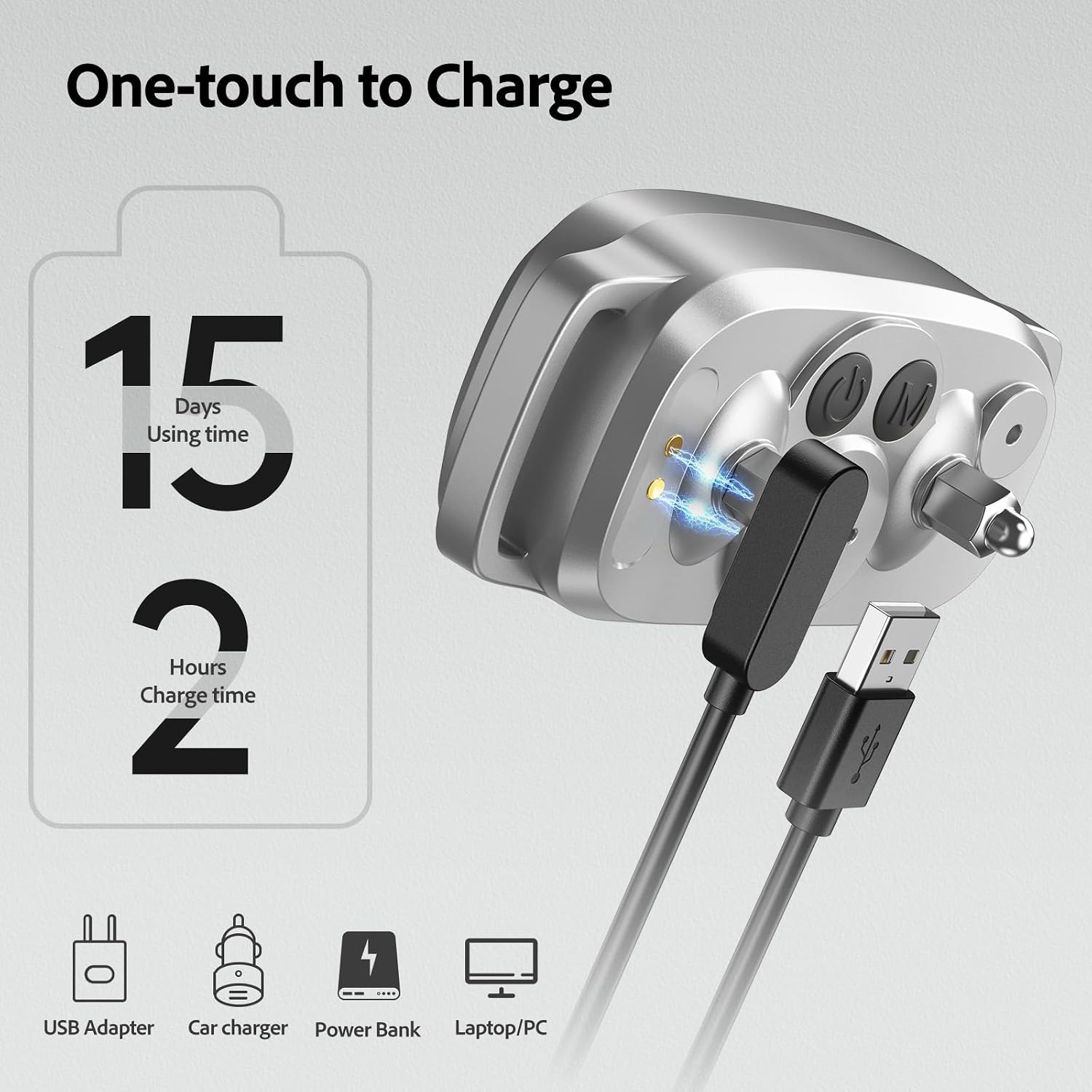

The FAFAFROG S1 Bark Collar features fast charging. A full charge takes approximately 2 hours and provides about 15-20 days of use, depending on usage frequency. Use the provided USB charging cable with a compatible USB adapter, car charger, power bank, or laptop/PC.
Image: Charging the FAFAFROG S1 Bark Collar.
Waterproof Design:
The collar has an IP67 waterproof rating, making it suitable for various weather conditions and activities. Your dog can wear it during bathing, swimming, playing in the rain, or in snowy environments.
Image: The collar's waterproof capability.
6. Troubleshooting and Safety Features
Smart Anti-False Triggering:
The collar is equipped with an upgraded smart dog barking recognition chip that requires two activation conditions: the dog must be barking, and vibration from the vocal cords must be detected. This prevents false triggers from external noises like other dogs barking, dog's head shaking, or other environmental sounds.
Image: How the collar prevents false activations.
Protect Mode:
If the bark collar is activated 6 times continuously, it will automatically stop working for 30 seconds. During this period, the digital display will show "8". This feature is designed to protect your dog from unnecessary or prolonged activation.
7. Specifications
| Brand | FAFAFROG |
| Model Number | S1 |
| ASIN | B0DTYW84CB |
| GTIN / UPC | 788692940759 |
| Colour | Silver |
| Closure Type | Buckle |
| Dog Breed Size Recommendation | Large, Medium, Small |
| Neck Size Compatibility | 8 to 25 inches |
| Dog Weight Compatibility | 8 to 150 lbs |
| Waterproof Rating | IP67 |
| Charging Time | Approx. 2 hours |
| Usage Time (Full Charge) | Approx. 15-20 days |
| Manufacturer | Shenzhen Smartpet Technology Co.,Ltd. |
8. Warranty and Support
For warranty information, technical support, or any questions regarding your FAFAFROG S1 Dog Bark Collar, please refer to the product packaging or contact the manufacturer directly through their official website or customer service channels. Keep your purchase receipt for any warranty claims.
