SHALL 4-Piece Tube Cutter Set Instruction Manual

1. Introduction

Thank you for choosing the SHALL 4-Piece Tube Cutter Set. This comprehensive kit is designed for precise and clean cutting of various pipe materials, including PVC, aluminum, copper, and stainless steel. It includes a robust tube cutter, a mini tube cutter, and two deburring tools to ensure professional results for your plumbing and DIY projects.

Please read this manual thoroughly before use to ensure safe and effective operation and to maximize the lifespan of your tools.

2. Safety Information

• Always wear appropriate personal protective equipment, including safety glasses and gloves, when operating these tools.
• Ensure the workpiece is securely clamped before cutting to prevent movement and potential injury.
• Keep hands and fingers away from the cutting wheel during operation.
• Do not use excessive force. Allow the tool to do the work.
• Inspect tools for damage before each use. Do not use damaged tools.
• Keep tools clean and dry. Store them in a safe place, out of reach of children.
• Use the correct tool for the job. The robust cutter is for larger pipes, and the mini cutter is for smaller pipes and confined spaces.
• Deburring tools have sharp edges; handle with care.

3. Package Contents

The SHALL 4-Piece Tube Cutter Set (Model SH221004EU) includes the following components:

• 1 x Robust Tube Cutter (Cutting Range: Ø 6–50 mm)
• 1 x Mini Tube Cutter (Cutting Range: Ø 3–22 mm)
• 1 x Pen-Style Internal/External Deburring Tool (Ø 6–38 mm)
• 1 x Cone-Style Internal/External Deburring Tool (Ø 6–38 mm)

Figure 3.1: Complete 4-Piece Tube Cutter Set with Packaging.

4. Product Features

• Robust Tube Cutter: Designed for pipes with diameters from 6mm to 50mm. Features a heat-treated alloy steel cutting wheel and high-quality steel housing.
• Mini Tube Cutter: Ideal for smaller pipes and confined spaces, with a cutting range of 3mm to 22mm.
• Ball Bearings: The robust cutter incorporates six double-row ball bearings to reduce friction and ensure precise tube clamping, resulting in scratch-free, straight, and clean cuts.
• Deburring Tools: Two internal/external deburring tools are included to effectively remove burrs and polish tube edges after cutting, ensuring smooth connections.
• Versatile Application: Suitable for a wide range of materials including steel, copper, stainless steel, aluminum, and PVC pipes.

Figure 4.1: Robust Tube Cutter Features.

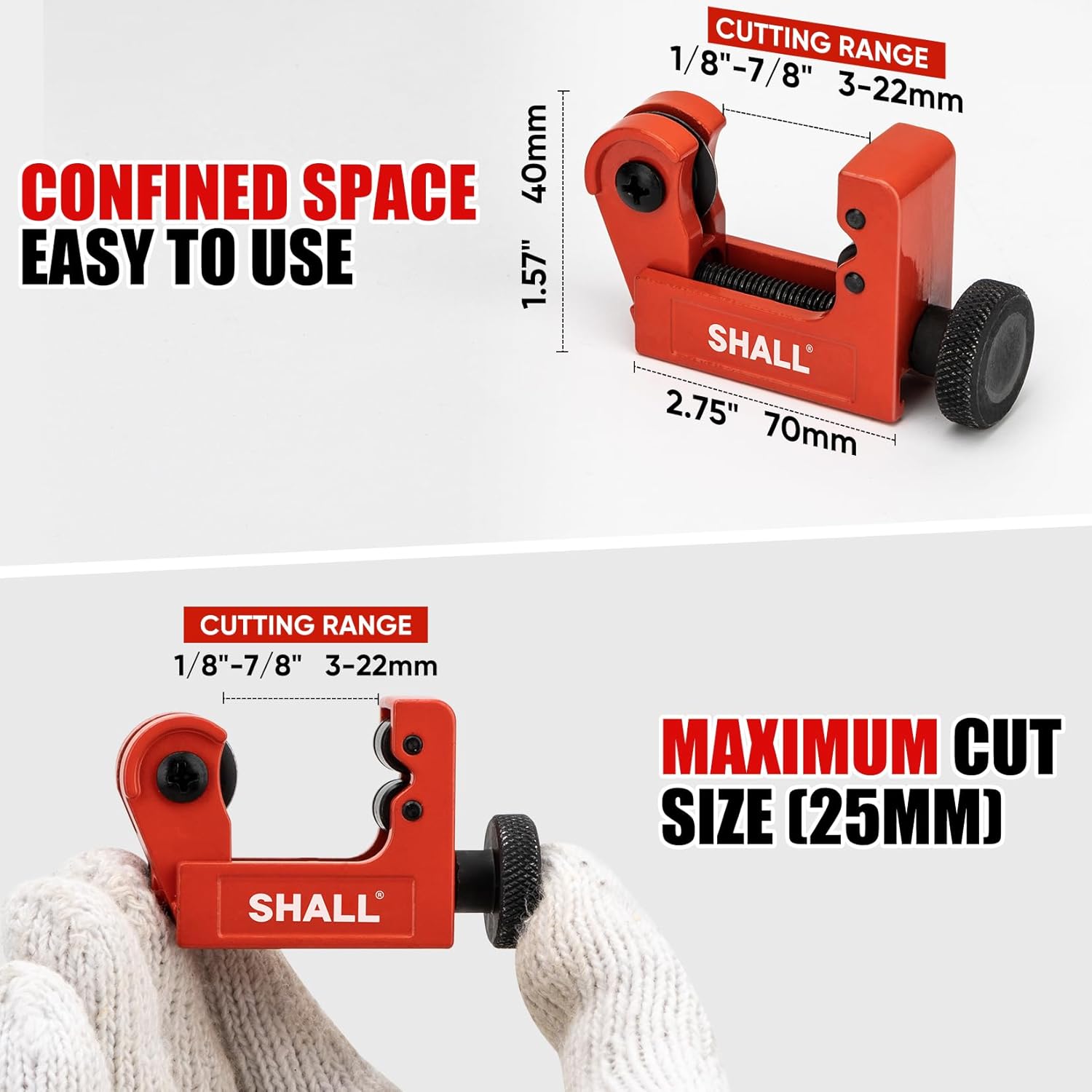

Figure 4.2: Mini Tube Cutter Design and Cutting Range.

Figure 4.3: Pen-Style Deburring Tool.

Figure 4.4: Cone-Style Deburring Tool.

5. Setup

The SHALL tube cutters and deburring tools are ready for immediate use out of the box. No assembly is required.

1. Select the Correct Tool: Choose the robust tube cutter for larger pipes (Ø 6–50 mm) or the mini tube cutter for smaller pipes (Ø 3–22 mm) and tight spaces.
2. Prepare the Workpiece: Ensure the pipe to be cut is clean and free of debris. Mark the desired cutting line clearly.
3. Secure the Pipe: For best results and safety, secure the pipe in a vise or with clamps to prevent it from moving during the cutting process.

6. Operating Instructions

6.1. Using the Robust Tube Cutter (Ø 6–50 mm)

1. Open the Cutter: Rotate the adjustment knob counter-clockwise to open the jaws of the cutter wide enough to fit over the pipe.
2. Position the Pipe: Place the pipe between the rollers and the cutting wheel, aligning the cutting wheel with your marked cutting line.
3. Tighten the Cutter: Rotate the adjustment knob clockwise until the cutting wheel makes light contact with the pipe. Do not overtighten initially.
4. Rotate and Tighten: Rotate the cutter around the pipe, making a full revolution. After each full rotation, tighten the adjustment knob slightly (about a quarter to half turn) to apply more pressure to the cutting wheel.
5. Continue Cutting: Repeat the rotation and slight tightening process until the pipe is completely cut through. This gradual approach ensures a clean, straight cut and prolongs the life of the cutting wheel.

Figure 6.1: Robust Tube Cutter in Operation with various pipe types.

6.2. Using the Mini Tube Cutter (Ø 3–22 mm)

1. Open the Cutter: Rotate the knurled knob counter-clockwise to open the jaws.
2. Position the Pipe: Place the pipe between the rollers and the cutting wheel, aligning the cutting wheel with your marked cutting line.
3. Tighten the Cutter: Rotate the knurled knob clockwise until the cutting wheel makes light contact with the pipe.
4. Rotate and Tighten: Rotate the cutter around the pipe. After each full rotation, tighten the knob slightly to increase pressure.
5. Complete the Cut: Continue rotating and tightening until the pipe is severed. The compact design is ideal for use in confined spaces.

Figure 6.2: Mini Tube Cutter in a Confined Space.

6.3. Using the Deburring Tools

After cutting, burrs may remain on the inside or outside edges of the pipe. Use the deburring tools to create a smooth, clean edge.

1. Internal Deburring: Insert the conical end of the deburring tool into the pipe opening. Rotate the tool while applying light pressure to remove internal burrs.
2. External Deburring: Place the outer edge of the deburring tool over the pipe's exterior edge. Rotate the tool to remove external burrs and chamfer the edge.

Figure 6.3: Deburring Internal and External Pipes.

7. Maintenance

• Cleaning: After each use, wipe down the tools with a clean, dry cloth to remove any metal shavings or debris.
• Lubrication: Periodically apply a small amount of light machine oil to the moving parts of the tube cutters (e.g., adjustment screw, rollers) to ensure smooth operation and prevent rust.
• Blade Inspection: Regularly inspect the cutting wheels for sharpness and damage. A dull or chipped wheel can lead to poor cuts and increased effort. Replacement cutting wheels may be available from the manufacturer.
• Storage: Store the tools in their original packaging or a suitable toolbox in a dry environment to protect them from moisture and damage.

8. Troubleshooting

9. Specifications

10. Warranty and Support

SHALL Tools are manufactured to high-quality standards. For specific warranty information or technical support, please refer to the documentation included with your purchase or contact SHALL Tools customer service directly through their official website or the retailer where the product was purchased.

Please retain your proof of purchase for any warranty claims.
