EasyByMall Transmission Filter Instruction Manual

1. Introduction

This manual provides essential information regarding the EasyByMall Transmission Filter, designed as a direct replacement for OE Part Number 25450-P4V-013. This filter is crucial for maintaining the cleanliness and efficiency of your vehicle's automatic transmission fluid, contributing to the longevity and smooth operation of your transmission system. Please read these instructions carefully before installation or maintenance.

2. Product Overview

Figure 1: The EasyByMall transmission filter shown with its accompanying O-ring. The filter features a red pleated media for fluid filtration and a gray metal housing.

Figure 2: An angled view of the transmission filter and O-ring, highlighting the compact design and the filter media.

The transmission filter is designed to capture contaminants and debris from the automatic transmission fluid, preventing them from circulating and causing damage to sensitive transmission components. The included O-ring ensures a proper seal during installation.

3. Setup and Installation

Installation of a transmission filter typically involves draining the transmission fluid, removing the transmission pan, replacing the old filter, and then reinstalling the pan with a new gasket and refilling with fresh transmission fluid. Due to the complexity and specific requirements of transmission service, it is highly recommended that this procedure be performed by a qualified automotive technician.

General Installation Guidelines (Professional Installation Recommended):

1. Safety First: Ensure the vehicle is safely lifted and supported on jack stands. Allow the transmission to cool down to prevent burns from hot fluid.
2. Drain Fluid: Place a drain pan under the transmission and remove the drain plug (if present) or carefully loosen the transmission pan bolts to drain the fluid.
3. Remove Pan: Once fluid is drained, remove all transmission pan bolts and carefully lower the pan. Be prepared for residual fluid.
4. Remove Old Filter: Locate and remove the old transmission filter. This may involve unbolting it or simply pulling it out, depending on the transmission model.
5. Install New Filter: Install the new EasyByMall transmission filter, ensuring it is securely seated. Replace the O-ring as necessary.
6. Clean Pan and Gasket: Clean the transmission pan thoroughly. Remove all traces of the old gasket material from both the pan and the transmission housing. Install a new transmission pan gasket.
7. Reinstall Pan: Reinstall the transmission pan, tightening bolts to the manufacturer's specified torque.
8. Refill Fluid: Refill the transmission with the correct type and amount of automatic transmission fluid as specified by your vehicle manufacturer.
9. Check Fluid Level: Start the engine, shift through all gears, and then check the fluid level according to your vehicle's service manual. Add fluid as needed.

Figure 3: Various perspectives of the filter and O-ring, illustrating its design from top, side, and bottom angles.

Figure 4: A detailed view showing the top of the filter and the O-ring, emphasizing the connection point.

4. Function and Maintenance

Function:

The transmission filter plays a vital role in protecting your automatic transmission. It filters out metallic particles, clutch material, and other debris that can accumulate in the transmission fluid over time. A clean filter ensures that the transmission fluid remains free of contaminants, allowing it to properly lubricate, cool, and transmit hydraulic pressure within the transmission.

Maintenance:

Transmission filters are wear items and require periodic replacement. Consult your vehicle's owner's manual for the recommended transmission fluid and filter change intervals. These intervals typically range from 30,000 to 100,000 miles, depending on the vehicle manufacturer, driving conditions, and transmission type. Regular maintenance helps prevent premature transmission wear and costly repairs.

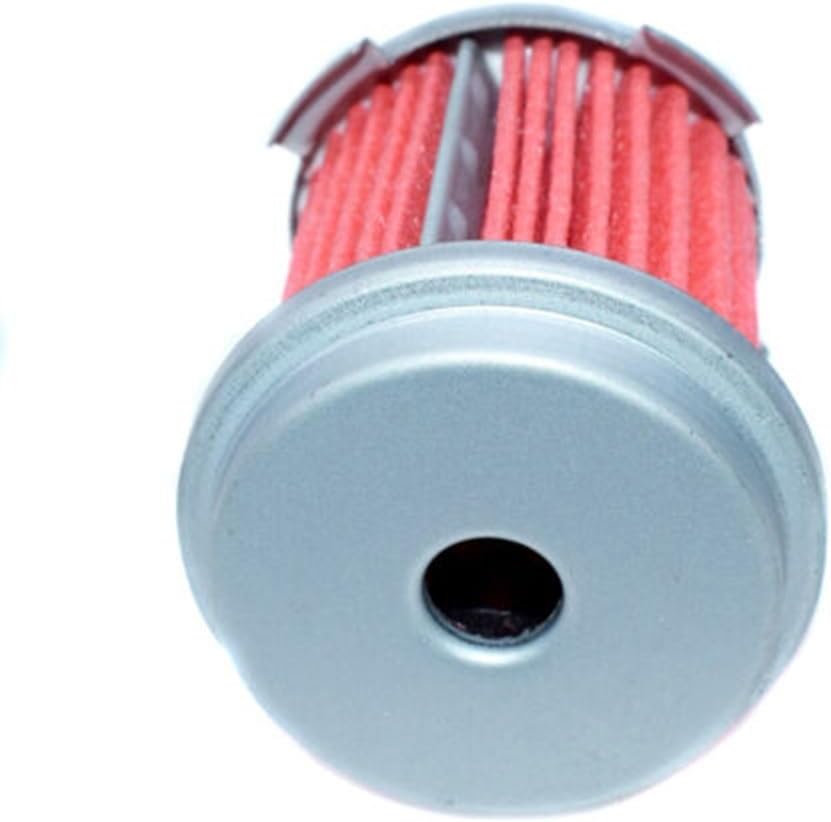

Figure 5: A view of the bottom of the transmission filter, showing the inlet opening.

Figure 6: A side profile of the transmission filter, highlighting the pleated filter media within the housing.

5. Troubleshooting

A clogged or failing transmission filter can lead to various transmission issues. If you experience any of the following symptoms, it may indicate a need for transmission service, including filter replacement:

• Delayed or Harsh Shifting: The transmission may hesitate to engage gears or shift roughly.
• Slipping Gears: The engine RPMs may increase without a corresponding increase in vehicle speed.
• Unusual Noises: Whining, clunking, or grinding sounds coming from the transmission.
• Overheating Transmission: A restricted filter can reduce fluid flow, leading to increased transmission temperatures.
• Warning Lights: The check engine light or transmission warning light may illuminate on your dashboard.

If you observe any of these symptoms, it is advisable to have your vehicle inspected by a professional technician promptly.

6. Specifications

7. Compatibility

This transmission filter is a direct replacement for OE Part Number 25450-P4V-013 and is compatible with various Acura and Honda models. Please verify your vehicle's OE part number before purchase to ensure proper fitment.

Compatible Models:

• Acura:
  • MDX: 2003-2009
  • RDX: 2007-2012
  • RL: 2005-2010
  • TL: 2007-2011
  • TSX: 2010-2014 (V6; 3.5L; J35Z6 Eng)
• Honda:
  • Accord: 2005-2016 (Specific engine types apply, e.g., 2005-2007 Hybrid V6 3.0L JNA1 Eng; 2008-2012 V6 3.5L; 2013-2016 L4 2.4L K24W1 Eng)
  • Accord Crosstour: 2010-2011
  • Civic: 1996-2000, 2014-2016 (Specific engine types apply, e.g., 1996-2000 HX L4 1.6L D16Y5 Eng; 2014-2015 L4 1.8L R18Z1 Eng)
  • Crosstour: 2012 (V6; 3.5L; J35Z2 Eng)
  • Pilot: 2009-2015
  • Ridgeline: 2006-2014

Note: Compatibility is for reference only. Always confirm with your vehicle's specific OE part number.

8. Warranty and Support

For warranty information or technical support regarding your EasyByMall transmission filter, please contact the seller or manufacturer directly through the platform where the product was purchased. Keep your purchase receipt or order number handy for faster service.
