1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your TAZPI 30 Inch Wall Mount Range Hood. Designed for efficient ventilation, this appliance features a powerful 1200CFM dual-motor system, 4-speed control, smart touch sensor, remote operation, dual LED lights, and durable baffle filters. Please read this manual thoroughly before installation and use to ensure safe and optimal performance.

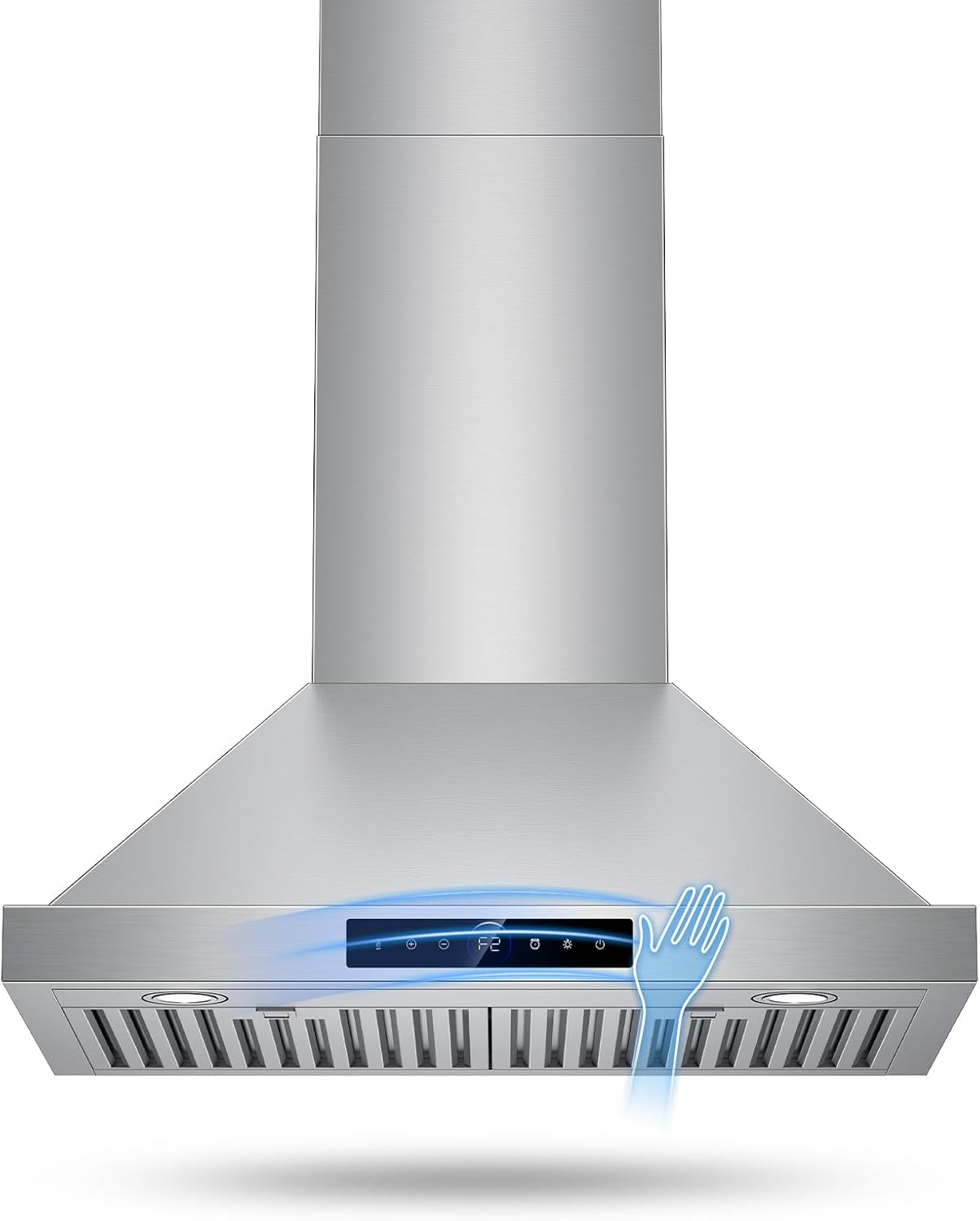

Image: Front view of the TAZPI 30 Inch Wall Mount Range Hood, showcasing its stainless steel finish and control panel.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury. This appliance is for residential use only.
- Read all instructions before operating the range hood.
- Ensure the power supply matches the voltage specified on the rating label.
- Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
- Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
- Always disconnect the appliance from the power supply before cleaning or maintenance.
- Proper ventilation is essential. Ensure adequate air for proper combustion and exhausting of gases through the flue (chimney) of fuel-burning equipment to prevent back-drafting.
- Clean grease filters frequently. Grease should not be allowed to accumulate on fan or filter.
- Never leave surface units unattended at high settings. Boil-overs cause smoking and greasy spill-overs that may ignite.
- Use appropriate pan size. Always use cookware appropriate for the size of the surface element.
3. Installation and Setup
The TAZPI range hood is designed for wall-mount installation and can be configured for both ducted (vented) and ductless (recirculating) operation. Professional installation is recommended for optimal results.
3.1 Pre-Installation Checklist
- Verify all components are present and undamaged.
- Ensure the installation area meets local building codes and electrical requirements.
- Determine whether the installation will be ducted or ductless. For ductless operation, charcoal filters (not included with all models) are required.
- Prepare the wall for mounting, ensuring it can support the weight of the range hood.
3.2 Mounting the Range Hood
The range hood is designed for wall mounting. Accurate measurement and drilling are crucial. Some installations may require custom drilling of mounting holes to align with existing cabinetry or wall studs. The unit typically connects via a standard 3-prong plug, but can be hardwired by a qualified electrician if preferred.
Image: Diagram showing the dimensions of the TAZPI 30 Inch Wall Mount Range Hood, including width (29.5"), depth (19.7"), and height (2.36" for the main body).
3.3 Ducting Options
This range hood supports both ducted and ductless configurations. For ducted installations, ensure proper ductwork is in place to vent air outdoors. For ductless (recirculating) installations, charcoal filters must be installed to purify the air before returning it to the kitchen.
4. Operating Instructions
Your TAZPI range hood features a smart touch sensor control panel and remote operation for convenience. It offers 4 fan speeds and dual LED lighting.
4.1 Control Panel Overview
Image: Close-up of the range hood's touch control panel, illustrating buttons for power, light, fan speed adjustment, timer, and gesture control activation.
- A. Power Button: Tap to turn the range hood on or off.
- B. Light Button: Tap to turn the LED lights on or off.
- C. Plus Button (+): Increases fan speed. First tap activates speed F1, subsequent taps increase speed up to F4.
- D. Minus Button (-): Decreases fan speed. First tap activates speed F4, subsequent taps decrease speed down to F1.
- E. Timer Button: Tap to activate the automatic shutdown timer (1-15 minutes). The fan will turn off after the set duration.
- F. Gesture Control Switch: Tap to enable or disable the gesture control feature. When enabled, you can control basic functions with hand movements.
4.2 Fan Speed Control
The range hood offers 4 fan speeds (F1-F4) to accommodate various cooking needs. Use lower speeds for light cooking and higher speeds (up to 1200CFM) for heavy smoke and odors, such as stir-frying.
Image: Illustration showing strong upward airflow from the range hood, indicating its 1200CFM suction power effectively removing cooking fumes from pots on a stove.
4.3 Timer and Auto Purge
Utilize the timer function for hands-free operation, setting it for 1-15 minutes. The auto-purge feature can be activated for a 3-minute post-cooking cycle to eliminate residual smoke and odors, ensuring your kitchen remains fresh.
4.4 LED Lighting
The dual LED lights provide bright, high-CRI (Ra92) illumination for your cooking surface, enhancing visibility and ensuring true-to-life color representation of your food.
5. Maintenance
Regular maintenance ensures the longevity and efficient operation of your TAZPI range hood.
5.1 Cleaning Baffle Filters
The multi-layer stainless steel baffle filters are designed to capture grease effectively and are dishwasher-safe for easy cleaning. It is recommended to clean them regularly, depending on cooking frequency, to maintain optimal airflow and prevent grease buildup.
- Ensure the range hood is turned off and disconnected from power.
- Remove the baffle filters by sliding them out of their slots.
- Place the filters in a dishwasher for cleaning or wash them by hand with hot, soapy water.
- Allow filters to dry completely before re-installing.
Image: An illustration demonstrating the easy removal and cleaning process for the dishwasher-safe stainless steel baffle filters of the range hood.
5.2 Replacing Charcoal Filters (Ductless Mode)
If operating in ductless (recirculating) mode, charcoal filters are essential for odor absorption. These filters are not washable and must be replaced periodically. The manual recommends changing them every 6 months, though this may vary based on usage.
- Ensure the range hood is turned off and disconnected from power.
- Remove the baffle filters to access the charcoal filters.
- Remove the old charcoal filters and dispose of them.
- Install new charcoal filters, ensuring they are securely in place.
- Re-install the baffle filters.
5.3 Cleaning Exterior Surfaces
Clean the stainless steel exterior with a non-abrasive cleaner and a soft cloth. Avoid harsh chemicals or abrasive pads that could scratch the surface. For best results, wipe in the direction of the grain.
6. Troubleshooting
Refer to this section for common issues and their solutions. If problems persist, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Range hood does not turn on. | No power supply; circuit breaker tripped; power cord not securely plugged in. | Check power connection, reset circuit breaker. Ensure the power cord is fully inserted into the outlet. |
| Low suction power. | Clogged grease filters; improper ducting; incorrect impeller installation (rare factory defect). | Clean or replace grease filters. Check ductwork for obstructions or leaks. Important: If the unit is new and excessively loud with a "fighting" noise, check if the impellers are installed on the correct motor sides (left impeller on left motor, right on right). This has been identified as a rare factory defect. |
| Excessive noise during operation. | Loose components; fan blade obstruction; motor imbalance; incorrect impeller installation. | Inspect for loose screws or debris. If noise is a loud "fighting" sound, refer to the impeller installation note above. Contact service if issue persists. |
| LED lights not working. | Loose connection; faulty LED module. | Ensure power is connected. If individual lights are out, contact customer support for replacement parts. |
| Gesture control unresponsive. | Gesture control feature disabled; sensor obstructed. | Ensure the gesture control switch on the panel is enabled. Clean the sensor area to remove any obstructions. |
7. Specifications
Technical specifications for the TAZPI 30 Inch Wall Mount Range Hood (Model TW03S-E30).
| Feature | Detail |
|---|---|
| Model Number | TW03S-E30 |
| Air Flow Capacity | 1200 Cubic Feet Per Minute (CFM) |
| Material | Stainless Steel |
| Noise Level | 20-55 Decibels |
| Mounting Type | Wall Mount |
| Controls Type | Touch, Remote, Gesture Control |
| Number of Speeds | 4 |
| Light Source Type | LED (High-CRI Ra92) |
| Filter Type | Baffle (Dishwasher Safe) |
| Ventilation Type | Ducted/Ductless Convertible |
| Product Dimensions (L x W x H) | 29.68 x 9.24 x 20.83 inches |
| Voltage | 120V/60HZ |
| Power Cord Length | 43 inches |
| Special Features | Noise Reduction, Timer, Auto Purge |
Image: A detailed table outlining the product specifications of the TAZPI range hood, including voltage, noise level, filter type, and dimensions.
8. Warranty and Support
TAZPI products are manufactured with quality and durability in mind. The UL-certified motors are designed for over 10 years of reliable operation.
For specific warranty details, claims, or technical support, please refer to the warranty card included with your product or contact TAZPI customer service directly. Contact information can typically be found on the manufacturer's official website or through your point of purchase.
