U-MAX Wall Gazebo 12' x 10' Hard Top - Instruction Manual

1. Important Safety Information

This section contains critical safety guidelines for the U-MAX Wall Gazebo. Adhering to these instructions is essential for safe installation and long-term use.

• Secure Fastening: Ensure the gazebo is securely fastened to both the wall and the ground. This is crucial for stability, especially in adverse weather conditions such as heavy snow or strong winds.
• Wall Mounting: Follow the provided guidelines for mounting the gazebo against a wall. Use appropriate nails or anchors suitable for your wall material to achieve maximum stability.
• Weather Conditions: While designed to withstand heavy snow (up to 66 lbs/㎡ or 2.4" thick snow) and wind speeds of 40-50 mph when properly secured, extreme weather conditions may require additional precautions or temporary disassembly.
• Assembly: Assembly is required. It is recommended to have at least two people for assembly to ensure safety and proper installation.

2. Setup and Assembly

The U-MAX Wall Gazebo requires assembly. Please follow these steps carefully. Refer to the detailed instructions and assembly videos available on the product page for visual guidance.

2.1 Unpacking and Part Identification

Upon delivery, you may receive the gazebo in two separate packages. Ensure both packages have arrived before beginning assembly. Carefully unpack all components and verify against the parts list in your physical manual. Inspect all parts for any damage before proceeding.

Image: All components of the U-MAX Wall Gazebo laid out for inspection before assembly.

2.2 Site Preparation

Choose a flat, level surface for installation. The gazebo is designed to be mounted against a wall. Ensure the chosen wall is structurally sound and capable of supporting the gazebo's weight and resisting forces from wind and snow.

2.3 Frame Assembly

1. Assemble the main frame structure according to the provided diagrams.
2. Connect the aluminum tubes, ensuring all connections are secure. The crisscrossing aluminum tubes provide strong support for the roof panels.
3. Utilize the multiple keyholes for frame stability.
4. The triangular structure enhances the overall stability of the gazebo.

Image: Close-up diagram illustrating the triangular structure and multiple keyholes designed for enhanced stability of the gazebo frame.

2.4 Roof Panel Installation

Install the flexible sun panels onto the assembled frame. These panels are designed to disperse impact effectively and reduce pressure from severe weather events.

Image: Detailed view of the sun panels forming the gazebo roof, highlighting their anti-UV, windproof, rain protection, and fade-resistant properties.

2.5 Wall and Ground Anchoring

Secure the gazebo to the chosen wall using the pre-drilled holes in the stable frame legs and wall studs. Ensure all anchoring points are firmly attached to prevent movement, especially in windy conditions.

Image: Diagram illustrating the stable frame leg with pre-drilled holes for floor attachment and additional holes on the wall studs for secure wall mounting.

3. Operating Instructions

The U-MAX Wall Gazebo provides a versatile outdoor shelter. Once properly installed, it offers protection and an enhanced outdoor living space.

3.1 Intended Use

This pergola is suitable for various outdoor applications, including:

• Creating a shaded area near a pool or hot tub.
• Defining an outdoor dining area.
• Establishing an entertainment space on a deck, porch, or in a backyard.

Image: The U-MAX Wall Gazebo installed over an outdoor dining setup, demonstrating its use as a shaded area.

3.2 Weather Protection

The roof of the gazebo is designed to offer comprehensive protection:

• UV Protection: The heavily tinted roof blocks UPF 50+ and 99% of UV rays, providing a safe shaded environment.
• Rain Protection: The roof is waterproof, offering shelter from rain.
• Snow Load: The high-quality roof is rated to hold up to 66 lbs/㎡, equivalent to approximately 2.4 inches of thick snow.

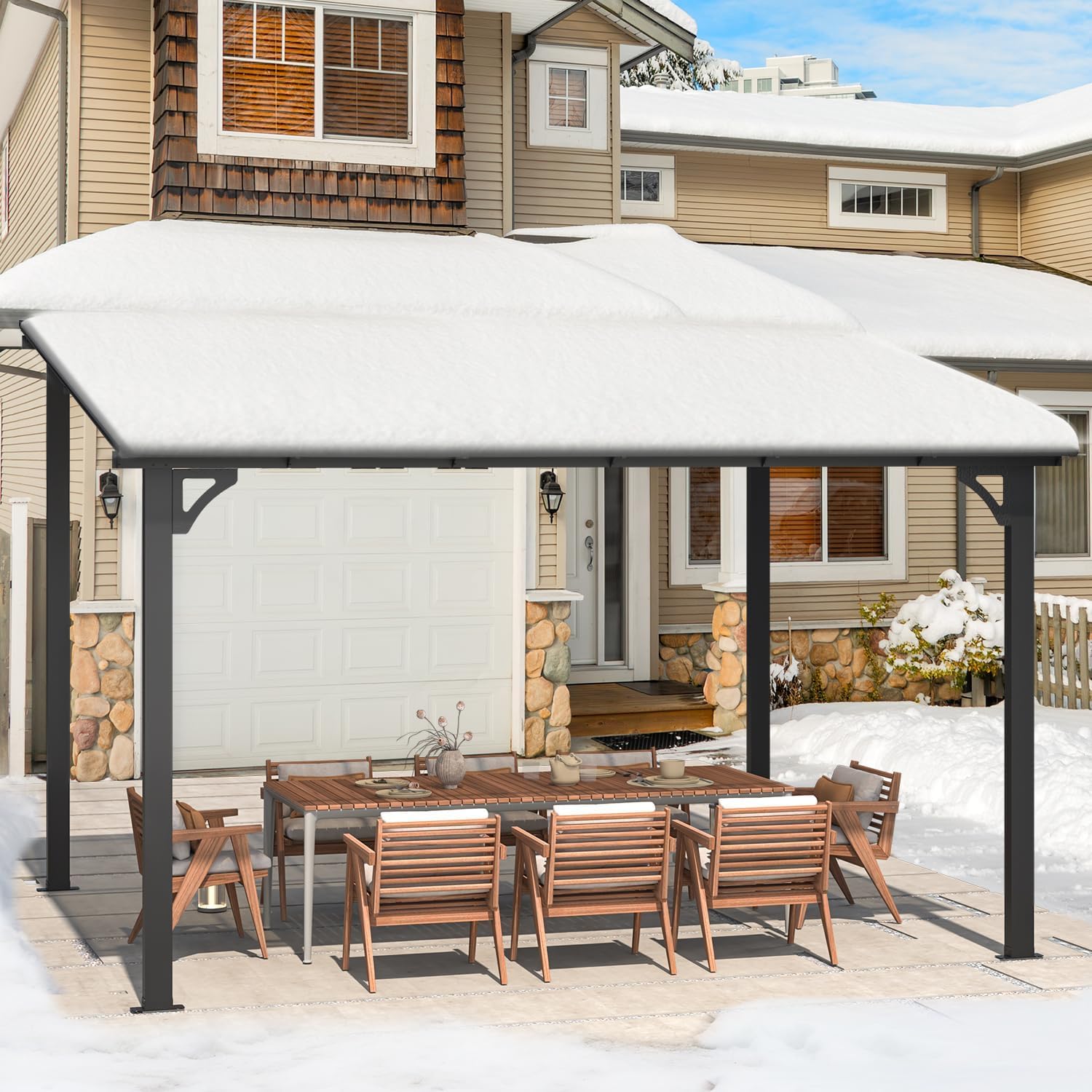

Image: The U-MAX Wall Gazebo shown with a layer of snow on its roof, illustrating its capability to withstand winter conditions.

4. Maintenance

Regular maintenance ensures the longevity and optimal performance of your U-MAX Wall Gazebo.

4.1 Cleaning

• Clean the frame with a mild soap and water solution. Rinse thoroughly and dry to prevent water spots or corrosion.
• The flexible roof panels can be cleaned with a soft cloth and mild detergent. Avoid abrasive cleaners or brushes that could scratch the surface.

4.2 Seasonal Checks

• Before Winter: Ensure all fasteners and anchoring points are tight. While the roof is designed for snow load, it is advisable to clear excessive snow accumulation to prevent undue stress on the structure.
• Before Summer: Inspect the roof panels for any signs of wear or damage. Check all frame connections for tightness.

4.3 Panel Resilience

The flexible panels are designed to disperse impact, making them more resilient than traditional hardtop panels against events like hailstorms. However, regular inspection for any damage is recommended.

5. Troubleshooting

This section addresses common issues you might encounter with your U-MAX Wall Gazebo.

6. Specifications

Detailed technical specifications for the U-MAX Wall Gazebo 12' x 10'.

Image: Detailed dimensional diagram showing the 10 x 12 FT Hardtop Gazebo with key measurements including height, width, and depth.

7. Warranty and Support

U-MAX is committed to providing quality products and customer satisfaction.

• Warranty: The U-MAX Wall Gazebo comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use.
• Customer Support: We offer lifelong customer-friendly service, available 24/7. If you have any questions, require assistance with assembly, need replacement parts, or encounter any issues with your gazebo, please do not hesitate to contact our support team.
• Contact Information: Refer to the contact details provided in your product packaging or on the official U-MAX website for the most current support channels.
