1. Product Overview
This manual provides essential information for the safe and efficient use of your Elefast 48V 100AH Lithium Battery Kit. This kit is designed for golf carts and similar recreational vehicles, offering a high-performance, long-lasting power solution.
1.1 Kit Contents
- Elefast 48V 100AH LiFePO4 Battery
- 58.4V 18A LiFePO4 Charger
- 2.8-inch LCD Touch Monitor
- Battery Mounting Straps (x2)
- Product Manual
- Charger AC Input Cable
- RS485 Cable
- 8 Screws
- Charger AC Output Cable
Image 1.1: Elefast 48V 100AH Lithium Battery Kit, including the battery, charger, LCD monitor, and mounting straps.
2. Safety Information
Read all safety instructions before installation and operation. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Do not disassemble, puncture, or modify the battery.
- Do not expose the battery to fire, high temperatures (above 158°F / 70°C), or direct sunlight for extended periods.
- Do not short-circuit the battery terminals.
- Use only the provided 58.4V 18A LiFePO4 charger. Using an incompatible charger may damage the battery or cause fire.
- Ensure proper ventilation during charging and operation.
- Keep the battery away from water and moisture. The battery has an IP65 rating, but direct submersion should be avoided.
- In case of battery damage or leakage, avoid contact with the electrolyte and seek professional assistance.
- The built-in Smart 200A BMS provides protection against overcharging, over-discharging, overloading, high temperature, and short circuits. It will automatically disconnect the battery if the temperature falls below -4°F (-20°C) or rises above 158°F (70°C).
Image 2.1: Illustration of the battery's low temperature protection feature, showing operating temperature ranges.
3. Setup and Installation
The Elefast 48V 100AH Lithium Battery is designed for straightforward installation as a drop-in replacement for lead-acid batteries in compatible golf carts.
3.1 Compatibility
This battery kit is compatible with major brands of golf carts, including Ezgo, Club Car, and Yamaha. Its dimensions (20.47"L x 10.55"W x 8.62"H) and interface are designed to match existing battery trays.
Image 3.1: The Elefast battery is compatible with popular golf cart models from Ezgo, Yamaha, and Club Car.
3.2 Installation Steps
- Preparation: Ensure the golf cart is turned off and the ignition key is removed. Disconnect any existing battery system.
- Remove Old Batteries: Carefully remove the old lead-acid batteries. Note their configuration for reference, though the lithium battery simplifies the setup.
- Prepare Battery Tray: Clean the battery tray. If necessary, modify the tray to accommodate the new battery's dimensions. Some golf cart models may require minor adjustments to mounting brackets.
- Position New Battery: Place the Elefast 48V 100AH Lithium Battery into the battery tray. Secure it using the provided mounting straps to prevent movement during operation.
- Connect Terminals: Connect the positive (+) and negative (-) terminals to your golf cart's electrical system. Ensure connections are tight and secure.
- Install LCD Touch Monitor: Mount the 2.8-inch LCD touch monitor in a convenient location using its holder. Connect the RS485 cable from the monitor to the designated port on the battery.
- Initial Charge: Before first use, fully charge the battery using the provided 58.4V 18A charger. Refer to Section 4.1 for charging instructions.

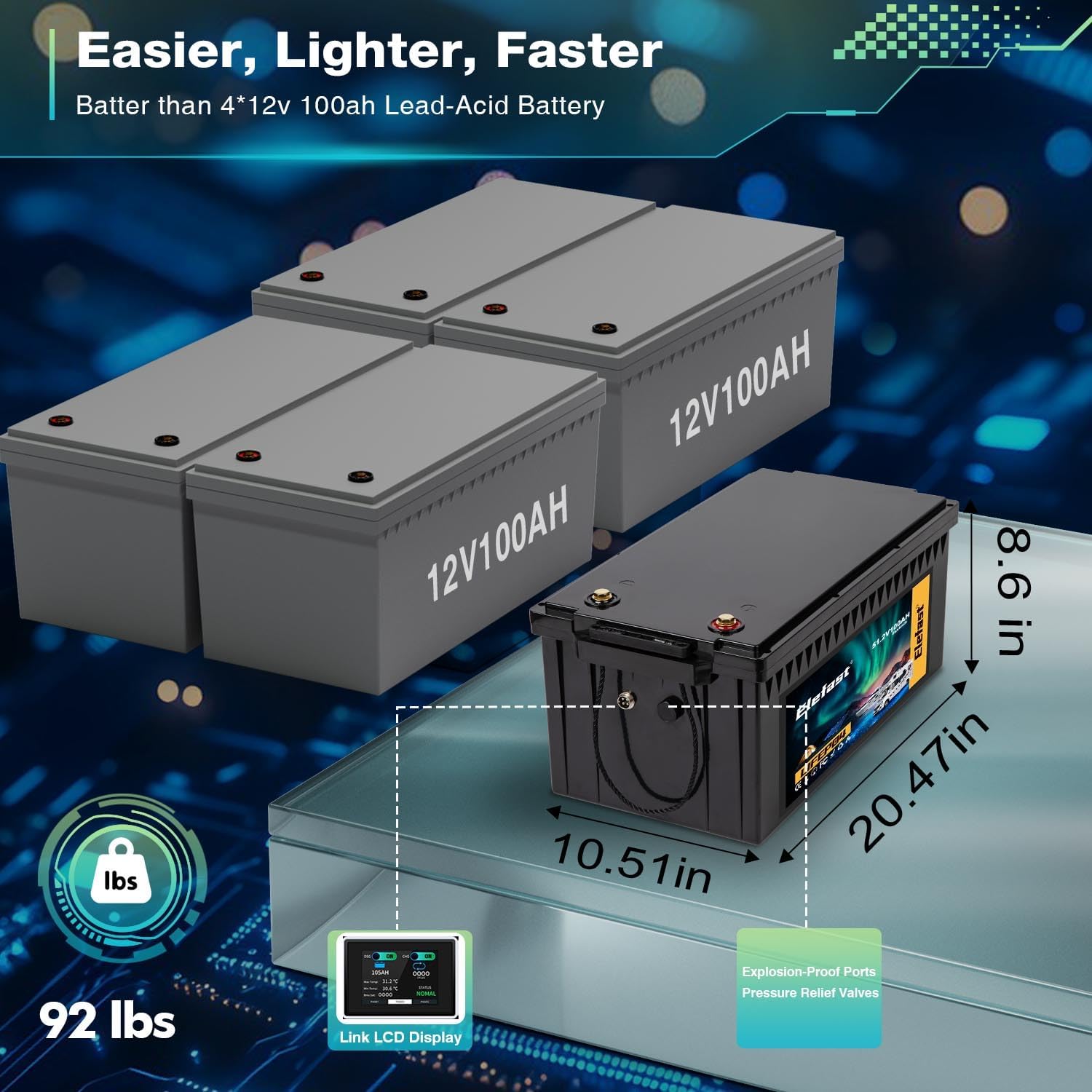

Image 3.2: The Elefast 48V 100AH battery is significantly lighter and more compact than a typical lead-acid battery setup.
4. Operating Instructions
4.1 Charging the Battery
Use only the Elefast 58.4V 18A LiFePO4 charger provided with your kit.
- Ensure the golf cart is turned off.
- Connect the charger's AC input cable to a standard wall outlet.
- Connect the charger's DC output cable to the charging port on the battery.
- The charger will indicate charging status. A full charge from empty typically takes approximately 5 hours.
- Once fully charged, disconnect the charger from the battery, then from the wall outlet.
The battery supports various charging methods, including the provided charger, solar panels, and diesel generators.
Image 4.1: The 58.4V 18A fast charger can fully charge the battery in approximately 5.5 hours and supports solar energy input.
4.2 LCD Touch Monitor and Bluetooth APP
The kit includes a 2.8-inch LCD touch monitor and supports a Bluetooth mobile application for real-time monitoring of battery status.
- LCD Monitor: Displays real-time battery information such as State of Charge (SOC), voltage, current, temperature, and cycle times.
- Bluetooth APP: Download the Elefast app to your smartphone. Connect via Bluetooth to monitor battery status, discharge information, and other parameters remotely.
Image 4.2: The Elefast battery offers both an LCD display and a Bluetooth app for convenient monitoring of battery performance.
4.3 Performance Characteristics
- Continuous Discharge: 200A
- Surge Discharge: 400A for 35 seconds
- Instantaneous Discharge: 600A for 3 seconds
- The battery provides 5.12 kWh of energy and 10.24 kW of power.
- Expect up to 40 miles of continuous golfing on a single charge, depending on terrain and usage.
Image 4.3: The battery's surge discharge capability allows it to handle challenging terrain and inclines.
5. Maintenance
The Elefast LiFePO4 battery is designed to be largely maintenance-free compared to traditional lead-acid batteries.
- Regular Charging: Charge the battery regularly, especially after use, to maintain optimal performance and extend lifespan.
- Storage: If storing the battery for an extended period, ensure it is charged to approximately 80% capacity. Store in a cool, dry place. The battery has a very low self-discharge rate.
- Cleaning: Keep the battery terminals clean and free of corrosion. Use a dry cloth to wipe down the battery casing as needed.
- Inspection: Periodically inspect the battery and connections for any signs of damage or loose wiring.
6. Troubleshooting
The built-in Smart BMS (Battery Management System) actively monitors and protects the battery. If you experience issues, consult the following common scenarios:
| Problem | Possible Cause | Solution |
|---|---|---|
| Battery not charging | Charger not connected properly; Charger malfunction; Battery temperature outside operating range. | Check all cable connections. Ensure charger is plugged into a live outlet. Verify battery temperature via LCD/APP; BMS will prevent charging below -4°F (32°F for charging) or above 158°F. |
| Battery not discharging/No power output | Battery is fully discharged; Over-discharge protection activated; Overload protection activated; Short circuit detected; Battery temperature outside operating range. | Charge the battery. Reduce load on the battery. Check for short circuits in the system. Verify battery temperature; BMS will prevent discharge below -4°F or above 140°F. |
| Reduced range or performance | Battery not fully charged; Aging battery (after many cycles); Extreme operating conditions. | Ensure battery is fully charged before use. While the battery has a long lifespan (6000+ cycles), capacity may gradually decrease over many years. |
| LCD monitor not displaying data | RS485 cable loose or disconnected; Monitor malfunction. | Check the connection of the RS485 cable to both the battery and the monitor. |
If troubleshooting steps do not resolve the issue, please contact Elefast customer support.
7. Specifications
| Feature | Specification |
|---|---|
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage | 48V |
| Nominal Capacity | 100AH |
| Energy | 5.12 kWh |
| Max Power (35s) | 10.24 kW |
| Continuous Discharge Current | 200A |
| Surge Discharge Current | 400A (35s) |
| Peak Current | 600A (3s) |
| Cycle Life | 6000+ cycles |
| Dimensions (L x W x H) | 20.47" x 10.55" x 8.62" (52cm x 26.8cm x 21.9cm) |
| Weight | 82.89 lbs (37.6 kg) |
| Charger Input | 58.4V 18A LiFePO4 Charger |
| BMS | Built-in Smart 200A BMS |
| Protection Features | Overcharge, Over-discharge, Overload, High Temperature, Short Circuit |
| Low Temperature Disconnect | -4°F (-20°C) |
| High Temperature Disconnect | 158°F (70°C) |
| Certifications | UL, IEC, CE, RoHS |
8. Warranty and Support
Elefast provides comprehensive after-sales support for your product.
- Warranty: The Elefast 48V 100AH Golf Cart Lithium Battery Kit comes with a 5-year warranty.
- Technical Support: Professional technical support is available.
- Contact: For any product-related questions or issues, please contact Elefast customer service. Our technical team is available for 7*16 hours fast response.
