Introduction
Thank you for choosing the Dowinx LS-665TE7A Gaming Chair. This manual provides essential information for the assembly, operation, maintenance, and troubleshooting of your new chair. Please read these instructions carefully before assembly and use to ensure proper function and longevity of the product.
Safety Information
- Ensure all parts are present and undamaged before assembly. Do not use if any parts are missing or damaged.
- Follow the assembly instructions precisely. Incorrect assembly can lead to instability and injury.
- Do not stand on the chair.
- Do not use the chair as a ladder.
- Keep children away from moving parts during adjustment.
- Maximum weight capacity: 300 lbs. Do not exceed this limit.
- Avoid exposing the chair to direct sunlight or extreme temperatures to prevent material degradation.
Package Contents
Before beginning assembly, please verify that all components listed in the included detailed instruction manual are present.
Image: An overview of the Dowinx LS-665TE7A Gaming Chair components, including the backrest, seat cushion, armrests, base, wheels, gas lift, and various hardware, laid out for assembly.
Setup and Assembly
A detailed instruction manual with step-by-step diagrams is included in your package. Please refer to that manual for precise assembly instructions. The following is a general overview of the assembly process:
- Attach Wheels to Base: Insert the five caster wheels into the holes on the star base.
- Install Gas Lift: Place the gas lift cylinder into the center hole of the star base.
- Mount Mechanism to Seat: Secure the seat plate mechanism to the underside of the seat cushion using the provided screws. Ensure the front of the mechanism faces the front of the seat.
- Attach Armrests: Fasten the armrests to the seat cushion using the designated screws.
- Connect Backrest to Seat: Align the backrest with the seat cushion and secure it using the provided screws and covers.
- Assemble Seat onto Gas Lift: Carefully place the assembled seat and backrest onto the gas lift cylinder, ensuring it is firmly seated.
- Attach Lumbar and Headrest Pillows: Position the lumbar support pillow and headrest pillow as desired. The lumbar pillow connects via a USB cable for its massage function.
Always ensure all screws are tightened securely before using the chair.
Operating Instructions
The Dowinx LS-665TE7A Gaming Chair offers several adjustable features for personalized comfort.
- Height Adjustment: To adjust the chair height, pull the lever located on the right side of the seat upwards. While seated, lift your weight slightly to raise the chair, or remain seated to lower it. Release the lever to lock the height.
- Backrest Recline: The backrest can be tilted from 90 to 135 degrees. Pull the recline lever, typically on the right side below the seat, and lean back to your desired angle. Release the lever to lock the backrest in place.
- Lumbar Massage Function: The lumbar pillow features a massage function. Connect the USB cable from the lumbar pillow to a compatible USB power source (e.g., computer, power bank, USB wall adapter).
- Footrest: Pull out the footrest located beneath the seat cushion. Extend it to your desired length and position your legs for support. Push it back in when not in use.
- Swivel Function: The chair features smooth 360-degree swivel wheels for easy movement and rotation.
Image: A close-up view of the Dowinx LS-665TE7A Gaming Chair's side, highlighting the levers for height adjustment and backrest recline, with an arrow indicating the recline range from 90 to 140 degrees.
Maintenance and Care

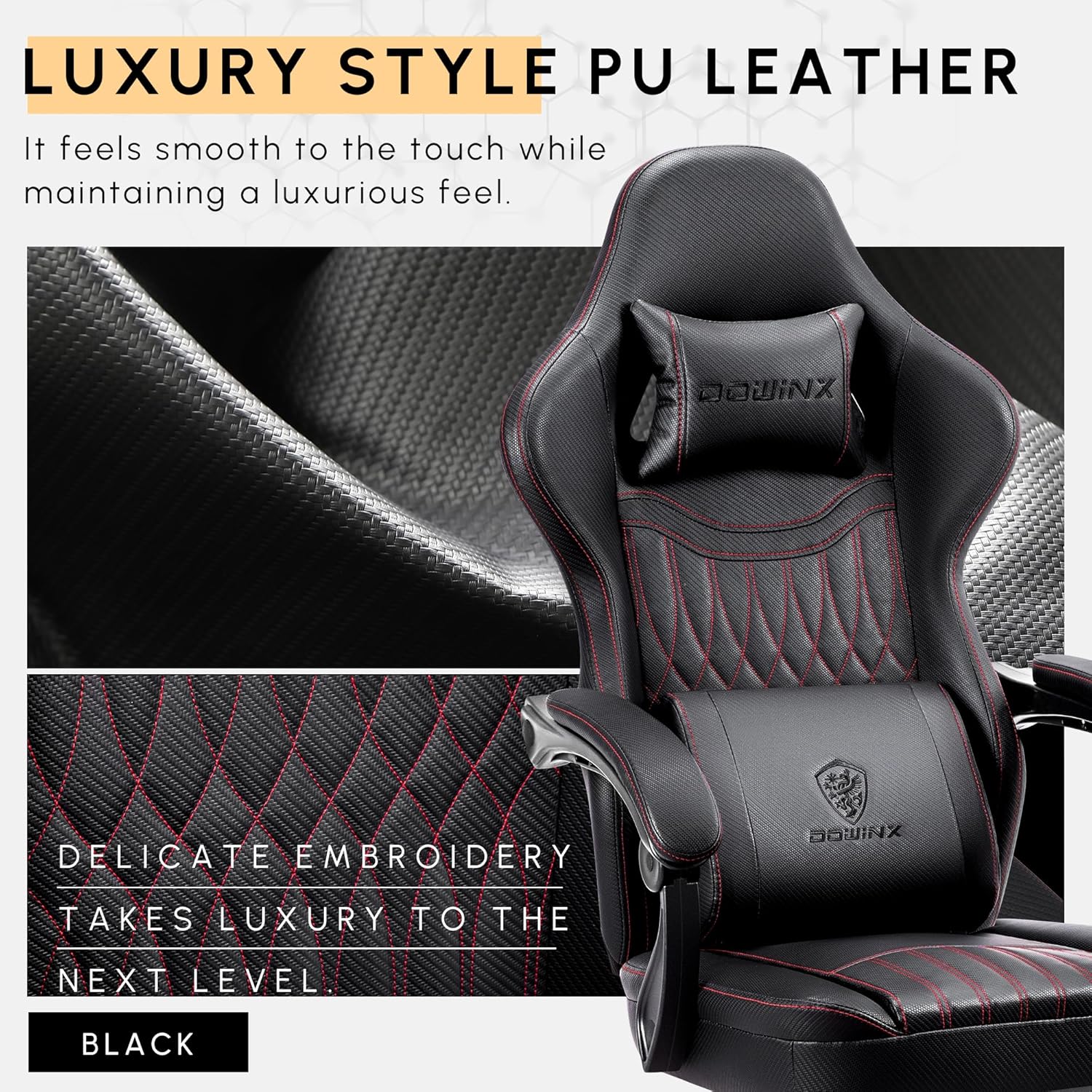

- Cleaning PU Leather: Wipe the PU leather surfaces with a soft, damp cloth. For stubborn stains, use a mild soap solution and wipe dry immediately. Avoid harsh chemicals or abrasive cleaners.
- Frame and Components: Periodically check all screws and bolts to ensure they are tight. Re-tighten if necessary to maintain stability.
- Wheels: Clean the caster wheels regularly to remove dust and debris that may hinder smooth movement.
- Pocket Springs: The internal pocket springs are designed for durability. Avoid excessive force or impact on the seat cushion to preserve their integrity.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair does not adjust height. | Gas lift not engaged or faulty. | Ensure the height adjustment lever is fully pulled. If the issue persists, the gas lift may need replacement. |
| Backrest does not recline or lock. | Recline mechanism jammed or faulty. | Check for obstructions around the recline lever. Ensure the lever is fully engaged/disengaged. |
| Chair makes squeaking noises. | Loose screws or friction between parts. | Tighten all assembly screws. Apply a small amount of silicone lubricant to moving parts if necessary. |
| Lumbar massage not working. | USB power issue or cable disconnected. | Ensure the USB cable is securely connected to a working power source. Try a different USB port or power adapter. |
Product Specifications
| Feature | Detail |
|---|---|
| Brand | Dowinx |
| Model Name | LS-665TE7A |
| Product Dimensions | 19.2"D x 20"W x 50"H |
| Frame Material | Metal |
| Upholstery Material | Breathable PU Leather |
| Included Components | Ottoman (Footrest), Lumbar Massage Pillow, Headrest Pillow |
| Seat Depth | 19.2 inches |
| Item Weight | 44.8 pounds |
| Recline Angle | 90 to 135 degrees |
| Cushion Type | Original Pocketed Springs Cushion |
Image: Detailed dimensions of the Dowinx LS-665TE7A Gaming Chair, including seat width, backrest height, and armrest height, along with recommended user height (5'1"-6'1") and weight (88-265 lbs), and maximum weight (300 lbs).
Warranty and Support
Dowinx provides the following support for the LS-665TE7A Gaming Chair:
- Replacement Services: One-month replacement services from the date of purchase.
- Parts Maintenance: One-year parts maintenance services from the date of purchase.
- Customer Service: Our 24/7 customer service team is available to assist you with any inquiries or issues.
For further assistance, please contact Dowinx customer support or visit the official Dowinx store.
