1. Introduction
This manual provides essential instructions for the safe and effective use of your Bally BL1739 Deep Tissue Percussion Massage Gun. This device is designed to deliver targeted percussion massages to help relieve muscle soreness, stiffness, and tension. Please read this manual thoroughly before first use and retain it for future reference.
2. Safety Information
WARNING: To reduce the risk of electric shock, fire, and injury, please observe the following safety precautions:
- Do not use the device on broken skin, open wounds, or near sensitive areas such as the eyes or face.
- Avoid prolonged use on a single muscle area without breaks.
- Consult a physician before use if you have any medical conditions, are pregnant, have a pacemaker, or are unsure about using a massage device.
- Keep the device away from water and high temperatures.
- Do not disassemble or attempt to repair the device yourself. Contact customer support for assistance.
- Keep out of reach of children and pets.
3. Package Contents
Upon unpacking, please ensure all items listed below are present and in good condition:
- Bally BL1739 Deep Tissue Percussion Massage Gun
- Interchangeable Massage Heads (typically Ball, Fork, Bullet, Flat)
- USB Type-C Charging Cable
- User Manual
Image 1: Bally BL1739 Massage Gun with Ball, Fork, and Bullet Heads.
4. Product Overview
Familiarize yourself with the components and controls of your massage gun.

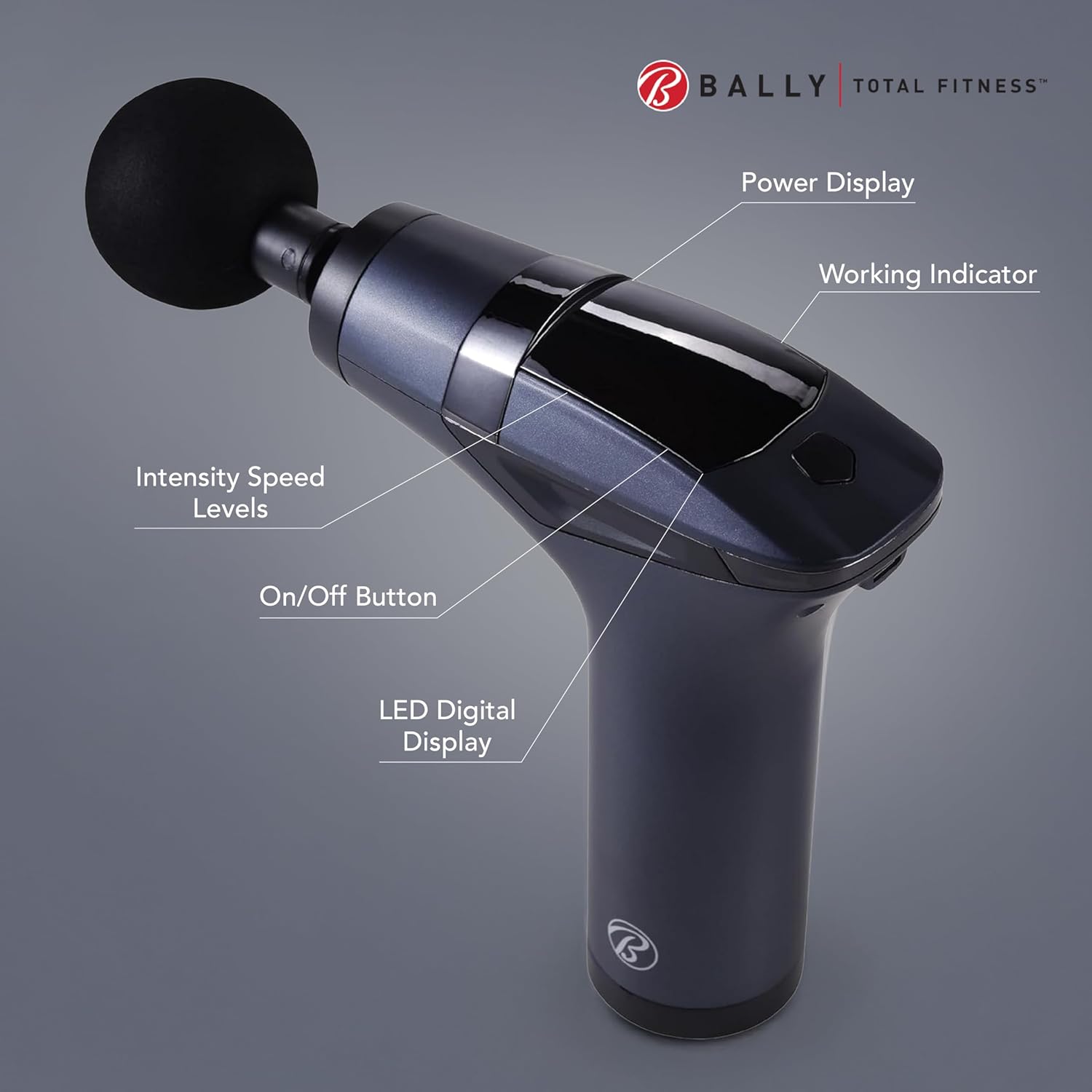

Image 2: Key components and controls of the Bally BL1739 Massage Gun.
- Power Display: Indicates remaining battery life.
- Working Indicator: Illuminates when the device is active.
- Intensity Speed Levels: Displays the current massage intensity.
- On/Off Button: Controls power and adjusts speed settings.
- LED Digital Display: Shows various operational information.
Image 3: Overview of the massage gun's features including battery type and performance.
5. Setup
5.1 Charging the Device
Before first use, fully charge the massage gun. The device uses a Type-C charging port.
- Connect the provided USB Type-C cable to the charging port on the massage gun.
- Connect the other end of the USB cable to a compatible USB power adapter (not included) or a computer's USB port.
- The power display will indicate charging status. The device is fully charged when the display shows 100% or a full battery icon.
Image 4: Type-C charging port location.
5.2 Attaching Massage Heads
The massage gun comes with various interchangeable heads designed for different muscle groups and massage types.
- Ensure the device is powered off before attaching or removing any massage head.
- To attach, gently push the desired massage head into the front opening of the gun until it is securely seated.
- To remove, firmly pull the massage head straight out from the opening.
6. Operating Instructions
6.1 Power On/Off and Speed Adjustment
The massage gun features multiple intensity speed levels for customized relief.
- To Power On: Press and hold the On/Off button for a few seconds until the LED display illuminates. The device will start at the lowest speed setting.
- To Adjust Speed: Briefly press the On/Off button to cycle through the available intensity levels. The LED display will show the current speed setting. There are 12 intensity speed levels, offering 2600-3300 percussions per minute.
- To Power Off: Press and hold the On/Off button for a few seconds until the LED display turns off.
Image 5: The massage gun delivers powerful percussions for deep tissue relief.
6.2 Usage Guidelines
For optimal results and safety, follow these guidelines when using your massage gun:
- Apply the massage gun to the desired muscle area. Do not press too hard; let the percussion do the work.
- Move the device slowly across the muscle, avoiding bones and joints.
- Limit usage to 1-2 minutes per muscle group and no more than 15-20 minutes for a full body session.
- Use different massage heads for various muscle groups: the ball head for large muscles, the fork head for the spine or Achilles, and the bullet head for deep tissue and trigger points.
Image 6: Demonstrating use of the massage gun for muscle relief.
7. Maintenance
Proper maintenance ensures the longevity and performance of your massage gun.
- Cleaning: Wipe the device with a slightly damp cloth after each use. Do not use abrasive cleaners or immerse the device in water.
- Storage: Store the massage gun in a cool, dry place, away from direct sunlight and extreme temperatures.
- Battery Care: To prolong battery life, avoid fully discharging the battery frequently. Charge it regularly, even if not in use for extended periods.
8. Troubleshooting
If you encounter issues with your Bally BL1739 Massage Gun, refer to the following common problems and solutions:
- Device not turning on: Ensure the battery is charged. If not, connect it to the charger.
- Device not charging: Check if the USB Type-C cable is securely connected to both the device and the power source. Try a different USB port or power adapter.
- Reduced performance: The battery might be low. Recharge the device. Ensure the massage head is securely attached.
If the problem persists, please contact Bally customer support for further assistance.
9. Specifications
- Model: BL1739
- Product Dimensions: 11 x 3.15 x 9.06 inches
- Weight: Approximately 13.78 Pounds
- Power Source: Battery Powered (Lithium rechargeable battery)
- Material: Plastic
- Color: Black
- Percussions Per Minute (PPM): 2600-3300
- Intensity Levels: 12
- Manufacturer: Sakar International
10. Warranty and Support
For warranty information, product support, or to inquire about replacement parts, please refer to the warranty card included with your purchase or visit the official Bally website. Please have your model number (BL1739) and purchase details ready when contacting support.
