FAHEFANA 200W Industrial Hot Glue Gun User Manual

1. Important Safety Instructions

Please read and understand all safety instructions before using the hot glue gun. Failure to follow these instructions may result in electric shock, fire, or serious personal injury.

• Hot Nozzle: The nozzle and melted glue reach high temperatures. Avoid direct contact with skin to prevent burns. Use the provided silicone finger protectors when handling hot glue.
• Electrical Safety: Ensure the power cord is not damaged. Do not operate the glue gun in wet conditions or near flammable materials. Always unplug the tool when not in use or before performing maintenance.
• Ventilation: Use the glue gun in a well-ventilated area.
• Children: Keep out of reach of children. This is not a toy. Adult supervision is required if children are present in the work area.
• Proper Use: Use only 11mm diameter glue sticks with this device. Do not attempt to modify the tool or use it for purposes other than its intended use.
• Storage: Allow the glue gun to cool completely before storing.

2. Package Contents

Verify that all items listed below are included in your package:

• 1 x FAHEFANA 200W Hot Glue Gun
• 30 x Transparent Glue Sticks (11mm diameter, 150mm length)
• 1 x Storage Carry Case
• 10 x Silicone Finger Protectors

Image 2.1: The complete FAHEFANA Hot Glue Gun kit, including the glue gun, 30 transparent glue sticks, 10 silicone finger protectors, and a black zippered storage carry case.

3. Product Overview

Familiarize yourself with the components of your hot glue gun:

• Drip-free Nozzle: Precision brass nozzle with anti-reflux technology to prevent glue leakage.
• Trigger: Ergonomically designed for smooth and controlled glue dispensing.
• On/Off Button: Integrated power switch with an LED indicator for clear status.
• Pop-up Stand: A stable, wide-design stand that can be deployed with one hand for safe resting of the gun during use.
• Glue Stick Inlet: Located at the rear for inserting 11mm glue sticks.

Image 3.1: Key features of the FAHEFANA Hot Glue Gun, highlighting the drip-free nozzle, pop-up stand, trigger, and the convenient on/off power button.

4. Setup

1. Insert Glue Stick: Insert an 11mm diameter glue stick into the inlet at the back of the glue gun. Push it gently until it stops.
2. Position Stand: Deploy the pop-up stand to ensure the glue gun rests securely on a flat, heat-resistant surface with the nozzle pointing downwards.
3. Connect Power: Plug the power cord into a standard electrical outlet.

5. Operating Instructions

1. Power On: Flip the On/Off switch to the 'On' position. The LED indicator will illuminate, signaling that the gun is heating.
2. Heating Time: The glue gun will reach its working temperature within 60-90 seconds due to its 200W power and PTC ceramic heating system. The automatic temperature control prevents overheating.
3. Apply Glue: Once heated, gently press the trigger to dispense melted glue from the nozzle. Apply glue to the desired surface.
4. Refill Glue Stick: As the glue stick shortens, insert a new one into the inlet and push it forward to continue dispensing glue.
5. Power Off: When finished, flip the On/Off switch to the 'Off' position. The LED indicator will turn off.
6. Cool Down: Allow the glue gun to cool completely on its stand before storing.

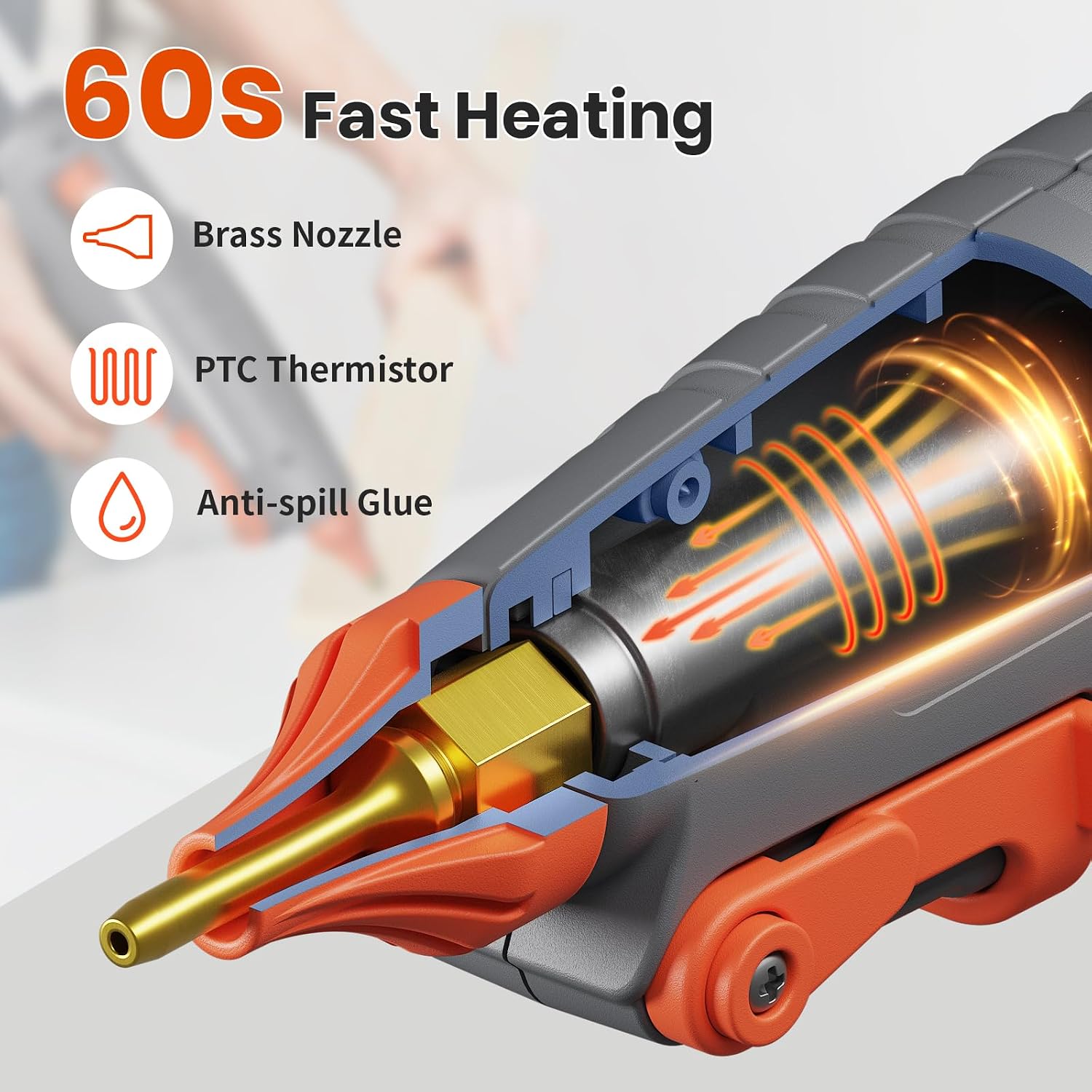

Image 5.1: Internal view highlighting the rapid heating capabilities, including the brass nozzle, PTC thermistor, and anti-spill design for efficient operation.

Image 5.2: Details of the included eco-friendly glue sticks, emphasizing their transparency, lack of odor, high viscosity, and purity, with dimensions of 0.43 inches (11mm) diameter and 5.9 inches (150mm) length.

6. Maintenance

• Cleaning: Ensure the glue gun is unplugged and completely cool before cleaning. Gently wipe the exterior with a damp cloth. Do not use abrasive cleaners or solvents.
• Nozzle Care: Do not attempt to clean the nozzle while the gun is hot. If glue residue builds up, allow it to cool and carefully remove any hardened glue with a non-abrasive tool.
• Storage: Store the cooled glue gun and glue sticks in the provided carry case in a dry, safe place, away from direct sunlight and extreme temperatures.

Image 6.1: The hot glue gun being stored in its dedicated carry case, illustrating the ease of storage and transport for the device and its accessories.

7. Troubleshooting

• Glue Gun Not Heating:
  • Check if the power cord is securely plugged into an active outlet.
  • Ensure the On/Off switch is in the 'On' position and the LED indicator is lit.
  • Verify that the outlet is functioning by plugging in another device.
• Glue Not Flowing:
  • Ensure a glue stick is fully inserted and pushed forward.
  • Allow sufficient time for the gun to heat up (60-90 seconds).
  • Check for any hardened glue blocking the nozzle (only when cool and unplugged).
• Glue Leaking from Nozzle:
  • This model features anti-reflux technology to minimize leaks. If minor dripping occurs, ensure the gun is fully heated before use.
  • Ensure you are using 11mm glue sticks. Incorrect size can cause issues.

8. Specifications

9. Intended Use and Applications

The FAHEFANA 200W Industrial Hot Glue Gun is designed for various crafting, DIY, and repair tasks. Its fast heating and strong adhesive capabilities make it suitable for:

• Christmas Decorations
• General DIY and Arts & Crafts projects
• Home Decoration
• Repairing Toys and Handicrafts
• Minor home repairs

Image 9.1: Examples of common applications for the hot glue gun, such as creating Christmas ornaments, engaging in DIY art projects, enhancing home decor, and repairing toys.

Image 9.2: An illustration of the hot glue gun being used for a creative DIY project, highlighting its user-friendly design for various crafting endeavors.

10. Warranty and Support

For warranty information or technical support, please refer to the retailer where the product was purchased or contact FAHEFANA customer service through their official channels. Keep your purchase receipt as proof of purchase.
