1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Aoleaby OG83RN1024 Encoder. Please read this manual thoroughly before using the product to ensure safe and efficient operation. The OG83RN1024 is an incremental rotary encoder designed for accurate position and speed feedback in various industrial and office automation applications. It features good reliability, long life, and anti-jamming performance.
2. Safety Information
Always observe the following safety precautions to prevent injury and damage to the equipment:
- Ensure power is disconnected before installation or maintenance.
- Do not expose the encoder to excessive moisture, dust, or extreme temperatures.
- Handle the device with care to avoid mechanical shock or damage.
- Only qualified personnel should perform installation and wiring.
- Verify correct wiring connections according to the provided diagrams to prevent electrical damage.
3. Product Overview
The Aoleaby OG83RN1024 is a compact and lightweight incremental rotary encoder. It is designed for integration into systems requiring precise rotational measurement. Its robust construction ensures higher protection and stability in various working environments.

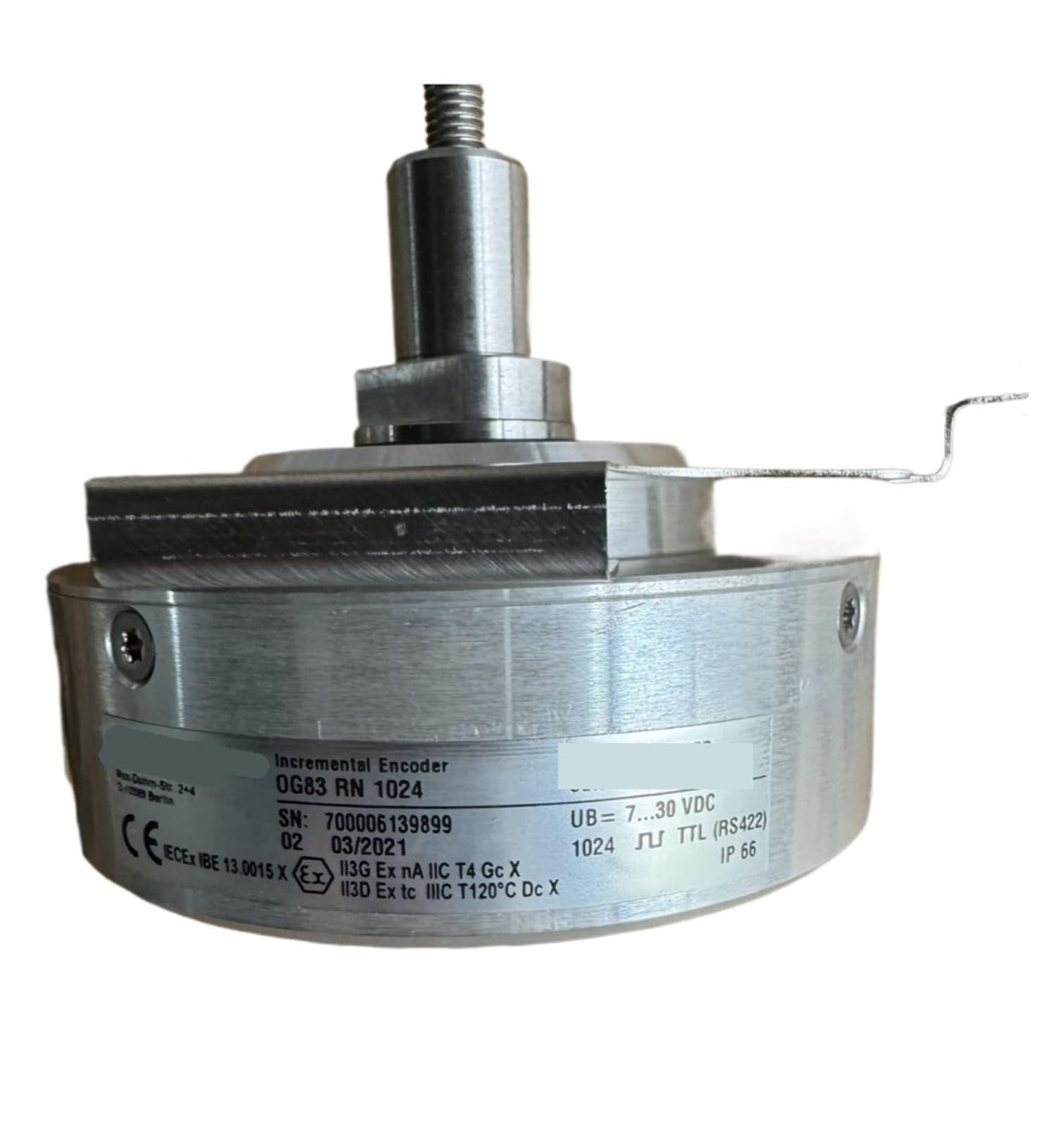

Figure 1: Front view of the Aoleaby OG83RN1024 Encoder. This image displays the compact design of the encoder, highlighting its main body and connection points.
4. Setup and Installation
The incremental rotary encoder is designed for easy installation due to its small size and compact structure.
- Mounting: Securely mount the encoder to the desired rotating shaft or surface using appropriate fasteners. Ensure the encoder is aligned correctly to prevent strain on the shaft.
- Wiring: Connect the encoder to your control system according to the wiring diagram provided with your specific model. Pay close attention to power supply (VCC, GND) and signal output (A, B, Z, etc.) connections. Incorrect wiring can damage the encoder or the control system.
- Power Supply: Apply the specified DC voltage to the encoder. Verify that the power supply is stable and within the encoder's operating voltage range.
- Testing: After installation, perform a functional test to ensure the encoder is providing accurate feedback to your control system.
5. Operating Instructions
The Aoleaby OG83RN1024 Encoder operates by generating electrical pulses in response to rotational movement. These pulses are then interpreted by a connected control system (e.g., PLC, microcontroller) to determine position, speed, or direction.
- Signal Output: The encoder typically provides A and B phase signals, which are quadrature outputs used for direction sensing and higher resolution. A Z-phase (index) signal may also be present for a single pulse per revolution, indicating a home position.
- Monitoring: Monitor the output signals using an oscilloscope or the control system's diagnostic tools to ensure proper operation and signal integrity.
- Environmental Conditions: Operate the encoder within its specified environmental limits (temperature, humidity) to ensure optimal performance and longevity.
6. Maintenance
The Aoleaby OG83RN1024 Encoder is designed for long-term, reliable operation with minimal maintenance. However, periodic checks can help ensure its continued performance.
- Cleaning: Keep the encoder free from excessive dust, dirt, and debris. Use a soft, dry cloth for cleaning. Do not use harsh chemicals or abrasive materials.
- Connection Check: Periodically inspect all electrical connections for tightness and signs of corrosion. Re-tighten or clean as necessary.
- Mounting Integrity: Verify that the encoder remains securely mounted and that there is no excessive vibration or mechanical play.
- Cable Inspection: Check cables for any signs of wear, cuts, or damage. Replace damaged cables immediately.
7. Troubleshooting
If you encounter issues with your Aoleaby OG83RN1024 Encoder, refer to the following troubleshooting guide:
| Problem | Possible Cause | Solution |
|---|---|---|
| No output signal | No power, incorrect wiring, damaged cable, faulty encoder. | Check power supply. Verify wiring connections. Inspect and replace damaged cables. Test encoder with a known good power source. |
| Inaccurate readings | Loose mounting, electrical noise, incorrect parameter settings in control system. | Ensure encoder is securely mounted. Check for sources of electrical interference. Verify control system settings for encoder input. |
| Intermittent signal | Loose connections, damaged cable, environmental interference. | Check and secure all connections. Inspect cables for damage. Shield cables if necessary to reduce interference. |
8. Specifications
Key technical specifications for the Aoleaby OG83RN1024 Encoder:
- Model Number: OG83RN1024 (EG7R/OG83 RN 1024)
- Package Dimensions: 1.18 x 0.79 x 0.39 inches
- Item Weight: 4.41 pounds
- Manufacturer: Aoleaby
- Assembly Required: No
- Number of Pieces: 1
- Features: Good reliability, long life, anti-jamming performance, compact size, light weight, high stability and protection.
9. Warranty Information
This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation for specific warranty terms and duration. The warranty typically covers issues arising from normal use and does not cover damage caused by misuse, improper installation, or unauthorized modifications.
10. Customer Support
For technical assistance, troubleshooting, or warranty claims, please contact your vendor or the manufacturer's customer support. Have your product model number and purchase details ready when contacting support.
