VGR V-601 Professional 2-in-1 Body Groomer for Men Instruction Manual

Introduction

Thank you for choosing the VGR V-601 Professional 2-in-1 Body Groomer. This device is designed for efficient and comfortable grooming of the body, face, nose, and ears. Please read this manual carefully before use to ensure proper operation, maintenance, and safety.

Safety Information

Important Safety Instructions:

• Keep out of reach of children without supervision.
• Use only as instructed in this manual to avoid injury or damage to the device.
• Do not immerse the entire device in water, despite its splash-proof design.
• Ensure the charging port is dry before connecting the USB cable.
• Do not use the device if it is damaged or malfunctioning.

What's in the Box

The VGR V-601 Professional 2-in-1 Body Groomer package includes the following components:

• 1x Body Shaver
• 1x Nose Trimmer Head
• 1x Stubble Comb
• 1x Cleaning Brush
• 1x USB Charging Cable
• 1x Stand Base
• 1x User Manual

Image: Contents of the VGR V-601 package, showing the body groomer, nose trimmer head, stubble comb, charging cable, cleaning brush, and stand base.

Product Features

• Dual-Sided Trimmer: Equipped with two interchangeable trimming heads for versatile grooming.
• Nose & Ear Trimmer: Features a 360° rotating dual-edge blade that ensures a safe and efficient trim of nose, ear, and stray facial hairs without pulling.
• Fast USB Charging: Conveniently charges via any standard USB port (power bank, adapter, computer). A red indicator light shows charging status.
• Splash-Proof Design (IPX4): Resists water splashes from any direction, making it safe for use in the shower or bathroom.
• Skin-Friendly Blades: Floating, curvy blades designed to follow skin contours for a gentle shave without irritation, redness, or discomfort.
• Cordless Convenience: Designed for cordless use only, offering unrestricted movement and hassle-free grooming.
• Stubble Comb Included: Customize your look with the included stubble comb for flexibility in trimming different lengths.
• Long Battery Life: Provides 90 minutes of continuous use after approximately 1.5 hours of charging.

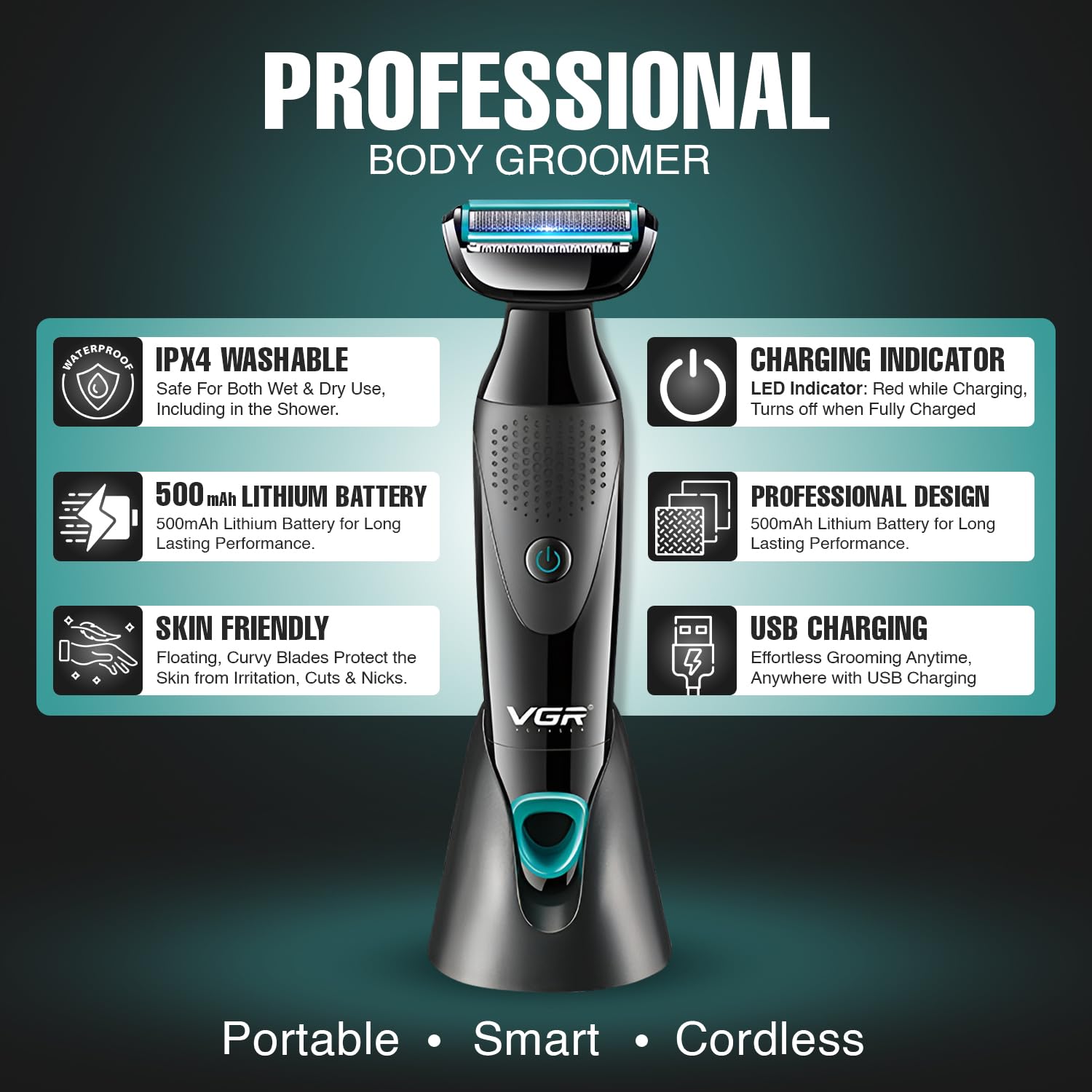

Image: Diagram illustrating key features of the VGR V-601, including IPX4 water resistance, 500mAh lithium battery, skin-friendly design, USB charging, and charging indicator.

Image: Visual representation of the VGR V-601's 90-minute runtime and various USB charging methods (computer, laptop, power bank).

Setup

1. Initial Charge: Before first use, fully charge the groomer for approximately 1.5 hours using the provided USB cable. The red indicator light will illuminate during charging and turn off when fully charged.
2. Attach Desired Head: Select either the body shaver head or the nose/ear trimmer head. Align the head with the main unit and gently push until it clicks into place.
3. Attach Stubble Comb (Optional): If using the body shaver for trimming, slide the stubble comb onto the body shaver head until it secures.

Operating Instructions

1. Power On/Off: Press the power button located on the front of the device to turn it on or off.
2. Body Grooming:
   • For shaving, hold the body shaver head flat against the skin and move it gently against the direction of hair growth.
   • For trimming with the stubble comb, move the shaver in the direction of hair growth for an even trim.
   • The floating blades adapt to your body contours for a comfortable experience.
3. Nose and Ear Trimming:
   • Gently insert the nose/ear trimmer head into the nostril or ear canal.
   • Move the trimmer in a circular motion to cut unwanted hairs. Do not insert too deeply.
4. Facial Hair Trimming: Use the body shaver head without the stubble comb for precise edging or the nose/ear trimmer for stray facial hairs.

Image: Collage showing the VGR V-601 in use for various grooming tasks, including body, nose, ear, and facial hair trimming.

Maintenance

1. Cleaning After Each Use:
   • Turn off the device and detach the trimming head.
   • Use the provided cleaning brush to remove any loose hairs from the blades and the device body.
   • Rinse the trimming head under running water. Ensure the main body's charging port is not exposed to water.
   • Allow all parts to air dry completely before reattaching or storing.
2. Storage: Store the groomer and its accessories in a dry place, away from direct sunlight and extreme temperatures. Use the stand base for convenient storage.
3. Battery Care: To maintain battery life, avoid fully discharging the battery frequently. Charge the device when the indicator light suggests low power.

Image: The VGR V-601 groomer with a water splash effect, emphasizing its IPX4 water-resistant feature for easy cleaning.

Troubleshooting

• Device not turning on: Ensure the device is fully charged. Connect it to a USB power source and check if the charging indicator light illuminates.
• Poor trimming performance:
  • Clean the blades and trimming head thoroughly to remove any accumulated hair or debris.
  • Ensure the trimming head is correctly attached.
  • The battery might be low; charge the device.
• Irritation after use: Ensure blades are clean. Always use the device on clean skin. For sensitive areas, use gentle pressure and move slowly.

Specifications

Warranty and Support

For warranty claims, product support, or any inquiries, please contact VGR customer service:

• Email: customercare@vgrofficial.in
• Phone: 18002578939
• Website: www.vgrofficial.in
• Operating Hours: 10:00 AM to 6:00 PM, Monday to Saturday.

Manufacturer: Ningbo VGR Electric Appliance Co., Ltd.

Importer: SA International
