Hofstein Baloca Floor Lamp User Manual

1. Important Safety Instructions

Please read these instructions carefully before assembly and use. Keep this manual for future reference.

• Indoor Use Only: This lamp is designed for indoor use in dry locations (IP20). Do not expose to moisture or extreme temperatures.
• Electrical Safety: Ensure the power supply is 230V. Always unplug the lamp from the power outlet before cleaning, changing the bulb, or performing any maintenance.
• Bulb Requirements: Use only E27 bulbs with a maximum wattage of 60W. Do not exceed the recommended wattage to prevent overheating.
• Stable Placement: The lamp features a heavy marble base for stability. Ensure it is placed on a flat, stable surface to prevent tipping.
• Cable Management: Position the power cord safely to avoid tripping hazards or damage.
• Cleaning: Clean only with a soft, dry cloth. Avoid abrasive cleaners or solvents.

2. Package Contents

Carefully unpack all components and check against the list below. If any parts are missing or damaged, contact customer support.

• Arc Lamp Sections (multiple pieces)
• Lamp Head with Shade
• Marble Base
• Power Cord with Foot Switch
• Assembly Hardware (screws, washers, etc.)
• User Manual

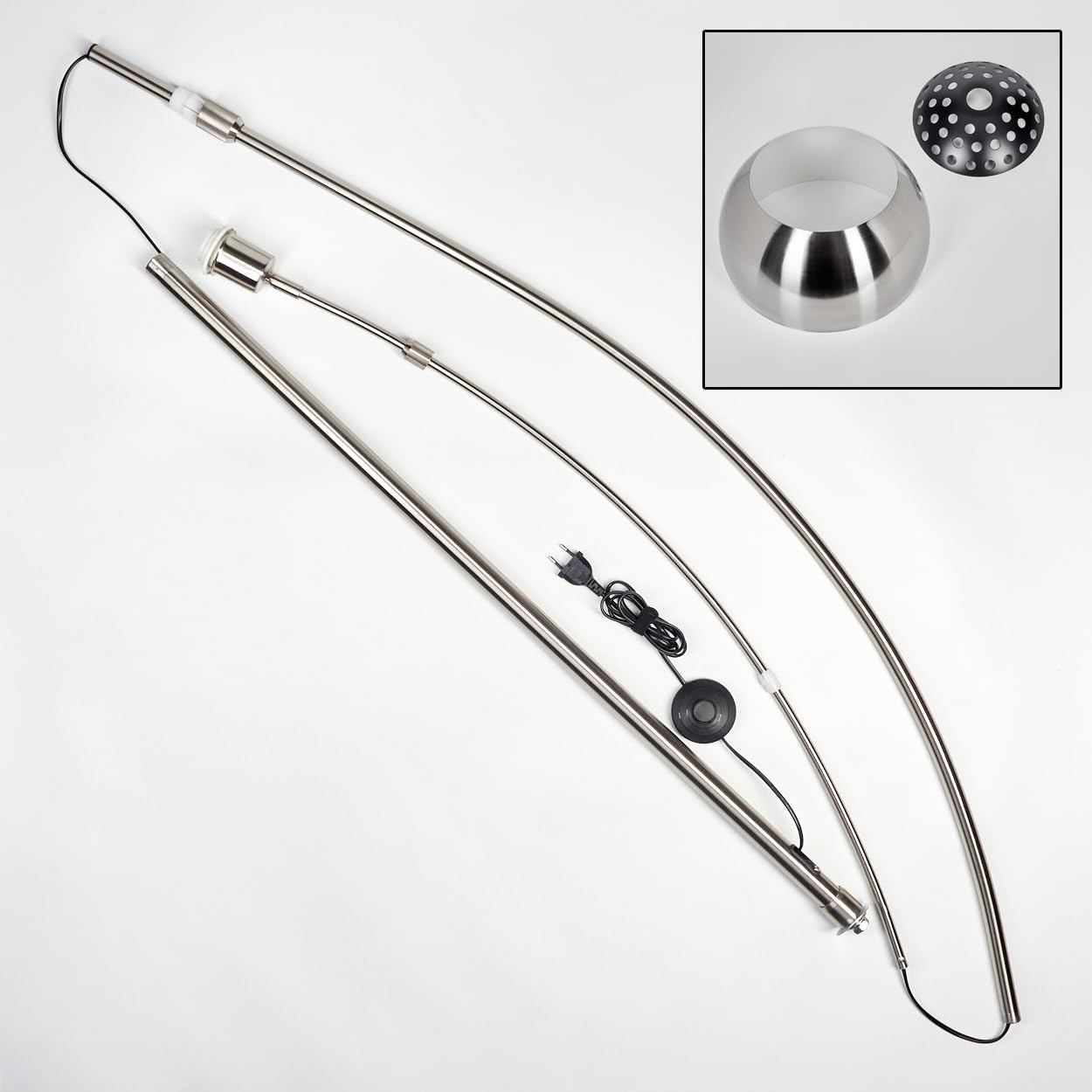

Image: All components of the Hofstein Baloca Floor Lamp laid out for assembly. This includes the curved metal lamp sections, the dome-shaped lamp head, the round black marble base, and the power cord with an integrated foot switch.

3. Setup and Assembly

Follow these steps to assemble your Hofstein Baloca Floor Lamp:

1. Prepare the Base: Place the heavy marble base (PT03) on a clean, flat, and stable surface where you intend to position the lamp.
2. Assemble the Arc Sections: Carefully connect the metal arc lamp sections together. Ensure they are securely fastened.
3. Attach to Base: Insert the bottom section of the assembled arc into the central opening of the marble base. Secure it using the provided hardware (e.g., screw, washer) from underneath the base. Ensure the pole is straight and firmly attached.
4. Attach Lamp Head: Connect the lamp head with the shade to the top of the arc structure. Ensure the electrical connection is secure.
5. Install Bulb: Screw an E27 bulb (not included, max 60W) into the socket inside the lamp head.
6. Route Cable: Guide the power cord along the lamp pole if there are clips or channels, and ensure it reaches the desired power outlet without tension.

Image: A detailed view of the sturdy, round black marble base, which provides stability for the arched floor lamp. The central metal pole is visible, extending upwards from the base.

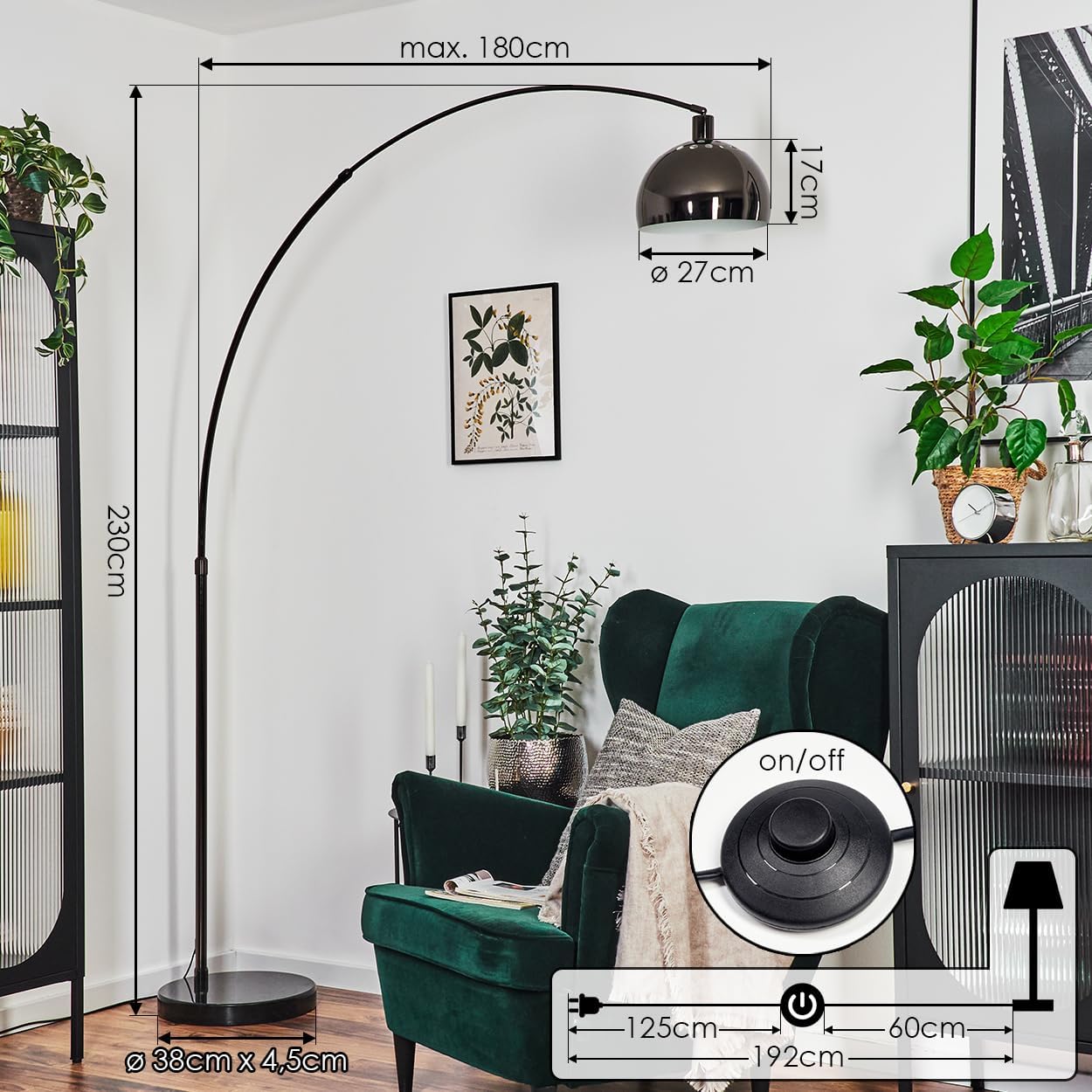

Image: An illustrative diagram displaying the overall dimensions of the assembled lamp, including its height (230cm), maximum length (180cm), and shade diameter (27cm). A detailed inset shows the foot-operated on/off switch on the power cord.

4. Operating Instructions

Once assembled, operating your Baloca Floor Lamp is straightforward:

• Power Connection: Plug the power cord into a standard 230V electrical outlet.
• Turning On/Off: Use the integrated foot switch located on the power cord to turn the lamp on or off.
• Adjusting the Lamp Head: The lamp head is designed to pivot and orient, allowing you to direct the light as needed. Gently adjust the lamp head at the joint (PT06) to achieve your desired lighting angle.

Image: A close-up view of the flexible joint connecting the lamp head to the arc, indicating its ability to pivot and adjust the direction of light.

5. Maintenance

Proper maintenance ensures the longevity and optimal performance of your lamp:

• Cleaning: Always unplug the lamp before cleaning. Use a soft, dry, lint-free cloth to wipe down the metal and marble surfaces. Do not use liquid cleaners, abrasive materials, or chemical solvents, as these can damage the finish.
• Bulb Replacement: Ensure the lamp is unplugged and the bulb has cooled completely before attempting to replace it. Unscrew the old E27 bulb and screw in a new one, ensuring it does not exceed 60W.
• Inspection: Periodically check the power cord for any signs of damage. If the cord is damaged, discontinue use and contact a qualified electrician or the manufacturer.

6. Troubleshooting

If you encounter issues with your lamp, refer to the following common problems and solutions:

• Lamp Does Not Turn On:
  • Check if the power cord is securely plugged into the wall outlet.
  • Ensure the wall outlet is functional by testing it with another appliance.
  • Verify that the bulb is correctly screwed in and not burnt out. Replace the bulb if necessary.
  • Check the foot switch for any visible damage.
• Light Flickers:
  • Ensure the bulb is screwed in tightly.
  • Try a different E27 bulb to rule out a faulty bulb.

If these steps do not resolve the issue, please contact Hofstein customer support.

7. Specifications

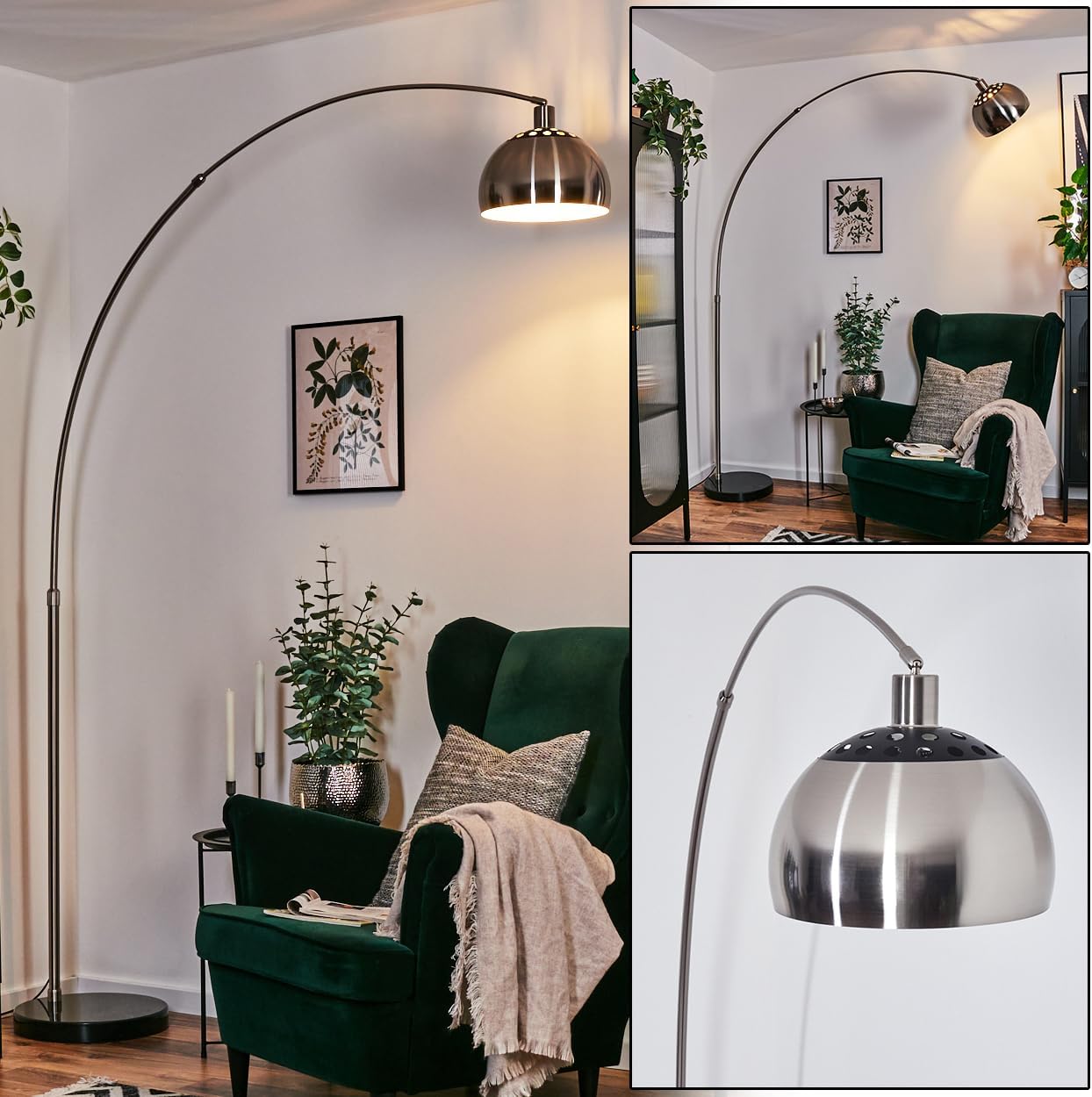

Image: The Hofstein Baloca Floor Lamp, an arched design with a matte nickel finish and a black marble base, illuminating a modern living space.

8. Warranty and Support

Hofstein products are manufactured to high-quality standards. For warranty information or technical support, please refer to the documentation provided at the point of purchase or visit the official Hofstein website.

If you require assistance with assembly, operation, or troubleshooting that is not covered in this manual, please contact Hofstein customer service directly.
