Oakland Self-Priming Water Pump, 1/2 HP, Model BA1230 User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Genérico Oakland Self-Priming Water Pump, 1/2 HP, Model BA1230. Please read this manual thoroughly before installation or operation to ensure proper use and to prevent damage or injury. Keep this manual for future reference.

The Oakland BA1230 is a 1/2 HP self-priming pump designed for various domestic and residential water pumping applications. Its self-priming capability simplifies operation by eliminating the need for manual priming. This pump is suitable for irrigation, water transfer, and home supply systems, offering a steady and efficient water flow.

2. Safety Instructions

WARNING: Failure to follow these safety instructions may result in electric shock, fire, serious injury, or death.

• Always disconnect the pump from the power source before performing any maintenance, installation, or service.
• Ensure the pump is installed on a stable, level surface to prevent tipping.
• Do not operate the pump with damaged electrical cords or plugs.
• Protect the pump from freezing temperatures. Drain the pump completely if it will be exposed to freezing conditions.
• Do not pump flammable or corrosive liquids. This pump is designed for water only.
• Ensure all electrical connections are properly grounded and comply with local electrical codes.
• Keep children and unauthorized personnel away from the pump during operation.
• Wear appropriate personal protective equipment (PPE) when handling or servicing the pump.
• The power source for this pump is listed as "Manual" in specifications, but the product description mentions a "1/2 HP motor" and "220 Volts". Always verify the correct power source and voltage requirements before connecting.

3. Package Contents

Verify that all components are present and undamaged upon unpacking.

• Oakland Self-Priming Water Pump (Model BA1230)
• User Manual
• Standard connections (for easy integration)

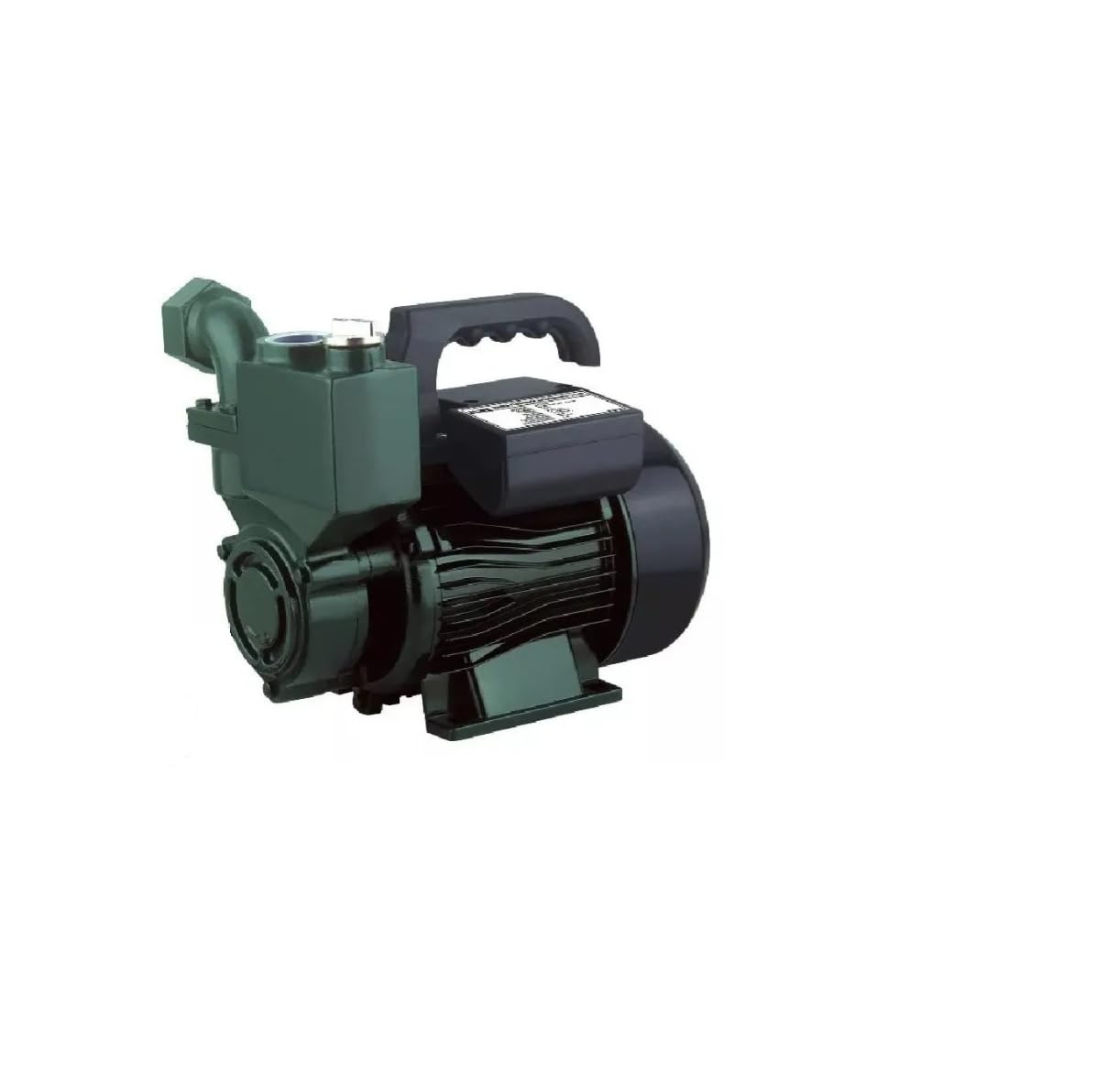

Figure 1: Oakland Self-Priming Water Pump, 1/2 HP, Model BA1230. This image shows the complete pump unit, highlighting its compact design and integrated handle for portability.

4. Setup and Installation

Proper installation is crucial for the pump's performance and longevity. Refer to the safety instructions before beginning installation.

1. Location:

   Place the pump on a firm, level surface. Ensure the location is well-ventilated, protected from direct sunlight, rain, and freezing temperatures. Keep the pump as close to the water source as possible to minimize suction lift.

2. Electrical Connection:

   The pump operates on 220 Volts. Ensure your power supply matches this requirement. Connect the pump to a properly grounded electrical outlet. If an extension cord is necessary, use a heavy-duty, outdoor-rated cord suitable for the pump's power requirements.

3. Piping Connections:

   Connect the suction pipe to the pump's inlet and the discharge pipe to the pump's outlet. Use appropriate thread sealant on all connections to prevent leaks. Ensure all connections are tight but do not overtighten. The pump includes standard connections for easy integration.



   Figure 2: Close-up view of the pump's motor housing and connection points. This image illustrates the robust construction and the areas where piping connections are made.

4. Priming (Initial Setup):

   Although this is a self-priming pump, for the initial setup, it is recommended to fill the pump casing with water through the priming port (if available) or the discharge port until it overflows. This helps ensure immediate operation and protects the pump from dry running. Replace the priming plug securely.

5. Operating Instructions

1. Before Starting:

   Ensure all connections are secure and leak-free. Confirm the suction line is submerged in water and free of air pockets. Verify the power supply is connected correctly.

2. Starting the Pump:

   Plug the pump into the grounded electrical outlet. The pump will begin to operate. Allow a few moments for the pump to self-prime and establish a steady flow. If the pump does not prime within a few minutes, turn it off, check for leaks, and re-prime manually if necessary.

3. During Operation:

   Monitor the pump for unusual noises or vibrations. Ensure a continuous water supply to prevent dry running, which can damage the pump. The maximum flow rate is 35 Liters Per Minute.

4. Stopping the Pump:

   Unplug the pump from the electrical outlet to stop operation.

6. Maintenance

Regular maintenance ensures optimal performance and extends the life of your pump. Always disconnect power before maintenance.

• Cleaning:

  Periodically clean the exterior of the pump to prevent dirt and debris buildup. Do not use harsh chemicals that could damage the plastic or metal components.

• Winterization:

  If the pump will be exposed to freezing temperatures, drain all water from the pump casing and pipes to prevent damage from ice expansion. Store the pump in a dry, protected area.

• Inspection:

  Regularly inspect the power cord for damage and all connections for leaks. Check for any signs of wear or corrosion on the pump body.

7. Troubleshooting

8. Specifications

Note: The "Power Source" is listed as "Manual" in some specifications, but the product description and other specifications clearly indicate an electric 1/2 HP motor. Please rely on the 220 Volts, 1/2 HP motor specification for operation.

9. Warranty and Support

For warranty information or technical support, please contact the manufacturer, Adir, or the retailer where the product was purchased. Keep your purchase receipt as proof of purchase.

This product is designed for a long service life under normal usage conditions. Any unauthorized modifications or repairs will void the warranty.
