Welcome
Thank you for choosing the TOPUTURE 4-in-1 Foldable Walking Pad with Incline. This versatile fitness equipment is designed for both home and office use, offering a compact and efficient way to stay active. With its powerful yet silent motor, adjustable incline, and smart features, you can enjoy a comprehensive workout experience. Please read this manual thoroughly before operation to ensure safe and optimal use of your new walking pad.

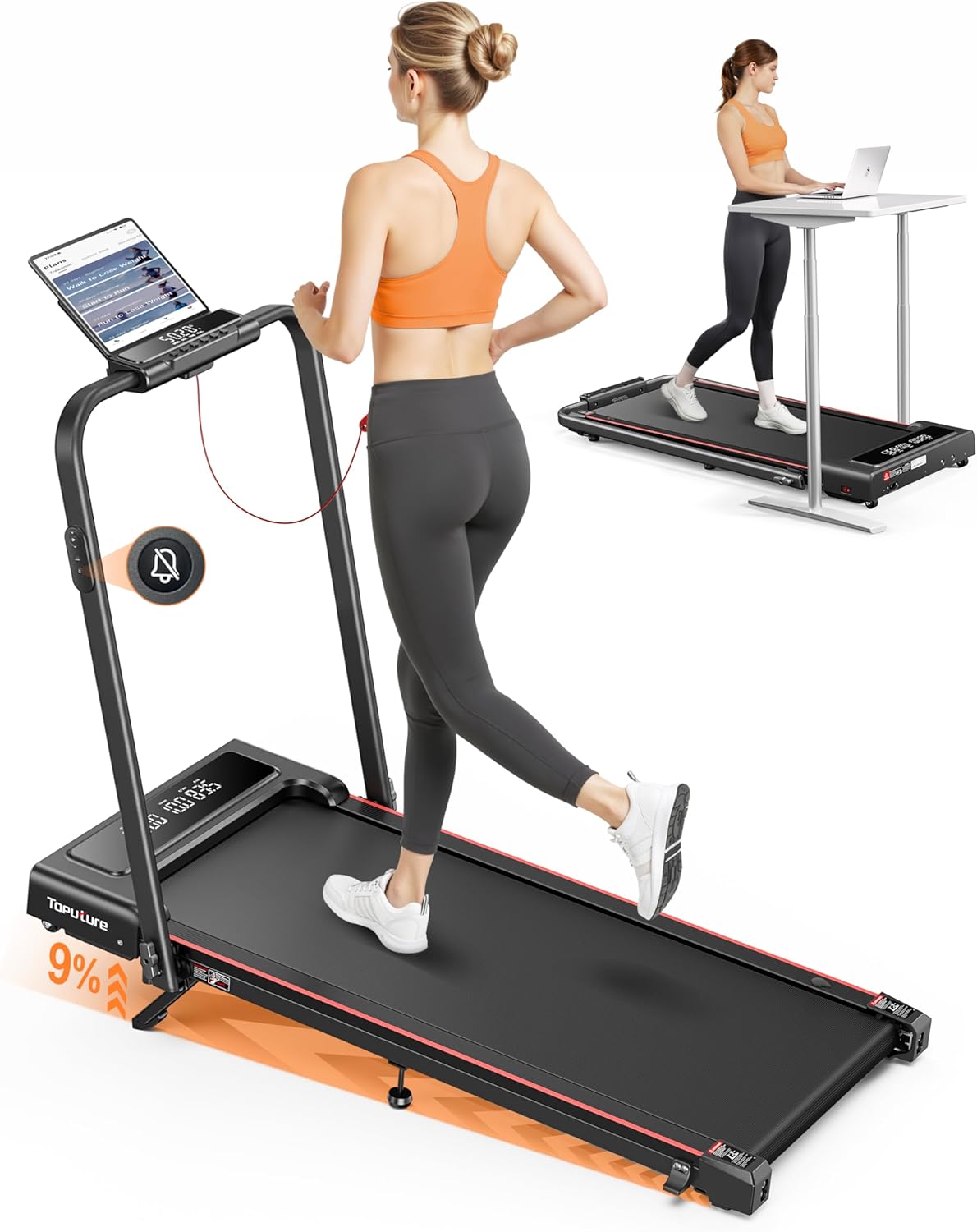

Image: The TOPUTURE 4-in-1 Foldable Walking Pad in its upright running configuration and folded flat for under-desk use, demonstrating its versatility.
Important Safety Instructions
To reduce the risk of serious injury, read all instructions before using this product. The manufacturer is not responsible for personal injury or property damage sustained by or through the use of this product.
- Always place the walking pad on a flat, stable surface.
- Keep children and pets away from the equipment during operation.
- Ensure adequate clearance around the walking pad (at least 2 feet on all sides).
- Do not exceed the maximum user weight capacity of 300 lbs (approximately 136 kg).
- Wear appropriate athletic footwear and clothing.
- If you feel faint, dizzy, or experience pain, stop exercising immediately.
- Always unplug the walking pad from the power outlet when not in use, before cleaning, or performing maintenance.
- Use the emergency stop feature if necessary.
Product Overview
The TOPUTURE TP4 is designed with user convenience and effective workouts in mind. Key features include:
- 9% Manual Incline & M Mode: Adjust the incline to simulate uphill running and burn more calories. M Mode allows setting goals based on time, calories, or distance.
- Silent Remote Control & Dual Display: Enjoy quiet operation with a noiseless remote. The dual-screen display shows real-time data like time, speed, distance, and calories.
- No Assembly & Space-Saving Design: Ready to use out of the box. Lightweight and portable with front wheels for easy mobility. Folds compactly for storage under beds or sofas.
- 2.5HP Powerful Silent Motor: Delivers speeds of 0.6-7.6 MPH with a 300 lbs load capacity.
- Advanced Shock Absorption: Features a 5-layer anti-slip belt, 8 silicone shock absorbers, and 2 soft rubber pads for double shock absorption, protecting your knees.
- Smart App Connectivity: Connect to a compatible app (e.g., FitShow) to sync exercise data, access training plans, and track progress.
Product Modes
Image: The walking pad supports both walking (0.6-5 MPH) and running (5-7.6 MPH) modes, adapting to various fitness needs.
Image: This diagram illustrates the four primary modes of operation: Running (3-7.6 MPH), Climbing (0.6-3 MPH), Walking (1.5-3 MPH), and Working (0.6-1.5 MPH), highlighting the treadmill's versatility.
Incline Feature
Image: The adjustable 0-9% manual incline feature allows for a more challenging workout, boosting calorie expenditure.
Display and Control
Image: The dual LED screen provides clear, real-time data, while the silent remote control offers convenient operation.
Motor and Noise Level
Image: The 2.5HP motor operates quietly (under 45dB), making it suitable for use in shared spaces without disturbance.
App Integration
Image: Enhance your workout experience by connecting to a smart app for real-time data synchronization and personalized training plans.
Running Belt and Shock Absorption
Image: The multi-layer belt and advanced shock absorption system provide a comfortable and joint-friendly running surface.
Initial Setup
The TOPUTURE TP4 is designed for installation-free setup, meaning it's ready to use almost immediately out of the box.
Unboxing and Placement
- Carefully remove the walking pad from its packaging.
- Place the walking pad on a firm, level surface. Ensure there is sufficient space around the unit for safe operation and movement.
- Unfold the handle/handrail if you intend to use it in running mode.
- Plug the power cord into a grounded electrical outlet.
Folding and Unfolding for Storage
The compact design allows for easy storage.
Image: The treadmill easily folds flat to a compact size (50x23x4.5 inches) and features transport wheels for convenient storage under furniture or against a wall.
Adjusting the Manual Incline
The walking pad features a 9% manual incline for varied workouts.
Image: Follow these three steps to adjust the incline: 1. Unfold the footpad. 2. Insert the pin into the desired incline slot. 3. Adjust the middle footpad for stability.
Operating Instructions
Power On/Off
- To power on, ensure the safety key is in place and press the power button on the console or remote.
- To power off, press the power button again or remove the safety key.
Using the Remote Control
The remote control allows for convenient adjustment of speed and mode without reaching the console.
- Start/Stop: Press to begin or end your workout.
- Speed +/-: Adjust the walking/running speed.
- Mode: Cycle through different workout modes (e.g., M Mode for time, distance, calorie goals).
- Mute: Press the mute button for quiet operation, especially useful for under-desk use.
Image: The remote control features a mute button, allowing for silent operation, perfect for office environments.
Understanding the Display
The dual LED display provides essential workout metrics:
- Time: Duration of your workout.
- Speed: Current speed in MPH.
- Distance: Total distance covered.
- Calories: Estimated calories burned.
App Connectivity
For enhanced tracking and personalized workouts, connect your walking pad to a compatible fitness app (e.g., FitShow).
- Download the recommended app from your device's app store.
- Enable Bluetooth on your mobile device.
- Open the app and follow the on-screen instructions to pair with your TOPUTURE TP4.
- Once connected, you can sync exercise data, access training plans, and participate in challenges.
Maintenance and Care
Regular maintenance ensures the longevity and optimal performance of your walking pad.
Lubrication
The running belt requires periodic lubrication to reduce friction and extend its lifespan. Use only silicone-based treadmill lubricant.
Image: The treadmill features a dedicated lubrication port for easy maintenance of the running belt.
- Unplug the walking pad from the power outlet.
- Locate the lubrication port (as shown in the image).
- Apply a small amount of lubricant into the port.
- Plug in the walking pad and run it at a low speed (e.g., 1 MPH) for 2-3 minutes to distribute the lubricant evenly.
- Lubricate every 3-6 months depending on usage.
Belt Adjustment
If the running belt feels loose or is slipping, it may need adjustment. Use the included tool kit to tighten the belt tension screws located at the rear of the walking pad.
- Turn the screws clockwise in small increments (quarter turns) until the belt feels appropriately tensioned.
- Ensure the belt remains centered. If it drifts to one side, adjust the screw on the opposite side.
Cleaning
- Wipe down the walking pad with a damp cloth after each use to remove sweat and dust.
- Do not use abrasive cleaners or solvents.
Storage
When not in use, fold the walking pad and store it in a dry, cool place away from direct sunlight and moisture.
Troubleshooting Guide
This section addresses common issues you might encounter with your TOPUTURE TP4 walking pad.
| Problem | Possible Cause | Solution |
|---|---|---|
| Walking pad does not power on. | Power cord not connected; Safety key not in place; Power switch off. | Ensure power cord is securely plugged in; Insert safety key fully; Turn on the main power switch. |
| Belt slips or hesitates during use. | Belt too loose; Insufficient lubrication. | Adjust belt tension (see Maintenance section); Lubricate the running belt. |
| Unusual noise from the motor area. | Lack of lubrication; Loose components. | Lubricate the running belt; Check for any loose screws and tighten them. If noise persists, contact customer support. |
| Display not showing correct data. | Sensor issue; Loose connection. | Restart the walking pad; Check connections. If problem persists, contact customer support. |
Product Specifications
| Specification | Value |
|---|---|
| Model Number | TP4 |
| Product Dimensions (Unfolded) | 126 x 12 x 62 cm (50 x 23 x 42 inches) |
| Folding Size | 50 x 23 x 4.5 inches |
| Item Weight | 25 kg (55 lbs) |
| Material | Alloy Steel |
| Motor Horsepower | 2.5 HP |
| Speed Range | 0.6 - 7.6 MPH |
| Maximum Incline Percentage | 9% (Manual) |
| Maximum User Weight Capacity | 300 lbs (approx. 136 kg) |
| Noise Level | <45 dB |
| Display Metrics | Speed, Calories Burned, Time, Distance |
| Special Features | Shock Absorbent, Lightweight, Manual Incline, Foldable, Compact Design |
| Included Components | User Manual, Power Cord, Tool Kit |
Warranty and Customer Support
TOPUTURE products are manufactured to high-quality standards and are backed by a manufacturer's warranty. Please refer to the warranty card included in your packaging for specific terms and conditions regarding coverage and duration.
For any questions, technical assistance, or warranty claims, please contact TOPUTURE customer support. Contact information can typically be found on the product packaging, the official TOPUTURE website, or the warranty card.
Please have your model number (TP4) and purchase information ready when contacting support to ensure efficient service.
