Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your AYNEFY Stainless Steel Spray Ball. This device is designed for efficient internal cleaning of tanks, barrels, kettles, and other containers in various industrial applications, including pharmaceutical, food, beverage, and chemical industries. Please read this manual thoroughly before use to ensure optimal performance and safety.
Safety Information
Always observe the following safety precautions:
- Ensure the spray ball is securely installed before applying water pressure.
- Do not exceed the recommended operating pressure of 2.5 kilograms (approximately 2.5 bar or 36 psi).
- Verify that the tank or container being cleaned is properly sealed and vented to prevent pressure buildup.
- Wear appropriate personal protective equipment (PPE) when working with pressurized systems.
- Disconnect water supply before performing any maintenance or inspection.
Product Components
The AYNEFY Stainless Steel Spray Ball consists of a spherical head with multiple spray orifices and a threaded connection for attachment to a water supply line. The design allows for 360° rotation during operation, ensuring comprehensive cleaning coverage.

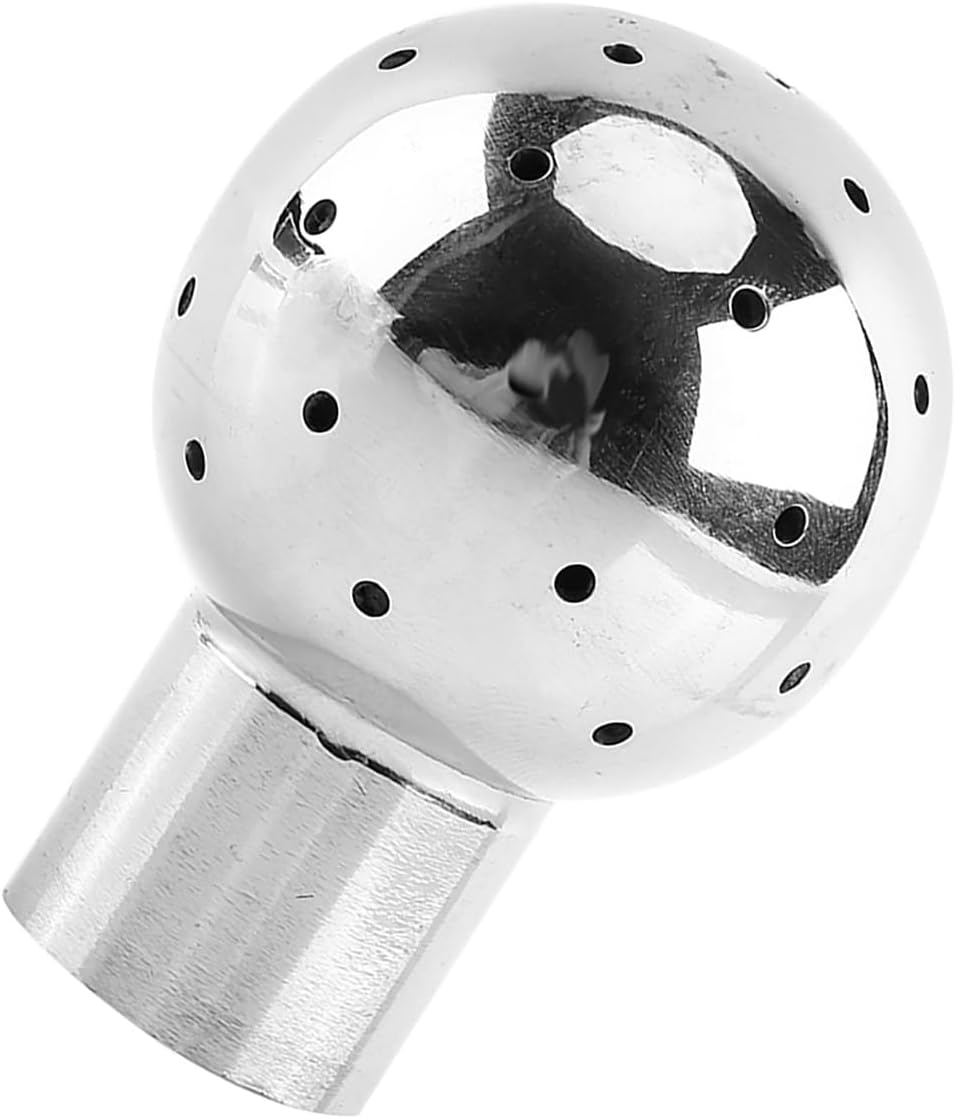

Figure 1: Front view of the AYNEFY Stainless Steel Spray Ball, showing the spherical head and spray orifices.
Figure 2: Side view of the spray ball, highlighting the G1/2 threaded connection for water supply.
Specifications
| Feature | Specification |
|---|---|
| Material | Stainless Steel |
| Thread Connection | G1/2 |
| Thread Inner Diameter | Approx. 1.86 cm |
| Flow Rate (at 2kg pressure) | 15 L/min |
| Recommended Work Pressure | 1.5 to 2.5 kilograms (approx. 1.5 to 2.5 bar) |
| Cleaning Area Diameter | 1m to 6m |
| Rotation | 360° |
| Dimensions (Model #1) | Approx. 6 x 4 cm (2.36 x 1.57 inches) |
| Weight (Model #1) | Approx. 85g (3.1 ounces) |
Setup
- Inspection: Before installation, visually inspect the spray ball for any signs of damage or manufacturing defects.
- Mounting Location: Determine the optimal placement within the tank or container to ensure maximum cleaning coverage. The spray ball should be positioned to allow its 360° spray pattern to reach all internal surfaces.
- Connection: Thread the G1/2 connection of the spray ball onto a compatible water supply pipe inside the tank. Ensure a tight, leak-free connection. Use appropriate sealing tape or compound if necessary.
- Water Supply: Connect the water supply pipe to a pump or pressure system capable of delivering water within the recommended operating pressure range of 1.5 to 2.5 kilograms.
Figure 3: Close-up view of the G1/2 threaded connection, ready for installation.
Operating Instructions
- Verify Installation: Confirm that the spray ball is securely installed and all connections are leak-free.
- Prepare Tank: Ensure the tank or container is ready for cleaning, with any necessary drains open or closed as required by your cleaning process.
- Apply Pressure: Gradually introduce water into the system, increasing pressure until it reaches the recommended operating range of 1.5 to 2.5 kilograms.
- Monitor Operation: The spray ball will begin to rotate and spray water in a 360° pattern, cleaning the internal surfaces. The self-cleaning and self-lubrication design helps maintain its performance during operation.
- Cleaning Duration: Operate the spray ball for the duration required to achieve the desired level of cleanliness for your specific application.
- Shut Down: Once cleaning is complete, gradually reduce and then shut off the water supply.
Maintenance
The AYNEFY Stainless Steel Spray Ball is designed for durability and minimal maintenance. Regular inspection is recommended to ensure continued optimal performance.
- Periodic Inspection: Periodically inspect the spray ball for any signs of wear, corrosion, or damage to the spray orifices. The stainless steel construction provides excellent resistance to corrosion.
- Check for Blockages: Although designed for self-cleaning, inspect the spray orifices for any potential blockages from debris, especially if the water source is not filtered. If blockages are found, disconnect the water supply and carefully remove the debris.
- Bearing Lubrication: The spray ball features a self-lubricating design for its rotating mechanism, requiring no external lubrication.
- Cleaning: For external cleaning, wipe the spray ball with a damp cloth. Avoid using abrasive cleaners that could scratch the stainless steel surface.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Poor or inconsistent spray pattern | Low water pressure; partially blocked spray orifices | Check water supply pressure; inspect and clear any blockages from orifices. |
| Spray ball not rotating | Insufficient water pressure; internal obstruction; damaged bearing | Ensure adequate water pressure (1.5-2.5 kg); disconnect and inspect for internal debris; if damaged, replacement may be necessary. |
| Water leakage at connection point | Loose connection; damaged thread or seal | Tighten connection; apply new sealing tape or compound; replace if threads are damaged. |
Warranty and Support
For information regarding warranty coverage or technical support for your AYNEFY Stainless Steel Spray Ball, please refer to the product packaging or contact your retailer. Keep your purchase receipt as proof of purchase.
