Full House Bed with Twin Size Trundle and Drawers Instruction Manual

1. Introduction

Thank you for purchasing the Full House Bed with Twin Size Trundle and Drawers. This bed frame is designed to provide a comfortable sleeping area while also offering a creative play space and convenient storage solutions. Its sturdy construction from plywood and pinewood ensures durability and stability. This manual will guide you through the assembly process, provide instructions for proper use, and offer tips for maintenance and troubleshooting.

Image 1.1: Fully assembled Full House Bed with Twin Size Trundle and Drawers.

2. Safety Information

• Read all instructions carefully before assembly and use.
• Keep all small parts and packaging materials away from children during assembly to prevent choking hazards.
• Ensure all connections are securely tightened before use. Periodically check and re-tighten hardware as needed.
• Do not use power tools for assembly as this may overtighten screws and damage the wood.
• The bed is designed for a maximum weight capacity of 220 LBS for the main bed and 220 LBS for the trundle. Do not exceed these limits.
• Only use mattresses with the recommended thickness: 6"-8" for the main bed and 4"-6" for the trundle.
• Do not allow children to play on or around the bed without supervision.

3. Package Contents

Before beginning assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, please contact customer support.

Components:

• Main Bed Frame Components (Headboard, Footboard, Side Rails, Roof Frame)
• Trundle Bed Frame Components
• Storage Drawer Components (3 drawers)
• Bed Slats (10 for main bed, 6 for trundle)
• All Necessary Hardware (screws, bolts, nuts, washers)
• Assembly Tools (Screwdriver)
• Instruction Manual

4. Setup (Assembly Instructions)

Assembly is estimated to take 1 hour with 2 people. Please follow the numbered steps provided in the included detailed instructions. Avoid using power tools.

General Assembly Steps:

1. Prepare the Area: Clear a spacious area for assembly. Lay out all components and hardware, ensuring they are easily accessible.
2. Assemble the Main Bed Frame: Attach the side rails to the headboard and footboard. Secure all connections with the provided hardware.
3. Install Bed Slats: Place the 10 main bed slats across the bed frame and secure them according to the instructions. Ensure they are evenly spaced and firmly attached to support the mattress.
4. Assemble the Roof Frame: Attach the roof frame components to the main bed frame, creating the house structure.
5. Assemble the Trundle Bed: Construct the trundle frame and install its 6 slats. Attach the casters to the bottom of the trundle for easy movement.
6. Assemble the Storage Drawers: Follow the instructions to assemble the three storage drawers. Attach the drawer pulls and ensure the drawer slides operate smoothly.
7. Integrate Trundle and Drawers: Slide the assembled trundle bed and storage drawers into their designated positions beneath the main bed frame.
8. Final Check: Verify that all screws and bolts are tightened, and the bed frame is stable.

Image 4.1: View of the bed frame structure with slats and trundle mechanism.

Image 4.2: Side view illustrating the trundle bed's position beneath the main frame.

5. Operating (Usage)

Using the Main Bed:

Place a full-size mattress (recommended thickness 6"-8") directly onto the bed slats. The sturdy frame provides ample support without the need for a box spring.

Using the Trundle Bed:

The twin-size trundle bed is designed to slide out smoothly from beneath the main bed. Simply grasp the front panel and pull it outwards. To store, push the trundle back into place until it is fully concealed under the main bed. Ensure a twin-size mattress (recommended thickness 4"-6") is used on the trundle.

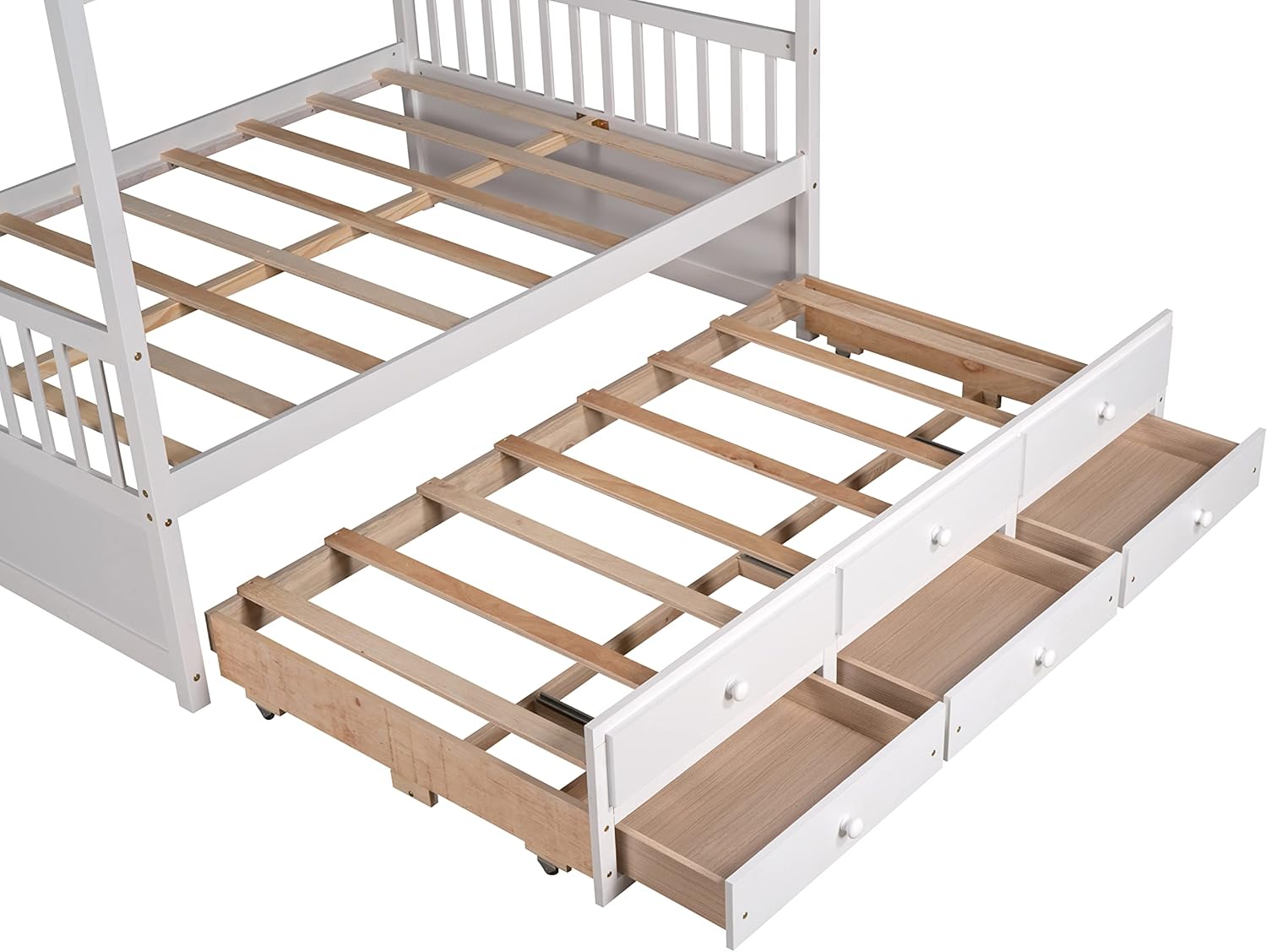

Image 5.1: Trundle bed and storage drawers in extended position.

Using the Storage Drawers:

The three integrated drawers provide convenient storage for bedding, toys, or other items. Pull the drawer handles to open and push to close. Ensure drawers are not overloaded to maintain smooth operation.

Image 5.2: Detail of an open storage drawer.

6. Maintenance

• Cleaning: Wipe the bed frame with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish.
• Hardware Check: Periodically (e.g., every 3-6 months) check all bolts, screws, and connections to ensure they are tight. Re-tighten if necessary to maintain stability and prevent squeaking.
• Wood Care: Protect the wood from direct sunlight and extreme temperature changes to prevent warping or cracking.
• Trundle/Drawer Rails: Keep the trundle and drawer rails free of dust and debris to ensure smooth operation.

7. Troubleshooting

• Squeaking Noises: Squeaking often indicates loose hardware. Re-tighten all bolts and screws on the bed frame and slats. Ensure the mattress is properly seated.
• Trundle/Drawers Sticking: Check for any obstructions in the tracks. Ensure the casters/slides are clean. If the issue persists, verify that the trundle/drawer assembly is square and not warped.
• Bed Feels Unstable: Double-check that all assembly steps have been completed correctly and all hardware is fully tightened. Ensure the bed is on a flat, level surface.
• Missing Parts: If you discover missing parts during assembly, refer to the package contents list and contact customer support immediately.

8. Specifications

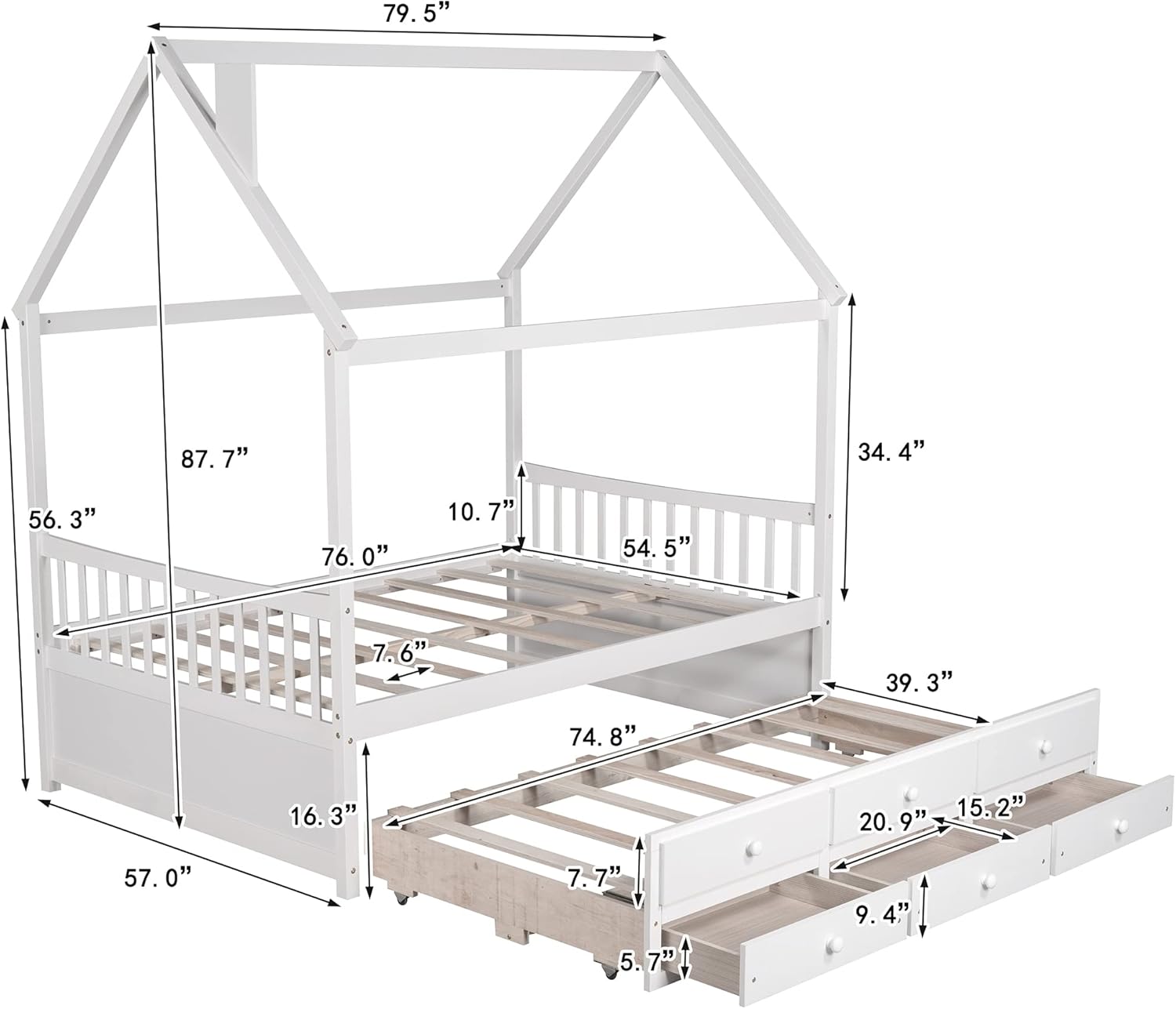

Image 8.1: Detailed dimensions of the bed frame.

9. Warranty and Support

This product comes with a 1-year warranty covering manufacture defects. For any questions, concerns, or to report missing/damaged parts, please do not hesitate to contact our friendly customer representatives. Please have your purchase information and model number ready when contacting support.

We are committed to ensuring your satisfaction with our product.
