BTJCRLEB Embraco FMX 2456 BN F 00 Refrigerator Compressor Driver Board Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of the BTJCRLEB Embraco FMX 2456 BN F 00 Refrigerator Compressor Driver Board. This component is designed to restore and optimize the refrigeration function of compatible refrigerators by controlling the compressor's operation. Please read this manual thoroughly before proceeding with any procedures.

2. Safety Information

WARNING: Risk of Electric Shock.

• Always disconnect the refrigerator from the main power supply before attempting any installation, maintenance, or repair.
• After unplugging the system, wait at least 30 seconds before touching any terminals or components to allow residual electrical charge to dissipate.
• Installation and servicing should only be performed by qualified and experienced technicians.
• Do not operate the board if it appears damaged or if any connections are loose.
• Ensure proper grounding of the refrigerator system.

Failure to follow these safety instructions could result in electric shock, fire, or other serious injury.

3. Product Overview

The Embraco FMX 2456 BN F 00 is a frequency conversion driver board specifically designed for refrigerator compressors. It plays a critical role in regulating the compressor's speed and power output, ensuring efficient and stable refrigeration.

Key Features:

• Restores Refrigeration Function: Replaces faulty motherboards to enable normal compressor start, operation, and stop, restoring the refrigerator's cooling capacity.
• Improved Temperature Control Accuracy: Features a precise temperature control mechanism to finely adjust compressor operation, stabilizing internal refrigerator temperatures for optimal food preservation.
• Enhanced Operation Stability: Ensures smooth and orderly compressor operation, reducing frequent start-stops and abnormal vibrations, leading to a more stable and reliable refrigerator.
• Reduced Energy Consumption: Optimizes compressor power output to meet refrigeration demands efficiently, minimizing unnecessary energy use and potentially saving electricity costs.

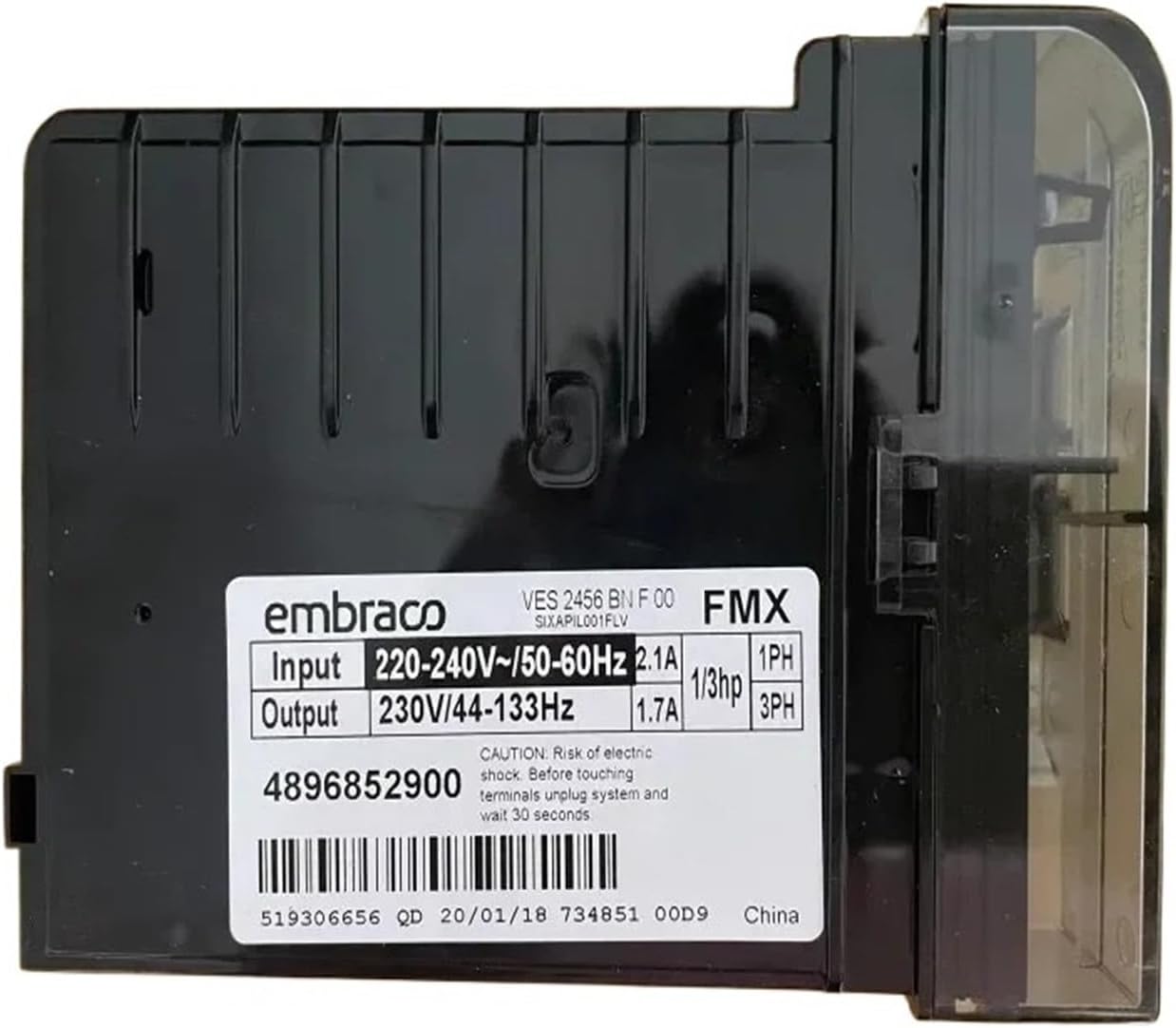

Figure 3.1: Front view of the Embraco FMX 2456 BN F 00 Compressor Driver Board, showing input/output specifications and model number.

Figure 3.2: Internal view of the circuit board, displaying various electronic components.

Figure 3.3: The circuit board mounted inside its protective housing, showing connections and potting material.

4. Setup and Installation

Installation of the compressor driver board requires technical expertise. It is strongly recommended that this procedure be carried out by a certified appliance technician.

Installation Steps:

1. Power Disconnection: Ensure the refrigerator is completely disconnected from the power supply. Wait 30 seconds.
2. Access the Compressor Compartment: Locate and carefully open the access panel to the refrigerator's compressor compartment, typically at the rear or bottom.
3. Identify and Remove Old Board: Identify the existing compressor driver board. Document all wiring connections (e.g., take photos) before carefully disconnecting them. Remove the old board from its mounting.
4. Install New Board: Mount the new Embraco FMX 2456 BN F 00 board in the same location as the old one.
5. Connect Wiring: Reconnect all wiring to the new board, ensuring each connection matches the documentation from step 3. Verify secure connections.
6. Secure Access Panel: Close and secure the compressor compartment access panel.
7. Power Restoration: Reconnect the refrigerator to the main power supply.
8. Test Operation: Monitor the refrigerator's operation to ensure the compressor starts and runs correctly, and that cooling begins.

5. Operating Instructions

The Embraco FMX 2456 BN F 00 Compressor Driver Board operates automatically once installed correctly. Its primary function is to receive signals from the refrigerator's main control system and regulate the compressor's speed and power to maintain the desired internal temperature.

• The board continuously monitors temperature sensors and adjusts the compressor's operation to achieve and maintain stable cooling.
• No direct user interaction with the board is required after installation. All temperature settings and operational modes are controlled via the refrigerator's standard user interface.

6. Maintenance

The Embraco FMX 2456 BN F 00 Compressor Driver Board is designed for long-term reliability and typically requires minimal maintenance. However, periodic checks can help ensure optimal performance.

Recommended Maintenance:

• Visual Inspection (Annually): With the power disconnected and after waiting 30 seconds, visually inspect the board and its connections for any signs of damage, corrosion, or loose wiring.
• Dust Removal: If dust accumulation is observed, gently clean the board using compressed air or a soft, dry brush. Ensure no moisture comes into contact with the board.
• Professional Check: If any unusual behavior or persistent issues are noted with the refrigerator's cooling, consult a qualified technician for a thorough inspection of the board and related components.

7. Troubleshooting

If your refrigerator experiences issues after the installation of the new driver board, consider the following troubleshooting steps. Always ensure power is disconnected before inspecting internal components.

Common Issues and Solutions:

• Refrigerator Not Cooling:
  • Verify that the refrigerator is plugged in and receiving power.
  • Check all wiring connections to the driver board and compressor for looseness or incorrect placement.
  • Ensure the compressor is attempting to start. If not, the board or compressor itself may be faulty.
• Compressor Runs Continuously or Not at All:
  • This could indicate a problem with temperature sensors, the main control board, or the driver board.
  • Consult a technician to diagnose the specific component failure.
• Unusual Noises from Compressor Area:
  • Ensure the compressor and board are securely mounted and not vibrating against other components.
  • If the noise persists and is mechanical, the compressor itself may be failing.

For complex issues or if troubleshooting steps do not resolve the problem, contact a qualified appliance repair technician.

8. Specifications

The following specifications apply to the Embraco FMX 2456 BN F 00 Compressor Driver Board:

9. Warranty and Support

For warranty information, technical support, or to inquire about replacement parts, please contact the seller or manufacturer directly. Keep your purchase receipt and product model number handy when contacting support.

Manufacturer: ronglan
