1. Introduction
This manual provides detailed instructions for the assembly, installation, operation, and maintenance of your Nasonet Over The Toilet Storage Cabinet, Model AP040-GR. Please read all instructions carefully before assembly and use to ensure safe and proper operation. Keep this manual for future reference.
2. Safety Information
- Always ensure the cabinet is stable and not overloaded. Overloading can cause the unit to tip, leading to injury or damage.
- Be cautious of pinch points when opening and closing doors and adjusting shelves.
- Use appropriate safety gear, such as gloves, when assembling the cabinet to prevent cuts or scrapes.
- Keep small parts and packaging materials away from children and pets to prevent choking hazards.
- Do not stand or climb on the cabinet.
- Periodically check all connections and fasteners to ensure they remain tight.
3. Package Contents
Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Cabinet Panels (various sizes)
- Barn Doors (2)
- Adjustable Shelves (multiple)
- Hardware Pack (screws, dowels, cam locks, hinges, handles, anti-tipping kit)
- Instruction Manual (this document)
4. Assembly Instructions
Assembly typically requires two adults and approximately 2 hours. Power tools can expedite the process but use caution to avoid overtightening screws and damaging the engineered wood.
4.1. Preparation
- Clear a spacious, clean, and flat work area.
- Lay out all components and hardware, organizing them by type.
- Identify each part using the provided diagrams in the separate assembly guide.
4.2. Step-by-Step Assembly
- Assemble the Base Frame: Connect the bottom side panels to the back support beams using the designated hardware.
- Attach Vertical Supports: Secure the main vertical supports to the base frame. Ensure they are aligned correctly.
- Install Lower Shelves: Insert the fixed lower shelves into their respective slots.
- Construct Upper Cabinet: Assemble the top cabinet section, including the side panels, top panel, and fixed internal shelves.
- Attach Upper Cabinet to Base: Carefully lift and secure the assembled upper cabinet onto the lower vertical supports.
- Install Barn Doors: Attach the hinges to the barn doors and then mount the doors to the upper cabinet. Adjust hinges for proper alignment.
- Insert Adjustable Shelves: Place the adjustable shelves into the desired positions within the cabinet using the shelf pins.
- Attach Handles: Secure the handles to the barn doors.
- Install Anti-Tipping Kit: For safety, attach the anti-tipping kit to the top rear of the cabinet and secure it to a wall stud. This is crucial for stability.
Image: Product dimensions for assembly reference.
Image: Detailed view of adjustable shelves and metal hinges.
5. Setup and Placement
This freestanding cabinet is designed to fit over most standard toilets or washing machines. Ensure the chosen location has a flat, stable surface.
- Carefully position the assembled cabinet over your toilet or washing machine.
- Adjust the bottom fixing bar to one of the three available positions to accommodate your toilet's height and depth, ensuring a snug fit.
- Secure the cabinet to the wall using the anti-tipping kit provided. This step is essential for preventing accidental tipping and ensuring user safety.

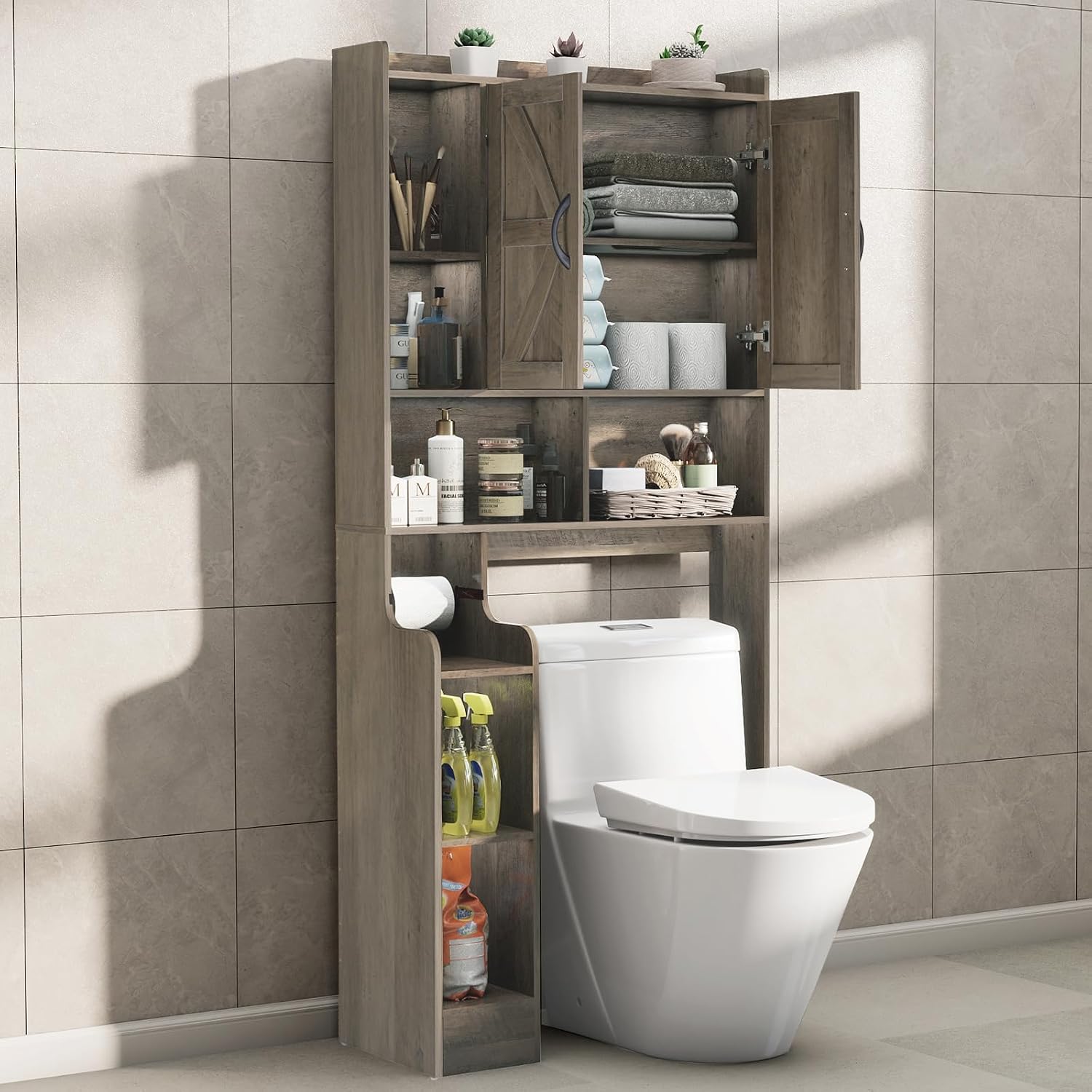

Image: Cabinet placed over a toilet.
Image: Cabinet placed over a washing machine.
6. Operating Instructions
The Nasonet storage cabinet is designed for convenient access and organization.
- Barn Doors: Gently slide the barn doors to open or close the enclosed storage compartments. Avoid forcing the doors.
- Adjustable Shelves: To adjust the height of the internal shelves, remove all items, then remove the shelf pins. Reinsert the pins into the desired holes and place the shelf back on top. Ensure the shelf is level and securely seated before placing items on it.
- Open Shelves: Utilize the open shelves for frequently accessed items or decorative displays.
- Tissue Holder: The built-in tissue holder is designed for standard toilet paper rolls.
7. Maintenance and Care
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
- Spills: Immediately wipe up any spills to prevent water damage to the engineered wood.
- Inspection: Periodically check all screws and connections to ensure they are tight. Retighten if necessary.
- Weight Capacity: Do not exceed the recommended weight capacity for shelves to prevent bowing or structural damage.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Cabinet is wobbly or unstable. | Loose fasteners; uneven floor; anti-tipping kit not installed. | Ensure all screws are tightened. Move to a level surface or use shims. Install the anti-tipping kit securely to the wall. |
| Doors do not close properly or are misaligned. | Hinges are loose or improperly adjusted. | Adjust the screws on the hinges to align the doors. Ensure the cabinet is level. |
| Difficulty assembling parts. | Incorrect part orientation; missing hardware. | Refer to the assembly guide diagrams carefully. Verify all hardware is present. Do not force parts. Contact customer support if parts are missing or damaged. |
9. Specifications
| Feature | Detail |
|---|---|
| Brand | Nasonet |
| Model Number | AP040-GR |
| Color | Grey |
| Product Dimensions (D x W x H) | 13.7"D x 31.5"W x 67.7"H |
| Material | Engineered Wood |
| Number of Doors | 2 (Barn Doors) |
| Number of Shelves | 10 (including fixed and adjustable) |
| Mounting Type | Freestanding, Floor Mount with Anti-Tipping Kit |
| Item Weight | 49 pounds |
| Special Features | Adjustable Shelf, Anti-Tipping Mechanism, Built-in Tissue Holder |
10. Warranty and Support
Nasonet products are designed for quality and durability. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty details, please refer to the warranty card included with your purchase or visit the Nasonet official website.
For technical support, missing parts, or warranty claims, please contact Nasonet customer service:
- Email: support@nasonet.com
- Phone: 1-800-XXX-XXXX (Placeholder, refer to actual product documentation)
- Website: Nasonet Store on Amazon
Please have your model number (AP040-GR) and purchase date ready when contacting support.
