ELEPHAS Projector User Manual

1. Introduction

Thank you for choosing the ELEPHAS Projector. This projector is designed to provide a high-quality home theater experience with its 800 ANSI lumens brightness, 1080p HD resolution, and versatile connectivity options. Enjoy officially licensed streaming apps like Netflix, Prime Video, and YouTube directly from the device, along with seamless dual-band WiFi and Bluetooth 5.0 for enhanced audio. This manual will guide you through the setup, operation, and maintenance of your new projector.

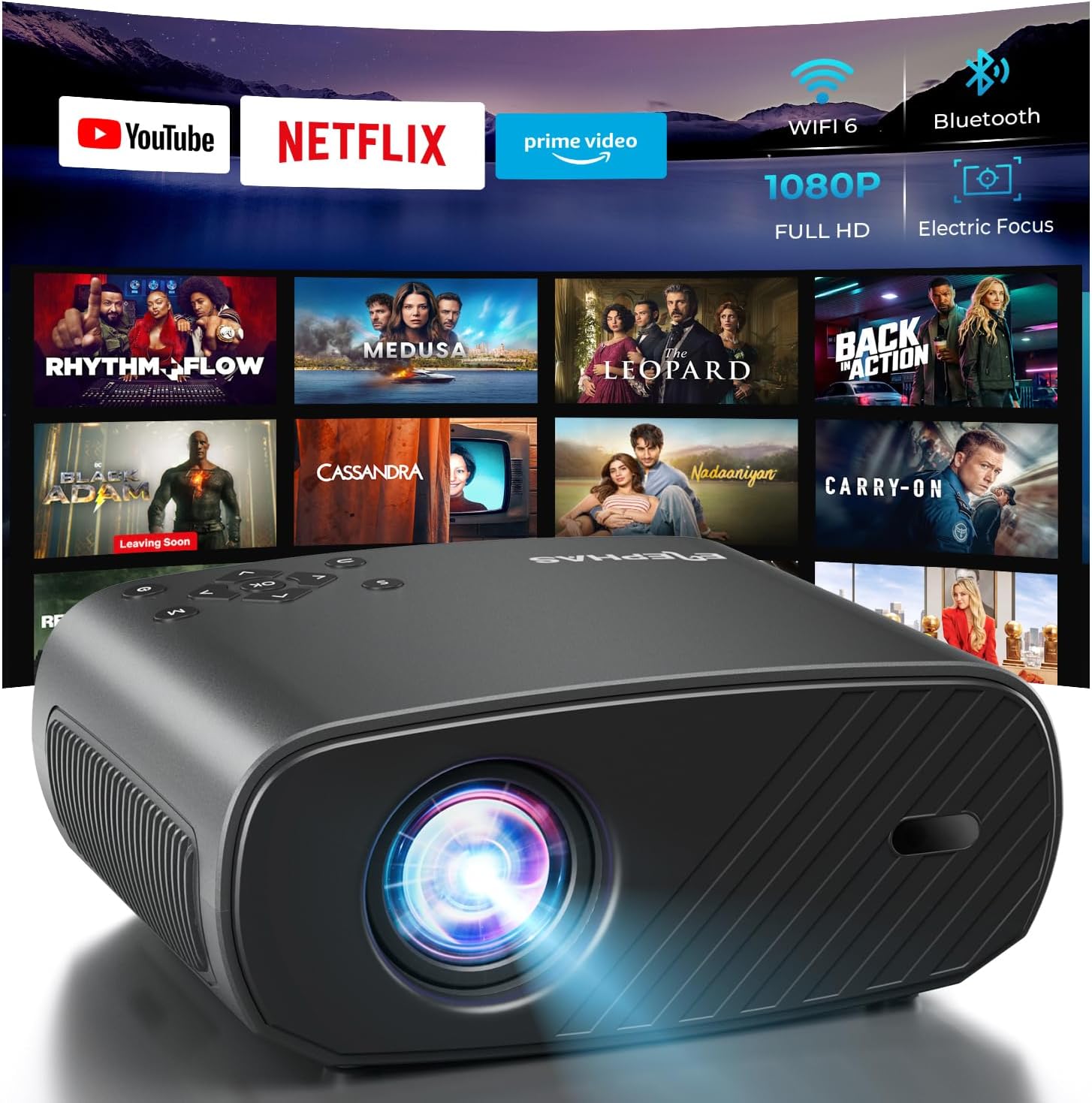

The ELEPHAS Projector offers a comprehensive entertainment solution with integrated streaming services and advanced display technology.

2. Safety Information

• Do not block the ventilation openings. Ensure adequate airflow around the projector to prevent overheating.
• Do not look directly into the projector lens when the lamp is on, as the bright light can cause eye damage.
• Keep the projector away from water or any liquids. Do not expose it to rain or moisture.
• Use only the power adapter provided with the projector.
• Avoid placing the projector on unstable surfaces where it could fall.
• Unplug the projector during lightning storms or when unused for long periods.

3. Package Contents

Please check the box for the following items:

• ELEPHAS Projector (BL128-PLUS)
• Power Cable
• HDMI Cable
• Remote Control
• User Manual

4. Product Overview

Familiarize yourself with the various components and ports of your ELEPHAS Projector.

The projector features multiple connectivity options for diverse media sources.

Front Panel:

• Lens: Projects the image onto the screen.

Rear Panel:

• HDMI Ports (HDMI1, HDMI2): Connect to devices like laptops, gaming consoles, or streaming sticks.
• USB Ports (USB1, USB2): Connect USB drives for media playback or power external devices.
• AV Port: Connect to older devices using an AV cable.
• Headset Port: Connect external headphones or speakers via a 3.5mm audio jack.
• Power Input: Connect the power cable.

5. Setup

5.1 Placement

Position the projector on a stable, flat surface. For optimal viewing, ensure the projector is aligned with your projection surface (wall or screen). The projector can project images up to 150 inches. The ideal projection distance will vary based on desired screen size.

The ELEPHAS Projector delivers stunning brightness and clarity for an immersive viewing experience.

5.2 Power Connection

1. Connect the power cable to the projector's power input port.
2. Plug the other end of the power cable into a power outlet.
3. Press the power button on the projector or remote control to turn it on.

5.3 Initial Image Adjustment

The ELEPHAS Projector features cutting-edge electric focus and auto keystone correction for instant image perfection.

• Auto Keystone Correction: The projector will automatically adjust the image to correct trapezoidal distortion, ensuring a rectangular picture even if the projector is not perfectly aligned.
• Electric Focus: The projector will automatically adjust the focus for a sharp image. Manual adjustments can typically be made via the remote control if needed.

6. Operating Instructions

6.1 Connecting Devices

Your projector supports various input sources:

• HDMI: Connect your laptop, gaming console, Blu-ray player, or streaming devices (e.g., Firestick) to the HDMI ports. Select the corresponding HDMI input from the projector's source menu.
• USB: Insert a USB flash drive into a USB port to play media files (videos, photos, music). Navigate to the media player application on the projector's interface.
• Wireless Connectivity (Wi-Fi): The projector supports dual-band WiFi (2.4G and 5G) for seamless screen mirroring from iOS and Android devices. Access the screen mirroring function from the main menu and follow the on-screen instructions to connect your device.

Effortlessly connect your mobile devices wirelessly for screen mirroring.

6.2 Streaming Applications

The ELEPHAS Projector comes with officially licensed Netflix, Prime Video, and YouTube apps pre-installed, allowing direct access to a vast library of content.

Enjoy seamless access to popular streaming platforms directly from the projector.

• Navigate to the desired app from the home screen using the remote control.
• Log in with your account credentials to start streaming.

6.3 Bluetooth Audio

Enhance your audio experience by connecting external Bluetooth speakers or headphones.

Connect wirelessly to your favorite audio devices via Bluetooth 5.0.

1. Go to the projector's settings menu.
2. Select 'Bluetooth' and turn it on.
3. Put your Bluetooth audio device into pairing mode.
4. Select your device from the list of available devices on the projector screen to connect.

7. Maintenance

7.1 Cleaning the Lens

Use a soft, lint-free cloth specifically designed for optical lenses. Do not use abrasive cleaners or cloths, as they can scratch the lens.

7.2 Cleaning the Projector Body and Vents

Wipe the projector's exterior with a soft, dry cloth. Use a small brush or vacuum cleaner with a soft brush attachment to gently clean the ventilation openings to prevent dust buildup, which can affect performance and lifespan.

8. Troubleshooting

9. Specifications

10. Warranty and Support

The ELEPHAS Projector is backed by a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and ensures reliable performance of your device.

For any questions, setup assistance, troubleshooting, or warranty claims, please contact ELEPHAS customer support. Our dedicated team is available 24/7 to provide prompt and helpful service.

Please refer to the contact information provided on the ELEPHAS official website or your purchase documentation for the most up-to-date support channels.
