FOLIAGE Pressure Washer Pump Assembly Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your new FOLIAGE Pressure Washer Pump Assembly. This pump assembly is designed as a reliable replacement part for Campbell Hausfeld pressure washer models PW2200V2LE and PW2200V3LE. Please read this manual thoroughly before installation and operation to ensure proper function and safety.

To ensure the correct fit and compatibility, please verify your pressure washer model number against the specifications provided in this manual and carefully review all product images.

2. Safety Information

WARNING: Always disconnect the pressure washer from its power source and water supply before performing any installation, maintenance, or repair procedures.

• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves, during installation and operation.
• Ensure the work area is clean, well-lit, and free from obstructions.
• Never operate the pressure washer without proper water supply, as this can damage the pump.
• Keep children and pets away from the work area.
• Refer to your original pressure washer manual for additional safety guidelines.

3. Package Contents

Verify that all components listed below are present in your package. If any parts are missing or damaged, please contact customer support.

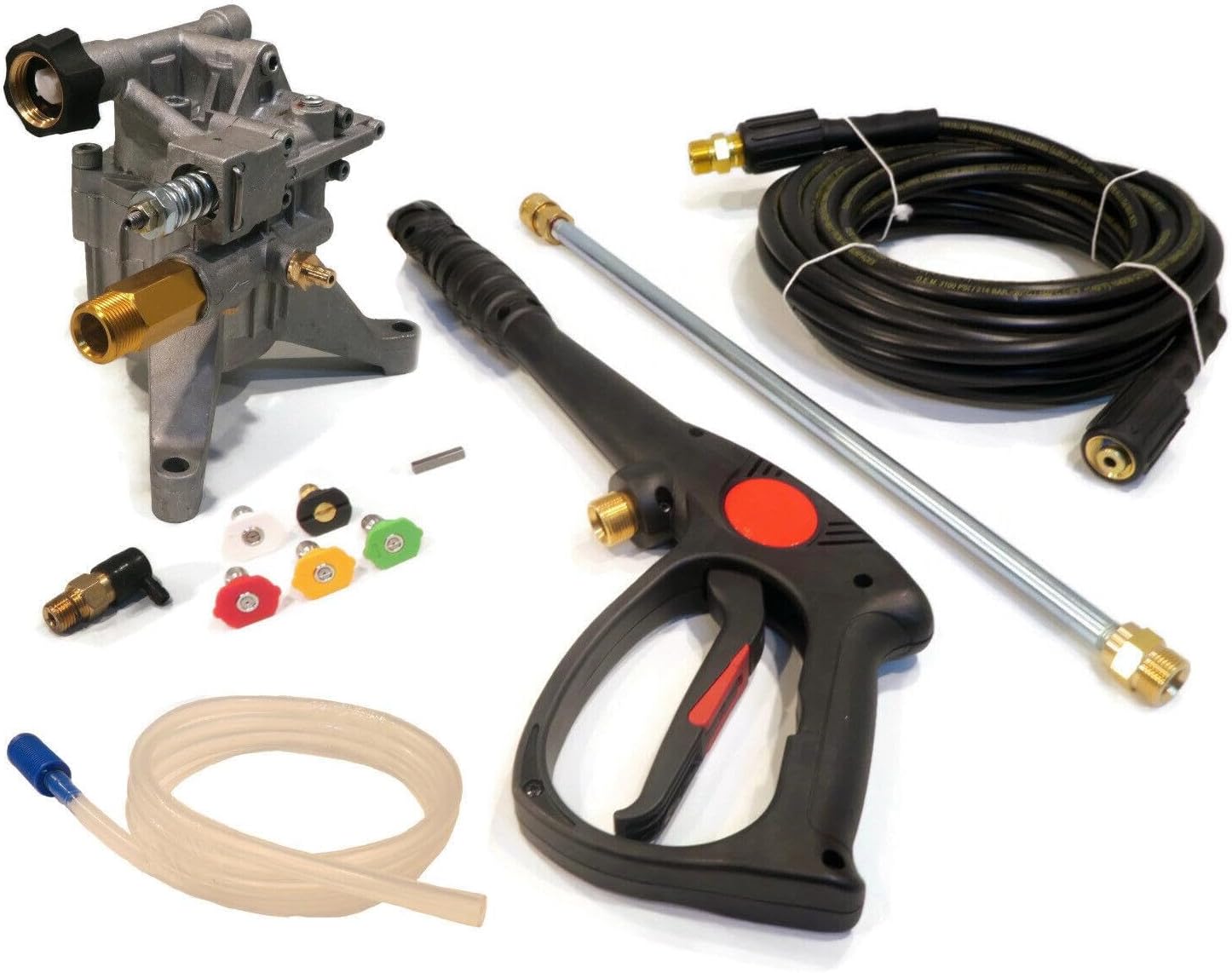

Image 3.1: FOLIAGE Pressure Washer Pump Assembly Kit. This image displays the complete kit, including the pump assembly, high-pressure hose, spray gun, wand, various nozzles, and a detergent siphon tube.

• Pressure Washer Pump Assembly (1 unit)
• High-Pressure Hose (1 unit)
• Spray Gun with Wand (1 unit)
• Quick-Connect Nozzles (Multiple, various spray patterns)
• Detergent Siphon Tube (1 unit)
• Mounting Hardware (if applicable, check packaging)

4. Setup and Installation

Follow these steps carefully to replace your existing pump assembly with the FOLIAGE unit.

Image 4.1: Detailed view of the FOLIAGE Pressure Washer Pump Assembly. This image highlights the inlet, outlet, and mounting points of the pump.

1. Prepare the Pressure Washer: Disconnect the pressure washer from its power source and water supply. Release any residual pressure by squeezing the spray gun trigger. Drain any remaining water from the system.
2. Remove Old Pump: Carefully unbolt and detach the old pump assembly from the pressure washer engine. Note the orientation and connections for reference.
3. Inspect Engine Shaft: Clean the engine shaft and ensure it is free from debris or corrosion. Apply a thin layer of anti-seize lubricant if recommended by the engine manufacturer.
4. Install New Pump: Align the FOLIAGE pump assembly with the engine shaft and mounting holes. Gently slide the pump onto the shaft, ensuring a snug fit. Secure the pump with the appropriate bolts, tightening them evenly to the manufacturer's specifications.
5. Connect Hoses: Connect the high-pressure hose to the pump outlet and the water inlet hose to the pump inlet. Ensure all connections are tight and leak-free.
6. Connect Accessories: Attach the spray gun and wand to the high-pressure hose. Select and attach the desired quick-connect nozzle.

5. Operating Instructions

Once the pump assembly is installed, follow these steps for safe and effective operation of your pressure washer.

1. Connect Water Supply: Connect a garden hose from your water source to the pump's water inlet. Ensure the water supply is fully open and free of air.
2. Prime the Pump: With the engine off, squeeze the spray gun trigger to allow water to flow through the pump and hose, expelling any air. Continue until a steady stream of water emerges from the nozzle.
3. Start the Engine: Follow your pressure washer's engine starting procedures. Allow the engine to warm up for a few moments.
4. Begin Cleaning: Aim the spray gun at the cleaning surface, maintaining a safe distance. Squeeze the trigger to begin spraying. Adjust the distance and nozzle type for optimal cleaning results.
5. Shut Down: Release the spray gun trigger. Turn off the pressure washer engine. Turn off the water supply. Squeeze the spray gun trigger again to release any remaining pressure in the system.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your FOLIAGE pump assembly.

• After Each Use:
  • Flush the pump with clean water to remove detergent residues.
  • Inspect hoses and connections for leaks or damage.
  • Clean nozzles to prevent blockages.
• Seasonal Storage (Winterization):
  • Drain all water from the pump, hoses, and spray gun.
  • Use a pump protector or antifreeze solution designed for pressure washers to prevent freezing and corrosion. Follow the product's instructions.
  • Store the pressure washer in a dry, frost-free environment.
• General Checks:
  • Periodically check pump oil levels (if applicable to your specific pump model) and change according to manufacturer recommendations.
  • Inspect inlet screen for debris and clean as needed.

7. Troubleshooting

Refer to the table below for common issues and their potential solutions.

8. Specifications

Note: Specifications are subject to change without notice for product improvement.

9. Warranty Information

FOLIAGE products are manufactured to high-quality standards. This product is covered by a limited warranty against defects in materials and workmanship from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty does not cover damage resulting from misuse, abuse, neglect, unauthorized repairs, or normal wear and tear. For specific warranty terms and conditions, please refer to the warranty card included with your product or contact customer support.

10. Customer Support

If you have any questions, require assistance with installation, or need to report a missing or damaged part, please contact our customer support team. When contacting support, please have your product model number (HIM-KIT-5_116) and purchase information readily available.
