CIARRA CAW6750 60cm Wall-Mounted Range Hood User Manual

Model: CBCW6750

Introduction

Thank you for choosing the CIARRA CAW6750 60cm Range Hood. This manual provides essential information for the safe installation, operation, and maintenance of your appliance. Please read it thoroughly before use and keep it for future reference.

Important Safety Instructions

Read all instructions carefully before installing or using this appliance.
Ensure the electrical supply matches the rating shown on the appliance's data plate.
This appliance is intended for domestic use only.
Do not allow children to operate the range hood.
Always disconnect the power supply before cleaning or maintenance.
Ensure adequate ventilation in the room when the range hood is used simultaneously with gas or other fuel-burning appliances.
Do not flambé under the range hood.
Regularly clean the grease filters to prevent fire hazards.
The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.

Setup and Installation

The CIARRA CAW6750 range hood can be installed in two ventilation modes: ducted (external exhaust) or recirculating (internal filtration).

Included Components

The package includes the following items for installation:

Range Hood Unit
Installation Kit (screws, wall plugs)
1.5m Exhaust Pipe (for ducted mode)
Mounting Bracket for Hood
Chimney Support Brackets
Instruction Manual

Components included for CIARRA CAW6750 range hood installation — Image: Installation kit components including exhaust pipe, mounting brackets, screws, and manual.

Mounting Considerations

Ensure the mounting surface is strong enough to support the weight of the hood.
Maintain the recommended distance between the cooking surface and the bottom of the range hood (typically 65-75 cm). Refer to the dimension diagram for precise measurements.

Dimension diagram for CIARRA CAW6750 range hood installation — Image: Detailed dimensions of the range hood, including height (695-1075mm), width (595mm), and depth (335mm).

Diagram showing correct and incorrect installation height for range hood — Image: Illustration demonstrating the correct installation height to ensure user safety and optimal performance, preventing head bumps.

Ventilation Modes

The range hood supports two operational modes:

Ducted Mode: Air is extracted and expelled outside through the 1.5m exhaust pipe (included). This requires an external vent.
Recirculating Mode: Air is filtered through optional CBCF002X2 carbon filters (not included) and then returned to the kitchen. This mode is suitable when external venting is not possible.

Diagram comparing Recirculation Mode with carbon filters and Extraction Mode with exhaust pipe — Image: Visual comparison of the two ventilation modes: Recirculation Mode using carbon filters (not included) and Extraction Mode using the included 1.5m exhaust pipe.

Operating Instructions

The CIARRA CAW6750 features push-button controls for easy operation.

Control Panel

The control panel consists of several push buttons to manage the fan speed and lighting.

Detailed view of the push-button controls on the CIARRA range hood — Image: Detailed view of the push-button controls for fan speed and lighting.

Fan Speed Settings

The range hood offers 3 fan speed settings to suit various cooking needs:

Speed 1: For light cooking, simmering, or minimal odors.
Speed 2: For normal cooking, frying, or moderate odors.
Speed 3: For heavy cooking, grilling, or strong odors, providing maximum extraction of 350 m³/h.

CIARRA CAW6750 range hood in operation, showing powerful extraction of 350 m³/h — Image: The range hood actively extracting steam and odors from a cooking pan, demonstrating its 350 m³/h suction power.

LED Lighting

The integrated 2W LED lighting provides illumination for your cooking area. Press the light button to turn the lights on or off. The lights can be operated independently of the fan.

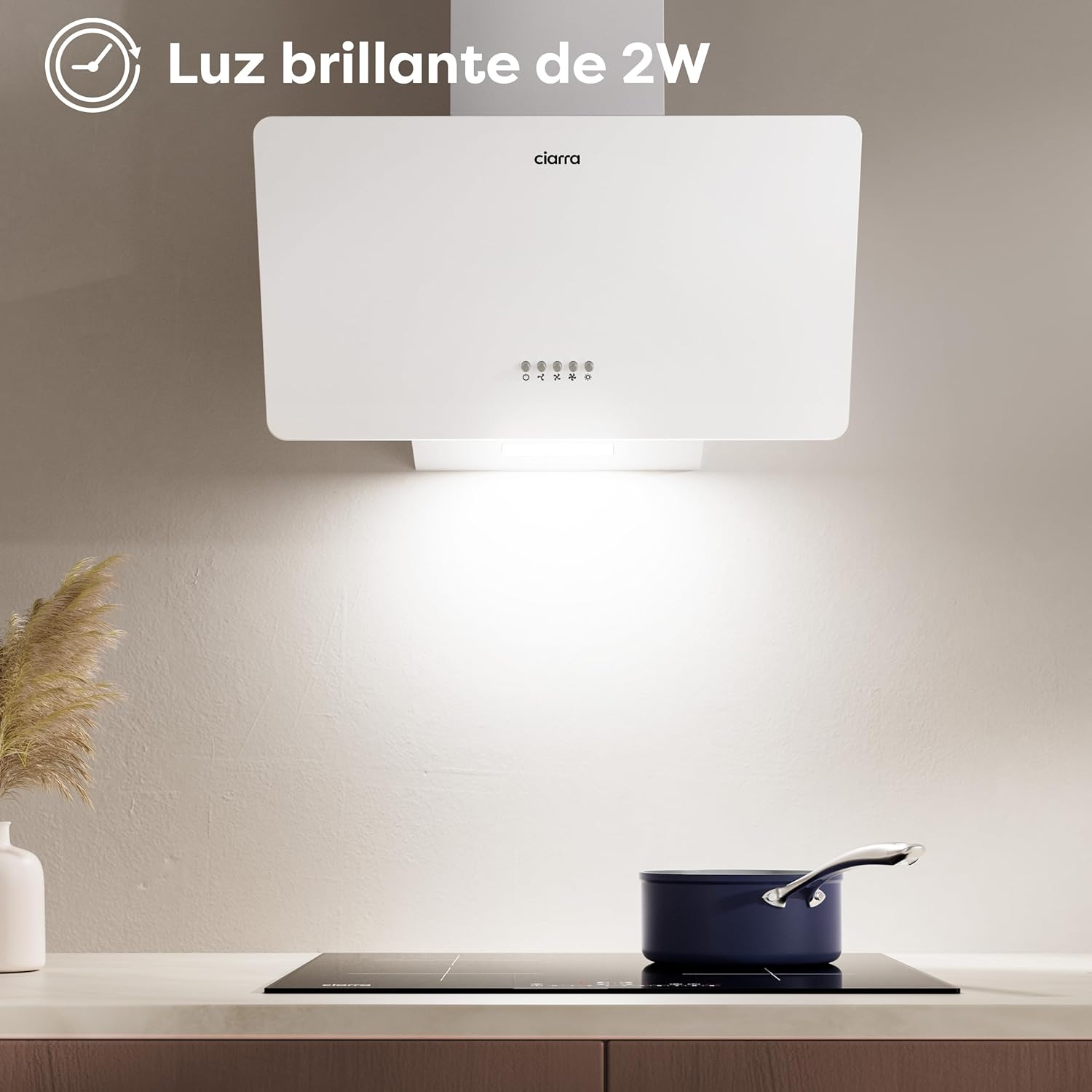

CIARRA CAW6750 range hood with its bright 2W LED light illuminating the cooking area — Image: The range hood's 2W LED light brightly illuminating the stovetop below.

Maintenance and Cleaning

Regular maintenance ensures optimal performance and extends the lifespan of your range hood. Always disconnect power before cleaning.

Cleaning the Grease Filters

The range hood is equipped with 5-layer aluminum grease filters. These filters capture grease particles from cooking fumes and should be cleaned regularly (e.g., monthly) to maintain efficiency and prevent fire hazards.

To remove, locate the latch on each filter and pull it down.
Wash the filters by hand in hot soapy water or in a dishwasher.
Ensure filters are completely dry before re-installing.

Diagram showing the 5-layer aluminum grease filter being removed from the CIARRA CAW6750 range hood — Image: Illustration of the 5-layer aluminum grease filter being removed from the range hood for cleaning, highlighting its effectiveness in trapping grease.

Image showing the CIARRA range hood's surface being cleaned with a cloth — Image: The exterior surface of the range hood being wiped clean with a cloth, demonstrating easy maintenance.

Replacing Carbon Filters (Recirculating Mode Only)

If using the recirculating mode, the optional CBCF002X2 carbon filters (not included) should be replaced every 3-6 months, depending on usage. Refer to the carbon filter instructions for specific replacement procedures.

Exterior Cleaning

Clean the exterior surfaces of the range hood with a soft cloth and a mild, non-abrasive detergent. Avoid using harsh chemicals or abrasive cleaners that could damage the white finish or tempered glass.

Troubleshooting

Problem	Possible Cause	Solution
Hood does not operate	No power supply	Check if the plug is properly inserted and the circuit breaker is on.
Poor extraction performance	Grease filters are clogged	Clean or replace the grease filters.
	Carbon filters are saturated (recirculating mode)	Replace the carbon filters.
	Ducting is obstructed or too long/narrow	Check ducting for obstructions or improper installation.
Excessive noise	Loose components or improper installation	Ensure all mounting screws are tightened and the hood is securely installed.
	Ducting is vibrating	Check ducting for proper support and sealing.
Lights not working	LED module failure	Contact customer support for replacement.

Product Specifications

Brand	CIARRA
Model Number	CBCW6750
Product Dimensions	59.5 x 69.5 x 33.5 cm
Product Weight	8.2 kg
Material	Glass
Color	White
Voltage	220 Volts
Wattage	72 W (Note: The source data indicated '72 kW', which has been corrected to '72 W' based on typical appliance power consumption and energy efficiency ratings.)
Airflow Capacity	350 m³/h
Noise Level	63 dB
Control Method	Push Button
Light Source Type	LED (2W)
Filter Type	5-layer Deflector (Aluminum Grease Filters)
Ventilation Type	Ducted/Recirculating
Mounting Type	Wall Mount
Energy Efficiency Class	A
EPREL Product Link	https://eprel.ec.europa.eu/qr/2417243

Energy efficiency label for CIARRA CAW6750 range hood, showing Class A rating and 62dB noise level — Image: EU Energy Label for the CIARRA CAW6750, indicating an A-class energy efficiency rating and a noise level of 62dB.

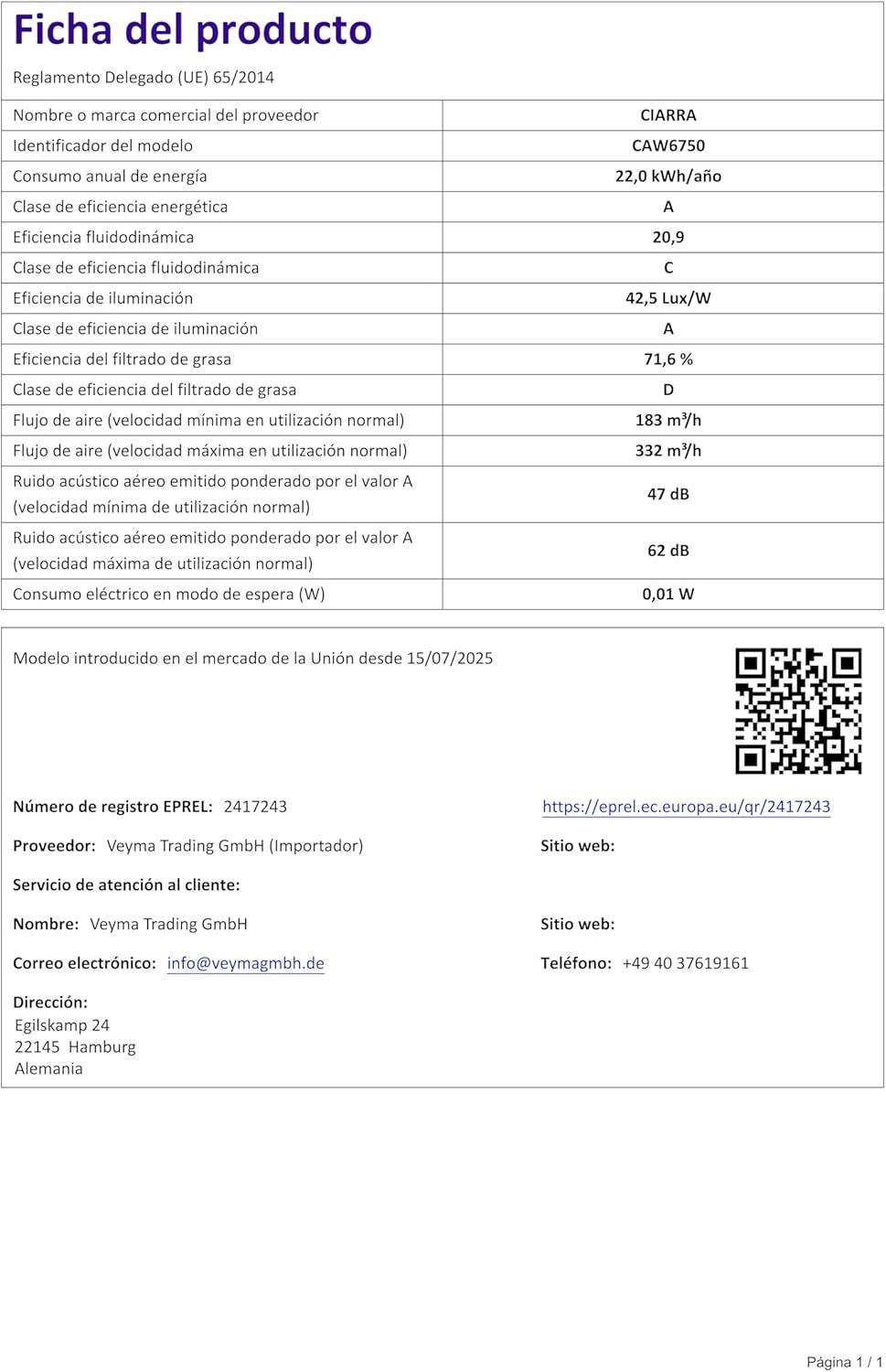

Product data sheet for CIARRA CAW6750 range hood with detailed technical specifications — Image: Detailed product data sheet (Ficha del producto) providing comprehensive technical specifications and energy consumption data.

Warranty and Support

For warranty information, please refer to the warranty card included with your product or contact CIARRA customer service. Keep your proof of purchase for any warranty claims.

For technical support, spare parts, or service inquiries, please contact CIARRA customer support through their official website or the contact details provided in your purchase documentation.
