GANPE GBC01
User Manual
GANPE LED Lighted Bathroom Medicine Mirror Cabinet
Model: GBC01
Introduction
Thank you for choosing the GANPE LED Lighted Bathroom Medicine Mirror Cabinet. This manual provides essential information for the safe installation, operation, and maintenance of your new cabinet. Please read it thoroughly before use and retain it for future reference.
Image: The GANPE LED Lighted Bathroom Medicine Mirror Cabinet, showcasing its illuminated mirror and sleek design, installed in a modern bathroom setting.
Important Safety Information
WARNING:
- Do not install in areas with high humidity or near water sources.
- Always unplug the cabinet when not in use.
- Do not touch the electrical components with wet hands.
- Always use the provided safety gear when installing the cabinet.
- Ensure proper electrical grounding during installation.
Product Features
- Stepless Adjustable Lighting: The frontlit mirror offers brightness adjustment from 10% to 100% by long-pressing the mirror button. It also features 3 color temperatures (3500K warm white, 4000K natural light, 6500K bright white) selectable via a quick double-click. The light memory function retains your last setting. An additional light strip at the bottom provides ample illumination.
- Mirrors on Both Sides: The cabinet doors feature mirrors on both their inner and outer surfaces, allowing for convenient use even when the cabinet is open.
- Adequate Storage Space: Equipped with two layers of adjustable glass partitions, providing flexible storage for various item sizes. Integrated sockets and USB ports inside the cabinet allow for charging electronic devices.
- Better Defogging Function: A built-in defogger ensures a clear mirror surface, preventing moisture buildup. The cabinet is IP44 waterproof, ensuring safety and durability in damp bathroom environments.
- Durable Construction: Made from aluminum material, ensuring rust-proof, moisture-proof, and long-lasting performance.
Image: Illustration of the adjustable color temperature settings (6500K, 4000K, 3000K) and stepless dimming capability of the mirror light.

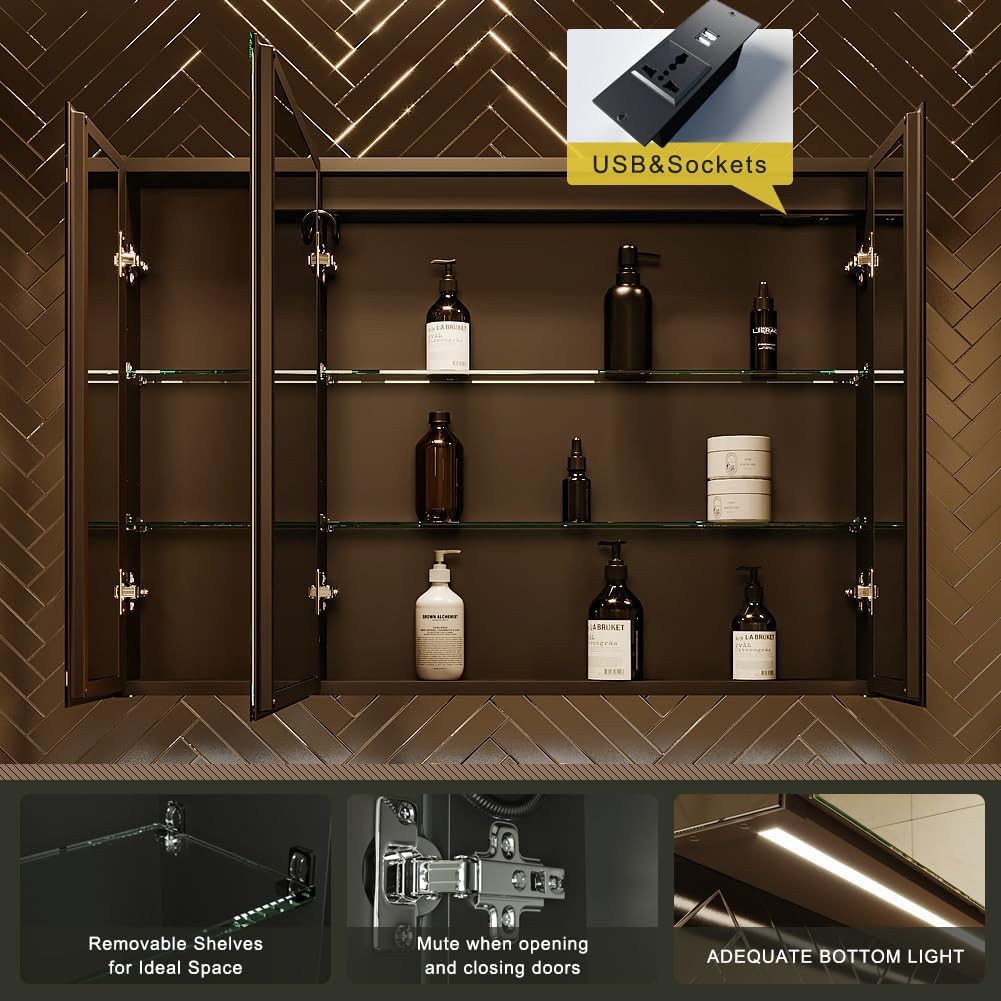

Image: Detailed view of the cabinet's interior, highlighting removable glass shelves, the integrated USB and power sockets, mute hinges for quiet operation, and the bottom LED light strip.
Image: Demonstration of the anti-fog function and IP44 waterproof rating, showing a clear mirror surface on the active side while the other side is fogged.
Setup and Installation
The GANPE Medicine Mirror Cabinet is designed for wall-mount installation and comes pre-assembled for convenience. A strong package ensures the product's safety during transit.
Package Contents:
- LED Lighted Medicine Mirror Cabinet
- Installation Cardboard (for positioning)
- Mounting Hardware (screws, anchors)
- User Manual
Installation Steps:
- Unpacking: Carefully unbox the cabinet. Inspect for any damage.
- Positioning: Use the provided installation cardboard template to mark the drilling points on the wall. Ensure the location is suitable for electrical connection (either wall switch or plug).
- Drilling: Drill holes at the marked positions. Insert wall anchors if necessary.
- Mounting Bracket: Secure the mounting bracket to the wall using the provided screws.
- Wiring: Connect the cabinet's electrical wiring to your home's electrical system. Ensure power is off at the circuit breaker before connecting. The cabinet has a reserved wire groove for neat installation. It can be hardwired or plugged in.
- Mounting the Cabinet: Carefully lift and hang the cabinet onto the wall mounting bracket. Secure it in place.
- Adjusting Shelves: Place the glass shelves inside the cabinet, adjusting their height as desired.
Image: Visual guide for installation, demonstrating the use of the cardboard template for precise wall positioning and highlighting the reserved wire groove for electrical connections (wall switch or plug).
Image: Dimensional drawing of the cabinet, providing side and front views with key measurements for installation planning.
Image: The product's robust shipping packaging, indicating careful handling and protection during delivery.
Operation
- Power On/Off: The main power is controlled by the touch switch on the mirror surface.
- Adjusting Brightness: Long-press the touch button on the mirror to cycle through brightness levels from 10% to 100%. Release to set the desired brightness.
- Changing Color Temperature: Double-click the touch button to switch between the three color temperature modes: warm white (3500K), natural light (4000K), and bright white (6500K). The cabinet will remember your last setting.
- Anti-Fog Function: The defogger activates automatically when the mirror light is turned on, ensuring a clear reflection.
- Using Sockets & USBs: The internal power sockets and USB ports are active when the cabinet is powered. Use them to charge small electronic devices like electric toothbrushes or shavers.
Maintenance
- Cleaning the Mirror: Use a soft, damp cloth with a mild glass cleaner. Avoid abrasive cleaners or harsh chemicals that could damage the mirror surface or frame.
- Cleaning the Cabinet Interior: Wipe down internal surfaces and glass shelves with a soft, damp cloth. Ensure no water enters electrical components.
- Electrical Safety: Before any cleaning or maintenance, ensure the cabinet is unplugged or the power supply is turned off at the circuit breaker.
- Hinge Care: The hinges are designed for mute operation. Periodically check for smooth movement and clean any dust buildup.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply; loose connection; faulty switch. | Check power outlet/circuit breaker. Ensure all connections are secure. Contact customer support if the issue persists. |
| Anti-fog function not working. | Defogger not activated; electrical issue. | Ensure the mirror light is on, as the defogger activates with the light. Check power supply. |
| USB/Sockets not providing power. | Cabinet not powered; internal wiring issue. | Verify the cabinet is powered on. Check internal connections. |
| Mirror fogs up despite anti-fog. | Extremely high humidity; defogger malfunction. | Allow more time for defogger to work in very humid conditions. If persistent, contact support. |
Specifications
| Feature | Detail |
|---|---|
| Brand | GANPE |
| Model Name | GBC01 |
| Product Dimensions | 5"D x 40"W x 28"H (12.7cm D x 101.6cm W x 71.1cm H) |
| Color | 3 Doors |
| Mounting Type | Wall Mount |
| Special Features | Antirust, Anti-fog, Dimmable, USB & sockets, Easy to install, Large space (15 Gallons) |
| Material | Aluminum (Frame), Glass (Mirror, Shelves) |
| Number of Shelves | 1 (Adjustable glass partitions) |
| Item Weight | 44 pounds (20 Kilograms) |
| UPC | 749838298578 |
| Energy Efficiency | View EU Energy Label |
Image: The EU Energy Label for the product, indicating its energy efficiency class and consumption.
Warranty and Support
Your GANPE LED Lighted Bathroom Medicine Mirror Cabinet comes with standard manufacturer support. For any questions regarding installation, operation, or troubleshooting, please contact GANPE customer support.
- Protection Plans: Extended protection plans are available for purchase separately (e.g., 2-Year and 3-Year Protection Plans).
- Returns: This product is eligible for 30-day easy returns.
- Customer Support: For assistance, please refer to the contact information provided with your purchase or visit the official GANPE store on Amazon.
For more information, visit the GANPE Store on Amazon.
