CITYWAY Bike Mount for Tile Sticker

Product Overview

The CITYWAY Bike Mount is designed to securely and discreetly house your Tile Sticker (2024 model) on your bicycle. This waterproof and anti-theft case provides an effective solution for tracking your bike, integrating seamlessly with your existing bottle cage mounts or for standalone installation.

Key features include:

• Premium Material: Constructed from durable ABS composite and PC material, ensuring strength and longevity while maintaining a lightweight profile (12.8g) that does not interfere with signal reception.
• Anti-theft Design: Features custom Torx security screws with a central stud, requiring a specialized wrench (included) for removal, significantly deterring theft.
• IPX8 Waterproof: Equipped with a rubber seal ring to prevent water ingress, keeping your Tile Sticker clean and dry in all weather conditions.
• Hidden Placement: Black screws and a discreet design allow the mount to blend in, making the Tile virtually invisible on your bike.

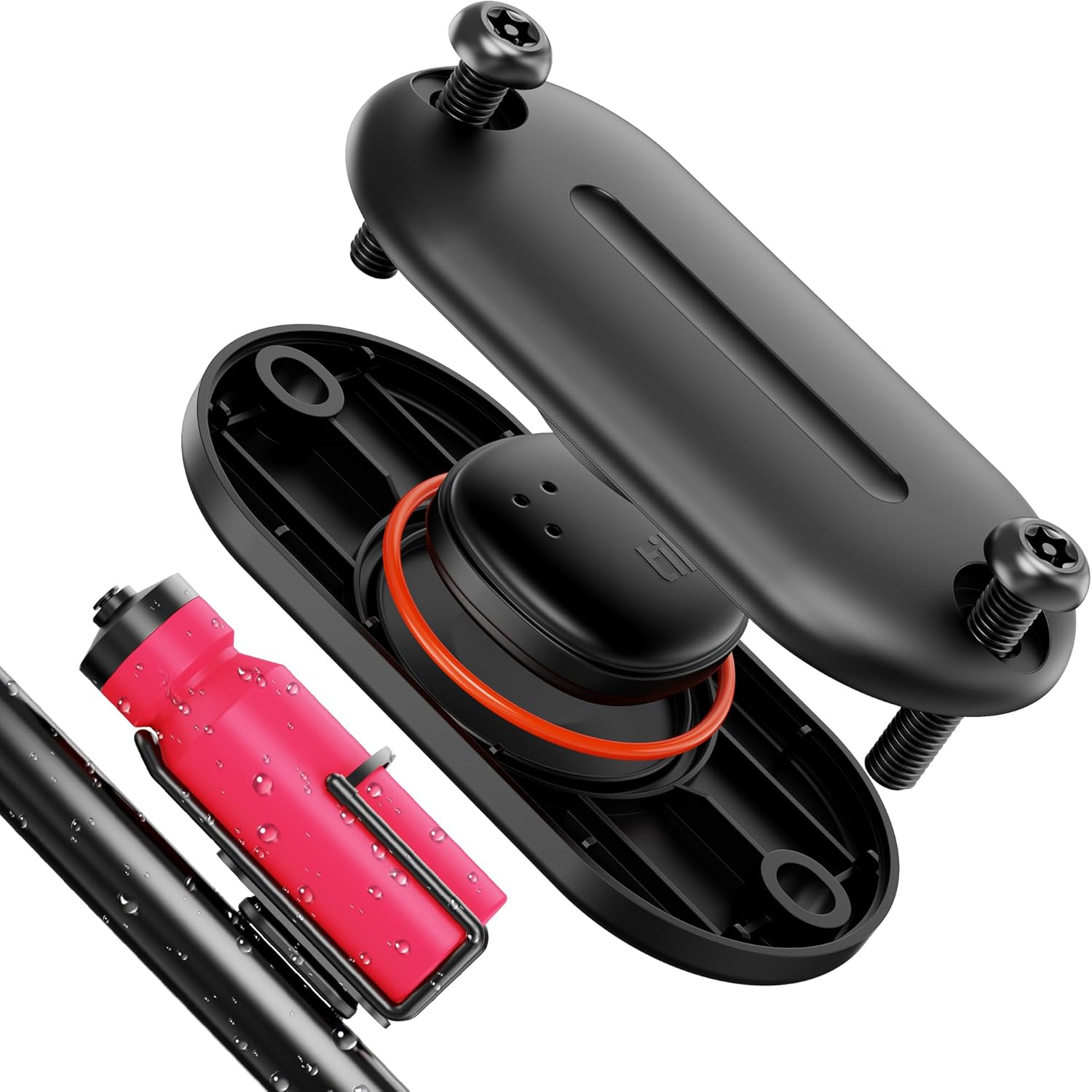

Image: Components of the CITYWAY Bike Mount, including the upper and lower shells, waterproof ring, and security screws, alongside a Tile Sticker.

Package Contents

Upon opening your package, please verify that all the following items are included:

• 1 x Bracket Shell (Upper Part)
• 1 x Bracket Shell (Lower Part)
• 1 x Waterproof Ring
• 2 x Extended M5 Black Safety Screws
• 1 x Torx Wrench (for security screws)

Note: Bottle cage and Tile Sticker are not included with this product.

Setup and Installation

Follow these steps to properly install your CITYWAY Bike Mount and secure your Tile Sticker:

Image: Diagram illustrating how the CITYWAY Bike Mount integrates with a bicycle's bottle cage and frame.

1. Step 1: Insert the Waterproof Ring

   Carefully insert the provided rubber waterproof ring into the groove of the lower shell of the bracket.



   Image: Visual guide for inserting the waterproof ring into the lower shell.

2. Step 2: Place the Tile Sticker

   Place your Tile Sticker into the lower shell, ensuring it sits flush within the compartment. Then, align and cover it with the upper shell.

3. Step 3: Attach Bottle Holder (Optional)

   If using a bottle cage, attach it on top of the assembled protective case. The extended M5 safety screws are designed to accommodate most bottle cages.

4. Step 4: Mount to Bicycle

   Position the Tile protective case (with or without bottle cage) under the bottle holder mounting points on your bicycle frame. Align the holes and secure them using the two extended M5 black safety screws and the included Torx wrench. Ensure the screws are tightened firmly but do not overtighten.



   Image: Detail of the specialized Torx security screws and the corresponding wrench for anti-theft installation.

5. Step 5: Verify Installation

   Once installed, gently tug on the mount to ensure it is securely fastened to the bike frame. The discreet design ensures it is hidden yet accessible if needed.



   Image: The CITYWAY Bike Mount installed on a bicycle, demonstrating its hidden and discreet placement.

Operating and Functionality

The CITYWAY Bike Mount functions primarily as a protective and discreet housing for your Tile Sticker. Once installed, its main operational benefits are:

• Waterproof Protection: The IPX8 rating and rubber seal ensure your Tile Sticker remains protected from water, allowing for use in various weather conditions without concern for damage.
• Anti-theft Security: The specialized security screws make it significantly harder for unauthorized individuals to remove the Tile Sticker from your bike without the correct tool.
• Signal Integrity: The material and design of the mount are engineered to not interfere with the Tile Sticker's signal, ensuring reliable tracking.

Image: The CITYWAY Bike Mount shown on a wet bicycle, highlighting its IPX8 waterproof capability.

Maintenance

To ensure the longevity and optimal performance of your CITYWAY Bike Mount, consider the following maintenance tips:

• Regular Cleaning: Wipe down the exterior of the mount with a damp cloth to remove dirt and debris. Avoid abrasive cleaners.
• Inspect Waterproof Seal: Periodically check the rubber waterproof ring for any signs of wear, cracks, or damage. A compromised seal can affect the waterproof integrity.
• Check Screws: Ensure the security screws remain tight. If you need to remove or re-install the mount, always use the provided Torx wrench to prevent damage to the screw heads. Store the wrench in a safe place.
• Avoid Extreme Temperatures: While durable, prolonged exposure to extreme heat or cold may affect the material's integrity over time.

Troubleshooting

If you encounter any issues with your CITYWAY Bike Mount, please refer to the following common troubleshooting steps:

Specifications

Image: Detailed dimensions of the CITYWAY Bike Mount.

Warranty and Support

For information regarding warranty coverage, returns, or technical support for your CITYWAY Bike Mount, please refer to the official CITYWAY website or contact their customer service directly. Keep your purchase receipt as proof of purchase.

Manufacturer: CITYWAY

For further assistance, please visit the CITYWAY Store on Amazon.
