1. Introduction
Thank you for choosing the Alpicool GE30 Portable Refrigerator Car Freezer. This appliance is designed to provide efficient cooling and freezing for various applications, including automotive, camping, and home use. It features ultra-fast cooling, intelligent battery protection, and a versatile design for convenience.
Please read this manual thoroughly before operating the appliance to ensure safe and optimal performance. Keep this manual for future reference.
2. Safety Information
To reduce the risk of fire, electric shock, or injury, follow these basic safety precautions:
- Ensure the power supply voltage matches the voltage specified on the appliance's rating label.
- Do not operate the appliance if the power cord is damaged or if the appliance is malfunctioning. Contact customer support for assistance.
- Keep the appliance away from heat sources and direct sunlight. Ensure adequate ventilation around the unit.
- Do not immerse the appliance in water or expose it to heavy rain.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Always disconnect the power supply before cleaning or performing maintenance.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. What's in the Box
Upon unpacking, please verify that all items listed below are present and undamaged:
Image: Contents of the Alpicool GE30 box, showing the car fridge, DC power cord, AC adapter, and user manual.
- 1 x Alpicool GE30 Car Fridge
- 1 x 12/24V DC Power Cord
- 1 x 100-240V AC Adapter
- 1 x User Manual
4. Product Features and Overview
The Alpicool GE30 is equipped with several features designed for convenience and performance:
Image: Detailed diagram of Alpicool GE30 features including LED display, durable latch, tie-down slots, interior LED light, cup holders, drain plug, bottle opener, and home/car dual use ports.
- Interior LED Light: Illuminates the interior for easy visibility.
- LED Display: Shows current temperature and settings.
- Anti-slip Cup Holders & Measuring Scale: Integrated into the lid for convenience.
- Car/Home Use: Supports both 12/24V DC and 100-240V AC power inputs.
- Durable Door Latch: Secures the lid during transport.
- Recessed Handle: For easy portability.
- Drain Plug: Facilitates easy cleaning and water drainage.
- Reversible Door: The lid can be installed to open from either the left or right side.
- Bottle Opener: Conveniently located on the unit.
5. Setup
5.1 Unpacking and Initial Placement
- Remove all packaging materials.
- Place the refrigerator on a flat, stable surface.
- Ensure there is at least 10 cm (4 inches) of space around all sides of the unit for proper ventilation. Avoid placing it near heat sources or in direct sunlight.
5.2 Power Connection
The Alpicool GE30 supports multiple power options:
Image: Multi Charging Options for the Alpicool GE30.
- For Car/Truck Use (12V/24V DC): Connect the DC power cord to the refrigerator's DC input port and then to your vehicle's cigarette lighter socket.
- For Home/Indoor Use (100-240V AC): Connect the AC adapter to the refrigerator's AC input port, then plug the adapter into a standard wall outlet.
After connecting to power, the LED display will light up, indicating the unit is ready for operation.
6. Operating Instructions
6.1 Power On/Off
- Press the power button on the control panel to turn the unit on or off.
6.2 Temperature Control
The Alpicool GE30 offers a wide temperature range from -20°C to 20°C (-4°F to 68°F).
Image: Recommended temperatures for various items.
- Use the '+' and '-' buttons on the control panel to adjust the desired temperature.
- The LED display will show the current internal temperature.
6.3 Cooling Modes (ECO/MAX)
Select between two cooling modes based on your needs:
Image: ECO and MAX Cooling Modes.
- ECO Mode (45W): For energy-efficient operation, ideal for maintaining temperature over longer periods.
- MAX Mode (60W): For rapid cooling and powerful freezing, suitable when you need to reach target temperatures quickly.
- Press the settings button (gear icon) to cycle through the cooling modes.
6.4 Battery Protection
The refrigerator features a 3-step intelligent battery protection system to prevent your vehicle's battery from draining:
- High (H): Highest cut-off voltage, suitable for starting batteries.
- Medium (M): Medium cut-off voltage, suitable for most applications.
- Low (L): Lowest cut-off voltage, suitable for deep cycle batteries or when the engine is running.
- Adjust the battery protection level via the settings menu on the control panel.
6.5 Reversible Door
The lid can be configured to open from either the left or right side to suit your setup.
Image: Reversible Door feature of the Alpicool GE30.
Refer to the detailed instructions in the included user manual for steps on how to reverse the door.
6.6 Smart APP Control
The Alpicool GE30 can be controlled via a smartphone application. Download the official Alpicool app from your device's app store and follow the in-app instructions for pairing and control.
7. Maintenance
7.1 Cleaning
- Always disconnect the power supply before cleaning.
- Clean the interior and exterior surfaces with a damp cloth and mild detergent. Avoid abrasive cleaners.
- Use the integrated drain plug to easily remove any liquids from the interior.
- Ensure the ventilation openings are clear of dust and debris. Use a soft brush or vacuum cleaner to clean them periodically.
7.2 Storage
- If storing the appliance for an extended period, ensure it is clean and dry.
- Store in a dry, well-ventilated area, away from direct sunlight and extreme temperatures.
- Leave the lid slightly ajar to prevent odors and mold growth.
8. Troubleshooting
If you encounter issues with your Alpicool GE30, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on | No power supply; Damaged power cord; Blown fuse in vehicle. | Check power connection; Try a different power outlet/vehicle socket; Inspect and replace fuse if necessary. |
| Insufficient cooling | Ventilation blocked; Door not closed properly; Ambient temperature too high; ECO mode selected. | Ensure clear ventilation; Close lid securely; Move to a cooler environment; Switch to MAX mode for faster cooling. |
| Error code on display | Specific internal fault. | Refer to the detailed error code list in the full user manual or contact customer support. |
| Excessive noise | Unit not level; Fan obstruction. | Place on a flat, stable surface; Check for and remove any obstructions from the fan. |
If the problem persists after attempting these solutions, please contact Alpicool customer support.
9. Specifications
Key technical specifications for the Alpicool GE30 30L Portable Refrigerator Car Freezer:
Image: Alpicool GE30 Key Specifications.
| Feature | Specification |
|---|---|
| Model Name | GE30 |
| Capacity | 30 Litres |
| Cooling Range | -20°C to 20°C (-4°F to 68°F) |
| Power Source | 12/24V DC, 100-240V AC |
| Rated Power | 60W (MAX Mode) |
| Dimensions (L x W x H) | 61.4 x 36.5 x 37.4 cm (24.17 x 14.37 x 14.72 inches) |
| Net Weight | 11.8 kg (26 lbs) |
| Noise Level | ≤45dB |
| Defrosting System | Automatic |
| Energy Efficiency Class | C |
| Annual Energy Consumption | 43 kWh/annum |
| Country of Origin | China |

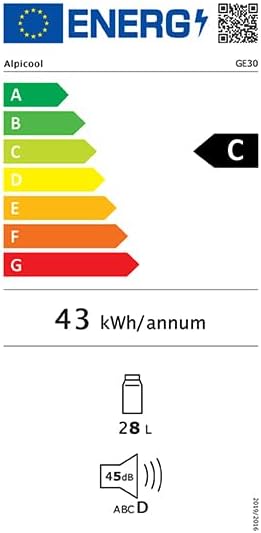

Image: EU Energy Label for Alpicool GE30.
For more detailed energy information, please visit the EPREL database.
10. Warranty and Support
10.1 Warranty Information
The Alpicool GE30 comes with a comprehensive warranty:
- Compressor: 3 years from the date of purchase.
- Other Parts: 1 year from the date of purchase.
Please retain your proof of purchase for warranty claims.
10.2 Customer Support
For any questions, technical assistance, or warranty claims, please contact Alpicool customer support through the retailer where you purchased the product or visit the official Alpicool website.
