1. Overview
This manual provides instructions for the installation, operation, and maintenance of your Votamuta VOT-LFT8004 Shower Panel System. This system is designed to enhance your showering experience with multiple water functions and a modern design. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.
Image 1.1: Votamuta VOT-LFT8004 Shower Panel System in a modern bathroom setting.
2. Product Features
The Votamuta VOT-LFT8004 Shower Panel System offers a comprehensive showering experience with the following features:
- 6-in-1 Shower Panel: Integrates LED waterfall, rainfall shower head, body jets, mist sprays, handheld shower wand, and tub spout.
- Durable Construction: Made from 304 stainless steel for corrosion resistance and durability. Features a brass mixing valve and shower diverter valve internally.
- Temperature Display: An integrated water temperature display allows for precise temperature adjustment, reducing the risk of scalding.
- Dual Mode Showerhead: Offers both LED rainfall and waterfall shower options for varied experiences. The rainfall mode covers the full body, while the waterfall mode provides a natural, soft water flow.
- Powerful Body Jets: Equipped with high-pressure, angle-adjustable body jets designed to provide a massage effect, targeting neck and back muscles.
- Handheld Shower and Tub Spout: Includes a handheld shower wand with a 150cm stainless steel hose for versatile use, and a tub spout for filling bathtubs or buckets.

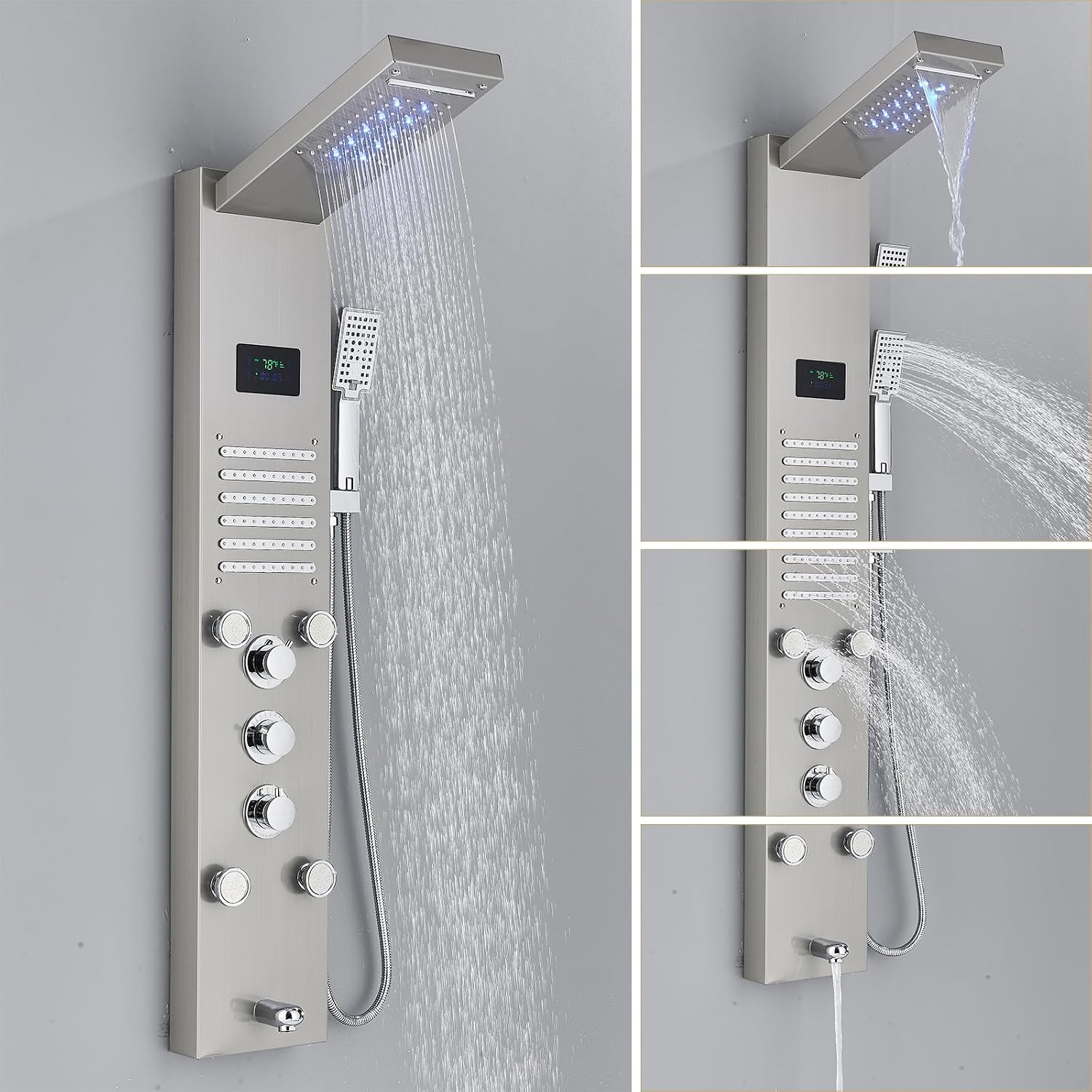

Image 2.1: Diagram of the 5-in-1 shower panel functions.
3. Components List
Before beginning installation, ensure all components are present and undamaged. The package typically includes:
- Shower Panel Unit (main body with integrated showerhead, controls, and jets)
- Handheld Shower Wand
- 150cm Stainless Steel Shower Hose
- Mounting Brackets and Hardware (screws, anchors)
- Water Inlet Hoses
- Sealing Washers and Gaskets
- Installation Manual (this document)
Image 3.1: All included components of the shower panel system.
4. Setup and Installation
Installation of the Votamuta VOT-LFT8004 Shower Panel System requires basic plumbing knowledge and tools. Professional installation is recommended to ensure correct setup and prevent potential leaks or damage.
4.1 Pre-Installation Checklist
- Verify all components are present and undamaged.
- Ensure water supply is turned off at the main valve.
- Confirm wall structure can support the weight of the shower panel (approximately 7 kg).
- Have necessary tools: drill, level, measuring tape, wrench, sealant tape.
4.2 Installation Steps (General Guidelines)
- Mark Mounting Points: Use the provided mounting brackets and a level to mark the desired installation height on the wall. Refer to the dimensions diagram for optimal placement.
- Drill Holes: Drill pilot holes at the marked points and insert wall anchors if necessary.
- Attach Brackets: Secure the mounting brackets to the wall using the provided screws.
- Connect Water Lines: Connect the hot and cold water supply lines to the corresponding inlets on the back of the shower panel. Use sealant tape on all threaded connections to prevent leaks.
- Mount Shower Panel: Carefully hang the shower panel onto the installed mounting brackets. Ensure it is securely seated.
- Connect Handheld Shower: Attach the handheld shower hose to its designated outlet on the panel and connect the handheld shower wand.
- Test for Leaks: Slowly turn on the main water supply and check all connections for leaks. Address any leaks immediately.
Image 4.1: Shower panel dimensions for installation planning.
5. Operating Instructions
The Votamuta VOT-LFT8004 Shower Panel System features intuitive controls for selecting water functions and adjusting temperature.
5.1 Water Flow and Temperature Control
- Main Control Knob: The central knob controls the water flow and temperature. Rotate to adjust temperature from cold to hot.
- Function Diverter Knobs: Separate knobs allow you to select between the various shower functions: rainfall, waterfall, body jets, handheld shower, and tub spout. Turn the desired knob to activate the corresponding function.
5.2 Shower Functions
- Rainfall Shower: Provides a wide, gentle rain-like spray from the overhead showerhead.
- Waterfall Shower: Delivers a broad sheet of water from the overhead showerhead, mimicking a natural waterfall.
- Body Jets: Activates the adjustable body massage jets for a targeted, invigorating spray.
- Handheld Shower: Directs water through the flexible handheld wand for focused rinsing. The handheld shower typically offers multiple spray patterns (spray, stream, mix) selectable via a button or lever on the wand.
- Tub Spout: Provides a steady stream of water from the lower spout, ideal for filling a bathtub.
Image 5.1: Various water outputs from the shower panel.
Image 5.2: Handheld shower with adjustable spray settings.
5.3 Temperature Display
The integrated LED display shows the current water temperature in Celsius and the duration of your shower. This display is powered by water flow and does not require batteries.
Image 5.3: Digital temperature and duration display.
6. Maintenance
Regular cleaning and maintenance will ensure the optimal performance and appearance of your Votamuta shower panel.
6.1 Cleaning the Surface
- Clean the stainless steel surface with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for stainless steel.
- Avoid using abrasive cleaners, scouring pads, or harsh chemicals (e.g., bleach, ammonia-based cleaners) as these can damage the finish.
- Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots.
6.2 Cleaning Shower Nozzles
- Over time, mineral deposits (limescale) can build up in the showerhead and body jet nozzles.
- Many nozzles are made of silicone and can be cleaned by gently rubbing them with your fingers to dislodge deposits.
- For stubborn buildup, use a descaling solution or a mixture of white vinegar and water. Apply, let sit for a short period, then scrub gently and rinse.
7. Troubleshooting
If you encounter issues with your shower panel, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Pressure | Clogged nozzles; partially closed water supply valve; low household water pressure. | Clean showerhead and jet nozzles. Ensure main water supply valves are fully open. Consult a plumber if household pressure is consistently low. |
| Water Leaks | Loose connections; damaged seals/washers; cracked components. | Check and tighten all connections. Replace any worn or damaged washers/seals. If components are cracked, contact customer support for replacement parts. |
| Temperature Display Not Working | Insufficient water flow to power the display; internal sensor issue. | Ensure adequate water flow. If the issue persists, contact customer support. |
| Water Not Hot Enough | Water heater setting too low; mixing valve issue. | Check your water heater temperature setting. Ensure the mixing valve on the shower panel is correctly adjusted. |
If the problem persists after attempting these solutions, please contact Votamuta customer support.
8. Specifications
Key technical specifications for the Votamuta VOT-LFT8004 Shower Panel System:
- Model Number: VOT-LFT8004
- Material: 304 Stainless Steel
- Finish: Brushed Nickel
- Mounting Type: Wall Mount
- Number of Handles: 1 (for temperature/flow control)
- Handle Material: Stainless Steel
- Power Source (Display): Hydraulic powered (no batteries required)
- Item Weight: Approximately 7 kg
- Parcel Dimensions: 113.6 x 21.6 x 18.2 cm
- Included Components: Shower Panel, Handheld Shower, Hose
- Country of Origin: China
9. Warranty and Support
For warranty information, technical assistance, or to order replacement parts, please contact Votamuta customer support. Keep your purchase receipt as proof of purchase for warranty claims.
Manufacturer: Votamuta
Contact Email: medoqeshower@163.com
