ATLETICA Mantis Butterfly & Reverse Combo Weight Stack Machine User Manual

1. Introduction

Thank you for choosing the ATLETICA Mantis Butterfly & Reverse Combo Weight Stack Machine. This manual provides essential information for the safe and effective setup, operation, and maintenance of your new fitness equipment. Please read this manual thoroughly before assembly or use and keep it for future reference.

2. Safety Information

Your safety is paramount. Please observe the following safety precautions:

• Always consult with a physician before starting any new exercise program.
• Read and understand all instructions in this manual before using the machine.
• Ensure all bolts, nuts, and connections are securely tightened before each use.
• Keep children and pets away from the equipment during operation.
• Use the machine only on a stable, level surface.
• Do not exceed the maximum user weight or weight stack capacity.
• Wear appropriate athletic clothing and footwear.
• Stop exercising immediately if you feel pain, dizziness, or nausea.
• Regularly inspect the machine for wear and tear, especially cables, pulleys, and upholstery. Replace worn parts immediately.

For detailed safety guidelines, please refer to the official Safety Information PDF: Safety Information (PDF)

3. Product Overview

The ATLETICA Mantis is a versatile weight stack machine designed for effective chest and shoulder training, offering both Butterfly and Reverse Butterfly functions. Its robust construction and adjustable features ensure a comfortable and efficient workout experience.

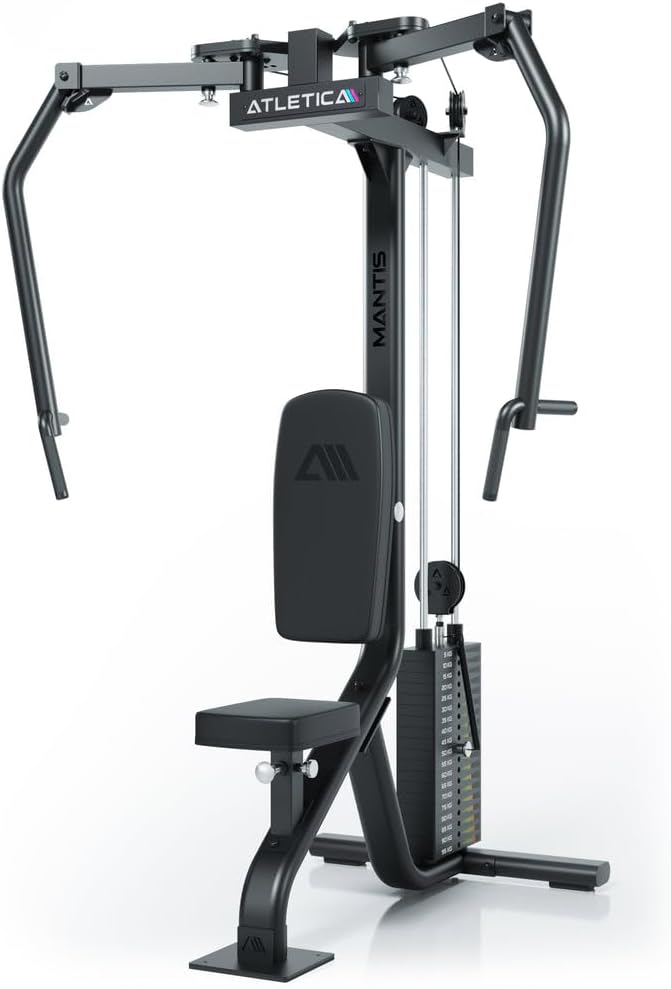

Figure 1: ATLETICA Mantis Butterfly & Reverse Combo Weight Stack Machine.

Key Features:

• Dual Functionality: Seamlessly switch between Butterfly (chest) and Reverse Butterfly (rear deltoid/upper back) exercises.
• Adjustable Start Angles: 7 possible start angles for Butterfly and 2 for Reverse Butterfly to target specific muscle groups.
• Ergonomic Grips: Horizontal and vertical grip options with comfortable knurling for a secure, non-slip hold.
• Adaptive Lever Arms: Freely swinging lever arms adjust to individual body size and arm length during movement, ensuring a full range of motion.
• Smooth Operation: Ball-bearing cable pulleys provide a light and friction-free movement.
• Adjustable Seating: Multi-adjustable seat and backrest pads accommodate various body sizes and training positions.
• Quick Adjustments: Easy-to-use pop-pins for rapid transitions between exercises and adjustments.
• Durable Upholstery: Extra-thick, tear-resistant double-stitched padding for lasting comfort and wear resistance.
• 95 kg Weight Stack: Allows for precise weight selection and progressive overload.

4. Setup

Proper assembly is crucial for the safety and performance of your machine. Follow these general steps. Refer to the detailed assembly instructions provided separately with your product for specific diagrams and hardware lists.

Unpacking and Preparation:

1. Unpack all components and verify against the parts list.
2. Place all parts on a clean, flat surface.
3. Ensure you have all necessary tools (usually included or standard household tools).

Assembly Steps (General):

1. Base Frame Assembly: Securely attach the main base frame components.
2. Upright Support Installation: Mount the main upright support column to the base.
3. Weight Stack Assembly: Carefully assemble the weight plates and guide rods according to the instructions.
4. Seat and Backrest Attachment: Install the seat and backrest pads, ensuring they are securely fastened and adjustable.
5. Lever Arm and Pulley System: Attach the Butterfly/Reverse Butterfly lever arms and route the cables through the pulley system. Pay close attention to the cable routing diagram to prevent tangles and ensure smooth operation.
6. Final Inspection: After assembly, double-check all bolts, nuts, and connections to ensure they are tight. Test all moving parts for smooth operation.

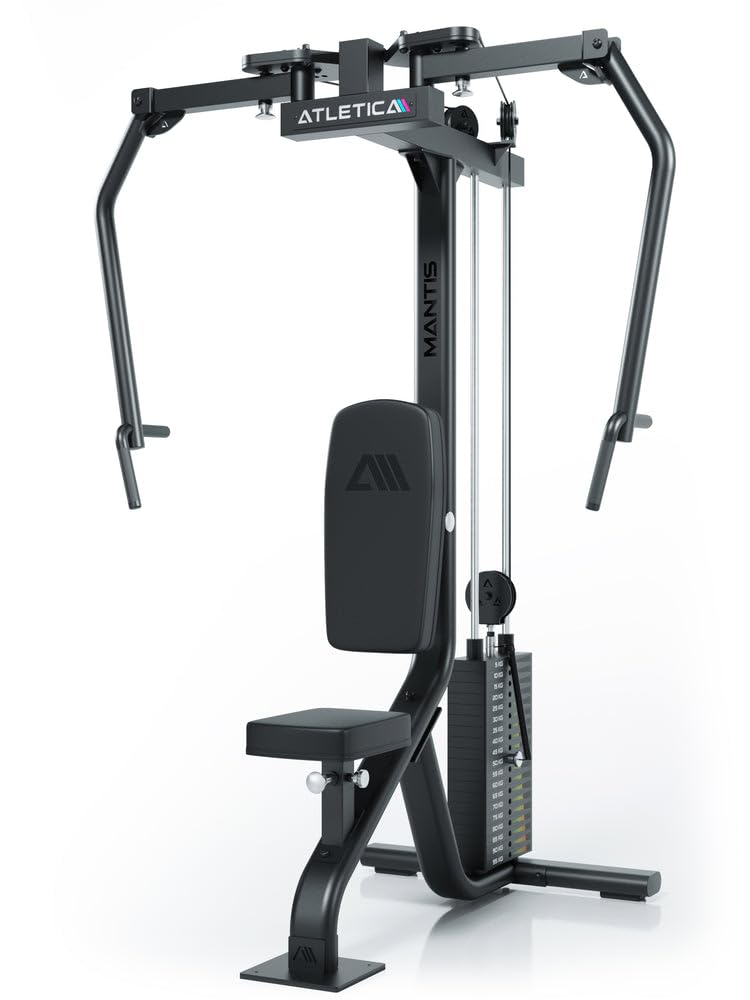

Figure 2: Front view of the assembled machine.

5. Operating Instructions

The Mantis machine allows for two primary exercises: Butterfly (chest) and Reverse Butterfly (rear deltoids/upper back). Follow these steps for safe and effective use.

Adjusting the Machine:

1. Seat Height: Adjust the seat height using the pop-pin mechanism so that your shoulders are aligned with the pivot point of the lever arms.
2. Backrest Position: Adjust the backrest for optimal support and comfort.
3. Start Angle (Butterfly/Reverse Butterfly): Use the pop-pin on the lever arms to select the desired starting angle. There are 7 options for Butterfly and 2 for Reverse Butterfly. Choose an angle that allows for a full range of motion without excessive strain.
4. Weight Selection: Insert the selector pin into the desired weight plate on the weight stack. Ensure the pin is fully inserted.

Performing Butterfly Exercise (Chest):

Figure 3: Machine set for Butterfly exercise (start position).

1. Sit on the machine with your back firmly against the backrest.
2. Grasp the handles with an overhand grip, ensuring your elbows are slightly bent.
3. Slowly bring the handles together in front of your chest, squeezing your pectoral muscles.
4. Control the movement as you return the handles to the starting position, allowing for a stretch in your chest.
5. Maintain a controlled pace throughout the exercise.

Performing Reverse Butterfly Exercise (Rear Deltoids/Upper Back):

Figure 4: Machine set for Reverse Butterfly exercise (start position).

1. Adjust the start angle for Reverse Butterfly.
2. Sit facing the machine, with your chest against the backrest (or in a position that allows for proper form).
3. Grasp the handles with an overhand grip.
4. Pull the handles backward, squeezing your shoulder blades together. Focus on engaging your rear deltoids and upper back muscles.
5. Slowly return the handles to the starting position, controlling the movement.
6. Avoid shrugging your shoulders or using momentum.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your ATLETICA Mantis machine.

• Daily: Wipe down the machine, especially the handles and upholstery, with a damp cloth after each use to remove sweat and dirt.
• Weekly: Inspect all cables and pulleys for signs of wear, fraying, or damage. Ensure all bolts and nuts are tight.
• Monthly: Lubricate moving parts, such as guide rods for the weight stack, with a silicone-based lubricant. Check the condition of the upholstery for tears or excessive wear.
• Annually: Perform a thorough inspection of the entire machine. Consider professional servicing if any major issues are detected.
• Storage: Store the machine in a dry, clean environment away from direct sunlight and extreme temperatures.

7. Troubleshooting

If you encounter any issues with your ATLETICA Mantis machine, refer to the following common troubleshooting tips:

• Squeaking Noises: Check for loose bolts or nuts. Lubricate guide rods and pivot points with a silicone-based lubricant.
• Rough Cable Movement: Inspect cables for fraying or damage. Ensure cables are properly routed through all pulleys. Lubricate pulleys if necessary.
• Weight Stack Sticking: Ensure guide rods are clean and lubricated. Check for any obstructions between weight plates.
• Loose Components: Periodically check and tighten all nuts and bolts.
• Difficulty Adjusting: Ensure pop-pins are fully disengaged before attempting to adjust. Clean any debris from adjustment holes.

If problems persist, please contact ATLETICA customer support.

8. Specifications

9. Warranty and Support

ATLETICA products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty documentation included with your purchase or visit the official ATLETICA website.

For technical support, spare parts, or any inquiries, please contact ATLETICA customer service through their official channels. When contacting support, please have your model number (555-2301) and purchase details ready.
