SEESII J-133 Cordless 18 Gauge Nailer/Stapler Instruction Manual

1. Introduction

Thank you for choosing the SEESII J-133 Cordless 18 Gauge Nailer/Stapler. This 2-in-1 electric tool is designed for various applications, including upholstery, woodworking, and DIY projects. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new tool. Please read these instructions carefully before use and keep them for future reference.

2. Important Safety Instructions

Always follow basic safety precautions when using electric tools to reduce the risk of fire, electric shock, and personal injury.

• Wear Eye Protection: Always wear safety glasses or goggles that comply with applicable standards.
• Wear Hearing Protection: Use ear protection during extended operation.
• Keep Work Area Clear: Ensure your workspace is well-lit and free from clutter.
• Secure Workpiece: Always secure the material you are working on to prevent movement.
• Avoid Accidental Firing: The tool features a contact safety pin. Nails will only fire when the nozzle is firmly pressed against the workpiece. Never bypass this safety mechanism.
• Disconnect Power: Always remove the battery pack before making any adjustments, changing fasteners, or performing maintenance.
• Use Correct Fasteners: Only use 18 gauge brad nails (15-32mm) or 18 gauge 1/4" crown staples (15-25mm) as specified for this tool.
• Keep Hands Away: Never place hands or other body parts near the firing area.
• Store Safely: Store the tool and batteries in a dry, secure place out of reach of children.

Image: The safety contact mechanism ensures firing only when pressed against a surface.

3. Package Contents

Please check the package for the following items:

• 1 x SEESII J-133 Cordless 18 Gauge Nailer/Stapler
• 2 x 2.0Ah Lithium-ion Batteries
• 1 x Fast Charger
• 1000 x Nails/Staples (Assorted)
• 1 x Carrying Bag
• 1 x User Manual (This document)

Image: Complete nailing solution including the tool, batteries, charger, and bag.

4. Product Overview

Familiarize yourself with the components of your SEESII J-133 nailer/stapler.

Image: Front view of the SEESII J-133 Cordless Nailer/Stapler.

Key Features:

• 2-in-1 Functionality: Easily switches between firing brad nails and staples.
• Adjustable Depth: Six adjustable depth levels for precise fastener penetration.
• Anti-Jam Design: Tool-free jam clearing mechanism for quick resolution of fastener jams.
• Contact Safety Pin: Prevents accidental firing by requiring the nozzle to be pressed against the workpiece.
• Built-in LED Work Light: Illuminates the work area for improved visibility.
• Cordless Operation: Powered by 2000mAh lithium-ion batteries for portability.

Image: The 2-in-1 design allows for both nail and staple applications, with different firing modes.

Image: The integrated LED work light provides clear visibility of the nailing point.

5. Setup

5.1 Charging the Battery

Before first use, fully charge both batteries. Connect the charger to a power outlet and insert the battery. The indicator light on the charger will show the charging status. A full charge takes approximately 1 hour.

Image: The included 2.0Ah batteries provide extended use and can be fast-charged.

5.2 Loading Fasteners (Nails/Staples)

Ensure the battery is removed before loading fasteners.

1. Step 1: Slide the magazine latch backward to open the fastener magazine.
2. Step 2: Insert a strip of 18 gauge brad nails (15-32mm) or 18 gauge 1/4" crown staples (15-25mm) into the magazine. Ensure the fasteners are oriented correctly with the points facing forward.
3. Step 3: Push the magazine latch forward until it clicks into place, securing the fasteners.

Image: Visual guide for the three-step fastener loading process.

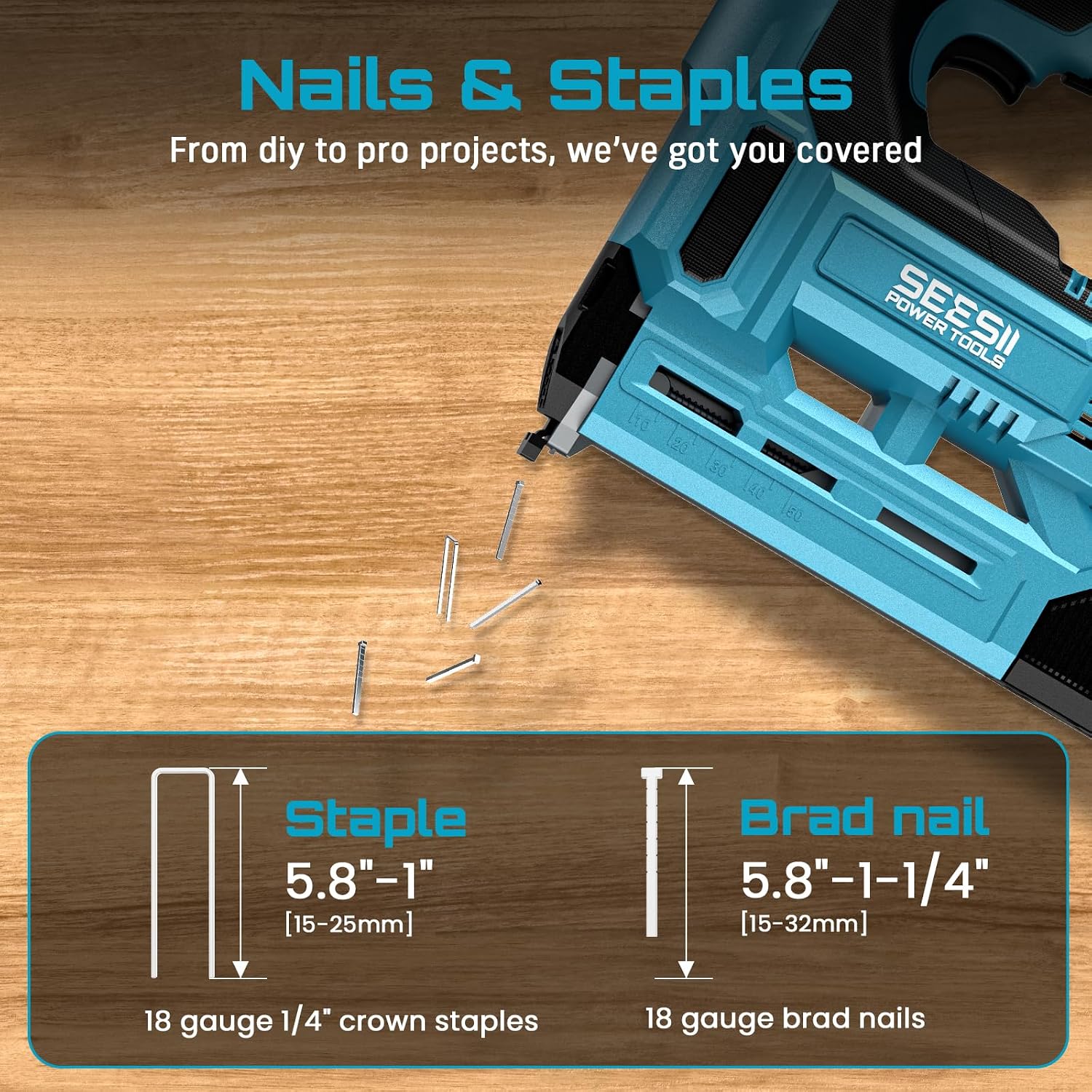

Image: Compatible fastener types and dimensions: 18 gauge staples (15-25mm) and brad nails (15-32mm).

5.3 Adjusting Nailing Depth

The nailing depth can be adjusted to suit different materials and desired finishes. Locate the depth adjustment dial, usually near the front of the tool. Rotate the dial to increase or decrease the penetration depth. Test on a scrap piece of material to find the optimal setting.

Image: The depth adjustment dial allows for precise control over fastener penetration with 6 levels.

6. Operating Instructions

6.1 Powering On/Off

Insert a charged battery into the tool until it clicks into place. To turn off, remove the battery.

6.2 Firing Modes

The SEESII J-133 offers two firing modes:

• Precision Single Fire: For accurate placement of individual fasteners. Press the tool firmly against the workpiece, then pull the trigger.
• Rapid Contact Fire: For faster, repetitive fastening. Hold the trigger, then press the tool firmly against the workpiece to fire.

Image: The nailer in use for trim installation, showcasing its versatility.

6.3 General Operation

1. Ensure the battery is fully charged and fasteners are loaded correctly.
2. Select the desired firing mode and adjust the depth setting.
3. Hold the tool firmly with both hands.
4. Place the nose of the tool firmly against the workpiece where you want to drive the fastener.
5. Pull the trigger to fire.
6. After use, remove the battery and store the tool safely.

7. Maintenance

Regular maintenance ensures the longevity and optimal performance of your tool.

• Cleaning: Keep the tool clean and free from dust and debris. Use a dry cloth to wipe down the exterior. Do not use harsh chemicals or abrasive cleaners.
• Fastener Magazine: Periodically inspect the fastener magazine for any obstructions or damage.
• Battery Care: Store batteries in a cool, dry place. Do not expose them to extreme temperatures. Charge batteries regularly, even if not in use, to maintain their lifespan.
• Inspection: Before each use, inspect the tool for any signs of damage, loose parts, or wear. Do not use a damaged tool.

8. Troubleshooting

Here are solutions to common issues you might encounter:

8.1 Clearing Fastener Jams

The SEESII J-133 features a tool-free anti-jam design for easy clearing.

1. Step 1: Immediately remove the battery pack from the tool.
2. Step 2: Open the fastener magazine.
3. Step 3: Carefully remove any jammed nails or staples using pliers if necessary. Do not force them.
4. Step 4: Close the magazine and reinsert the battery.

Image: The magazine can be easily opened for tool-free jam clearing.

9. Specifications

10. Warranty and Support

For warranty information, technical support, or service inquiries, please contact the manufacturer or your point of purchase. Keep your purchase receipt as proof of purchase.

Manufacturer: SeeSii
