Introduction
Thank you for choosing the V-Guard VIC 2.0 BRE Induction Cooktop. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.

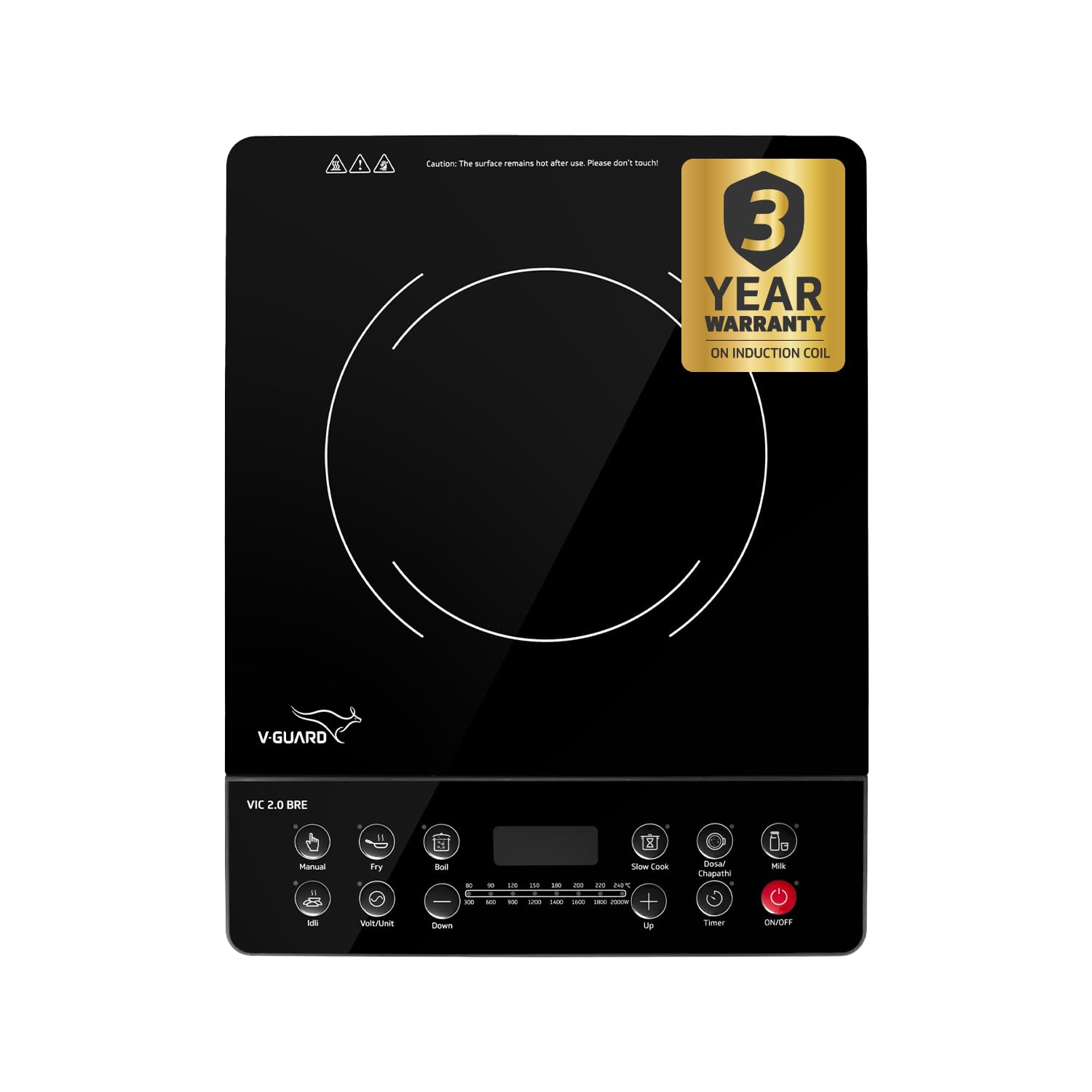

Image: The V-Guard VIC 2.0 BRE Induction Cooktop, a sleek black appliance designed for modern kitchens.
Important Safety Instructions
To reduce the risk of fire, electric shock, injury to persons, or damage to the appliance, basic safety precautions should always be followed, including the following:
- Read all instructions carefully before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Contact V-Guard customer service for examination, repair, or adjustment.
- The appliance is equipped with overheat protection and up to 5 kV surge protection. The induction will automatically shut off to prevent overheating and damage.
- Utilizes Smart Pan Sensor Technology, heating only when suitable cookware is placed on it, ensuring safety and energy efficiency.
- Use only induction-compatible cookware.
- Ensure adequate ventilation around the cooktop during operation.
What's in the Box
Upon unpacking, please ensure all items are present and in good condition:
- 1 x V-Guard VIC 2.0 BRE Induction Cooktop
- 1 x User Manual cum Warranty Card
Product Overview
The V-Guard VIC 2.0 BRE Induction Cooktop is designed for efficient and convenient cooking with its advanced features:
- 2000 W High Power: Provides fast and energy-efficient cooking with direct bottom heat.
- Super Slim Design: At just 41 mm thick, it offers a sleek and modern aesthetic.
- Digital Display: User-friendly interface to monitor cooking progress.
- 10 Power and Temperature Modes: Offers versatile cooking options (300W-2000W, 60°C-240°C) tailored for various cuisines.
- Touch Panel Control: For convenient and effortless operation.
- Smart Pan Sensor Technology: Ensures safety and energy saving by heating only when a pan is present.
- Utmost Safety: Features overheat protection and 5 kV surge protection for peace of mind.
Image: Key features of the V-Guard VIC 2.0 BRE Induction Cooktop, including surge protection, temperature levels, timer, and cooking modes.
Image: The cooktop demonstrating Smart Auto-Off, Pan Sensor, and 24-hour Pre-set Function for enhanced convenience.
Setup
Follow these steps to set up your induction cooktop:
- Unpack: Carefully remove the induction cooktop from its packaging. Retain packaging for future transport or storage.
- Placement: Place the cooktop on a flat, stable, and heat-resistant surface. Ensure there is sufficient space around the appliance for proper ventilation (at least 10-15 cm from walls or other objects).
- Power Connection: Plug the 16A power cord into a grounded 16A electrical outlet. Ensure the voltage matches the specifications of the appliance.
- Initial Cleaning: Wipe the glass surface with a soft, damp cloth before first use.
Image: Illustration of the cooktop's aerodynamic cooling system and compact dimensions (361mm x 281mm x 40mm).
Operating Instructions
General Operation
- Power On: Press the ON/OFF button to turn on the cooktop. The digital display will light up.
- Place Cookware: Place suitable induction-compatible cookware centrally on the cooking zone. The cooktop will only activate when a pan is detected.
- Select Mode: Choose your desired cooking mode or adjust power/temperature settings using the touch panel controls.
- Adjust Settings: Use the + and - buttons to increase or decrease power/temperature.
- Timer Function: Press the Timer button to set a cooking duration.
- Power Off: After cooking, press the ON/OFF button to turn off the appliance. The fan may continue to run for a short period to cool down internal components.
Power and Temperature Modes
The cooktop offers 10 power and temperature modes for precise cooking control:
Image: Visual representation of the cooktop's power and temperature settings, ranging from 300W/80°C to 2000W/240°C.
| Power Level (Watts) | Temperature (Celsius) |
|---|---|
| 300W | 60°C |
| 600W | 90°C |
| 900W | 120°C |
| 1200W | 150°C |
| 1400W | 180°C |
| 1600W | 200°C |
| 1800W | 220°C |
| 2000W | 240°C |
Cooking Modes
The V-Guard VIC 2.0 BRE features 7 versatile cooking modes, optimized for various dishes:
- Manual: For custom power and temperature settings.
- Fry: Ideal for frying and sautéing.
- Boil: For boiling water or other liquids.
- Idli: Pre-set mode for preparing Idli.
- Slow Cook: For dishes requiring longer cooking times at lower temperatures.
- Dosa/Chapati: Optimized for making Dosa and Chapati.
- Milk: Gentle heating for milk to prevent boiling over.
Image: A visual guide to the 7 versatile cooking modes available on the V-Guard VIC 2.0 BRE Induction Cooktop.
Control Panel Demonstration
Video: Demonstration of the V-Guard VIC 2.0 BRE Induction Cooktop's touch control panel and various cooking functions. This video provides a quick overview of the user interface.
Care and Maintenance
Proper care ensures the longevity and optimal performance of your induction cooktop:
- Cleaning the Glass Surface:
- Always ensure the cooktop is unplugged and completely cool before cleaning.
- Wipe the glass surface with a soft, damp cloth and mild detergent.
- For stubborn stains, use a non-abrasive cleaner specifically designed for ceramic or induction cooktops.
- Do not use abrasive pads, harsh chemicals, or steel wool, as these can scratch or damage the surface.
- Dry thoroughly with a clean, soft cloth.
- Cleaning the Body: Wipe the exterior body with a soft, damp cloth. Do not allow water to enter the internal components.
- Ventilation Openings: Keep the ventilation openings clear of dust and debris to ensure efficient cooling.
Image: Demonstrating the effortless maintenance of the cooktop's easy-to-clean glass top.
Troubleshooting
If you encounter issues with your induction cooktop, refer to the table below for common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Cooktop does not turn on. | No power supply; appliance not plugged in; power button not pressed. | Check power cord connection; ensure outlet is functional; press ON/OFF button. |
| Cooktop turns on but does not heat. | Incorrect cookware used; cookware not centered; pan sensor not detecting. | Use induction-compatible cookware; center the cookware on the cooking zone; ensure cookware has a flat bottom. |
| Display shows an error code (e.g., E0, E1). | Overheating; voltage fluctuation; internal malfunction. | Turn off and unplug the cooktop, let it cool down; check power supply stability; if error persists, contact customer service. |
| Unusual noise during operation. | Normal fan operation; resonance from cookware. | A slight humming sound from the cooling fan is normal. Some cookware may produce a faint buzzing sound due to induction principles. |
If the problem persists after attempting these solutions, please contact V-Guard customer support.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | V-Guard |
| Model Number | VIC 2.0 TSP |
| Heating Elements | 1 |
| Colour | Black |
| Power Source | Corded Electric |
| Fuel Type | Electric |
| Burner Type | Induction |
| Control Type | Push Button (Touch Panel) |
| Installation Type | Freestanding |
| Wattage | 2000 Watts |
| Item Dimensions (D x W x H) | 36D x 28W x 41H Centimeters |
| Item Weight | 2.5 Kilograms |
| Heater Surface Material Type | Crystal Glass |
Warranty and Support
Your V-Guard VIC 2.0 BRE Induction Cooktop comes with comprehensive warranty coverage:
- Product Warranty: 1 Year coverage on the entire product.
- Induction Coil Warranty: 3 Years coverage specifically on the induction coil.
For warranty claims, technical support, or service inquiries, please contact V-Guard customer service. You can find contact information on the warranty card included with your product or visit the official V-Guard website.
Manufacturer: V-Guard Industries Ltd. 42/962, Vennala High School Road, Vennala, Kochi- 682028, Kerala, India.
You can also visit the V-Guard Store on Amazon for more product information and support.
