BoyKeep Ease Life Light Bulb Security Camera D115 User Manual

1. Introduction

Thank you for choosing the BoyKeep Ease Life Light Bulb Security Camera D115. This manual provides essential information for the safe and effective installation, operation, and maintenance of your security camera. Please read this manual thoroughly before use and retain it for future reference.

What's in the Box

• BoyKeep Ease Life Light Bulb Security Camera (D115)
• Mounting Base (if applicable, for E27 socket)
• User Manual

Note: The D115 camera is designed to fit standard E27 light bulb sockets.

2. Safety Information

• Ensure the power supply is disconnected before installing or removing the camera.
• This device is designed for indoor use only. Do not expose it to rain, moisture, or extreme temperatures.
• Do not attempt to disassemble or modify the camera. This may void the warranty and pose safety risks.
• Keep the camera away from strong magnetic fields or sources of interference.
• Use only the specified power source (E27 light socket).
• Keep out of reach of children.

3. Product Overview

The BoyKeep Ease Life D115 is a 1080P light bulb security camera featuring 360° pan and 95° tilt capabilities, color night vision, motion detection, two-way talk, and easy Wi-Fi connectivity.

Camera Components

Image: Detailed view of the BoyKeep D115 camera, highlighting its E27 light socket, microphone, array LEDs, HD lens, white LEDs, light sensor, memory card slot, and reset button.

• E27 Light Socket: Standard screw-in base for power and installation.
• HD Lens: Captures 1080P video resolution.
• Array LEDs & White LEDs: Provide enhanced night vision, including color night vision.
• Mic & Speaker: Enable two-way audio communication.
• Light Sensor: Detects ambient light for automatic night vision activation.
• Memory Card Slot: Supports local storage (MicroSD card not included).
• Reset Button: Used for factory reset or pairing mode.

Pan and Tilt Functionality

Image: The camera demonstrates its ability to pan 355 degrees horizontally and tilt 95 degrees vertically, allowing it to cover a wide area without blind spots.

The camera offers a 355° horizontal pan and 95° vertical tilt, allowing you to remotely adjust the viewing angle via the mobile application to monitor almost every corner of your space.

4. Setup

Step 1: Prepare for Installation

• Ensure the power to the light socket is turned OFF at the circuit breaker.
• Locate a standard E27 light bulb socket where you wish to install the camera.

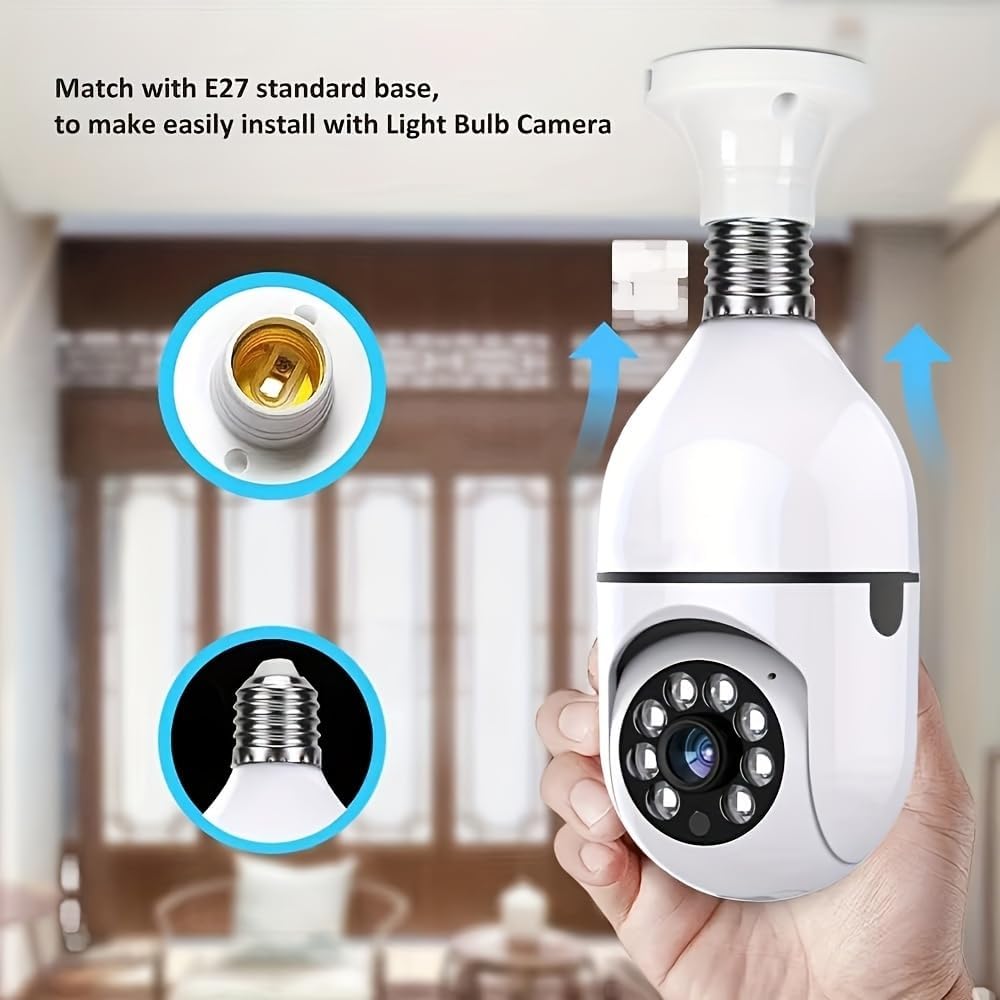

Image: The camera's E27 base is shown, illustrating how it screws into a standard light bulb socket for easy installation.

Step 2: Install the Camera

1. Carefully screw the BoyKeep D115 camera into the E27 light socket until it is secure. Do not overtighten.
2. Turn ON the power to the light socket at the circuit breaker. The camera will power on and initiate its startup sequence.

Image: The camera is shown installed in a lamp, emphasizing its E27 compatibility and dual-band (2.4G/5G) Wi-Fi connectivity for easy setup.

Step 3: Download the Mobile Application

Search for the designated BoyKeep security camera application on your smartphone's app store (iOS App Store or Google Play Store) and install it.

Step 4: Connect to Wi-Fi and Pair

1. Open the BoyKeep application and create an account or log in.
2. Follow the in-app instructions to add a new device. This typically involves scanning a QR code on the camera or selecting the camera model from a list.
3. Connect the camera to your home Wi-Fi network. The D115 supports both 2.4GHz and 5GHz Wi-Fi bands. Ensure your phone is connected to the same Wi-Fi network during the pairing process.
4. Once connected, you can name your camera and begin monitoring.

5. Operating Instructions

Live View and Pan/Tilt Control

• Open the BoyKeep app and select your camera to view the live feed.
• Use the on-screen controls to pan (rotate horizontally) and tilt (rotate vertically) the camera lens to adjust your viewing area.

One-Click View of Preset Locations

Image: The camera's ability to quickly switch between pre-defined monitoring points (1, 2, 3, 4, 5) in a room, offering a one-click view of specific areas.

The app allows you to set specific preset viewing positions. With a single tap, the camera will automatically move to a pre-configured location, enabling quick monitoring of key areas.

Motion Detection and Alerts

• The camera is equipped with motion detection capabilities. When motion is detected, the camera can send push notifications to your smartphone.
• Adjust motion detection sensitivity and alert settings within the app to suit your environment.
• An audible alarm can be triggered upon motion detection, configurable through the app.

Two-Way Talk

• Utilize the built-in microphone and speaker for two-way audio communication.
• Press and hold the microphone icon in the app to speak, and release to listen.
• The camera also features a one-touch call button for immediate communication from the camera's side.

Recording and Storage

Image: The camera highlights its dual storage options: a memory card slot for local recording and an optional cloud recording service.

• Memory Card Storage: Insert a MicroSD card (not included) into the designated slot for continuous 24/7 recording or event-triggered recordings.
• Cloud Storage: The camera supports cloud storage services (subscription may be required after a trial period) for secure off-site video backup.
• Access recorded footage through the playback feature in the mobile application.

Multi-Device Viewing and Sharing

The BoyKeep app allows you to add multiple cameras and view up to four real-time video feeds simultaneously. You can also share camera access with family members on up to 10 devices.

6. Maintenance

• Cleaning: Gently wipe the camera lens and body with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
• Firmware Updates: Regularly check the mobile application for available firmware updates to ensure optimal performance and security.
• Storage: If storing the camera for an extended period, disconnect it from power and store it in a cool, dry place.

7. Troubleshooting

• Camera not powering on: Ensure the E27 socket has power and the camera is screwed in correctly. Check the circuit breaker.
• Unable to connect to Wi-Fi:
  • Ensure your Wi-Fi network is 2.4GHz or 5GHz and has a strong signal where the camera is installed.
  • Verify the Wi-Fi password entered is correct.
  • Try resetting the camera using the reset button and re-pairing.
• Poor image quality:
  • Check your Wi-Fi signal strength.
  • Ensure the camera lens is clean.
• Motion detection not working:
  • Verify motion detection is enabled in the app settings.
  • Adjust sensitivity levels.
• Two-way talk issues:
  • Ensure microphone and speaker permissions are granted to the app on your phone.
  • Check volume settings on both the app and your phone.
• Camera offline: Check Wi-Fi connection and power supply. Restart the camera by turning off and on the power to the socket.

8. Specifications

9. Warranty and Support

BoyKeep products are designed for reliability and performance. For warranty information, technical support, or customer service inquiries, please refer to the contact information provided on the product packaging or the official BoyKeep website.

Please retain your proof of purchase for warranty claims.
