Wood Ranger Mini Chainsaw User Manual

1. Introduction

Thank you for choosing the GDSAFS Wood Ranger Mini Chainsaw. This cordless, handheld electric power chain saw is designed for light trimming, DIY projects, and gardening tasks. Its compact and lightweight design makes it easy to handle for various applications. Please read this manual thoroughly before operation to ensure safe and efficient use of your new tool.

2. Safety Information

Your safety is paramount. Always follow these guidelines to prevent injury or damage to the product.

• Do not install the battery unless you are ready to use the chainsaw.
• Keep the product away from children. This is not a toy.
• Always remove the battery after daily use or when the tool is not in use.
• Keep the chainsaw away from flammable and explosive materials.
• If the saw becomes stuck during cutting and continues to cut hard, it may cause the motor to overload. This will automatically activate overheating protection and stop operation. Allow a few minutes for the motor to cool down before restarting.
• Ensure the safety lock is engaged when not actively cutting to prevent accidental operation.
• Wear appropriate personal protective equipment (PPE) including safety glasses, gloves, and hearing protection during operation.
• Inspect the chainsaw for any damage or loose parts before each use.

3. Package Contents

Upon opening your package, please verify that all the following items are included:

• 1 x Wood Ranger Mini Chainsaw
• 1 x Saw Chain
• 1 or 2 x Battery (depending on purchased variant)
• 1 x Safety Guard
• 1 x User Manual (this document)
• 1 x Charging Cable
• 1 x Maintenance Set (includes screwdriver and wrench)

Image: Contents of the Wood Ranger Mini Chainsaw package, including the chainsaw, batteries, charger, chain, safety guard, and maintenance tools, all neatly arranged in a black carrying case.

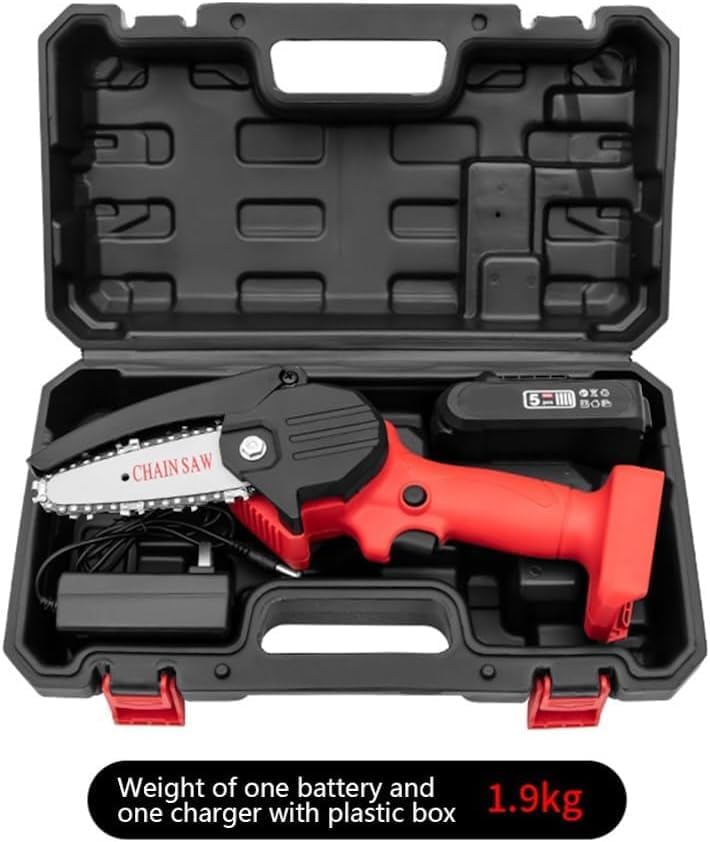

Image: The Wood Ranger Mini Chainsaw, one battery, and charger stored within its plastic carrying case, illustrating its compact storage.

Image: A black carrying case with red latches, showing its dimensions: 350mm length, 190mm width, and 120mm height, indicating its portable size.

4. Product Overview

Familiarize yourself with the components of your Wood Ranger Mini Chainsaw.

Image: A detailed diagram of the mini chainsaw, highlighting key components such as the safety bezel, LED light, lock button, comfortable handle, high-power battery, guide plate, high-quality chain, and switch button.

• Safety Bezel: Protects the user from debris and the chain.
• LED Light: Illuminates the cutting area for better visibility.
• Lock Button: A safety mechanism that must be pressed before the switch button can be activated.
• Comfortable Handle: Ergonomically designed for single-hand operation and reduced fatigue.
• High-Power Battery: Provides cordless operation.
• Guide Plate: Supports the saw chain during cutting.
• High Quality Chain: Durable chain designed for efficient cutting.
• Switch Button: Activates the chainsaw motor when the lock button is also pressed.

Image: The mini chainsaw highlighting its key features: an LED light for visibility, a safety switch for secure operation, a safety sawdust shield for protection, and a battery wildcard market interface for compatibility.

5. Setup

5.1 Charging the Battery

Before first use, fully charge the battery. Connect the charging cable to the battery and plug it into a suitable power outlet. The indicator light on the charger will show the charging status.

5.2 Installing the Saw Chain and Safety Guard

Refer to the included maintenance set for tools needed for chain installation. Ensure the chain is oriented correctly with the cutting teeth facing the direction of rotation. Install the safety guard securely over the chain and guide plate.

5.3 Attaching the Battery

Align the battery with the battery slot at the base of the chainsaw handle. Push firmly until it clicks into place, ensuring a secure connection. Do not force the battery.

6. Operation

6.1 Starting the Chainsaw

To start the Wood Ranger Mini Chainsaw:

1. Step 1: Press and hold the safety lock button located on the side of the handle.
2. Step 2: While holding the lock button, press the main switch button to activate the motor.
3. Release the switch button to stop the chainsaw.

Image: A visual guide demonstrating how to start the chainsaw: Step 1 shows pressing the lock button, and Step 2 shows pressing the switch button while holding the lock button.

6.2 Cutting Techniques

The Wood Ranger Mini Chainsaw is designed for efficient cutting of branches up to 8 inches in diameter. It can cut a 4-inch log in approximately 5 seconds.

• Hold the chainsaw firmly with one hand, ensuring a stable grip.
• Position the chain against the material to be cut.
• Apply gentle, consistent pressure. Do not force the saw through the material.
• Allow the saw to do the work. Excessive force can lead to motor overload.
• Be aware of kickback and maintain a stable stance.

Image: A person holding the mini chainsaw with one hand, demonstrating its ease of operation and compact size. The image also highlights the high-quality chain.

7. Maintenance

Regular maintenance ensures the longevity and optimal performance of your chainsaw.

• Chain Sharpening: Keep the saw chain sharp for efficient cutting. Refer to the maintenance set for tools.
• Chain Tension: Periodically check and adjust the chain tension. A properly tensioned chain should not sag but should still be able to be pulled around the guide bar by hand.
• Cleaning: After each use, clean sawdust and debris from the guide bar, chain, and motor housing. Ensure the battery contacts are clean.
• Storage: Store the chainsaw in a dry, secure place, out of reach of children. Remove the battery before long-term storage.

8. Troubleshooting

If you encounter issues with your Wood Ranger Mini Chainsaw, refer to the following common problems and solutions:

9. Specifications

Detailed technical specifications for the Wood Ranger Mini Chainsaw.

10. Warranty & Support

No specific warranty information is provided in the product details. For support, inquiries, or to report issues, please contact the seller directly through the platform where the product was purchased. Retain your proof of purchase for any warranty claims or support requests.

Manufacturer: Mini Chainsaw24112501-03

Brand: GDSAFS
