1. Introduction
Thank you for choosing the DATOUBOSS 12V 100Ah LiFePO4 Battery. This manual provides essential information for the safe and efficient use, installation, and maintenance of your battery. Please read this manual thoroughly before operation and retain it for future reference.
Front view of the DATOUBOSS 12V 100Ah LiFePO4 battery, highlighting its 12.8V nominal voltage, 100Ah capacity, and integrated Smart BMS.
2. Safety Instructions
Always follow these safety guidelines to prevent injury or damage to the battery and connected equipment:
- Do not short-circuit the battery terminals.
- Do not immerse the battery in water or expose it to excessive moisture.
- Do not puncture, drop, crush, or disassemble the battery.
- Use only compatible LiFePO4 chargers.
- Ensure proper ventilation during charging and discharging.
- Keep the battery away from open flames, heat sources, and flammable materials.
- Wear appropriate personal protective equipment (PPE) such as gloves and eye protection when handling batteries.
- In case of fire, use a Class D fire extinguisher. Water can exacerbate lithium battery fires.
The built-in Battery Management System (BMS) provides multiple protections, but adherence to these safety instructions is crucial.
The built-in 100A Battery Management System (BMS) provides comprehensive protection against overcharge, over-discharge, over-voltage, overcurrent, overload, short circuit, and high/low temperature, ensuring safe and reliable operation. The battery offers 4000-15000+ deep cycles.
3. Product Overview
3.1 Key Features
- Integrated BMS: Equipped with a built-in 100A Battery Management System (BMS) for protection against high temperature, over-voltage, overload, overcharge, over-discharge, overcurrent, and short circuit.
- Expandable Capacity: Can be connected in series and parallel (up to 4P4S) to achieve higher capacity and voltage, supporting a 48V (51.2V) 400Ah Li-Ion battery pack with up to 20.48kWh energy.
- High Performance & Safety: Utilizes automotive-grade LiFePO4 cells with an IP65 waterproof rating. Cells are UL-tested and certified for enhanced safety and reliability.
- Lightweight & Compact: Weighs approximately 10.92kg (24lb), which is about 1/3 the weight of a comparable lead-acid battery, making it easier to handle and install.
- Wide Application: Ideal for RVs, solar home systems, off-grid setups, trolling motors, fish finders, golf carts, boats, UPS backup, and other deep cycle applications.
3.2 What's in the Box
- 1 x DATOUBOSS 12V 100Ah LiFePO4 Battery
3.3 Product Dimensions and Specifications
This image illustrates the physical dimensions of the DATOUBOSS 12V 100Ah LiFePO4 battery: 25.8cm (10.2in) length, 16.7cm (6.6in) width, and 21.5cm (8.5in) height. It also specifies the use of M8 terminal bolts and indicates a 100A BMS, 12.8V 100Ah capacity, 1280Wh storage, 50A maximum charging current, and 120A maximum discharging current.
4. Setup and Installation
4.1 Terminal Connections
The battery is equipped with M8 terminal bolts. Ensure all connections are clean, tight, and properly insulated to prevent arcing or short circuits. Use appropriate cable gauges for your application to handle the maximum current.
4.2 Series and Parallel Configuration
The DATOUBOSS 12V 100Ah LiFePO4 battery supports both series and parallel connections for increased voltage or capacity. It can be expanded up to 4 series and 4 parallel (4S4P) for a maximum system voltage of 51.2V and a maximum capacity of 400Ah, delivering up to 20.48kWh of energy.
- Parallel Connection: Connect batteries in parallel to increase total capacity (Ah) while maintaining the same voltage (12V). Ensure all batteries are at a similar state of charge before connecting in parallel.
- Series Connection: Connect batteries in series to increase total voltage (V) while maintaining the same capacity (Ah). Ensure all batteries are of the same model and capacity, and are at a similar state of charge before connecting in series.
Caution: Always consult a qualified electrician or refer to detailed wiring diagrams for complex series/parallel configurations to ensure safety and proper operation.
This diagram shows how multiple DATOUBOSS 12V 100Ah LiFePO4 batteries can be connected. Up to four batteries can be connected in series to achieve a 48V (51.2V) 100Ah system, or up to four batteries can be connected in parallel to create a 12V 400Ah system, allowing for flexible capacity and voltage expansion.
An example setup demonstrating the integration of DATOUBOSS LiFePO4 batteries into a solar home energy system. Solar panels charge the batteries via an MPPT controller, and an inverter converts the battery power for various household loads. This configuration supports up to 4P4S for a 51.2V 400Ah battery system, delivering up to 20.48kWh energy.
5. Operating Instructions
5.1 Charging
Use a dedicated LiFePO4 charger with appropriate voltage and current settings. The maximum recommended charging current is 50A. Overcharging with an incompatible charger can damage the battery.
This image illustrates three methods for charging the DATOUBOSS LiFePO4 battery: using a dedicated LiFePO4 charger (e.g., 14.6V 20A for 5 hours), solar panels (requiring a sunny day and typically >400W), or a generator (e.g., 20A DC-DC charger for 5 hours).
5.2 Discharging
The maximum continuous discharge current for this battery is 120A. Ensure your load does not exceed this limit to prevent damage to the battery or connected devices. The BMS will protect against overcurrent conditions.
5.3 Operating Temperature
The battery is designed for reliable operation across a wide temperature range. The recommended continuous discharge work range is from -4°F to 150°F (-20°C to 65°C).
The DATOUBOSS LiFePO4 battery is designed to operate efficiently in extreme temperature variations, with an excellent continuous discharge work range from -4°F to 150°F (-20°C to 65°C), ensuring reliable performance in diverse environments.
6. Maintenance
- Regular Inspection: Periodically check battery terminals for corrosion or loose connections. Clean terminals as needed.
- Storage: If storing the battery for an extended period, ensure it is charged to approximately 50% State of Charge (SOC) and stored in a cool, dry place. Avoid storing in direct sunlight or extreme temperatures.
- Cleaning: Keep the battery casing clean and free from dust and debris. Use a dry cloth for cleaning.
- Avoid Deep Discharge: While LiFePO4 batteries tolerate deep cycles, avoiding excessively deep discharges can prolong overall battery life. The BMS will protect against over-discharge.
7. Troubleshooting
The built-in BMS is designed to prevent most common battery issues. If you experience problems, consider the following:
- No Power Output: Check all cable connections for tightness and proper polarity. Verify that the battery is sufficiently charged. The BMS may have activated a protection mode (e.g., over-discharge, short circuit). Disconnect the load and attempt to recharge the battery.
- Battery Not Charging: Ensure the charger is compatible with LiFePO4 batteries and is functioning correctly. Check charger connections. The BMS may have activated over-voltage or over-temperature protection.
- Reduced Performance: Ensure the battery is operating within its specified temperature range. Verify that the load is not exceeding the maximum discharge current.
If issues persist, contact DATOUBOSS customer support for assistance.
8. Specifications
| Specification | Value |
|---|---|
| Brand | DATOUBOSS |
| Model | DT-LiFePO4 Battery |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah |
| Energy | 1280Wh |
| Built-in BMS | 100A |
| Max Charge Current | 50A |
| Max Discharge Current | 120A |
| Cycle Life | 4000-15000+ cycles |
| Operating Temperature | -4°F to 150°F (-20°C to 65°C) |
| Waterproof Rating | IP65 |
| Dimensions (L x W x H) | 25.8cm x 16.7cm x 21.5cm (10.2in x 6.6in x 8.5in) |
| Weight | 10.92kg (24lb) |
8.1 LiFePO4 vs. Lead-Acid Comparison

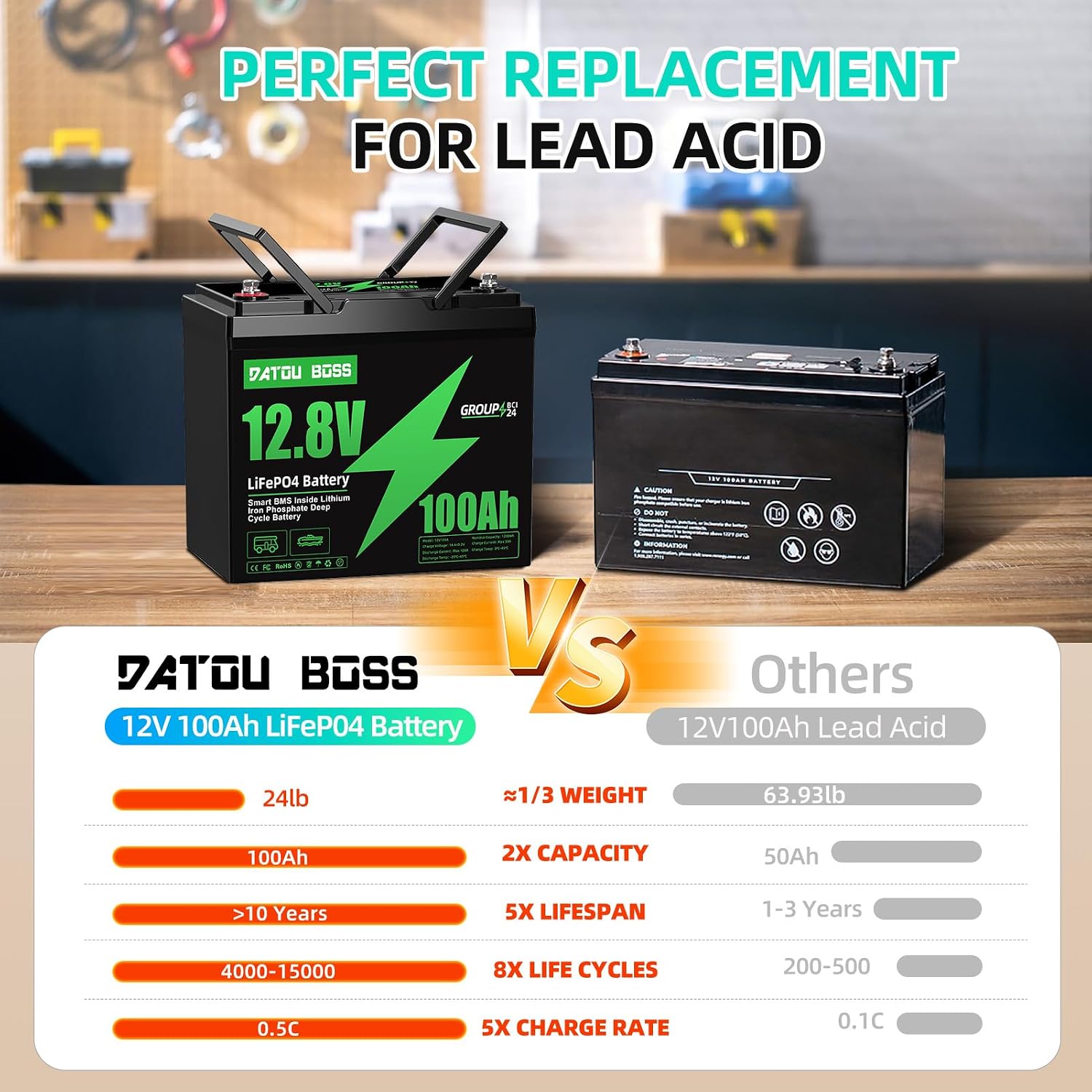

This comparison highlights the advantages of the DATOUBOSS 12V 100Ah LiFePO4 battery over a comparable lead-acid battery. The LiFePO4 battery is approximately 1/3 the weight (24lb vs 63.93lb), offers 2x the usable capacity, 5x the lifespan (>10 years vs 1-3 years), 8x the life cycles (4000-15000+ vs 200-500), and 5x the charge rate (0.5C vs 0.1C).
9. Warranty and Support
The DATOUBOSS 12V 100Ah LiFePO4 Battery typically comes with a 5-year protection period. For specific warranty terms, claims, or technical support, please refer to the product packaging or contact DATOUBOSS customer service directly. Ensure you have your purchase details and model number available when contacting support.
9.1 Applications
The DATOUBOSS 12V 100Ah LiFePO4 battery is suitable for a wide range of applications, including recreational vehicles (RVs), camping trips, and marine environments, providing reliable power for diverse needs.
