Introduction
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Wadfow 1600 Watt Hot Air Gun. Please read these instructions thoroughly before using the tool and retain them for future reference.
Safety Instructions
Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Failure to follow these instructions may result in serious injury or property damage.
- Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Electrical Safety: Avoid body contact with earthed or grounded surfaces. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Personal Safety: Always wear appropriate personal protective equipment, including safety glasses, gloves, and respiratory protection if necessary. Stay alert, watch what you are doing, and use common sense when operating a power tool.
- Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
- Heat Gun Specific Safety:
- Do not direct the hot air stream at people or animals.
- Do not use the heat gun near flammable materials or gases.
- Allow the tool to cool down completely before storing.
- Ensure adequate ventilation in the work area to prevent the buildup of fumes.
- Do not block the air intake or nozzle.
Product Overview
Familiarize yourself with the components of your Wadfow Hot Air Gun before operation.

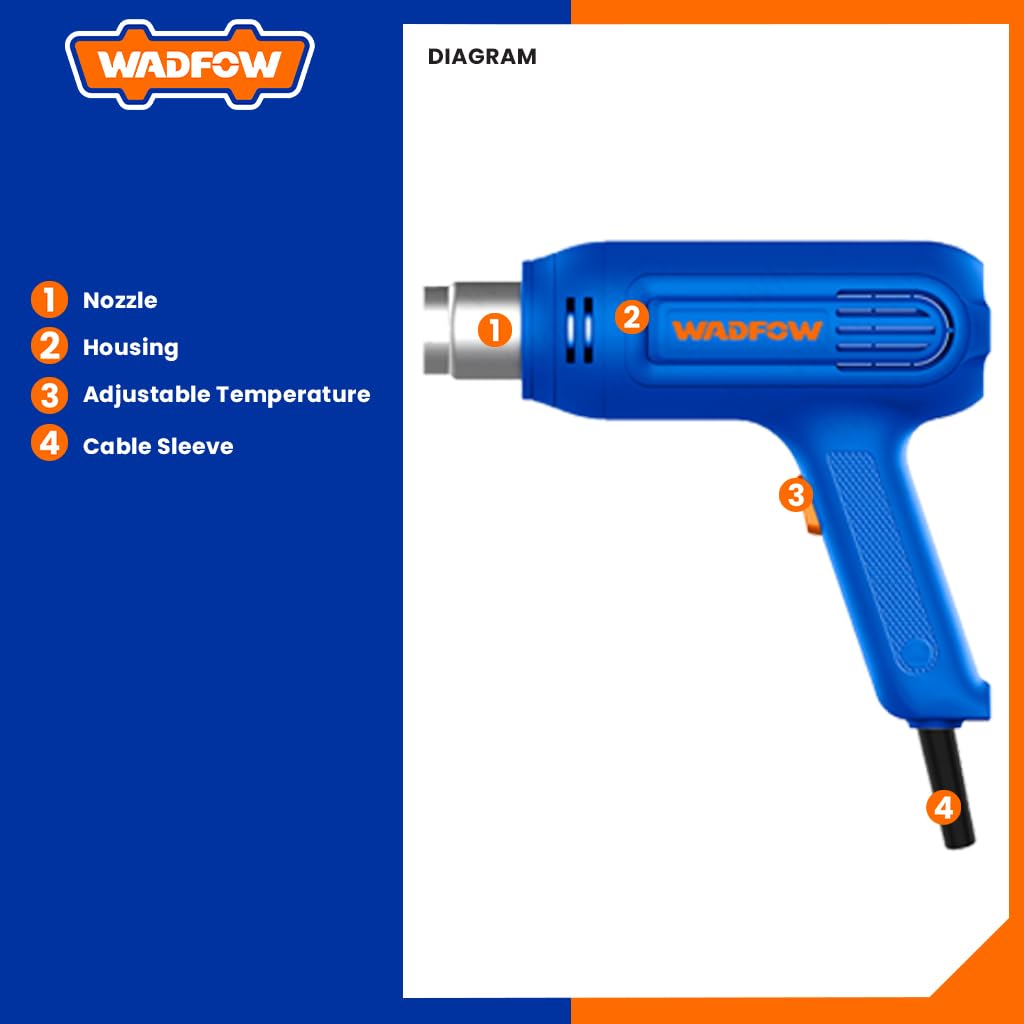

Figure 1: Wadfow 1600 Watt Hot Air Gun Components.
- Nozzle: Directs the hot air stream.
- Housing: Encloses the internal components and provides grip.
- Adjustable Temperature Switch: Controls the heat output (High, Low, Off).
- Cable Sleeve: Protects the power cord where it enters the tool.
Setup
Before first use, ensure the heat gun is in good condition and free from damage. Connect the power cord to a suitable power outlet (220-240V AC, 50/60Hz). Ensure the work area is clear and well-ventilated.
Operating Instructions
The Wadfow 1600 Watt Hot Air Gun features three working temperature settings for versatile applications.
Figure 2: Temperature Control Switch (H - High, L - Low, O - Off).
- Power On: Plug the heat gun into a power outlet.
- Select Temperature: Use the adjustable temperature switch (labeled H, L, O) to select the desired heat setting.
- "L" (Low): Provides a lower heat output for delicate tasks.
- "H" (High): Provides maximum heat output for demanding applications.
- "O" (Off): Turns the heat gun off.
- Application: Direct the nozzle towards the workpiece, maintaining a safe distance to prevent scorching or damage. Move the heat gun slowly and evenly over the surface.
- Power Off: After use, switch the temperature control to "O" (Off). Allow the heat gun to cool down completely before storing. The heating elements are designed to automatically switch off and cool when overheating, ensuring a long service life.
Maintenance
Regular maintenance ensures the longevity and safe operation of your heat gun.
- Cleaning: Disconnect the tool from the power supply before cleaning. Use a soft, damp cloth to clean the exterior of the tool. Do not use harsh chemicals or abrasive cleaners. Keep the air intake and nozzle free from dust and debris.
- Storage: Store the heat gun in a dry, secure location out of reach of children. Ensure the tool is completely cool before storing.
- Inspection: Periodically inspect the power cord for any signs of damage. If the cord is damaged, have it replaced by a qualified service technician.
Troubleshooting
If you encounter issues with your Wadfow Hot Air Gun, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Heat gun does not turn on. | No power supply; faulty switch; damaged cord. | Check power outlet and connections. Ensure switch is in "L" or "H" position. Inspect power cord for damage. |
| No hot air, only cold air. | Heating element failure; overheating protection activated. | Allow the tool to cool down. If problem persists, contact customer support. |
| Reduced airflow. | Blocked air intake or nozzle. | Disconnect from power and carefully clear any obstructions from the air intake and nozzle. |
For issues not listed here, please contact customer support.
Specifications
Key technical specifications for the Wadfow 1600 Watt Hot Air Gun.

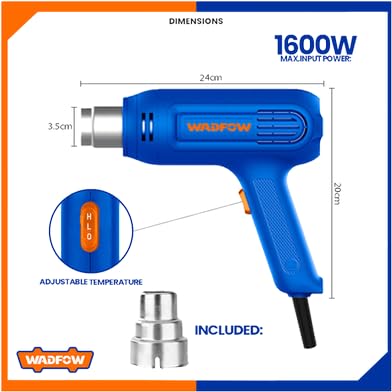

Figure 3: Wadfow 1600 Watt Hot Air Gun Dimensions and Power.
- Model Number: WADFOW 1600W HEAT GUN
- Input Power: 1600 Watts
- Temperature Settings: Three (Low, High, Off)
- Product Dimensions:
- Length: Approximately 24 cm
- Height: Approximately 20 cm
- Nozzle Diameter: Approximately 3.5 cm
- Note: Product data lists smaller dimensions (e.g., 2.46 x 0.8 x 2.42 cm), which may refer to packaging or a specific component. The visual diagram provides approximate tool dimensions.
- Item Weight: 0.78 g (Note: This value appears unusually low and may be a data entry error. Actual tool weight is typically higher.)
- Included Components: Hot Air Gun and its accessories.
Warranty and Support
Your Wadfow 1600 Watt Hot Air Gun comes with a manufacturer's warranty and support information.
- Warranty: This product includes a 1-year manufacturer warranty. Please note that physical damage is not covered under this warranty. Terms and conditions apply.
- Manufacturer: KUBER SALES ;A-26C; BHARTIYA PATH; KANTI CHANDRA ROAD; BANI PARK; JAIPUR; RAJASTHAN 302016
- Customer Support: For warranty claims, technical assistance, or further inquiries, please contact the manufacturer or your point of purchase.
