1. Introduction
This instruction manual provides essential information for the safe and proper installation, operation, and maintenance of the Sourcefy 27-9903 Natural Gas Regulator, GR-130 Series. This regulator is designed to maintain a consistent gas pressure for compatible natural gas appliances. Please read this manual thoroughly before attempting any installation or service.
2. Safety Information
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.
- Installation and service must be performed by a qualified installer, service agency, or gas supplier.
- Always shut off the gas supply before installing or servicing the regulator.
- Check for gas leaks after installation using a non-corrosive leak detection solution. Never use an open flame.
- Ensure the regulator is installed in an accessible location for inspection and service.
- Verify that the regulator specifications match the requirements of the appliance and gas supply.
3. Product Overview and Features
The Sourcefy 27-9903 Natural Gas Regulator (GR-130 Series) is engineered for reliable performance in natural gas systems. It ensures a stable gas pressure output for optimal appliance function.

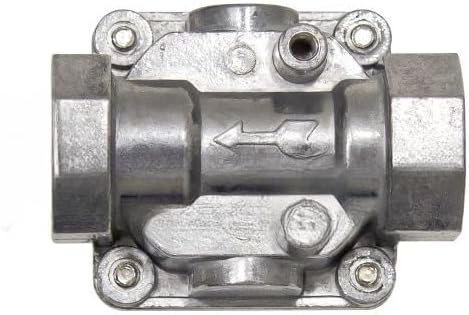

Figure 1: Top view of the regulator, illustrating the gas flow direction indicated by an arrow on the casing. This view highlights the threaded inlet and outlet connections.
Key Features:
- Manufactured with high-quality components for durability.
- Pressure and computer tested for consistent quality and reliability.
- Designed for natural gas applications.
- Model: GR-130.
4. Specifications
| Specification | Value |
|---|---|
| Model | GR-130 |
| Fuel Type | Natural Gas |
| Inlet Pressure | 1/2 PSI |
| Outlet Pressure | 5" W.C. (Water Column) |
| Inlet Connection | 3/8 NPT |
| Outlet Connection | 3/8 NPT |
| Manufacturer | Sourcefy (GDA) |
| Item Weight | 6 ounces |
Figure 2: Frontal view of the regulator, clearly displaying the model number (GR-130 NG), inlet pressure (1/2 PSI), and outlet pressure (5" W.C.) on a label. The adjustment screw is also visible.
5. Setup and Installation
IMPORTANT: Installation must be performed by a qualified professional in accordance with all local codes and regulations.
- Gas Supply Shut-off: Before beginning any work, ensure the main gas supply to the appliance is completely shut off.
- Location: Install the regulator in an upright position, ensuring the arrow on the regulator body points in the direction of gas flow towards the appliance.
- Connections: Connect the inlet side (3/8 NPT) to the gas supply line and the outlet side (3/8 NPT) to the appliance's gas inlet. Use appropriate pipe sealant on all threaded connections.
- Leak Test: After installation, slowly turn on the main gas supply. Apply a non-corrosive leak detection solution to all connections. Bubbles indicate a leak. If a leak is detected, immediately shut off the gas supply, tighten connections, and re-test.
- Ventilation: Ensure adequate ventilation around the regulator.
Figure 3: Angled perspective of the regulator, highlighting the threaded inlet port and a quality control (QC) sticker on the side of the casing. This view provides a good sense of the regulator's dimensions and connection points.
6. Operating Instructions
The Sourcefy GR-130 Natural Gas Regulator is designed for automatic operation. Once properly installed and the gas supply is turned on, it will automatically reduce and maintain the gas pressure to the specified outlet pressure (5" W.C.) for the connected appliance.
- No user adjustment is typically required for standard operation as the outlet pressure is factory set.
- Ensure the appliance connected to the regulator is compatible with the specified outlet pressure.
Figure 4: An alternative angled view of the regulator, focusing on the threaded outlet port and the upper part of the regulator where the pressure adjustment mechanism is located. This image complements Figure 3 by showing the opposite side.
7. Maintenance
Regular maintenance is crucial for the safe and efficient operation of your gas system. All maintenance should be performed by a qualified professional.
- Annual Inspection: Have the regulator and entire gas system inspected annually by a qualified technician for proper operation, leaks, and wear.
- Cleaning: Keep the exterior of the regulator clean and free from debris. Do not use harsh chemicals.
- Do Not Tamper: Do not attempt to disassemble or repair the regulator yourself. Internal components are not user-serviceable.
8. Troubleshooting
If you experience issues with your gas appliance that you suspect are related to gas pressure, consult a qualified professional. Do not attempt to diagnose or repair gas system problems yourself.
Common Issues (Requires Professional Diagnosis):
- Low Gas Pressure: Appliance not operating efficiently or flames are weak.
- High Gas Pressure: Appliance flames are too large or noisy.
- Gas Odor: Immediately shut off gas, evacuate the area, and contact your gas supplier and a qualified technician.
9. Warranty and Support
This Sourcefy regulator comes with a 6 Months Unlimited Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service.
For warranty claims or technical support, please contact Sourcefy customer service. Keep your proof of purchase for warranty validation.
For further assistance, visit the Sourcefy Store on Amazon.
