ZEBRONICS AXON 200 Portable Party Bluetooth Speaker User Manual

Product Overview

The ZEBRONICS AXON 200 is a portable Bluetooth speaker designed for dynamic audio experiences. It features a robust 180W RMS output, a 5-driver configuration with dual passive radiators for deep bass, and vibrant RGB LED lights. Built for portability with a fabric finish and carry handle, it offers multiple connectivity options and an IPX6 water-resistance rating.

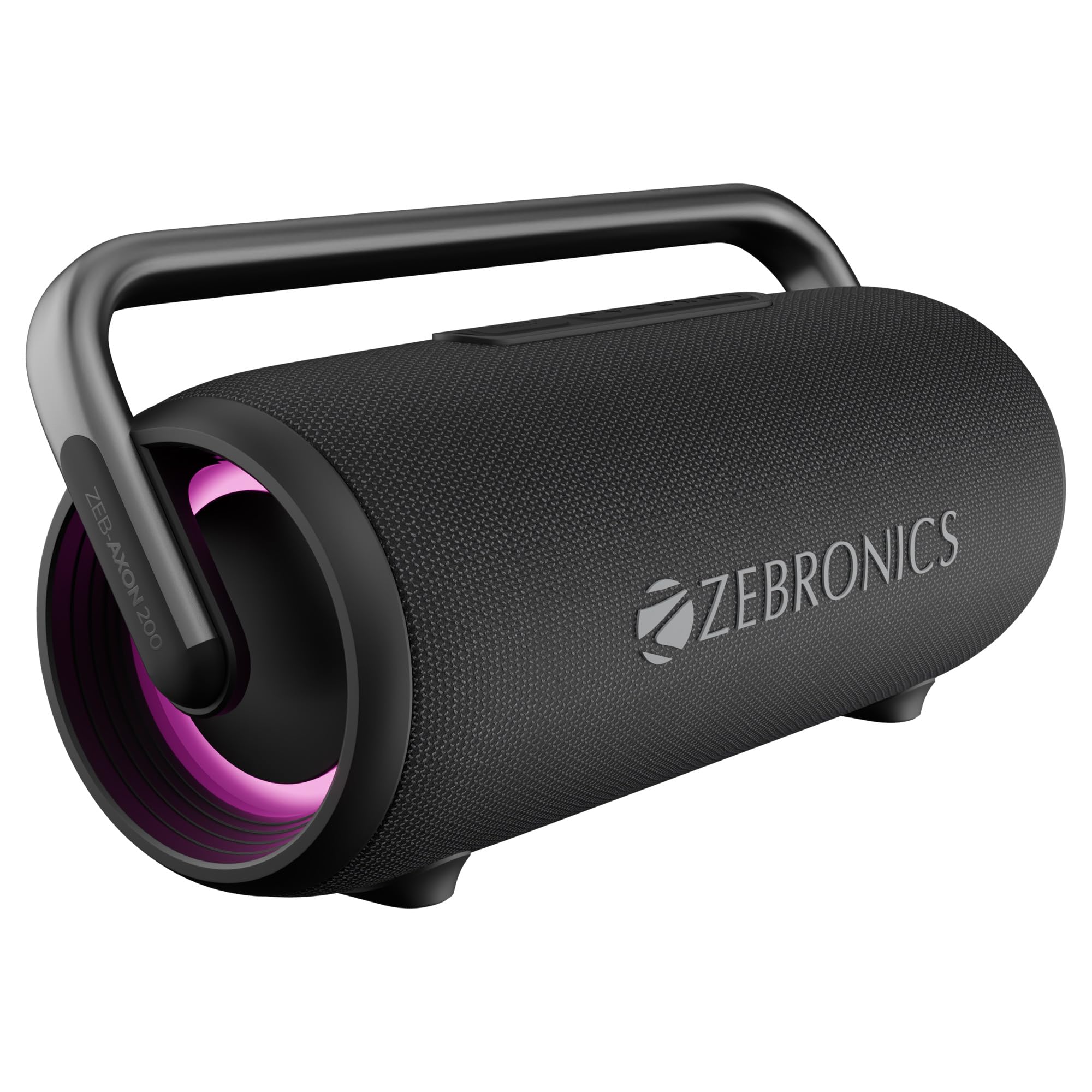

Image: The ZEBRONICS AXON 200 Portable Party Bluetooth Speaker, showcasing its sleek design and integrated carry handle.

Key Features

• 180W RMS Output: Delivers powerful and clear audio performance.


Image: The speaker emitting powerful sound, illustrating its 180W RMS output capability.

• 5-Driver Configuration: Features dual 6.98cm mid-range drivers, two 3.81cm tweeters, and a 13.3cm subwoofer for balanced sound.

Image: Diagram showing the internal 5-driver setup of the speaker, including woofer, mid-range, and tweeters.
• Dual Passive Radiators: Enhances deep bass response for a richer audio experience.


Image: The speaker positioned on a surface, with visual cues indicating the presence and effect of dual passive radiators for deep bass.

• Z-Sync Mode: Allows effortless syncing with multiple compatible speakers for an expanded audio experience.
• IPX6 Water-Resistance: Protects against splashes and light water exposure, making it suitable for outdoor use.
• 3 EQ Modes: Offers tailored sound profiles including Vocal Enhancement, Sound Monster (deep bass), and Balanced modes.

Image: Visual representation of the three EQ modes (Sound Monster, Equalizer Mode, Vocal Enhance) and the Z-Sync mode for connecting multiple speakers.
• RGB LED Lights: Features customizable RGB lighting with various modes, controllable via dedicated buttons.
• Up to 10 Hours Playback: Enjoy extended music playback on a single charge (at 50% volume with LED off & default EQ).
• Rapid Charging: Quickly recharges the battery to minimize downtime.


Image: The speaker with icons indicating up to 10 hours of battery backup and rapid charging capability.

• Multi-connectivity: Supports Bluetooth v5.3, AUX, and USB for versatile audio input.


Image: Close-up of the speaker's side, showing the RGB LED light and the AUX, USB, and DC 5V charging ports.

• Integrated Controls: Easy access to volume, media playback, and EQ settings.
• Call Function: Supports hands-free calling when connected via Bluetooth.

Image: The speaker with water droplets, indicating IPX6 water-resistance, and a phone screen showing an incoming call, highlighting the call function.

Setup Guide

1. Charging the Speaker

Before first use, fully charge the speaker. Connect the provided charging cable to the DC 5V port on the speaker and a compatible USB power adapter (not included). The charging indicator will show the charging status.

2. Power On/Off

Press and hold the power button for a few seconds to turn the speaker ON or OFF.

3. Bluetooth Pairing

1. Turn on the speaker. It will automatically enter Bluetooth pairing mode, indicated by a flashing LED light.
2. Enable Bluetooth on your mobile device or computer.
3. Search for "ZEB-AXON 200" in the list of available devices and select it to connect.
4. Once connected, the LED indicator will stop flashing and remain solid.

Operating Instructions

Bluetooth Connection

After initial pairing, the speaker will automatically connect to the last paired device when powered on, if the device's Bluetooth is active and within range.

Z-Sync Mode (True Wireless Stereo)

To connect two ZEB-AXON 200 speakers for a stereo experience:

1. Ensure both speakers are powered on and not connected to any other Bluetooth device.
2. On one speaker, press and hold the Z-Sync button. The speaker will enter TWS pairing mode.
3. The two speakers will automatically connect to each other. A confirmation tone will be heard.
4. Once connected, pair your mobile device to one of the speakers via Bluetooth as described in the 'Bluetooth Pairing' section. Both speakers will now play audio in stereo.

EQ Modes

Press the EQ button to cycle through the available equalizer modes: Vocal Enhancement, Sound Monster (for deep bass), and Balanced mode.

RGB Lighting

Press the RGB light button to change the lighting modes or turn the lights ON/OFF.

Call Function

When a call comes in while connected via Bluetooth, press the Play/Pause button to answer or end the call. Press and hold to reject a call.

Maintenance

Cleaning

Wipe the speaker with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.

Water Resistance (IPX6)

The speaker is IPX6 water-resistant, meaning it can withstand powerful water jets. Do not submerge the speaker in water. Ensure all port covers are securely closed before exposure to water.

Troubleshooting

• No Power: Ensure the speaker is charged. Connect it to a power source using the charging cable.
• No Sound: Check the volume levels on both the speaker and your connected device. Ensure the device is properly paired via Bluetooth or connected via AUX/USB.
• Bluetooth Disconnection: Ensure the speaker and your device are within the effective Bluetooth range (typically 10 meters) and there are no obstructions. Try re-pairing the device.
• Cannot Pair: Make sure the speaker is in pairing mode (flashing LED). Turn off Bluetooth on other nearby devices that might be trying to connect.
• Z-Sync Mode Not Working: Ensure both speakers are fully charged and not connected to any other Bluetooth device before initiating Z-Sync pairing.

Technical Specifications

What's in the Box

• Speaker Unit (1)
• Charging Cable (1)
• Audio Cable (1)
• QR Code Guide (1)

Warranty and Support

Warranty Information

The ZEBRONICS AXON 200 comes with a 1-year limited warranty. For warranty claims or service, please carry the product to an authorized service center.

Customer Support

For further assistance, technical support, or product inquiries, please refer to the contact information provided in the QR Code Guide or visit the official ZEBRONICS website.
