Important Safety Information
FAILURE TO FOLLOW THESE WARNINGS AND INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.
Suffocation Hazard
- Babies have suffocated on pillows, soft bedding, comforters, and extra padding.
- Suffocation can occur in gaps between a wrong-size mattress or extra padding and product sides.
- NEVER add soft bedding or padding.
- USE ONLY the mattress provided by the manufacturer.
- ALWAYS place baby on their back to reduce the risk of SIDS and suffocation.
- If a sheet is used with the pad/mattress, use only the one provided by the product manufacturer or one specifically designed to fit the dimensions of the product mattress.
Fall Hazard
- Always check that the bassinet is securely locked on the base/stand by pulling upwards on the bassinet.
- Do not use this product when the infant begins to push up on hands and knees or has reached 9 kg (19.84 lbs), whichever comes first.
- A bedside sleeper is designed to provide a sleeping area for an infant until they begin to push up on hands and knees or are approximately 5 months of age. Move your child to another sleeping product when your child reaches this stage.
Entrapment Hazard
- To prevent death from entrapment, the bedside sleeper must be properly secured to the adult bed using the attachment system.
- There must be no more than 1/2 inch (13 mm) gap between the bedside sleeper and the adult bed.
- Check tightness before each use by pulling the bedside sleeper in a direction away from the adult bed.
- If the gap exceeds 1/2 inch (13 mm), DO NOT use the product.
- Do not fill the gap with pillows, blankets, or other items that are suffocation hazards.
- This bedside sleeper is designed for use only with adult beds between 22.05 and 27.17 inches from the floor to the top of the adult mattress.
- To avoid death from the infant's neck being caught on the top rail on the side that is next to the adult bed, the top rail must be no higher than the adult bed mattress.
General Warnings
- Always read and follow the manufacturer's assembly instructions for each product use mode (bedside sleeper or bassinet).
- Always use ALL required parts for each use mode. Check the instruction manual for a list of required parts.
- Periodically check the product for loose, damaged, or missing parts.
- The Baby Bassinet must not be tilted or inclined during use.
- Never leave your child unattended. Please use under adult supervision.
- Do not substitute parts. Contact the manufacturer if replacement parts or additional instructions are needed.
Image: Warning label on the bassinet, highlighting suffocation and fall hazards.
Product Overview
The Larex Baby Bassinet (Model BSC002) is a versatile 3-in-1 product designed for newborns and infants up to approximately 5 months or 9 kg (19.84 lbs). It functions as a standalone bassinet, a bedside sleeper, and features adjustable height and portable design with wheels.
Image: The Larex Baby Bassinet in bedside sleeper mode, positioned next to an adult bed with a baby and parent.
Parts List
Before assembly, ensure all parts are present and undamaged. Refer to the diagram below for identification.
Image: Diagram illustrating all components of the Larex Baby Bassinet, including the sleeper frame, mattress, crossbar, bottom legs, height adjustable bar, stabilizing bar, and fixing belt.
- Sleeper Frame
- Mattress
- Crossbar
- Bottom Legs (2)
- Height Adjustable Bar (2)
- Stabilizing Bar (2)
- Fixing Belt (2)
Setup and Assembly
Follow these steps to assemble your Larex Baby Bassinet. It can be assembled or disassembled in a few minutes.
- Insert the Height Adjustable Bars into the Sleeper Frame.
- Attach the Bottom Legs to the Height Adjustable Bars.
- Connect the Crossbar between the two Bottom Legs.
- Insert the Stabilizing Bars into the Sleeper Frame.
- Place the Mattress securely inside the Sleeper Frame.
- Ensure all connections are firm and secure before use.
Image: Visual guide demonstrating the assembly process of the bassinet frame and attachment of components.
Assembly Video Guide
Video: A detailed video guide demonstrating the complete assembly process of the Larex Baby Bassinet.
Operating Instructions
Bedside Sleeper Mode
To use the bassinet as a bedside sleeper, unzip the side panel and lower it. This allows for easy access to your baby for nursing or comforting during the night. Ensure the bassinet is securely attached to the adult bed using the provided fixing belts and that there is no gap between the bassinet and the bed.
Image: The bassinet configured as a bedside sleeper, with the side panel lowered for easy access.

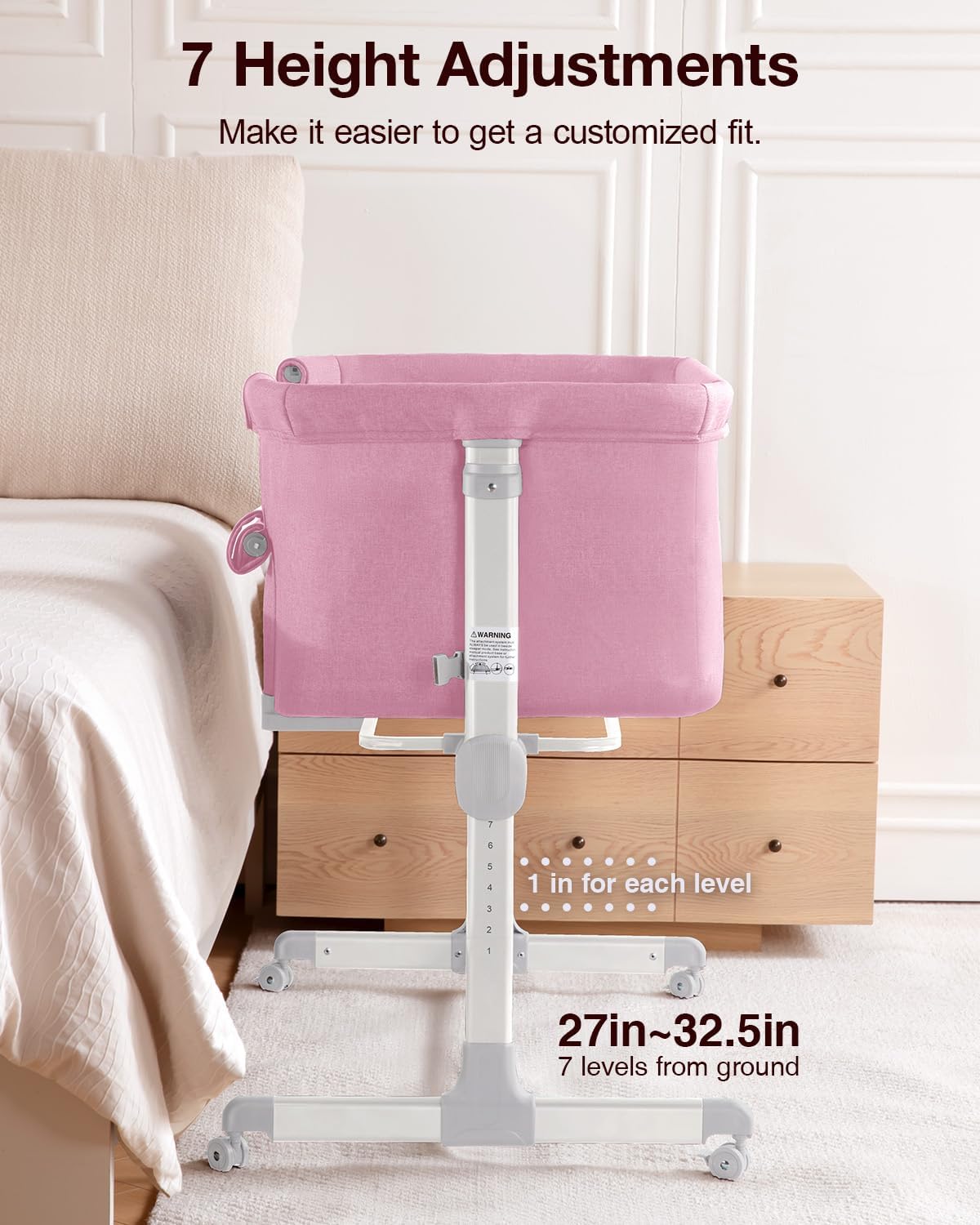

Height Adjustment
The bassinet features 7 adjustable height positions to match the height of most standard US beds and sofas. Adjust the height by pressing the buttons on the height adjustable bars and sliding the bassinet to the desired level. Ensure both sides are adjusted to the same height for stability.
Image: The bassinet's height adjustment mechanism, showing numbered levels from 1 to 7.
Image: Close-up view of the height adjustment buttons and indicators on the bassinet frame.
Portability and Wheels
The Larex Baby Bassinet is equipped with silent universal wheels with brakes, allowing for easy movement between rooms. To move, unlock the brakes on the wheels. To secure the bassinet in place, engage the wheel brakes.
Image: A parent demonstrating the ease of moving the bassinet with its universal wheels, highlighting the lockable brake feature.
Image: Detailed view of the bassinet's wheels, showing their 360-degree swivel capability and lockable function.
Usage Video Guide
Video: A video demonstrating various operational aspects of the Larex Baby Bassinet, including bedside sleeper mode and portability.
Maintenance and Care
- Fabric Care: The fabric components can be machine washed. Refer to the care label for specific instructions.
- Frame Care: Wipe the iron frame with a damp cloth to clean.
- Regular Checks: Periodically inspect the bassinet for any loose, damaged, or missing parts. Ensure all connections are secure.
Troubleshooting
No specific troubleshooting steps are provided in the product information. If you encounter any issues with your Larex Baby Bassinet, please refer to the "Contact Support" section for assistance.
Product Specifications
| Brand | Larex |
| Model Number | BSC002 |
| Product Dimensions (Overall) | 34.5" L x 22" W x 27-32.5" H |
| Mattress Dimensions | 28" L x 3" W x 18" H (Note: This appears to be the mattress dimensions from the product specifications, but the image shows overall product dimensions. Clarification may be needed.) |
| Frame Material | Iron |
| Item Weight | 19.16 Pounds |
| Recommended Age | 0-6 Months |
| Maximum Weight Capacity | 9 kg (19.84 lbs) |
| Adjustable Heights | 7 positions (27" to 32.5" from ground) |
| Features | 3-in-1 functionality (Bassinet, Bedside Sleeper), Breathable Mesh Sides, Universal Wheels with Brakes |
Image: Diagram detailing the overall dimensions of the Larex Baby Bassinet.
Warranty and Support
Specific warranty information is not provided in the product details. For warranty claims, technical support, or replacement parts, please contact Larex customer service directly.
You can visit the official Larex store on Amazon for more information: Larex Store
