LUMISOL Murphy Bed Full Size User Manual

1. Product Overview

The LUMISOL Murphy Bed Full Size is a versatile furniture piece designed to optimize living space. It functions as a compact cabinet when folded and transforms into a full-size bed when deployed. This unit includes integrated features such as removable shelves and a USB charging station for enhanced functionality.

Key Features:

• Space-Saving Design: Converts from a cabinet to a full-size bed.
• Removable Shelves: Two stowable shelves with guide rails for customizable storage.
• Integrated Charging Station: Includes two power outlets and two USB ports.
• Durable Construction: Made from premium pine wood and composite materials.
• Weight Capacity: Supports up to 400 lbs.

Figure 1.1: LUMISOL Murphy Bed in its closed cabinet configuration, showcasing its compact design and top surface for decor or essentials.

2. Safety Information

Please read and understand all safety instructions before assembly and use. Failure to follow these instructions may result in injury or product damage.

• Ensure all components are securely fastened before use.
• Do not exceed the maximum weight capacity of 400 lbs.
• Keep children and pets away from the unit during assembly and conversion.
• Use only a foldable mattress with a thickness of 6 inches or less.
• Avoid placing heavy objects on the removable shelves when the bed is being converted.
• Always unplug devices from the charging station before converting the bed.

3. Assembly Instructions

Assembly is required for this product. All necessary tools are included. It is recommended to have two adults for assembly.

3.1. Unpacking and Parts Identification

Carefully unpack all components and verify against the parts list provided in the packaging. Ensure no parts are missing or damaged. If any parts are missing or damaged, contact customer support immediately.

3.2. Assembly Steps

1. Prepare the Area: Clear a spacious area for assembly, preferably near the intended final location of the bed.
2. Assemble the Cabinet Frame: Follow the detailed diagrams in the included assembly guide to construct the main cabinet frame. Ensure all screws and fasteners are tightened securely.
3. Install Bed Mechanism: Attach the bed frame and folding mechanism to the cabinet. Pay close attention to the alignment and secure all pivot points.
4. Integrate Shelves and Charging Station: Install the guide rails for the removable shelves and connect the charging station wiring according to the instructions. Ensure the power outlets and USB ports are functional.
5. Final Checks: Before use, test the folding mechanism to ensure smooth operation. Verify all connections and fasteners are tight.

Figure 3.1: Dimensional diagram of the LUMISOL Murphy Bed, illustrating key measurements for planning and assembly.

4. Operating Instructions

4.1. Converting from Cabinet to Bed

1. Clear the Top Surface: Remove any items from the top surface of the cabinet.
2. Open the Front Panels: Gently pull the front panels of the cabinet outwards and downwards. The bed frame will begin to unfold.
3. Extend the Bed Frame: Continue to lower the bed frame until it is fully extended and resting on its support legs.
4. Position Mattress: Place your foldable mattress onto the bed frame.

Figure 4.1: The LUMISOL Murphy Bed in its fully deployed bed configuration, ready for use.

4.2. Converting from Bed to Cabinet

1. Remove Mattress: Take the mattress off the bed frame.
2. Fold Bed Frame: Lift the bed frame from the foot end, guiding it upwards and inwards towards the cabinet.
3. Close Front Panels: Once the bed frame is fully retracted, close the front panels of the cabinet until they latch securely.

4.3. Using Removable Shelves

The two side shelves can be pulled out for use or pushed in for storage. They operate on smooth guide rails.

• To extend, gently pull the shelf outwards until it locks into place.
• To retract, push the shelf inwards until it is flush with the cabinet side.
• Avoid placing excessively heavy items on the shelves.

Figure 4.2: Detail of an extended removable shelf, providing convenient bedside storage.

4.4. Using the Charging Station

The integrated charging station is located on the top surface of the cabinet. It provides two standard power outlets and two USB ports.

• Plug the bed's main power cord into a wall outlet.
• Connect your electronic devices to the available power outlets or USB ports.
• Always unplug devices before converting the bed to prevent damage to cables or devices.

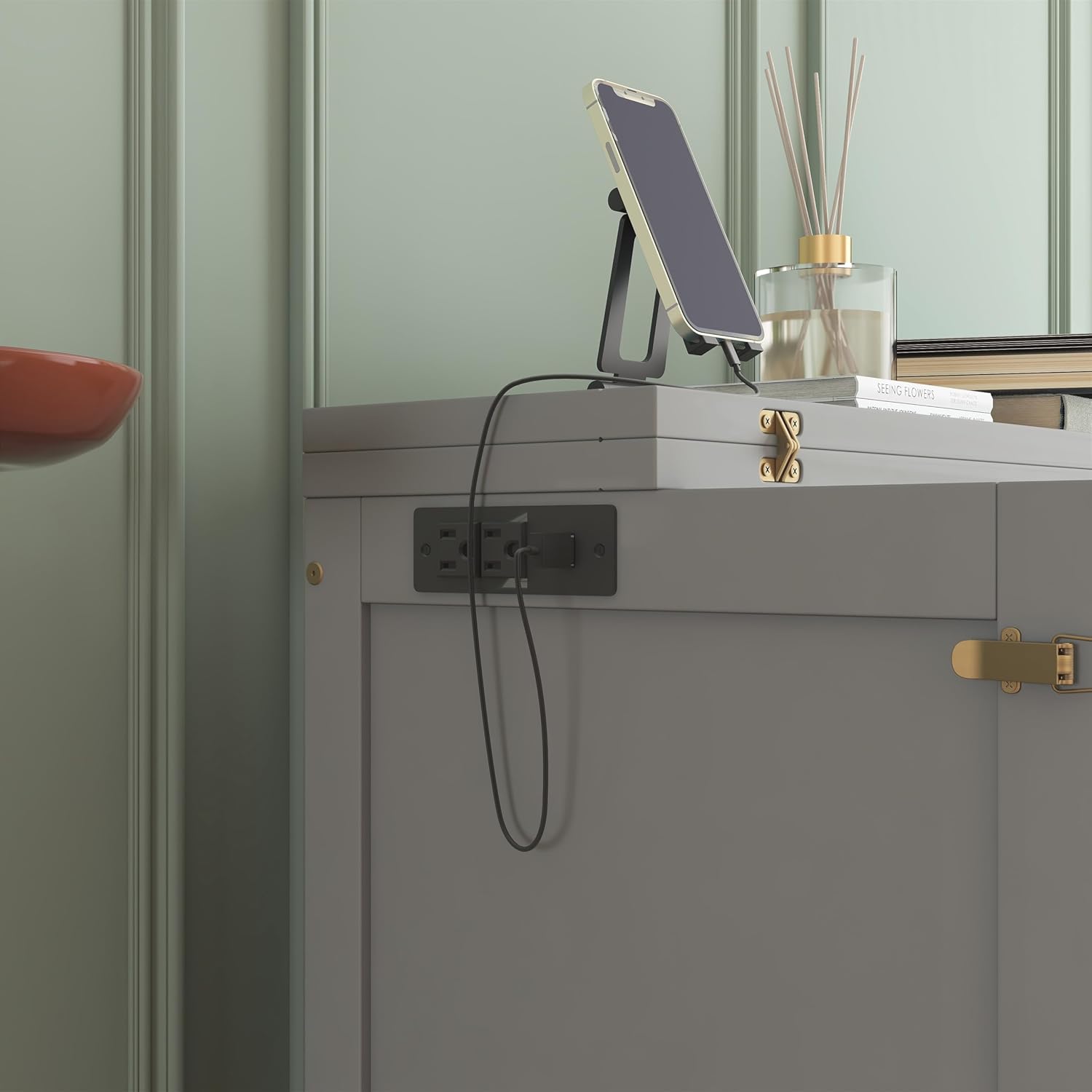

Figure 4.3: The built-in charging station, offering convenient power access for electronic devices.

5. Maintenance

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners.
• Hardware Check: Periodically check all screws and fasteners to ensure they remain tight. Tighten as necessary.
• Mechanism Lubrication: If the folding mechanism becomes stiff, apply a small amount of silicone-based lubricant to the moving parts.
• Mattress Care: Follow the care instructions for your specific foldable mattress.

6. Troubleshooting

• Bed does not fold/unfold smoothly:
  • Check for obstructions.
  • Ensure all fasteners are properly tightened.
  • Apply lubricant to the folding mechanism if needed.
• Charging station not working:
  • Verify the bed's main power cord is securely plugged into a functional wall outlet.
  • Check if the devices being charged are properly connected and functional.
• Shelves are stiff or difficult to move:
  • Ensure the guide rails are clean and free of debris.
  • Apply a small amount of lubricant to the guide rails.

For issues not covered here, please contact LUMISOL customer support.

7. Specifications

8. Warranty and Support

LUMISOL products are manufactured with quality and care. For specific warranty details, please refer to the warranty card included with your purchase or visit the official LUMISOL website.

For technical assistance, missing parts, or any inquiries, please contact LUMISOL customer support through the contact information provided in your product packaging or on the official website.

Please retain your purchase receipt for warranty claims.
