Introduction
This manual provides comprehensive instructions for the VEVOR 61 Key Digital Keyboard Piano. Please read this manual thoroughly before operating the instrument to ensure proper use, optimal performance, and longevity of your product. This digital piano is designed for beginners and experienced players alike, offering a wide range of tones, rhythms, and features for learning and creative expression.
Package Contents
Upon unboxing, please verify that all components are present:
- VEVOR 61 Key Digital Keyboard Piano
- Music Stand
- Headphones
- USB Charging Cable
- Piano Stickers
- Music Sheet Clip
- User Manual (this document)
Setup Guide
1. Power Connection
The VEVOR Digital Keyboard Piano can be powered via the included USB charging cable or by batteries (not included). Connect the USB cable to the designated port on the piano and to a compatible USB power adapter (e.g., phone charger, computer USB port).
2. Music Stand Installation
Insert the music stand into the slots located on the top rear of the keyboard. Ensure it is securely seated to hold your sheet music or tablet.
3. Connecting Peripherals

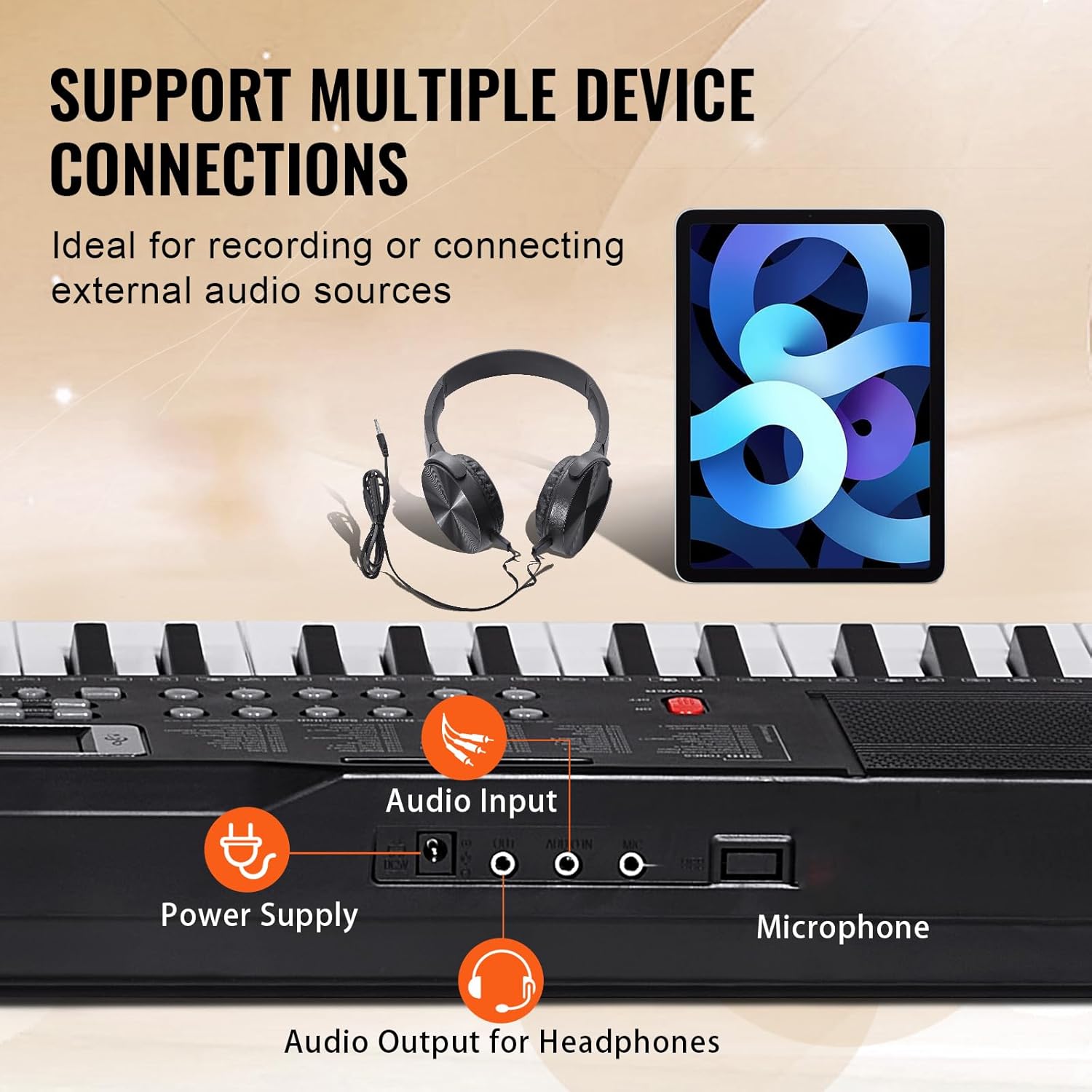

Locate the input/output ports on the back or side of the keyboard:
- Audio Output (Headphones): Connect the included headphones or external speakers to the 3.5mm audio output jack for private practice or amplified sound.
- Microphone Input: Connect a microphone to the microphone input jack for vocal accompaniment.
- Audio Input: Connect external audio sources (e.g., smartphone, MP3 player) to the audio input jack to play along with your favorite songs.
4. Applying Piano Stickers
For beginners, the included piano stickers can be applied to the keys to help identify notes and facilitate learning. Carefully peel and stick them onto the corresponding keys as indicated in the sticker guide (if provided) or based on standard piano key labeling.
Operating Instructions
1. Power On/Off
Press the POWER button to turn the keyboard on or off. The LED display will illuminate upon power-on.
2. Volume Control
Adjust the master volume using the VOLUME +/- buttons or knob (if present) to your desired level.
3. Selecting Tones (Instruments)
The keyboard features 200 standard tones. To select a tone, press the TONE button and then use the number pad or +/- buttons to enter the desired tone number. The selected tone will be displayed on the LED screen.
4. Selecting Rhythms
The keyboard includes 200 international rhythms. Press the RHYTHM button and use the number pad or +/- buttons to select a rhythm. Press START/STOP to begin or end the rhythm playback.
5. Playing Demo Songs
There are 60 built-in demo songs. Press the DEMO SONG button and use the number pad or +/- buttons to choose a song. Press PLAY to start the demo song.
6. Using the LED Display
The crystal-clear LED display provides real-time information, showing the selected tone, rhythm, demo song number, and other operational parameters. This allows for easy navigation and control of the keyboard's functions.
Key Features
61 Standard-Sized Keys
The keyboard features 61 standard-sized keys, providing a familiar feel for piano players and aiding in proper finger placement and technique development.
200 Tones and 200 Rhythms
Explore a vast array of musical possibilities with 200 different instrument tones and 200 diverse rhythms, allowing for versatile musical expression across various genres.
60 Demo Songs
Learn and practice with 60 pre-recorded demo songs, perfect for beginners to understand song structure and rhythm.
Built-In Dual Speakers
Equipped with two integrated speakers, the piano delivers clear and powerful sound, creating an immersive audio experience for both practice and performance.
Connectivity Options
The piano supports multiple device connections, including audio output for headphones or external speakers, microphone input for singing along, and audio input for connecting external music sources. This versatility makes it ideal for various practice and performance scenarios.
Maintenance
To ensure the longevity and optimal performance of your VEVOR Digital Keyboard Piano, follow these maintenance guidelines:
- Cleaning: Use a soft, dry cloth to wipe the surface of the keyboard. For stubborn dirt, slightly dampen the cloth with water and a mild, non-abrasive cleaner, then wipe dry immediately. Avoid using harsh chemicals or abrasive materials.
- Storage: Store the keyboard in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity. When not in use for extended periods, consider covering it to protect against dust.
- Handling: Handle the keyboard with care. Avoid dropping it or subjecting it to strong impacts. Do not place heavy objects on top of the keys.
- Power: Disconnect the power adapter when the keyboard is not in use or during electrical storms. If using batteries, remove them if the keyboard will not be used for a long time to prevent leakage.
Troubleshooting
If you encounter any issues with your VEVOR Digital Keyboard Piano, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No power/Keyboard does not turn on. | Power adapter not connected properly; Batteries are dead or incorrectly inserted; Power button not pressed firmly. | Ensure power adapter is securely connected. If using batteries, replace them with new ones and check polarity. Press the POWER button firmly. |
| No sound from speakers/headphones. | Volume is too low; Headphones not fully plugged in; External speakers not connected or powered on. | Increase the master volume. Ensure headphones are fully inserted into the audio output jack. Check connections and power for external speakers. |
| Keys feel loose or unresponsive. | Normal wear and tear; Minor manufacturing variation. | While some key movement is normal, if a key is completely unresponsive, contact customer support. Avoid excessive force on keys. |
| Microphone or external audio input not working. | Cable not connected properly; Device volume too low; Incompatible device. | Ensure cables are fully inserted into the correct input jacks. Check the volume on the connected device. Ensure the connected device is compatible. |
| Distorted sound. | Volume too high; Poor quality audio source; Damaged speakers. | Lower the volume. Try a different audio source. If distortion persists, contact customer support. |
Specifications
| Feature | Detail |
|---|---|
| Model Name | 61 Key Digital Keyboard Piano |
| Item Model Number | BD-663 |
| Number of Keys | 61 |
| Tones | 200 |
| Rhythms | 200 |
| Demo Songs | 60 |
| Connectivity Technology | Auxiliary |
| Connector Type | 3.5mm Jack, USB Type A |
| Power Source | Battery Powered / USB Powered |
| Item Weight | 5.07 Pounds (2.3 kg) |
| Package Dimensions | 37.2 x 12.99 x 4.92 inches (94.5 x 33 x 12.5 cm) |
| Manufacturer | VEVOR |
| UPC | 197988851295 |
Warranty and Support
VEVOR products are designed for durability and performance. For warranty information, technical support, or service inquiries, please contact VEVOR customer service through their official website or the contact information provided with your purchase. Please have your model number (BD-663) and purchase details ready when contacting support.
For more information, visit the official VEVOR Store: VEVOR Store on Amazon
