1. Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your TOPINCN Round Shower Floor Drain. Please read this manual carefully before installation and use to ensure proper function and longevity of the product. Keep this manual for future reference.
2. Product Overview
The TOPINCN Round Shower Floor Drain is designed for efficient water drainage in shower areas, featuring an integrated hair catcher to prevent clogs. Its modern, polished finish adds an elegant touch to any bathroom decor. The product is compatible with 90mm waste holes.
Key Features:
- Easy Installation: Designed for simple setup without the need for specialized tools.
- Hair Catcher: Includes a hair cleaner to prevent hair accumulation and plumbing issues.
- Efficient Drainage: Engineered to eliminate slow drainage, compatible with 90mm waste holes.
- Modern Design: Features a polished chrome-plated lid for a sleek and elegant appearance.
- Easy Maintenance: The chrome lid and white dipping cup are designed for easy cleaning.
Figure 2.1: The TOPINCN Round Shower Floor Drain, highlighting its design and compatibility with 90mm waste holes.
Figure 2.2: Exploded view of the shower floor drain components.
3. Setup and Installation
The TOPINCN Round Shower Floor Drain is designed for straightforward installation. No special tools are required for assembly.
Installation Steps:
- Prepare the Shower Tray: Ensure your shower tray has a 90mm waste hole. Clean the area around the waste hole to ensure a secure fit.
- Insert the Base: Place the white plastic base of the drain into the 90mm waste hole of the shower tray. Ensure it sits flush and securely.
- Attach the Chrome Lid: Position the chrome-plated lid over the base. It should fit snugly, allowing water to drain through the openings.
- Test Drainage: Run water into the shower tray to verify proper drainage and check for any leaks.

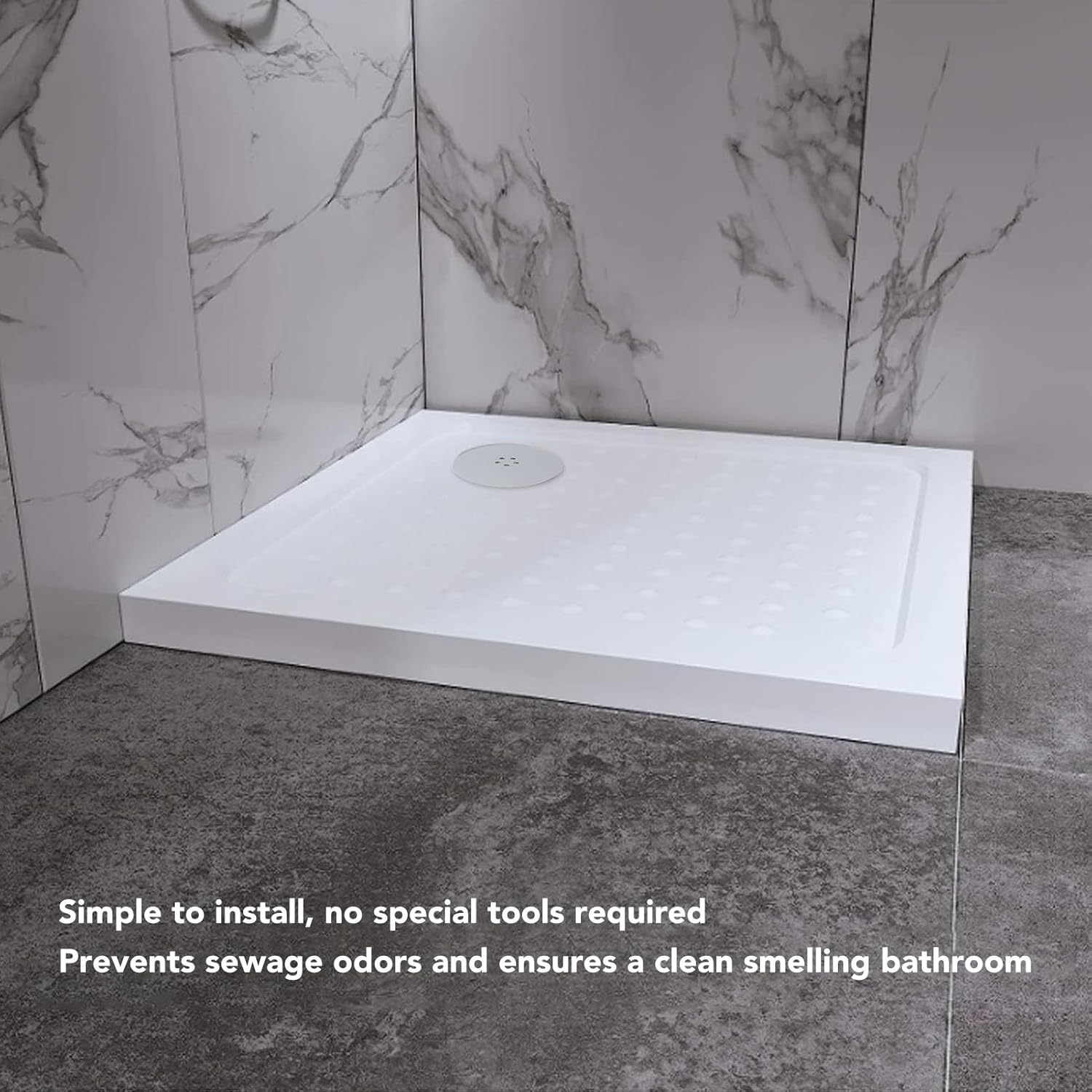

Figure 3.1: The shower drain installed in a typical shower tray.
4. Operation
Once installed, the TOPINCN Round Shower Floor Drain operates automatically to facilitate water drainage. The design ensures efficient flow while the integrated hair catcher prevents larger debris from entering your plumbing system.
Simply use your shower as normal. The drain's quick-drain design is intended to prevent water from pooling in the shower tray.
5. Maintenance
Regular maintenance of your shower floor drain is crucial to ensure optimal performance and prevent clogs. The TOPINCN drain is designed for easy cleaning.
Cleaning the Hair Catcher:
- Remove the Lid: Gently lift the chrome-plated lid from the drain base.
- Access the Hair Catcher: The white dipping cup acts as the primary hair catcher. Remove it from the drain base.
- Clean Hair and Debris: Use the provided hair cleaner tool (or a similar tool) to remove accumulated hair and debris from the dipping cup and the drain opening.
- Rinse Components: Rinse the dipping cup and the chrome lid under running water to remove any remaining residue.
- Reassemble: Place the clean dipping cup back into the drain base, then replace the chrome lid securely.
Figure 5.1: Using the hair cleaner tool to remove accumulated hair.
Figure 5.2: The drain components separated for cleaning.
6. Troubleshooting
If you encounter issues with your TOPINCN Round Shower Floor Drain, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Slow Drainage | Accumulation of hair and debris in the hair catcher or drain pipe. | Remove the lid and hair catcher, clean thoroughly as described in Section 5. If the problem persists, the clog may be further down the plumbing system and require professional assistance. |
| Unpleasant Odors | Buildup of organic matter in the drain or a dry P-trap. | Clean the drain and hair catcher thoroughly. Ensure water is regularly run through the drain to keep the P-trap filled, preventing sewer gases from entering the bathroom. |
| Water Leakage Around Drain | Improper installation or damaged seal. | Ensure the drain base is properly seated and sealed in the shower tray's waste hole. Check for any visible damage to the drain components. Re-installation may be necessary. |
7. Specifications
The following are the technical specifications for the TOPINCN Round Shower Floor Drain:
- Item Type: Shower Floor Drain
- Material: Plastic (Base), Chrome-plated (Lid)
- Weight: Approximately 123g (4.3oz)
- Floor Drain Top Diameter: Approximately 115mm (4.53in)
- Base Top Length: Approximately 77mm (3.03in)
- Base Bottom Length: Approximately 65mm (2.56in)
- Base Height: Approximately 72mm (2.83in)
- Compatible Waste Hole Diameter: 90mm
- Model Number: TOPINCNzotdigs3bw
Figure 7.1: Product dimensions.
8. Warranty and Support
No specific warranty information is provided with this product. For any support inquiries or issues not covered in this manual, please contact the retailer or manufacturer directly.
