1. Introduction and Overview
This manual provides essential information for the safe and efficient operation of your Elefast 48V 105AH Lithium LiFePO4 Battery. This high-performance battery is designed for golf carts and similar applications, featuring A+ top-grade EVE battery cells, a built-in 200A BMS, and a 2.8-inch LCD touch monitor. It offers a deep cycle life of 6000+ and excellent compatibility with various golf cart controllers.

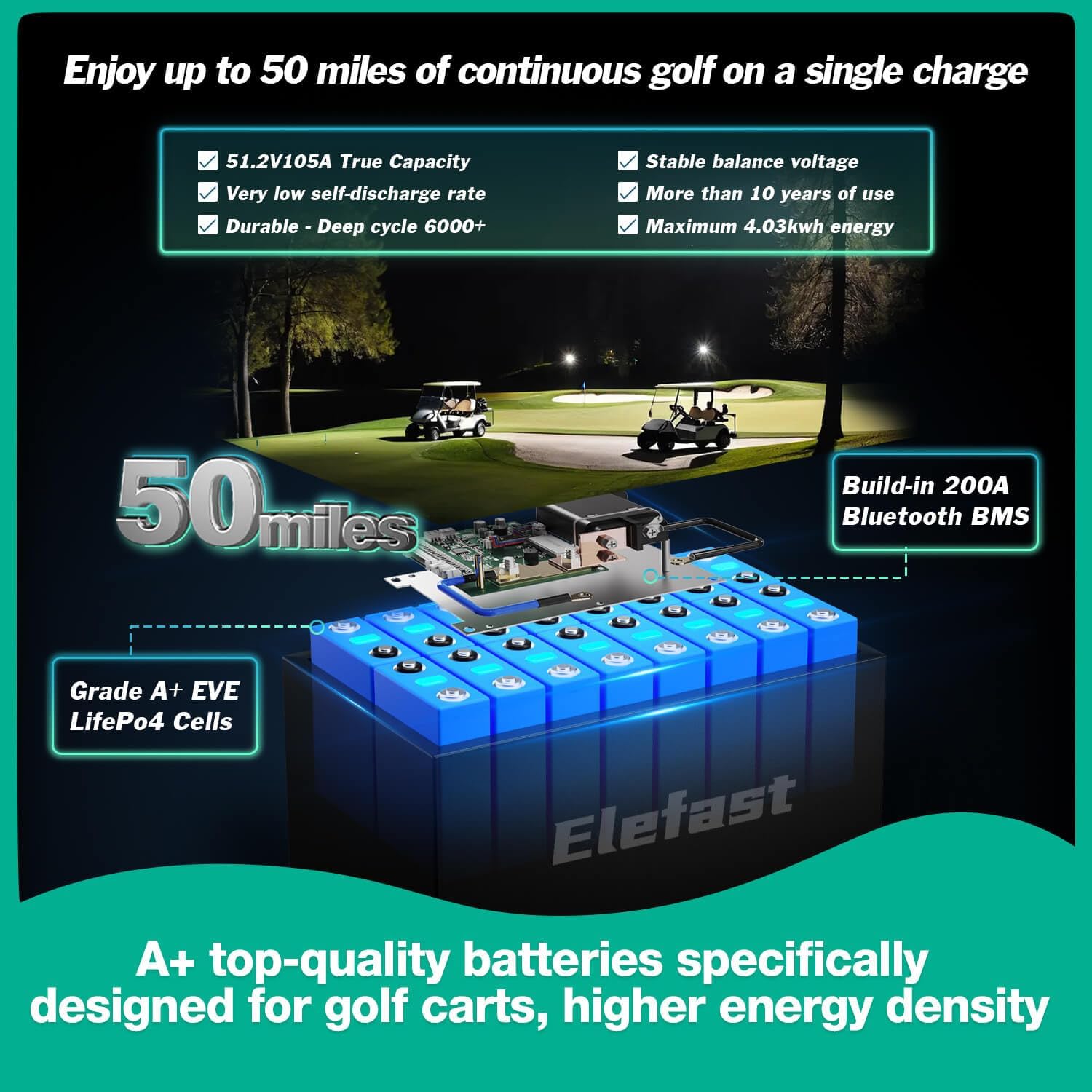

Figure 1: Elefast 48V 105AH LiFePO4 Battery highlighting key features like 50 miles range, 200A BMS, and Grade A+ EVE cells.
2. What's in the Box
Upon unboxing your Elefast 48V 105AH LiFePO4 Battery Kit, you should find the following components:
- Battery Body
- 2.8-inch LCD touch screen
- 58.4V 18A charger
- User Manual
- RS485 Cable
- Screws for installation
For a visual guide on unboxing and identifying components, please refer to the video below:
Video: Elefast 105AH 48v Golf Cart Batteries Unpacking List. This video demonstrates the contents of the product packaging.
3. Specifications
| Feature | Detail |
|---|---|
| Brand | Elefast |
| Model | 48V105AH Universal |
| Battery Type | Lithium LiFePO4 (Lithium-Phosphate) |
| Nominal Voltage | 48 Volts (51.2V nominal) |
| Rated Capacity | 105AH |
| Energy | 5.376 kWh |
| Max Charge Current | 100A |
| Max Discharge Current | 200A (Supports 2C discharge up to 35 seconds and surge 3C discharge) |
| Charge Voltage | 56.8V-58.4V |
| BMS | Built-in 200A Intelligent BMS |
| Cycle Life | 6000+ deep cycles |
| Dimensions (DxWxH) | 12.6"D x 20.08"W x 8.86"H |
| Item Weight | 100 Pounds |
| Terminal Type | Bolt Terminal |
| Waterproof Rating | IP65 |
Figure 2: Physical dimensions of the Elefast 48V 105AH LiFePO4 Battery.
4. Safety Information
The Elefast 48V 105AH LiFePO4 Battery features a built-in 200A intelligent Battery Management System (BMS) that provides multi-protection functions to ensure safe operation and longevity:
- Overcharging Protection: Prevents the battery from being charged beyond its safe voltage limit.
- Overdischarging Protection: Stops discharge when the battery voltage drops too low, protecting cell integrity.
- Overloading Protection: Manages current draw to prevent damage from excessive loads.
- High Temperature Protection: Disconnects the battery if internal temperatures exceed safe limits.
- Short Circuit Protection: Automatically cuts off power in case of a short circuit.
- Low Temperature Protection: The BMS will immediately cut off charging if the battery temperature falls below -4°F (-20°C) or below 32°F (0°C) for charging, and will resume automatically when the temperature rises to 0°F (-17.8°C).
Figure 3: Illustration of the BMS low temperature protection mechanism.
5. Installation
The Elefast LiFePO4 battery is designed for easy installation, often achievable by one person without complex wiring. It is maintenance-free and features a fireproof, shockproof, and IP65 waterproof certification.
General Installation Steps:
- Ensure the golf cart is turned off and the main power is disconnected.
- Remove existing batteries (if any) and clean the battery compartment.
- Carefully place the Elefast LiFePO4 battery into the compartment.
- Secure the battery using the provided straps or mounting hardware to prevent movement.
- Connect the battery terminals (positive to positive, negative to negative) using appropriate cables and the provided screws. Ensure connections are snug but not overtightened.
- Connect the charger and LCD monitor cables to their respective ports on the battery.
For a detailed visual guide on the installation process, please watch the following video:
Video: Elefast 105AH 48v Lithium Battery Golf Cart Install Demo. This video provides a step-by-step demonstration of battery installation in a golf cart.
Figure 4: Detailed view of the battery's junction ports for connections.
6. Operating Instructions
Your Elefast battery kit includes a 2.8-inch LCD touch screen and supports Bluetooth connectivity for real-time monitoring and control via a mobile application.
6.1 LCD Touch Screen
The LCD screen provides immediate access to critical battery information:
- Battery Percentage: Displays the current state of charge.
- Current (A): Shows the current flowing in or out of the battery.
- Voltage (V): Indicates the real-time battery voltage.
- Temperature (°F/°C): Monitors the battery's internal temperature.
- Time to Empty/Full: Estimates remaining runtime or charging time.
- Cycle Count: Tracks the number of charge/discharge cycles.
- Individual Cell Voltages: Allows monitoring of each cell's voltage for balancing and health checks.
You can navigate through different pages on the touch screen to view various parameters and even toggle discharge/charge functions.
6.2 Bluetooth App
Download the dedicated Elefast Bluetooth app on your smartphone to access advanced monitoring and control features:
- All data available on the LCD screen is also accessible via the app.
- Remotely turn charging or discharging on/off.
- Monitor individual cell voltages and temperatures.
- View battery status and protection alerts.
- The app allows for a
