ABCCANOPY Arched Pergola 10'x10' with Retractable Sun Shade User Manual

Introduction

Thank you for choosing the ABCCANOPY Arched Pergola. This 10x10 foot pergola is designed to provide a versatile and stylish shaded area for your outdoor living space. Featuring a sturdy powder-coated steel frame and a durable retractable Rip-Lock canopy, it offers both aesthetic appeal and practical sun protection. This manual will guide you through the assembly, operation, and maintenance of your new pergola to ensure long-lasting enjoyment.

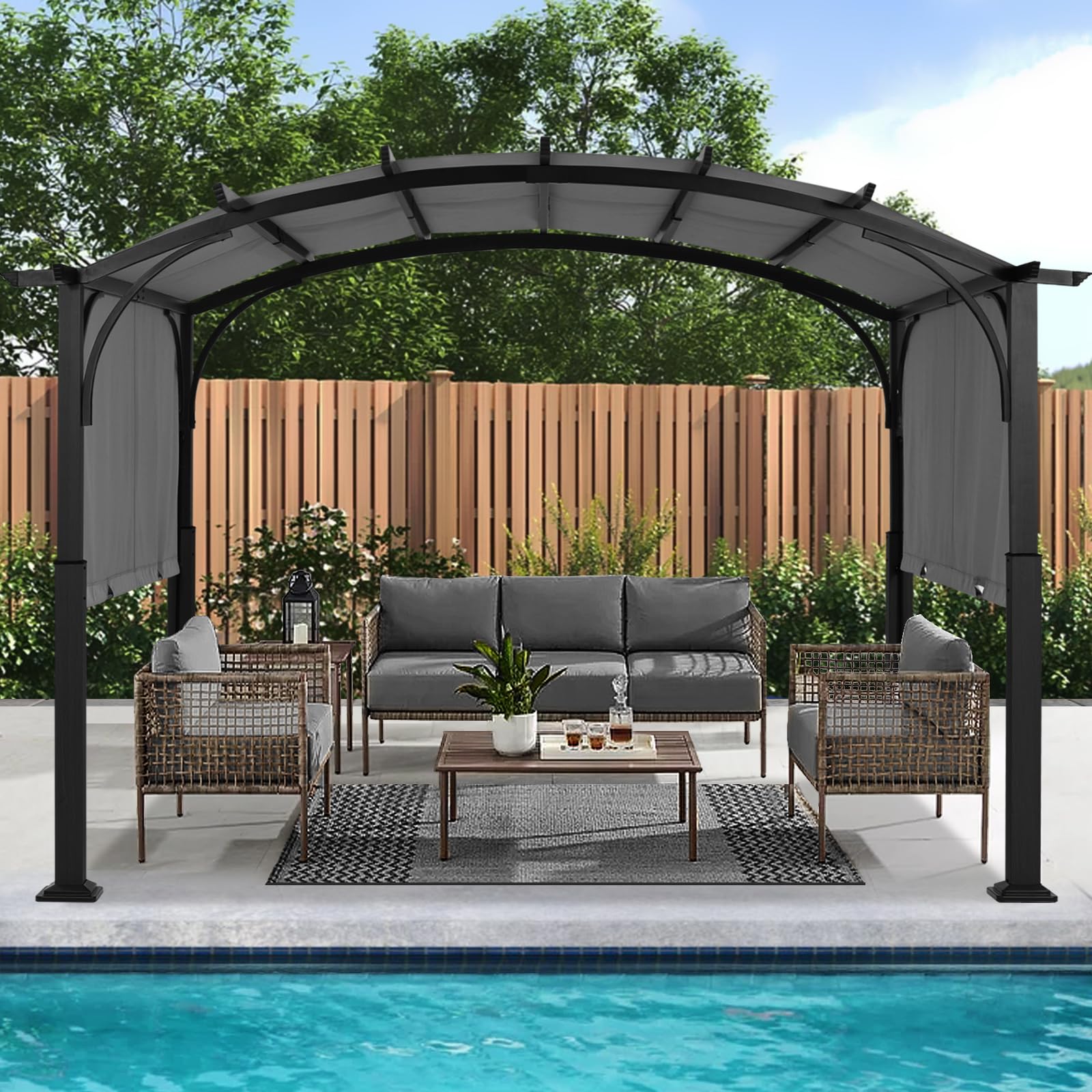

Image: The ABCCANOPY Arched Pergola 10x10 in Dark Gray, showcasing its overall design and retractable canopy.

Safety Information

• Always assemble the pergola on a flat, level surface.
• Ensure all bolts and fasteners are securely tightened before use. Periodically check for tightness.
• Do not hang heavy objects from the pergola frame.
• Retract the canopy during strong winds, heavy rain, or snow to prevent damage to the structure and fabric.
• Keep children and pets away from the assembly area.
• This product is intended for outdoor use only.
• Seek assistance for assembly; two people are recommended for safe installation.

Package Contents

Before beginning assembly, ensure all parts are present and undamaged. Refer to the parts list provided in your packaging. Typically, the package includes:

• Powder-coated steel frame components (legs, beams, arches)
• Retractable Rip-Lock canopy fabric
• Hardware kit (bolts, nuts, washers, ground stakes)
• Assembly tools (usually an Allen wrench)
• Instruction manual (this document)

Setup and Assembly

Assembly of the ABCCANOPY Arched Pergola requires two adults. Follow the step-by-step instructions provided in your physical manual for detailed diagrams. Below are general guidelines and key features for assembly.

1. Understand Product Dimensions

Image: Diagram illustrating the overall dimensions of the 10x10 FT pergola, including height and width measurements in centimeters and feet.

The pergola measures 10 feet in length and 10 feet in width, providing 100 square feet of shade. The overall height is approximately 90.6 inches (230 cm). Ensure you have adequate space for installation.

2. Assemble the Frame

Begin by connecting the main frame components. The frame is constructed from powder-coated steel for durability and resistance to rust and chipping. The design incorporates triangulated steel braces for enhanced structural strength.

Image: Exploded view diagram highlighting the durable powder-coated steel structure, handy installation points, square foot-pads for stability, and the unique handle for canopy adjustment.

The four square legs are reinforced at the bottom with sturdy foot-pads. These foot-pads have pre-drilled holes for ground nailing to add stability, especially important in windy conditions.

Image: Close-up view of a sturdy pole base, showing the reinforced foot plate with pre-drilled holes for securing the pergola to the ground.

3. Attach the Retractable Canopy

Once the frame is securely assembled, attach the Rip-Lock fabric canopy. This fabric is designed to be waterproof, UV protective, and tear-resistant, providing a comfortable shelter.

Image: Detailed view of the premium Rip-Lock fabric, showing its textured surface with water droplets, emphasizing its tear-resistant, water-repellent, and UV-blocking properties.

Follow the instructions to properly thread and secure the canopy onto the frame's retractable mechanism. Ensure it moves smoothly along the tracks.

Operating the Retractable Canopy

The pergola features a simple retractable canopy design, allowing you to adjust the shade coverage as needed. This provides flexibility for different weather conditions and privacy requirements.

Image: The pergola with its retractable canopy, illustrating the safety locking system and the convenient handle used to adjust the canopy's position.

• To Extend the Canopy: Gently pull the handle located on the canopy fabric outwards. Guide the canopy along its tracks until it reaches the desired extension.
• To Retract the Canopy: Push the handle inwards, guiding the canopy back along its tracks until it is fully retracted or at your preferred position.
• Locking System: The canopy is equipped with a safety locking system to secure it in place once adjusted. Ensure the canopy is locked to prevent unwanted movement, especially in breezy conditions.

Always operate the canopy smoothly and avoid forcing it. If you encounter resistance, check for any obstructions in the tracks.

Maintenance

Proper maintenance will extend the life and appearance of your pergola.

• Canopy Fabric: Clean the Rip-Lock fabric with mild soap and water. Rinse thoroughly and allow to air dry completely before retracting or storing. Do not use harsh chemicals or abrasive cleaners.
• Frame: Wipe the powder-coated steel frame with a damp cloth to remove dirt and debris. Inspect the frame periodically for any signs of rust or damage. Touch up any scratches with rust-inhibiting paint if necessary.
• Hardware: Regularly check all bolts, nuts, and fasteners to ensure they remain tight. Re-tighten as needed.
• Seasonal Care: In regions with harsh winters, it is recommended to remove the canopy fabric and store it indoors to protect it from heavy snow and ice. Consider disassembling the entire structure if extreme weather is anticipated.

Image: A close-up of the pergola's durable fabric, highlighting its UV-protection, water-repellent, and tear-resistant qualities.

Troubleshooting

Specifications

Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your product or visit the official ABCCANOPY website. You can also contact ABCCANOPY customer service directly for assistance with parts, assembly, or any other inquiries.
